DD-EA242W Sharp MultiSync DD-EA242W 24" Class WUXGA LED Monitor - 16:10 - Black

General Information

Manufacturer: Sharp Electronics
Manufacturer Part Number: DD-EA242W
Manufacturer Website Address: http://sharp.ca/en/
Brand Name: Sharp
Product Line: MultiSync
Product Model: DD-EA242W
Product Name: MultiSync DD-EA242W Widescreen LED Monitor
Marketing Information:

The 24" Class (24.1" diagonal) Sharp MultiSync® EA242W is a WUXGA ultra-narrow bezel IPS desktop monitor ideal for demanding commercial environments. Designed with professional color and image quality standards, this 16:10 widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA242W allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. Smart sensing technology automatically detects your work conditions to determine the proper display brightness with ambient light and human sensors. Full-featured connectivity including HDMI, DisplayPort, USB-C, VGA and 2-port USB 3.1 hub connects users to the latest peripherals and future-proofs your investment. With DisplayPort ouput the EA242W is ideal for multiple monitor configurations and includes ControlSync™ technology which allows users to control up to six EA242W displays in a multi-monitor co
Product Type: LED Monitor

Technical Information

Number of Screens: 1
Screen Size Class: 24"
Viewable Screen Size: 24"
Screen Mode: WUXGA
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 6 ms
Aspect Ratio: 16:10
Pixel Pitch: 0.27000 mm x 0.27000 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Mount Type: Desk Mountable
HDCP Supported: Yes
Features: sRGB,Separate Sync,ControlSync,Auto Brightness Control (ABC),Ambient Light Sensor,Eco Mode,Carbon Footprint Meter,Resettable Cost Meter,UltraNarrow Border,Carrying Handle,Rapid Response Technology,Ambix Dual Input Technology,XtraView,On-screen Display (OSD),On-screen Display (OSD) Lock,Cable Management,Dynamic Visual Mode,Plug & Play,Display Power Management Signaling (DPMS),AccuColor,DICOM Calibrated,Kensington Lock,Wide Viewing Angle,Ergonomic Design,Smart Sensing Technology,Cable Lock Slot
Horizontal Frequency: 31.50 kHz to 77 kHz
Vertical Frequency: 50 Hz to 60 Hz
Adjustable Stand: Yes

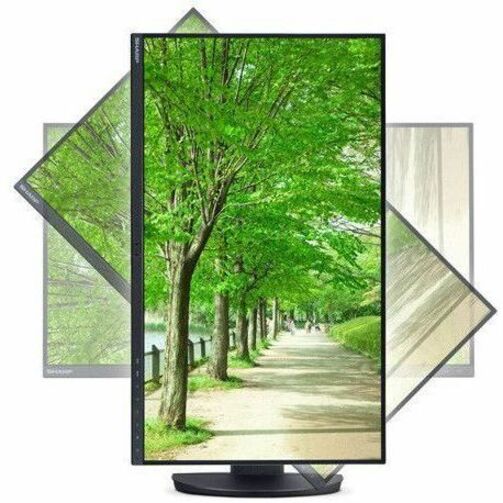

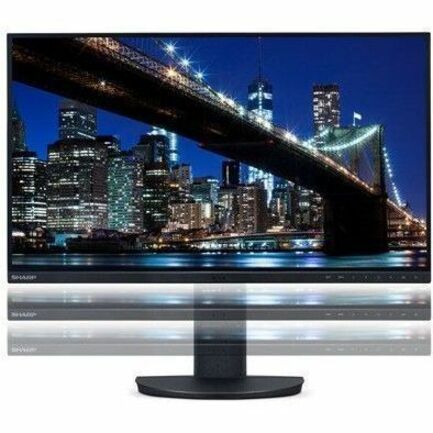

Stand Adjustments: Swivel,Height,Pivot,Tilt
Active Display Area (H x V): 20.40" (518.16 mm) x 12.70" (322.58 mm)

Video

Maximum Resolution: 1920 x 1200
Standard Refresh Rate: 62 Hz
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 300 cd/m²
Color Gamut: 77% Adobe RGB,79% Adobe RGB,73.1% NTSC,76% NTSC,99.8% sRGB,107% sRGB
Pixel Per Inch (PPI): 94

Audio

Speakers: Yes

Interfaces/Ports

Network (RJ-45): Yes
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
USB Type-C: Yes
Number of USB Ports: 2
Ethernet Technology Details: 1 x RJ-45 Ethernet

Built-in Devices

Built-in Devices: USB Hub

Environmental Conditions

Operating Temperature Range: 41°F (5°C) to 95°F (35°C)
Operating Humidity Range: 20% to 80% (Non-condensing)
Maximum Operating Altitude: 16404 ft (4999.94 m)

Power Description

Operating Power Consumption: 19 W
Standby Power Consumption: 300 mW
Maximum Power Consumption: 65 W

Physical Characteristics

VESA Mount Compatible: Yes
Color Family: Black
Product Color: Black
Height: 13.70" (347.98 mm)
Width: 20.90" (530.86 mm)
Depth: 1.90" (48.26 mm)
Height with Stand: 20.30" (515.62 mm)
Width with Stand: 20.90" (530.86 mm)
Depth with Stand: 9.80" (248.92 mm)
Weight (Approximate): 9.30 lb (4218.41 g)
Weight with Stand (Approximate): 14.80 lb (6713.17 g)
Compressed Height with Stand: 14.40" (365.76 mm)
Extended Height with Stand: 20.30" (515.62 mm)

Miscellaneous

Package Contents:

• MultiSync DD-EA242W Widescreen LED Monitor
• Power Cord
• DisplayPort Cable
• USB-C Cable
• ControlSync Cable
• Stand
• Setup Sheet
• User Manual

Application/Usage: Business
Energy Star: Yes
TCO Certified: Yes
Environmental Certification: TCO Certified 9.0
Energy Efficiency Certification: ENERGY STAR 8.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
