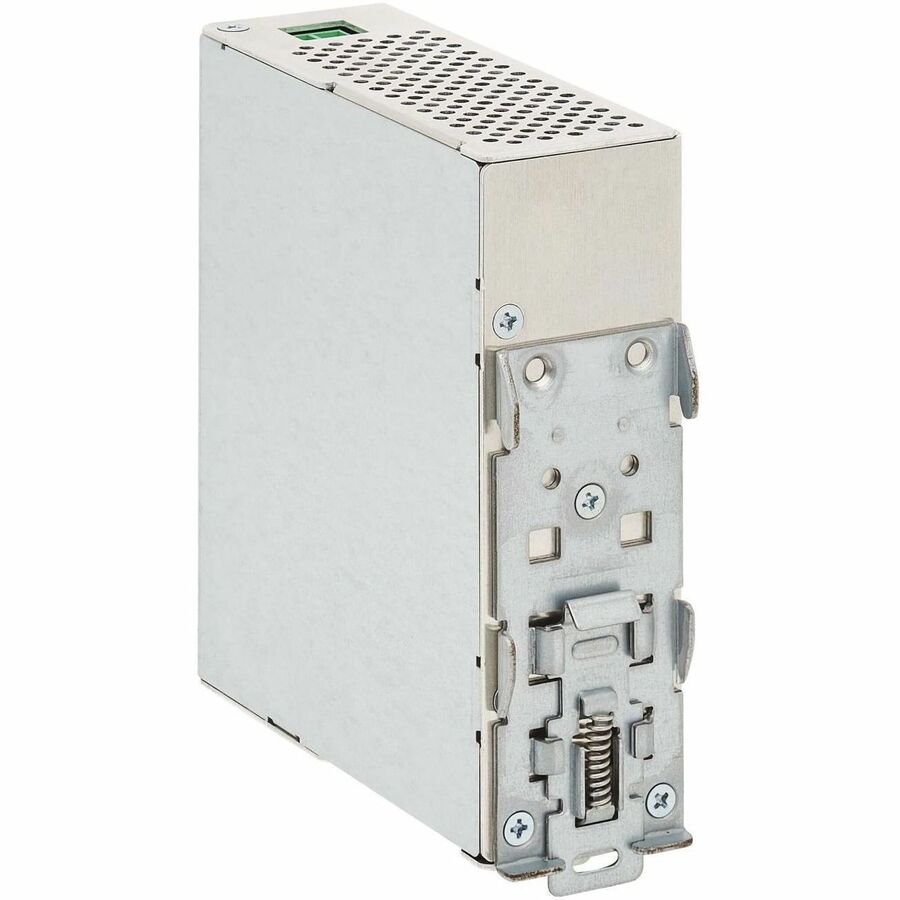

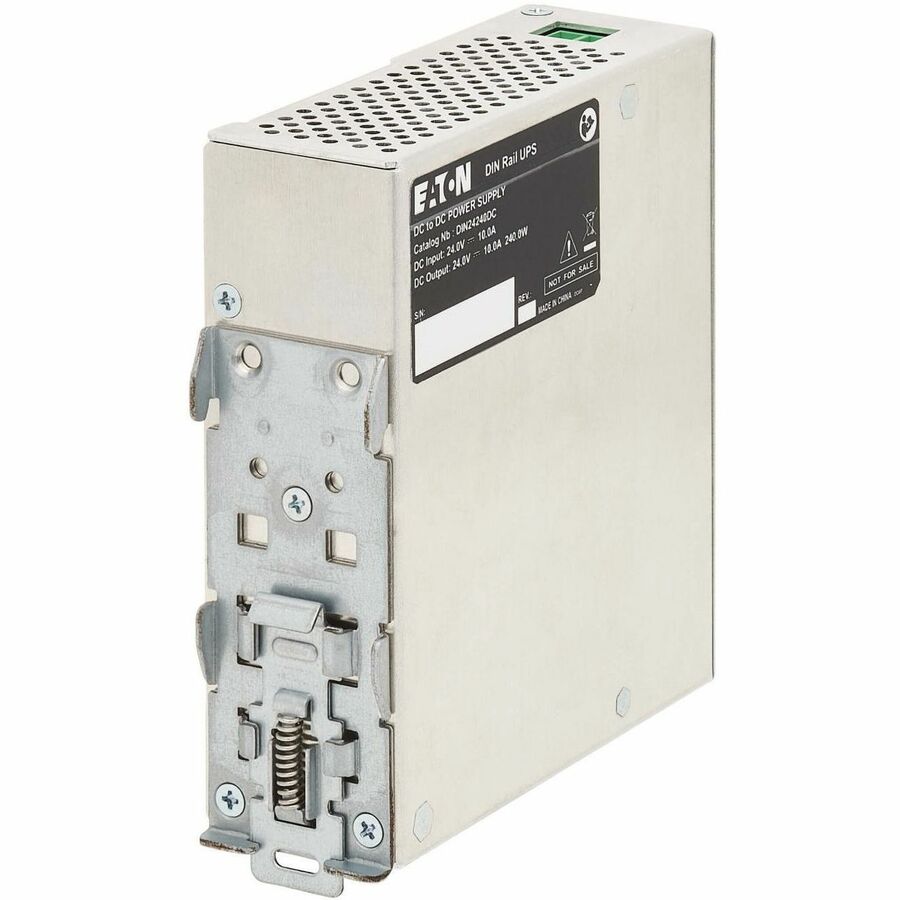

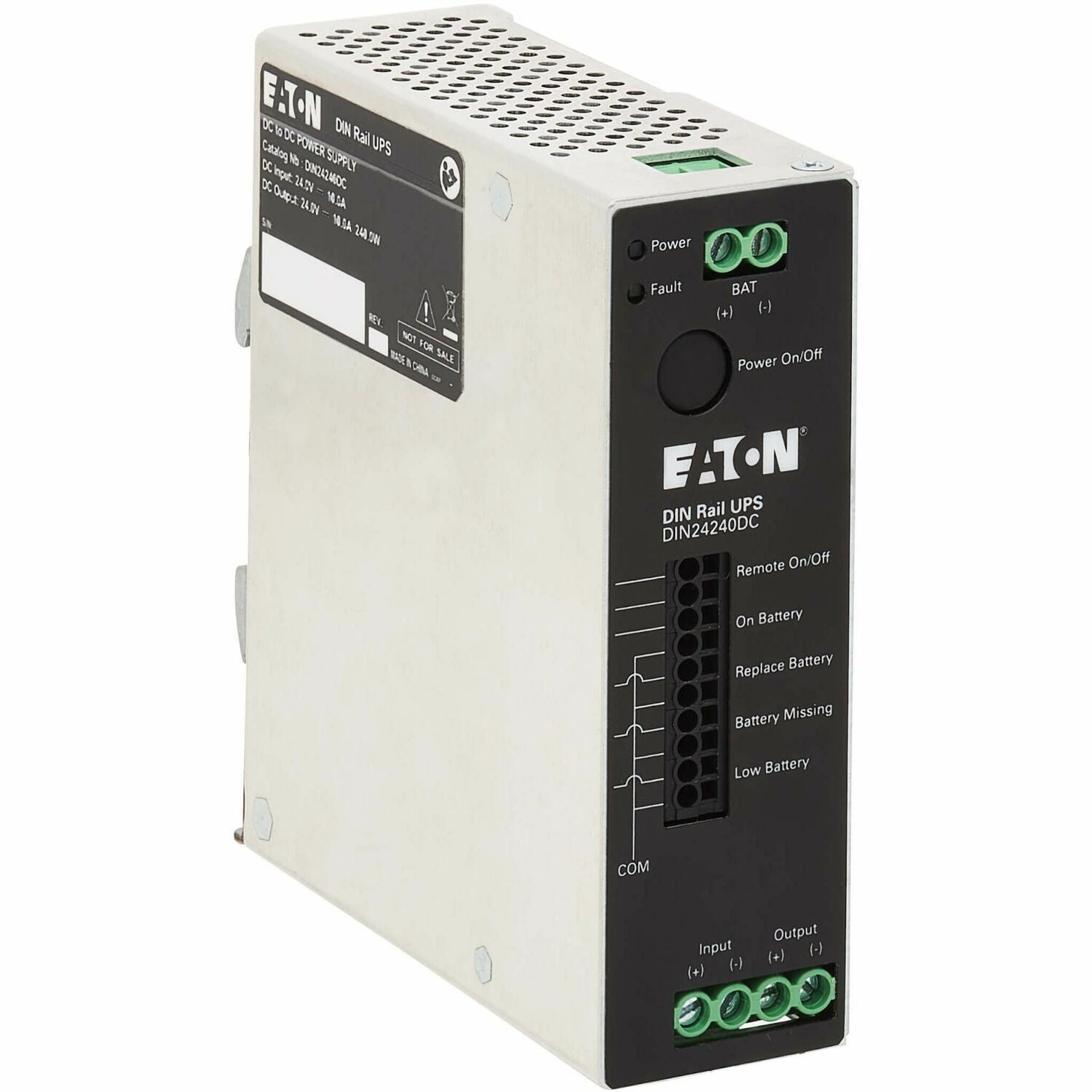

DIN24240DC Eaton DIN24240DC 240VA DIN Rail UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: DIN24240DC
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Model: DIN24240DC
Product Name: DIN24240DC 240VA DIN Rail UPS
Marketing Information:

Not for sale in the USA until further notice.

Flexible Power Protection for Smart Industrial Applications

The DIN24240DC standby UPS system with hardwire DC input/output delivers reliable power and battery backup for computing, networking, control and storage equipment in factories, warehouses, edge computing locations and automated manufacturing and fabrication facilities. The rugged compact housing withstands demanding conditions and integrates seamlessly and securely into electrical enclosures in any non-traditional IT environment.

Ideal for Factory Floors and Extreme Temperatures

Get full use of the DIN24240DC's power capacity because there is no derating based on its operating temperature range of -15°C (5°F) to 50°C (122°F), which expands the number of locations in which it can be used. Built to fit into small spaces, the DIN24240DC is a UL 508 recognized component for use in industrial panels. Its pre-installed clamp enables quick
Product Type: Standby UPS

Technical Information

Plug/Connector Type: Hardwired
Receptacle Type: Hardwired
Receptacle Detail: 1 x Hardwired
Phase: Single Phase
Application/Usage: Edge Computing,Network,Storage Device,Factory,Automation Industry,Manufacturing Facility,IT System,Industrial,Machine Control

Power Description

Load Capacity (VA): 240 VA
Load Capacity (Watt): 240 W
Input Voltage: 24 V DC
Output Voltage: 24 V DC
Output Power Factor: 1

Display & Graphics

Display: LED

Controls/Indicators

Status Indicators:

LED Indicators:

• POWER (GREEN)
• LINE MODE ON (SOLID)
• BATTERY MODE (FLASHING)
• FAULT (RED) - FLASHING

Interfaces/Ports

EPO Port: Yes

Battery Information

DC System Voltage: 24 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 10 Minute
Backup/Run Time (Half Load): 20 Minute

Environmental Conditions

Maximum Operating Elevation: 9843 ft (3000146.40 mm)
Storage Temperature: 5°F (-15°C) - 104°F (40°C)
Maximum Operating Temperature: 122°F (50°C)
Sound Emission (A-Weighted): 40 dB(A)

Physical Characteristics

Height: 4.80" (121.92 mm)
Width: 1.50" (38.10 mm)
Depth: 5" (127 mm)
Form Factor: DIN Rail
Weight (Approximate): 14.40 oz (408.23 g)

Miscellaneous

Package Contents:

• DIN24240DC 240VA DIN Rail UPS
• Safety Card
• Owner's Manual

Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) 3,Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty: 2 Year
