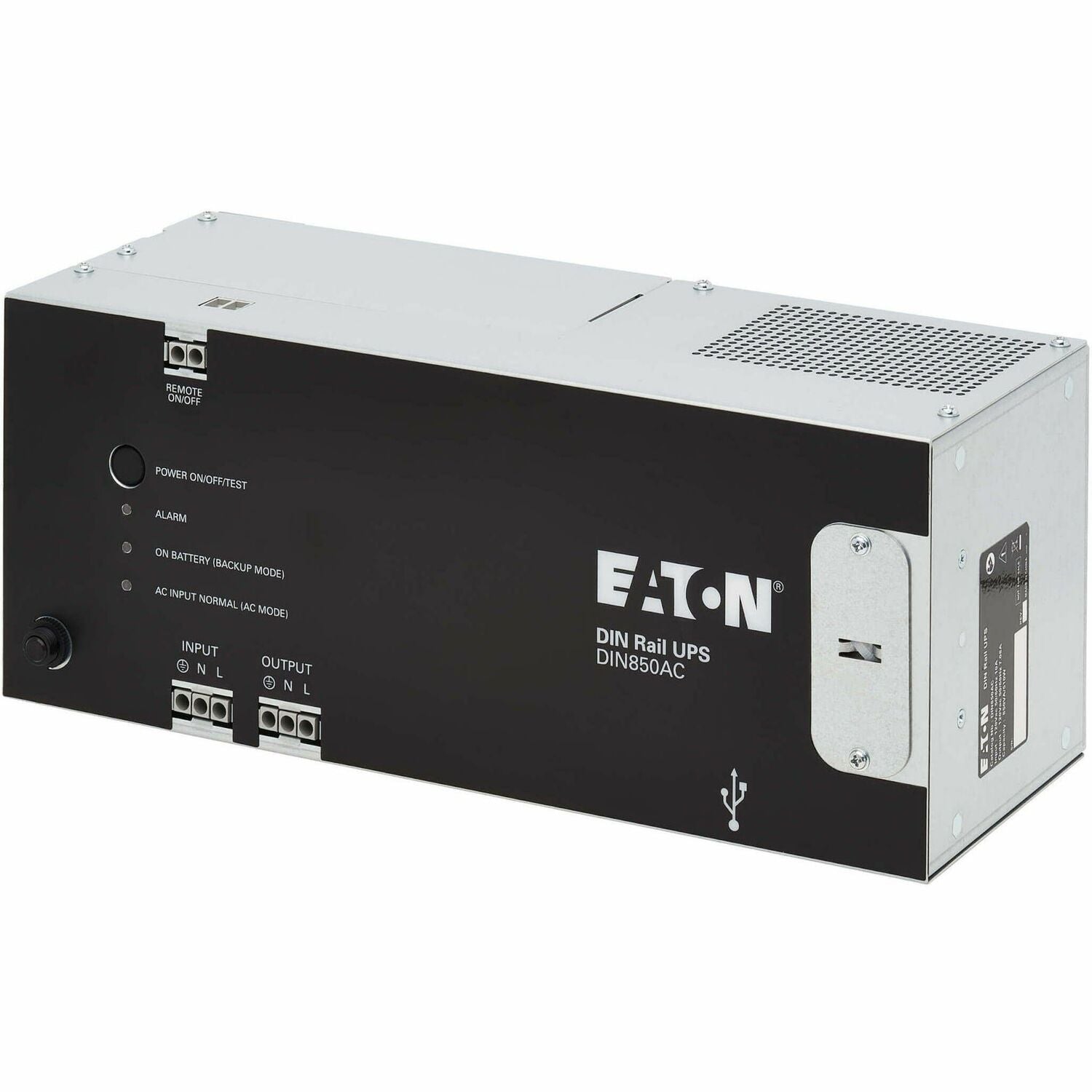

DIN850AC Eaton DIN850AC 850VA DIN Rail UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: DIN850AC
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Eaton
Product Model: DIN850AC
Product Name: DIN850AC 850VA DIN Rail UPS
Marketing Information:

Not for sale in the USA until further notice.

Flexible Power Protection for Smart Industrial Applications

The DIN850AC standby UPS system with hardwire AC input/output delivers reliable power and battery backup for computing, networking, control and storage equipment in factories, warehouses, edge computing locations and automated manufacturing and fabrication facilities. The rugged compact housing withstands demanding conditions and integrates seamlessly and securely into electrical enclosures in any non-traditional IT environment.

Ideal for Factory Floors and Extreme Temperatures

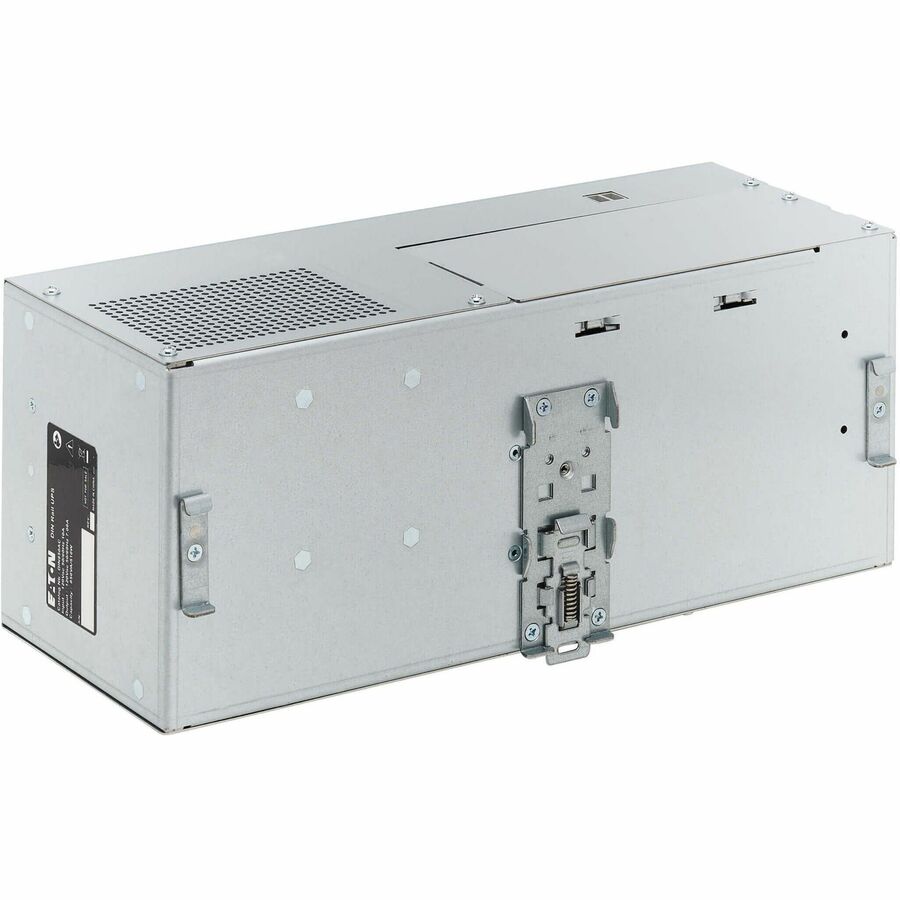

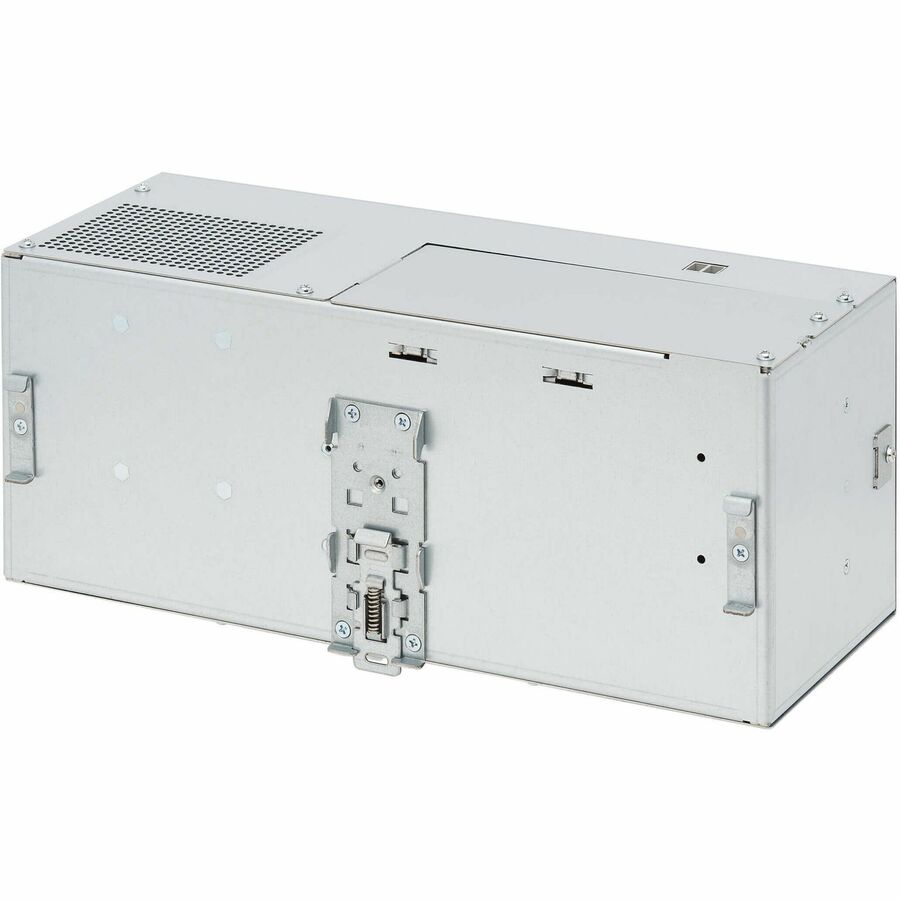

Get full use of the DIN850AC's power capacity because there is no derating based on its operating temperature range of 0°C (32°F) to 50°C (122°F), which expands the number of locations in which it can be used. Built to fit into small spaces, the DIN850AC is a UL 508 recognized component for use in industrial panels. Its pre-installed clamp enables quick mountin
Product Type: Standby UPS

Technical Information

Plug/Connector Type: Hardwired
Receptacle Type: Hardwired
Receptacle Detail: 1 x Hardwired
Transfer Time: 10 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage: Edge Computing,Network,Storage Device,Factory,Automation Industry,Manufacturing Facility,IT System,Industrial,Machine Control

Power Description

Load Capacity (VA): 850 VA
Load Capacity (Watt): 510 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Output Frequency: 60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 588 J
Output Power Factor: 0.6

Display & Graphics

Display: LED

Controls/Indicators

Status Indicators:

LED Indicators:

• ALARM - RED - Flashes when the battery needs to be recharged and tested.
• SOLID RED when the unit is subjected to an overload condition.
• YELLOW - ON SOLID when the UPS is supplying battery power to the loads.
• GREEN - ON SOLID GREEN when the line input voltage is normal.

Interfaces/Ports

EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 12 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 7 Minute

Environmental Conditions

Maximum Operating Elevation: 9843 ft (3000146.40 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Maximum Operating Temperature: 122°F (50°C)
Sound Emission (A-Weighted): 40 dB(A)
Thermal Dissipation: 52.10 BTU/h

Physical Characteristics

Height: 5.20" (132.08 mm)
Width: 12.20" (309.88 mm)
Depth: 5.50" (139.70 mm)
Form Factor: DIN Rail
Weight (Approximate): 12.10 lb (5488.47 g)

Miscellaneous

Package Contents:

• DIN850AC 850VA DIN Rail UPS
• USB Communication Cable
• Safety Card
• Owner's Manual

Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
