Description
Manufacturer-Brochure
Manufacturer Part Number: DISPL10MA
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

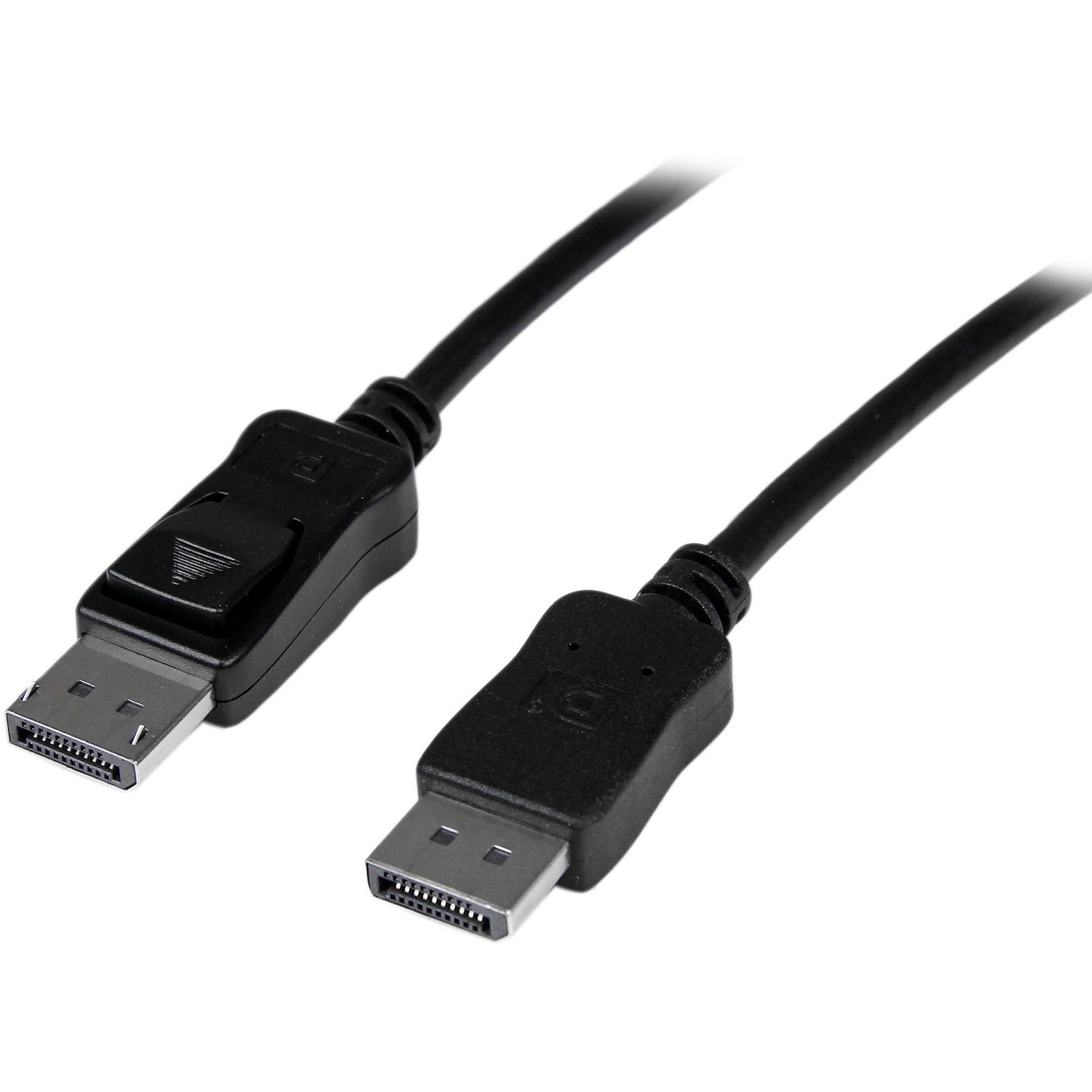

Product Name: 10m Active DisplayPort Cable - DP to DP M/M
Marketing Information: Connect DisplayPort®-equipped devices up to 10m away with no signal loss. The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560�-1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.
Please Note: This cable features
Packaged Quantity: 1 Each
Product Type: Video Cable
Cable Length: 32.8 ft (10 m)
Connector Type on First End: DisplayPort Digital Audio/Video - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 20-pin DisplayPort Digital Audio/Video - Male
Connector Type on Second End: DisplayPort Digital Audio/Video - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 20-pin DisplayPort Digital Audio/Video - Male
Connector Plating: Nickel
Shielding: Yes
Jacket Type: CMG
Device Supported: Audio/Video Device,Monitor,Projector,Notebook,Workstation,Amplifier,Graphics Card
American Wire Gauge: 32 AWG
Data Transfer Rate: 10.8 Gbit/s
Supported Resolution: 3840 x 2400
Features: Active,Signal Booster,Flexible,HDCP,DPCP,Latching Connector,Multi-Stream Transport (MST) Support,EMI Protection
Product Color: Black
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 15.94 oz (452 g)
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China
General Information
Manufacturer: StarTech.comManufacturer Part Number: DISPL10MA
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 10m Active DisplayPort Cable - DP to DP M/M
Marketing Information: Connect DisplayPort®-equipped devices up to 10m away with no signal loss. The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560�-1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.
Please Note: This cable features
Packaged Quantity: 1 Each
Product Type: Video Cable
Technical Information
Cable Type: DisplayPortCable Length: 32.8 ft (10 m)
Connector Type on First End: DisplayPort Digital Audio/Video - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 20-pin DisplayPort Digital Audio/Video - Male
Connector Type on Second End: DisplayPort Digital Audio/Video - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 20-pin DisplayPort Digital Audio/Video - Male
Connector Plating: Nickel
Shielding: Yes
Jacket Type: CMG
Device Supported: Audio/Video Device,Monitor,Projector,Notebook,Workstation,Amplifier,Graphics Card
American Wire Gauge: 32 AWG
Data Transfer Rate: 10.8 Gbit/s
Supported Resolution: 3840 x 2400
Features: Active,Signal Booster,Flexible,HDCP,DPCP,Latching Connector,Multi-Stream Transport (MST) Support,EMI Protection
Physical Characteristics
Color Family: BlackProduct Color: Black
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 15.94 oz (452 g)
Miscellaneous
Compatibility: FirePro S9000/7000, W8100/7100/5100 or R5000 Graphic CardsEnvironmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China
Warranty
Limited Warranty: 2 Year
