DK30A2DH StarTech.com USB-C & USB-A Dock, Dual Monitor 4K 60Hz Dock DisplayPort/HDMI, Hybrid USB 3.0 Laptop Docking Station, 6x USB-A, mac/Windows

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: DK30A2DH
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Dual-4K Docking Station with 6 x USB 3.0 Ports
Marketing Information:

This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.

Enhance Productivity with Dual-4K 60Hz Video

Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.

With the dual-4K dock, connect:

• 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
• 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
• 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)

Connects to USB-C and USB-A Laptops

The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops.
Packaged Quantity: 1 Each
Product Type: Docking Station

Technical Information

Connectivity Technology: Wired
Number of Displays Supported: 2
Supported Resolutions: 3840 x 2160,4096 x 2160
Screen Mode Supported: 4K
Device Supported: Notebook

Network & Communication

Ethernet Technology: Gigabit Ethernet

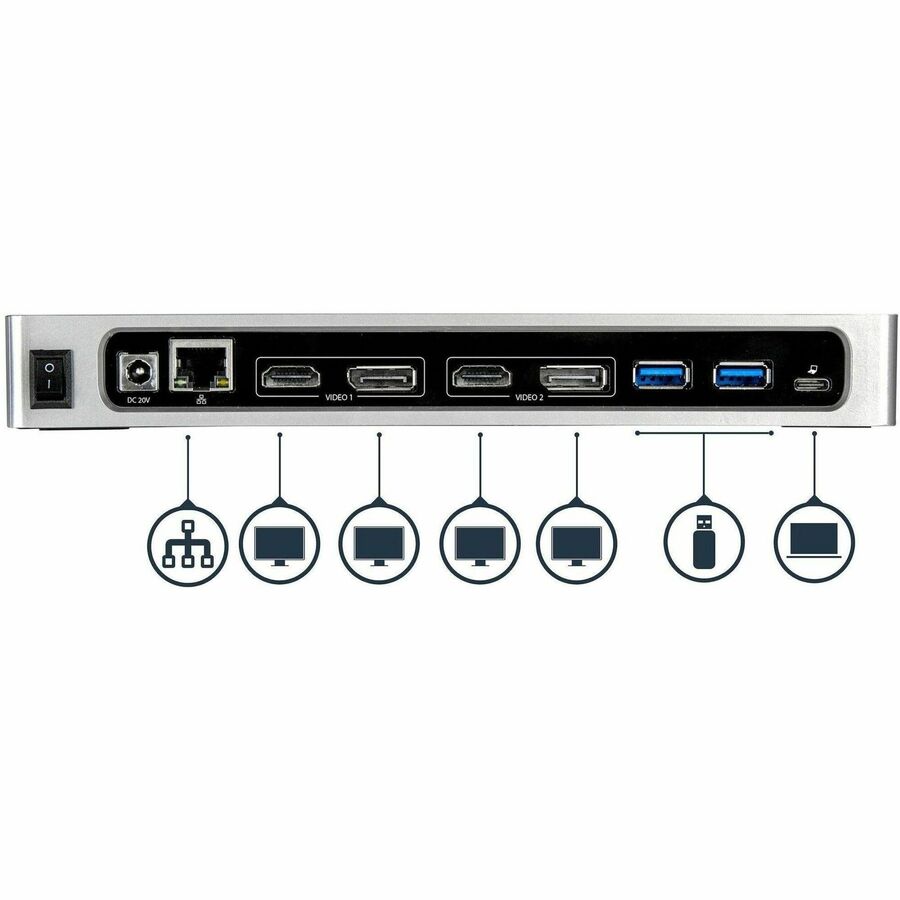

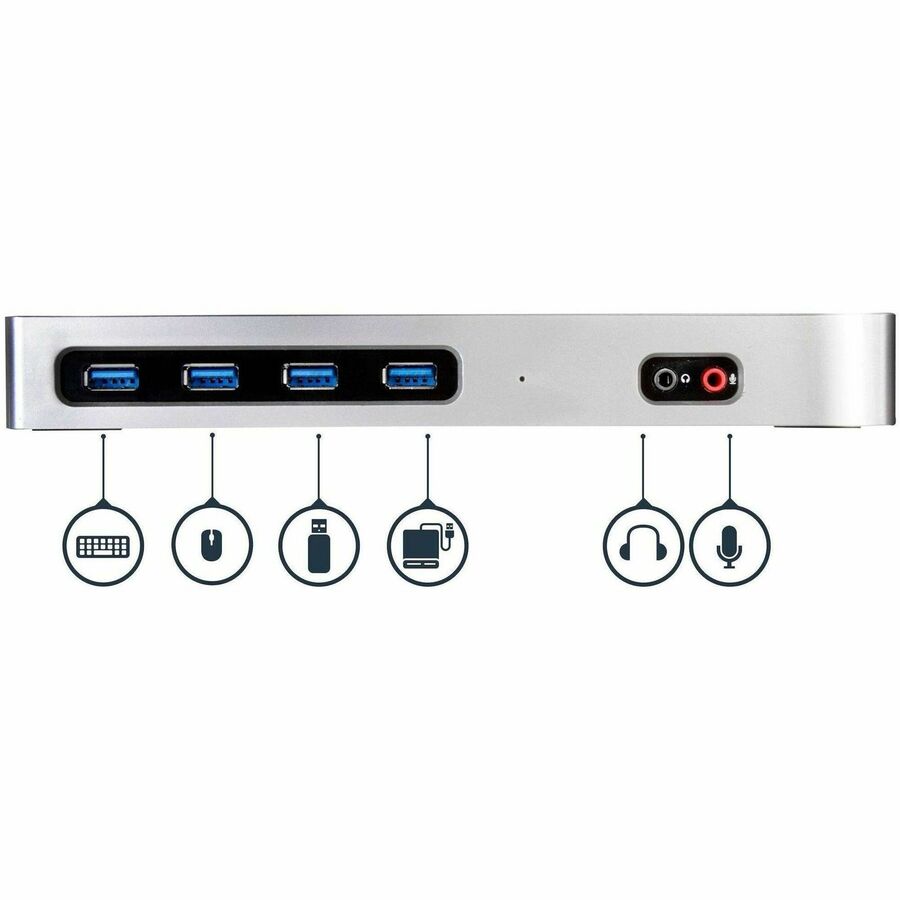

Interfaces/Ports

Host Interface: USB Type C
Audio Line Out: Yes
Number of USB 3.0 Ports: 6
USB Type-C: Yes
USB Type-C Detail: 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
Network (RJ-45): Yes
Number of DisplayPort Outputs: 2
DisplayPort: Yes
Microphone: Yes
Number of HDMI Outputs: 2
HDMI: Yes
Thunderbolt: Yes

Software

Operating System Supported: Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Mac OS X 10.6 Snow Leopard,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Ubuntu 18.04,Ubuntu 20.04,ChromeOS 55+,macOS 14

Power Description

Maximum Power Supply Wattage: 40 W

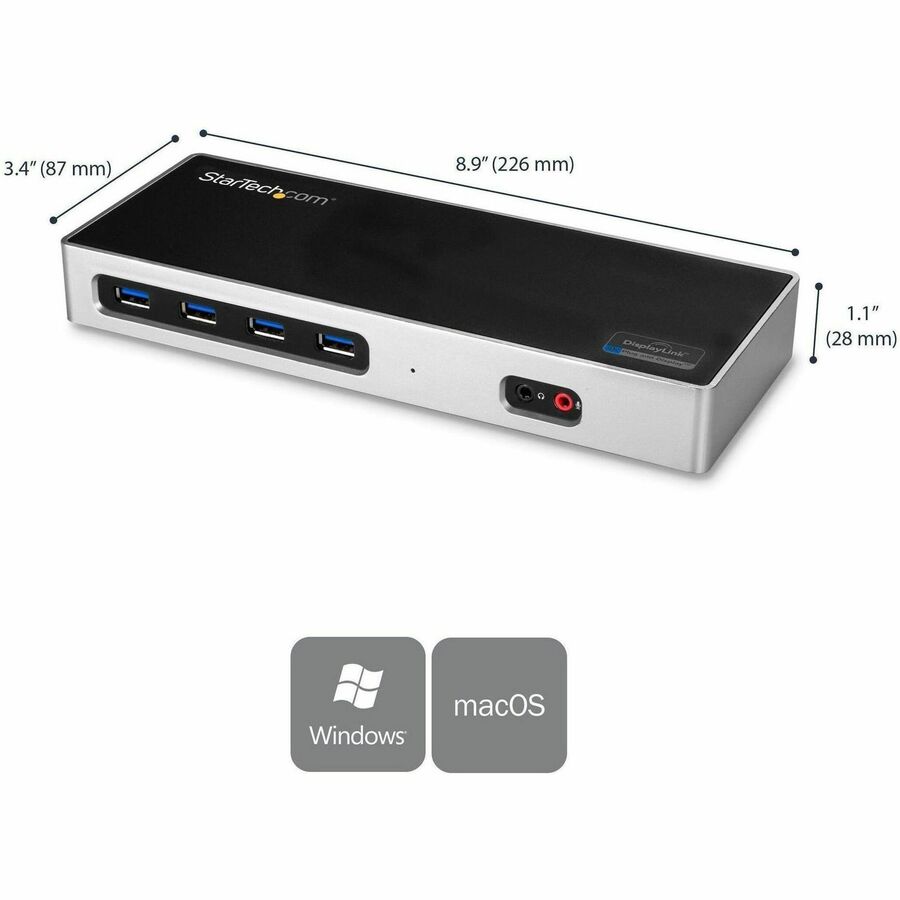

Physical Characteristics

Product Color: Black,Silver
Height: 1.10" (27.94 mm)
Width: 3.30" (83.82 mm)
Depth: 8.80" (223.52 mm)
Weight (Approximate): 15.20 oz (430.91 g)

Miscellaneous

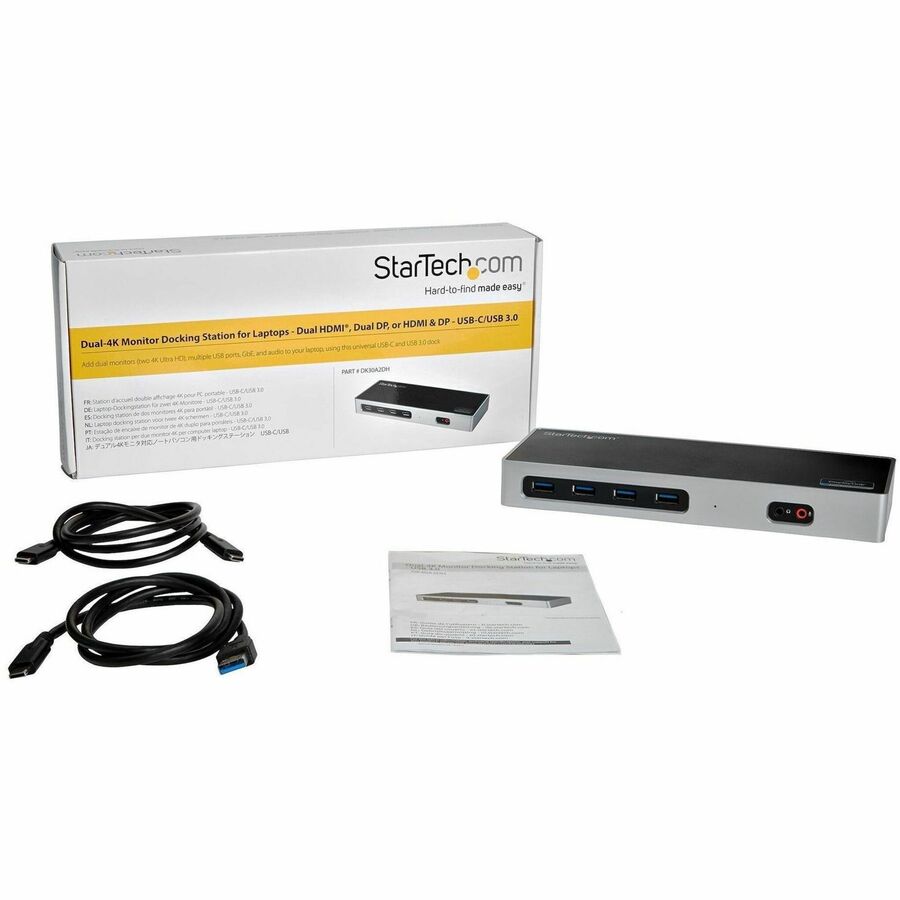

Package Contents:

• Dual-4K Docking Station with 6 x USB 3.0 Ports
• 1 x USB-C to USB-A cable
• 1 x USB-C to USB-C cable
• 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
• 1 x Quick-Start Guide

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: China

Warranty

Limited Warranty: 3 Year
