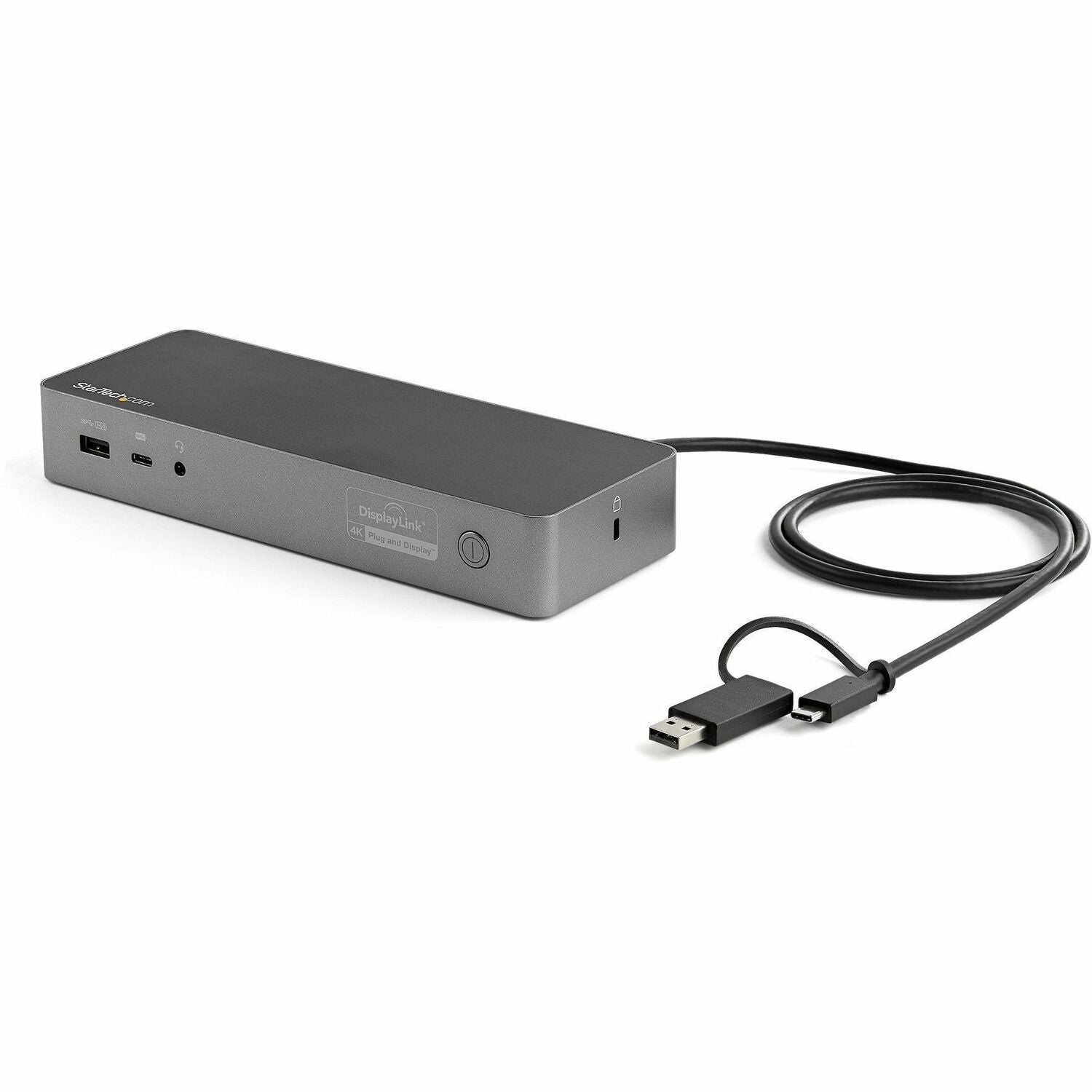

StarTech.com USB-C & USB-A Dock - Hybrid Universal Laptop Docking Station w/ 100W Power Delivery - Dual Monitor 4K 60Hz HDMI & DisplayPort

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: DK30C2DPEP
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: USB-C Docking Station with USB-A LaptopCompatibility - 100W PD
Marketing Information:

Transition from the legacy USB-A (USB 3.0) to the new USB-C with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 100W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.

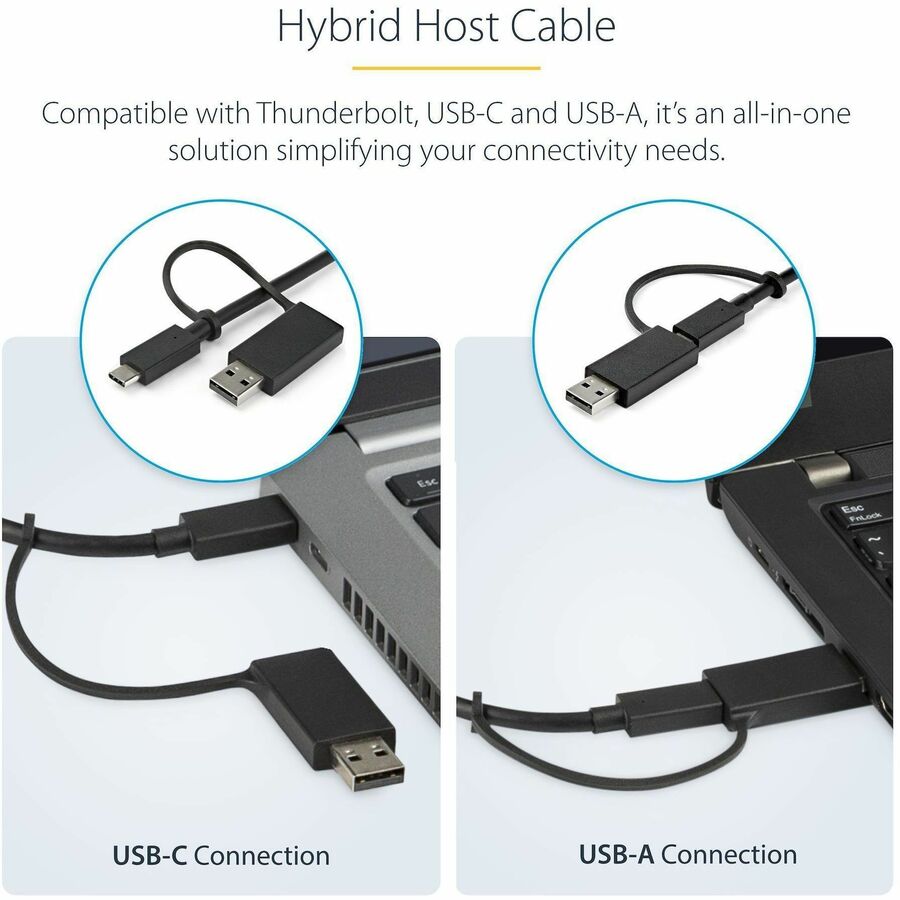

The Uniquely Universal Host Cable

The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups.

Replacement or extra cables can be purchased separately here.

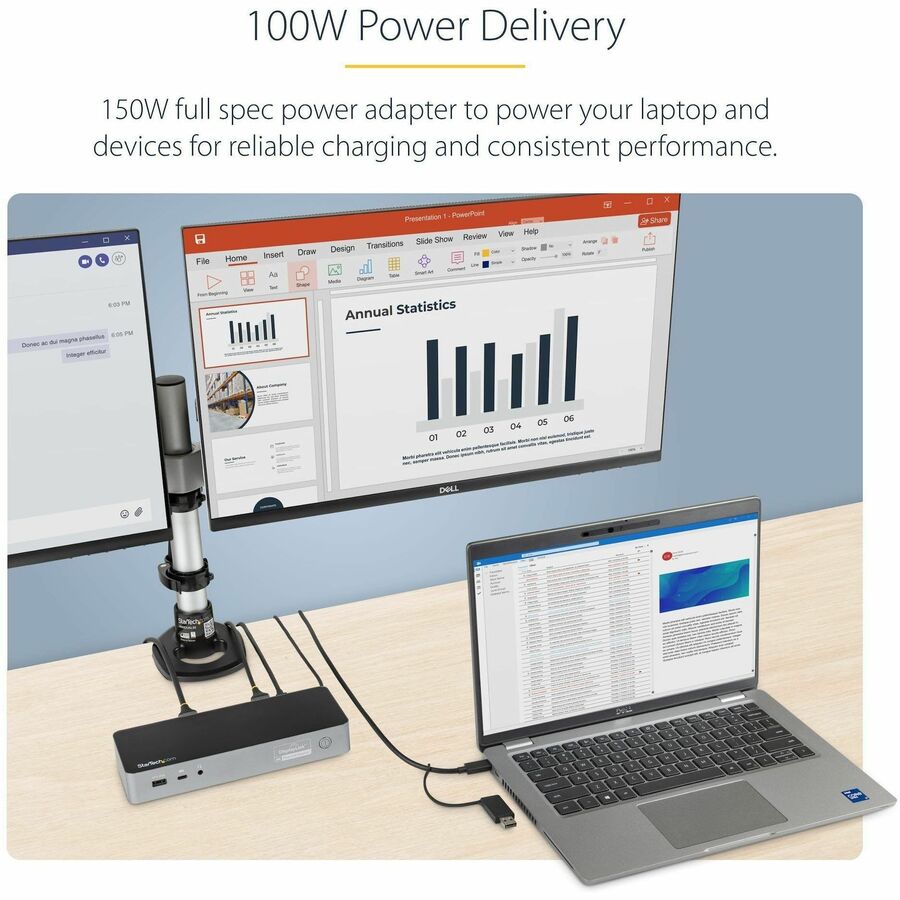

100W Power Delivery

For high performance laptops that require more charging power, the dock powers and charges your laptop as you work with 100W PD for faster charging, using the 150W power adapter - all through a single cable.

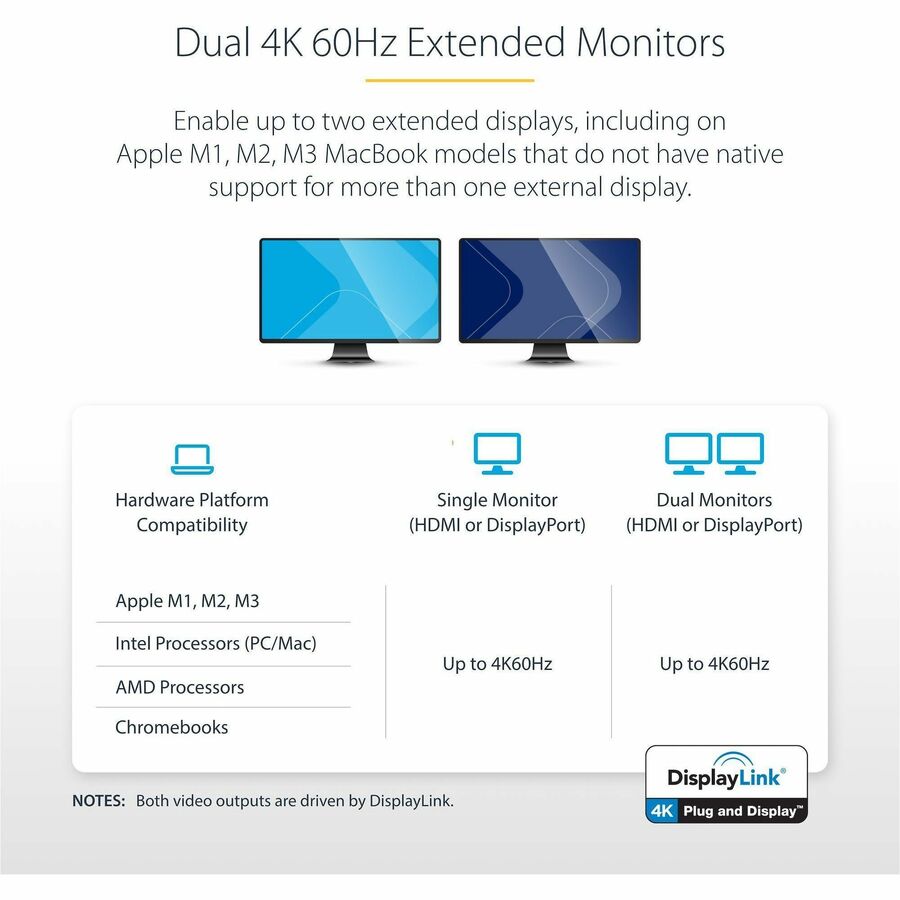

Flexible Monitor Connections

This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.

• Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz

• Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz

• Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz

• Single 5K DisplayPort * | Up to 5120 � 2880

*Requires monitor support for 5K using two DP ports

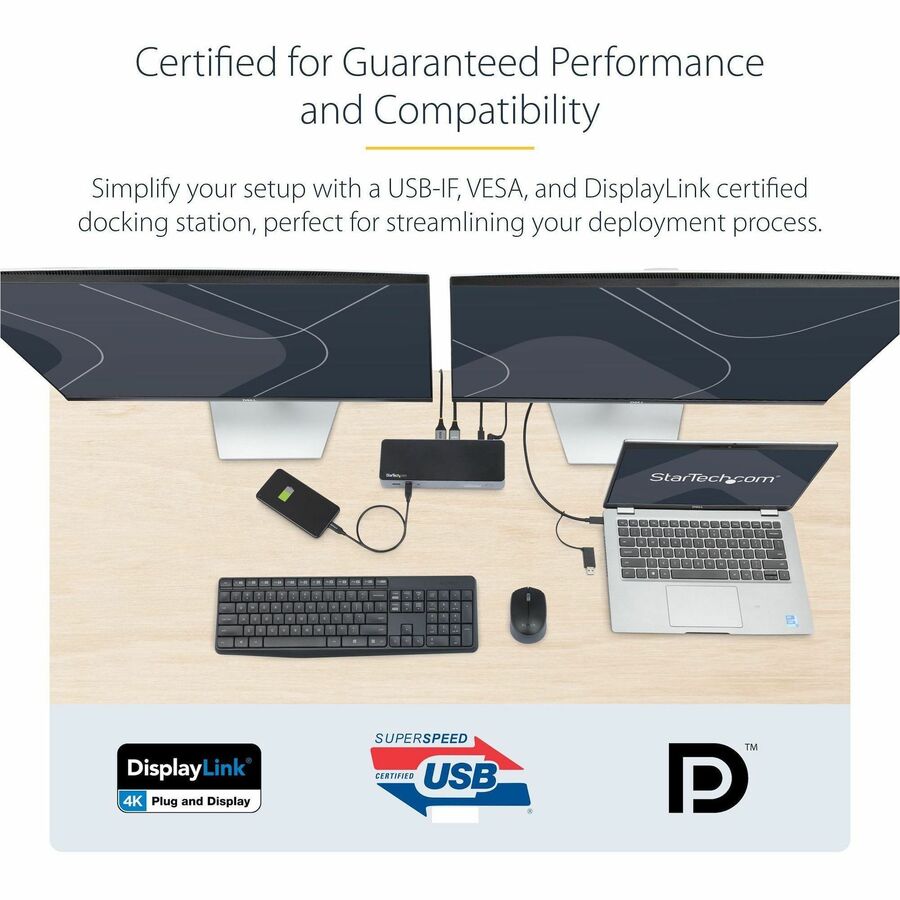

Certified for Universal Compatibility & Reliability

This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.

Easy and Convenient Setup

For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).

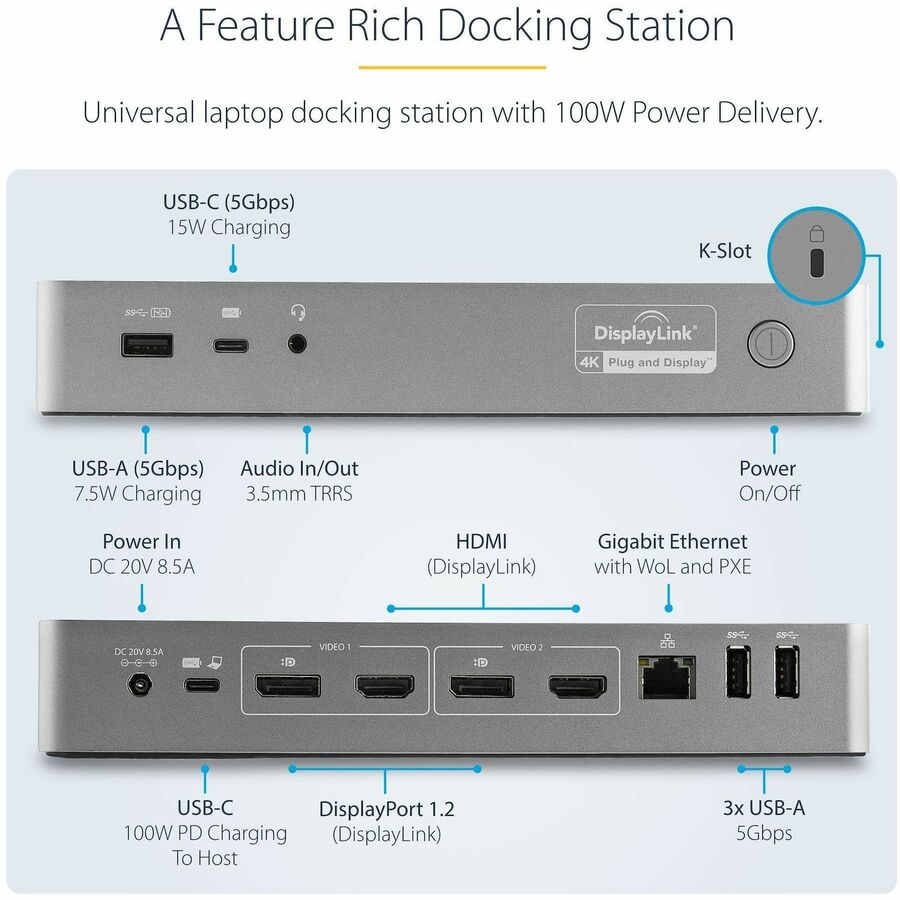

The Connections You Need

Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.

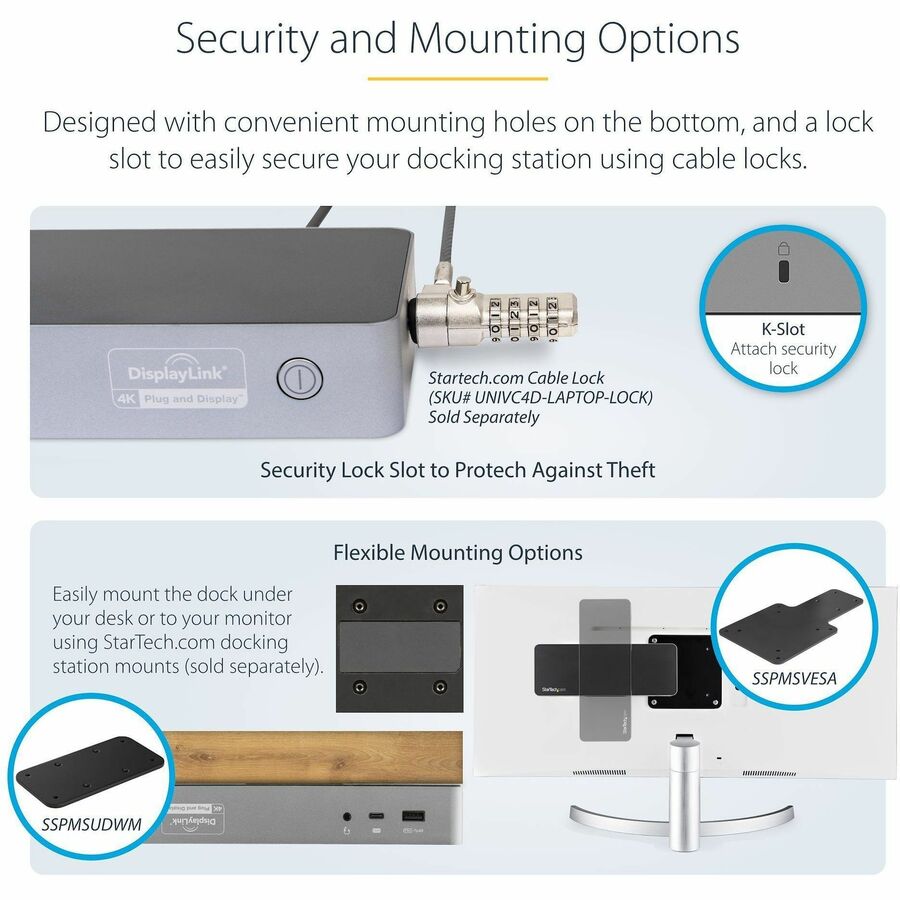

For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: To setup and save custom windows layouts.

• Mac Address Pass-Through Utility: To improve network security.

• USB Event Monitoring Utility: To track and log connected USB devices

• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

More from the Manufacturer

Packaged Quantity: 1
Product Type: Docking Station

Technical Information

Connectivity Technology: Wired
Device Supported: Notebook
Number of Displays Supported: 2
Screen Mode Supported: 5K
Supported Resolutions: 4096 x 2160,5120 x 2880

Network & Communication

Ethernet Technology: Gigabit Ethernet

Interfaces/Ports

Host Interface: USB Type C
Audio Line Out: Yes
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
Number of USB Type-A Ports: 3
Number of USB Type-C Ports: 1
USB Type-A: Yes
USB Type-C: Yes
Network (RJ-45): Yes
Number of DisplayPort Outputs: 2
DisplayPort: Yes
Number of HDMI Outputs: 2
HDMI: Yes

Software

Operating System Supported: Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Mac OS X 10.11 El Capitan,Ubuntu 18.04,Ubuntu 20.04,ChromeOS 55+

Power Description

Maximum Power Supply Wattage: 100 W

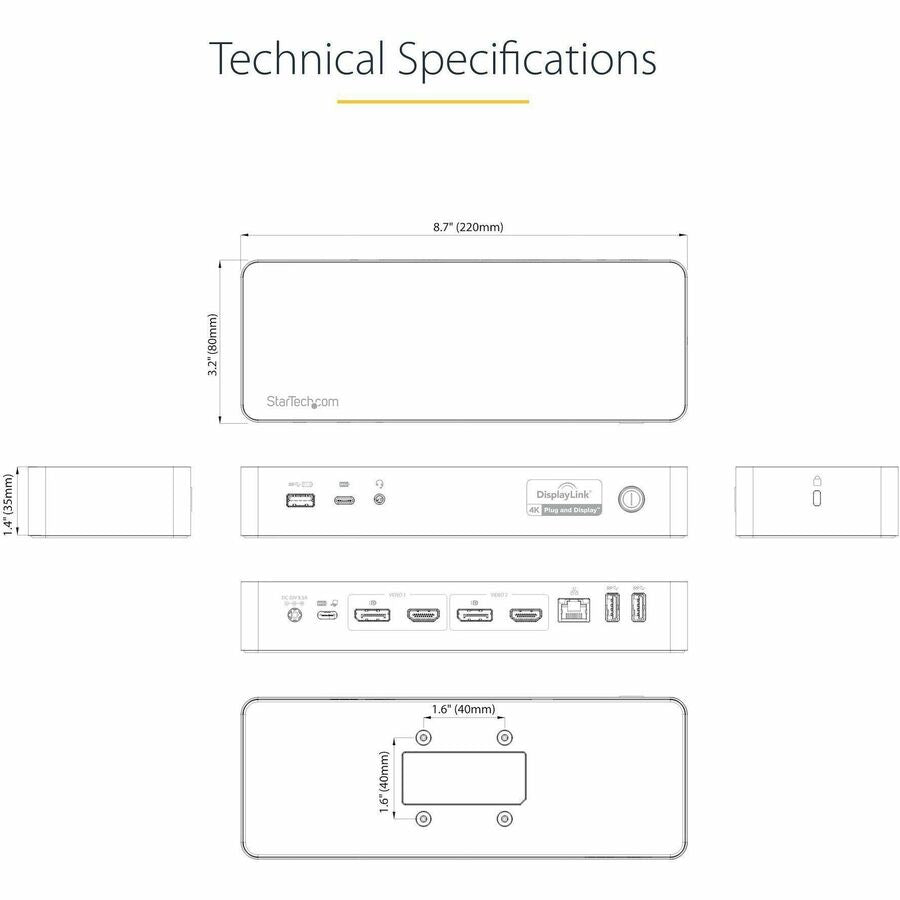

Physical Characteristics

Height: 1.20" (30.48 mm)
Width: 3.10" (78.74 mm)
Depth: 8.70" (220.98 mm)
Weight (Approximate): 280.7 g

Miscellaneous

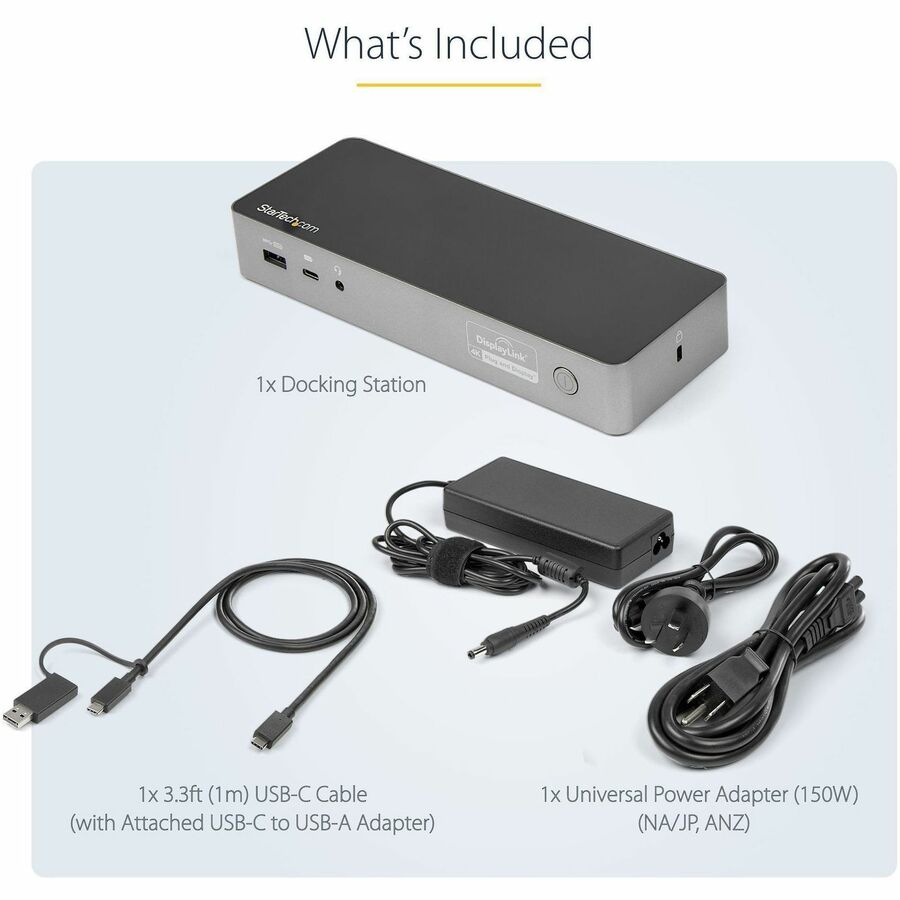

Package Contents:

• Dual 4K Universal Laptop Docking Station - USB-C /USB 3.0 - 100W PD
• 1 x USB-C Cable (with Attached USB-C to USB-A Adapter)
• 1 x Universal Power Adapter (NA/JP, ANZ)
• 1 x Quick-Start Guide

Kensington Security Slot: Yes
Compatibility:

• Lenovo X1
• Lenovo Thinkpad P Series
• Dell Latitude Notebooks
• Dell Precision Notebooks
• Dell XPS 15 Notebooks
• HP Spectre Notebooks
• HP Zbook Notebooks
• Apple MacBook Pro 16

Brand Compatibility: Apple,Dell,HP,Lenovo
Environmentally Friendly: Yes
Country of Origin: China

Warranty

Limited Warranty: 3 Year
