DK30CH2DEP StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, HDMI & DisplayPort, 100W PD, 5x USB 5Gbps Hub, TAA

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: DK30CH2DEP
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Triple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports - 100W PD
Marketing Information:

This triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.

You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

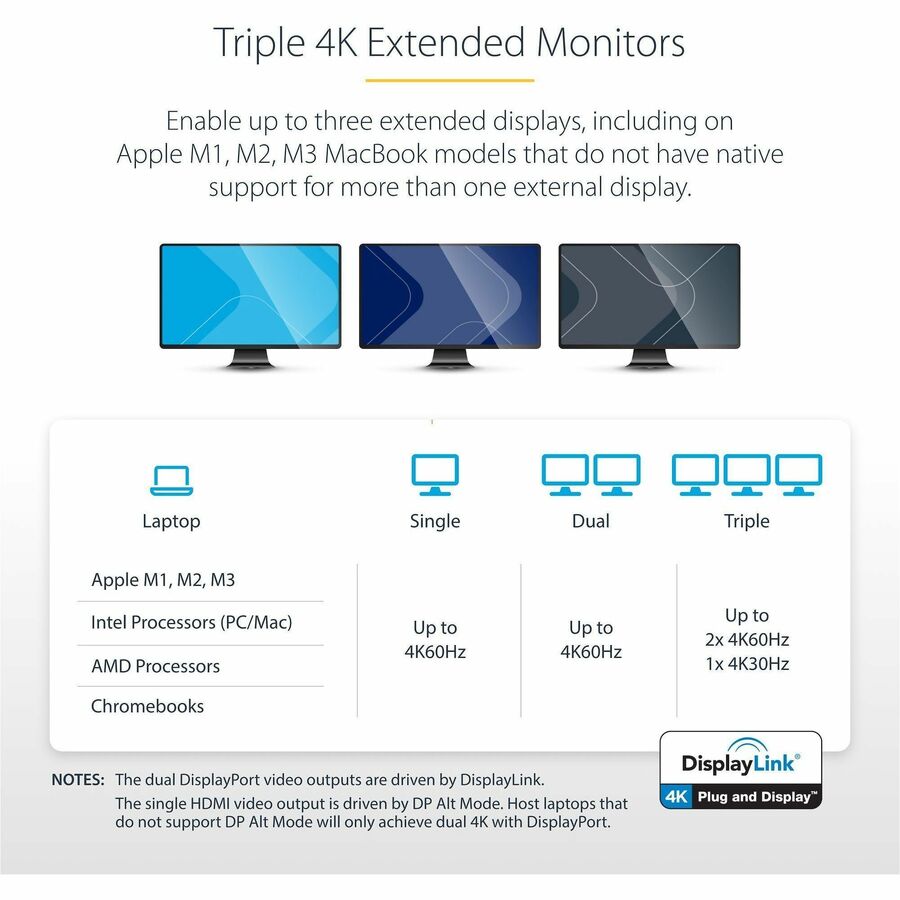

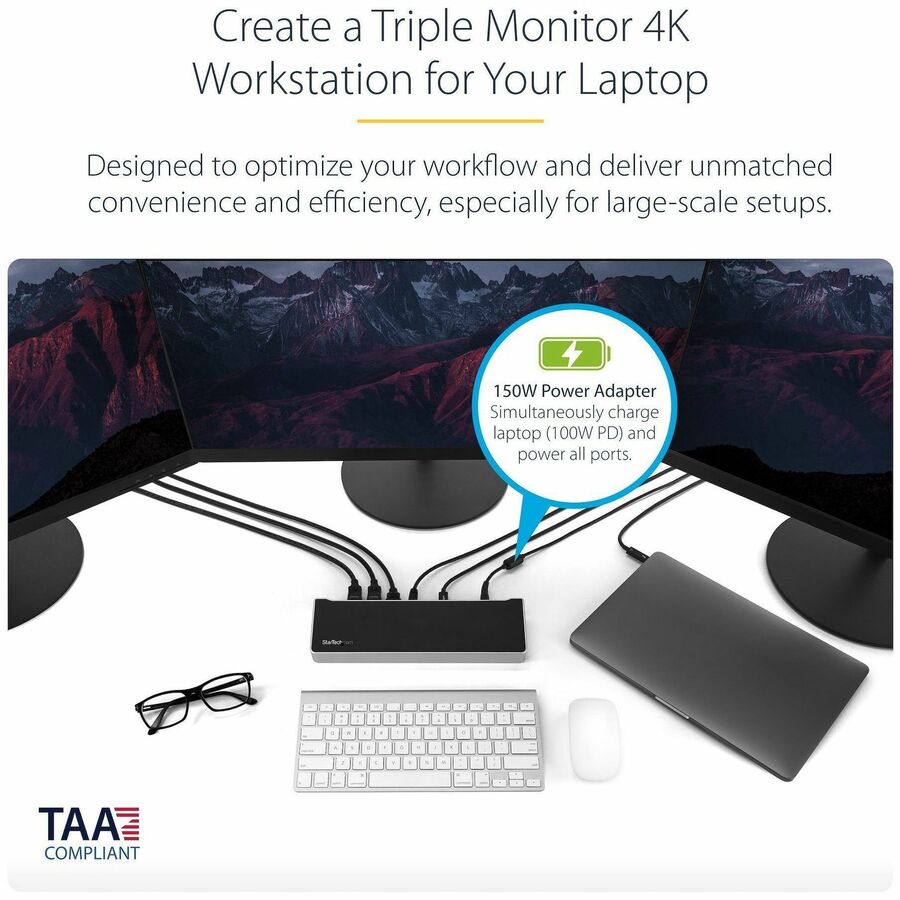

The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:

• 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
• 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports
Packaged Quantity: 1 Each
Product Type: Docking Station

Technical Information

Connectivity Technology: Wired
Device Supported: Notebook,Tablet PC

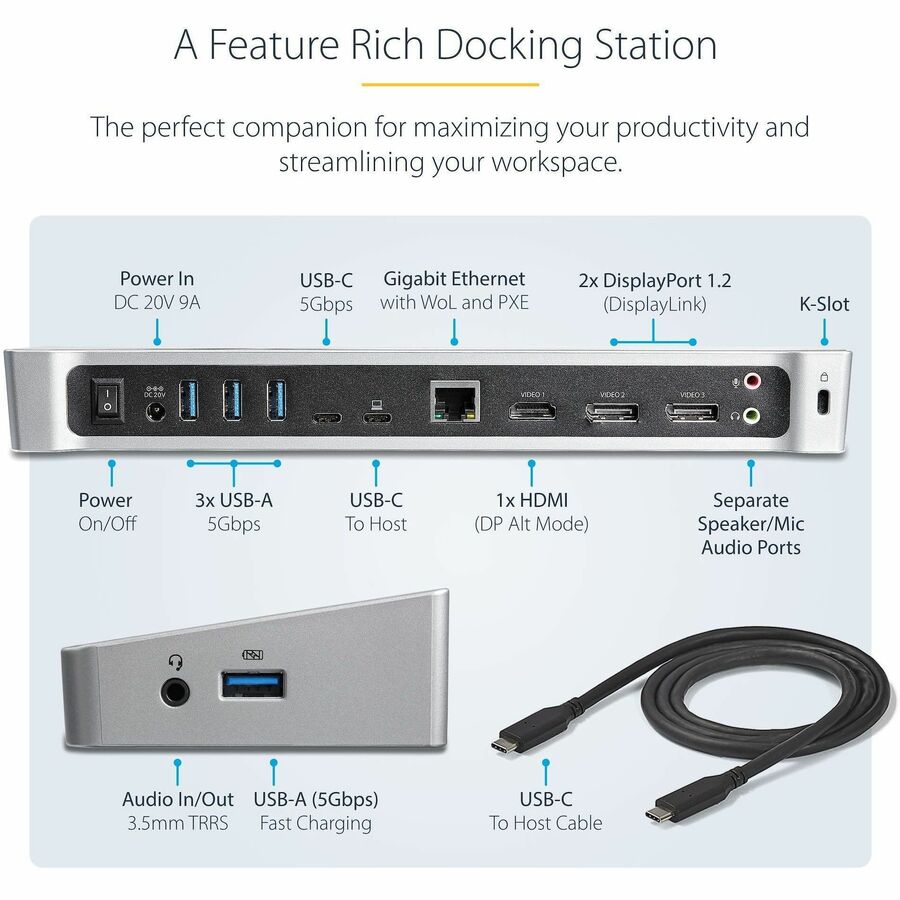

Interfaces/Ports

Host Interface: USB 3.0 Type C
Audio Line Out: Yes
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 6
USB Type-C: Yes
USB Type-C Detail: 2 x USB Type-C (24 pin) USB 3.0 (5Gbps) Female
Network (RJ-45): Yes
Number of DisplayPort Outputs: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Microphone: Yes
Number of HDMI Outputs: 1
HDMI: Yes
Thunderbolt: Yes

Software

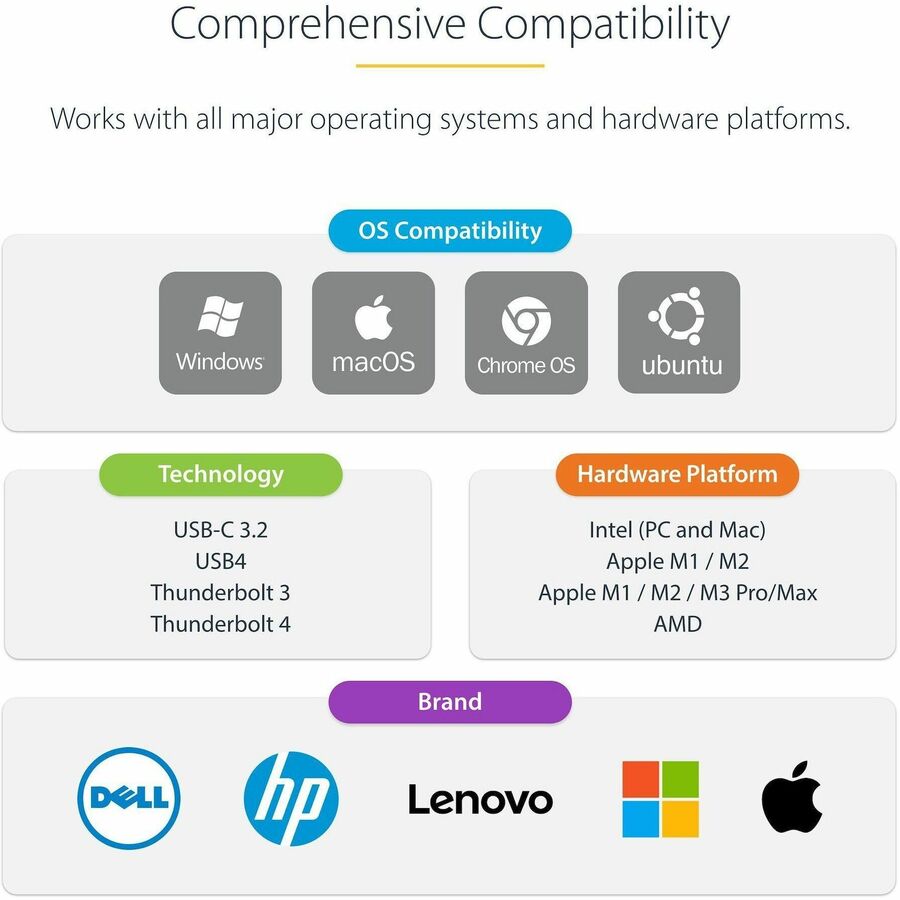

Operating System Supported: Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,ChromeOS 55+,Ubuntu 18.04

Power Description

Maximum Power Supply Wattage: 100 W

Physical Characteristics

Product Color: Black,Silver
Height: 1.30" (33.02 mm)
Width: 3.20" (81.28 mm)
Depth: 10.60" (269.24 mm)
Weight (Approximate): 13.60 oz (385.55 g)

Miscellaneous

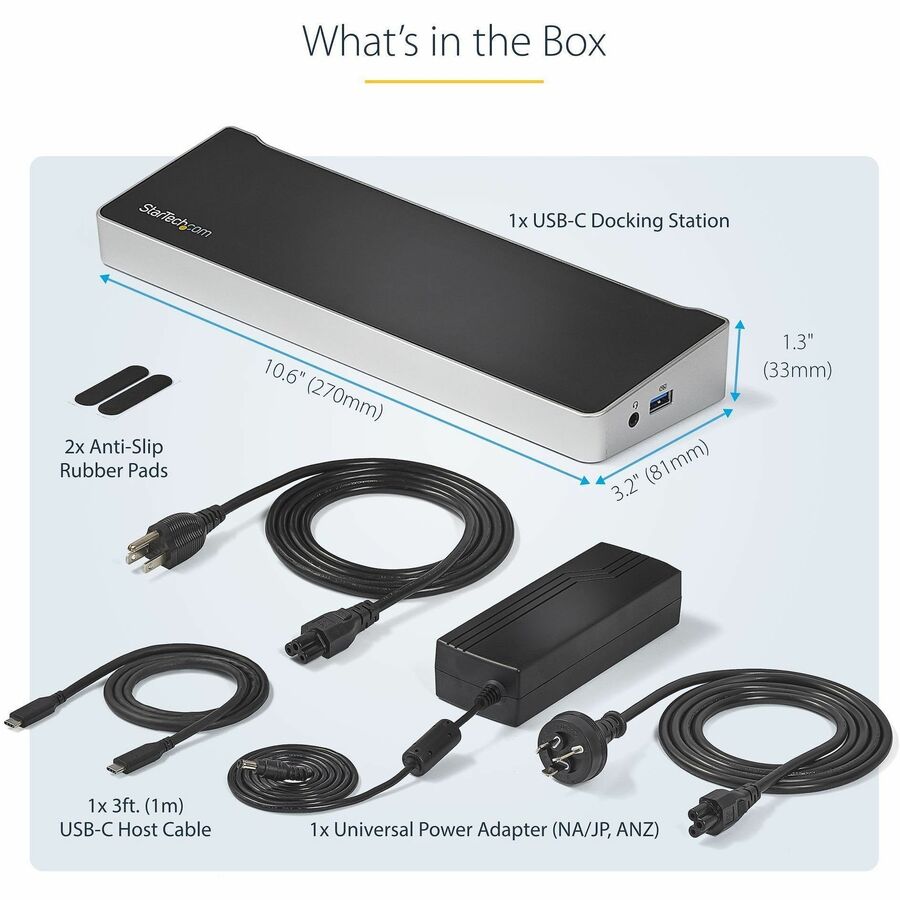

Package Contents:

• Triple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports - 100W PD
• 1 x USB-C Cable
• 1 x Universal Power Adapter (NA/JP, ANZ)
• 1 x Instruction Manual

Compatibility:

• Lenovo X1
• Lenovo Thinkpad P Series
• Dell Latitude Notebooks
• Dell Precision Notebooks
• Dell XPS 15 Notebooks
• HP Spectre Notebooks
• HP Zbook Notebooks
• Apple MacBook Pro 16

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan

Warranty

Limited Warranty: 3 Year
