DK31C3HDPD StarTech.com USB-C & USB-A Dock, Hybrid Triple Monitor Laptop Docking Station DisplayPort & HDMI 4K 60Hz/85W PD/6x USB/GbE, TAA

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: DK31C3HDPD
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Docking Station
Marketing Information:

This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 85W Power Delivery.

Older USB-A laptops are supported through universal hybrid USB-C/USB-A cable included and replacement or extra host cables can be purchased separately here.

HDMI & DisplayPort for Triple Monitor Outputs

This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 60Hz display output, with any combination of three DisplayPort or HDMI video interfaces, on USB-C Gen 2 (with DP 1.4 support) laptops, MacBooks and Windows-based Thunderbolt 3 laptops. Older USB-A laptops will only support dual monitor setup.

Host Display Output
Packaged Quantity: 1 Each
Product Type: Docking Station

Technical Information

Connectivity Technology: Wired
Number of Displays Supported: 3
Supported Resolutions: 3840 x 2160
Screen Mode Supported: 4K
Device Supported: Workstation,Notebook

Network & Communication

Ethernet Technology: Gigabit Ethernet

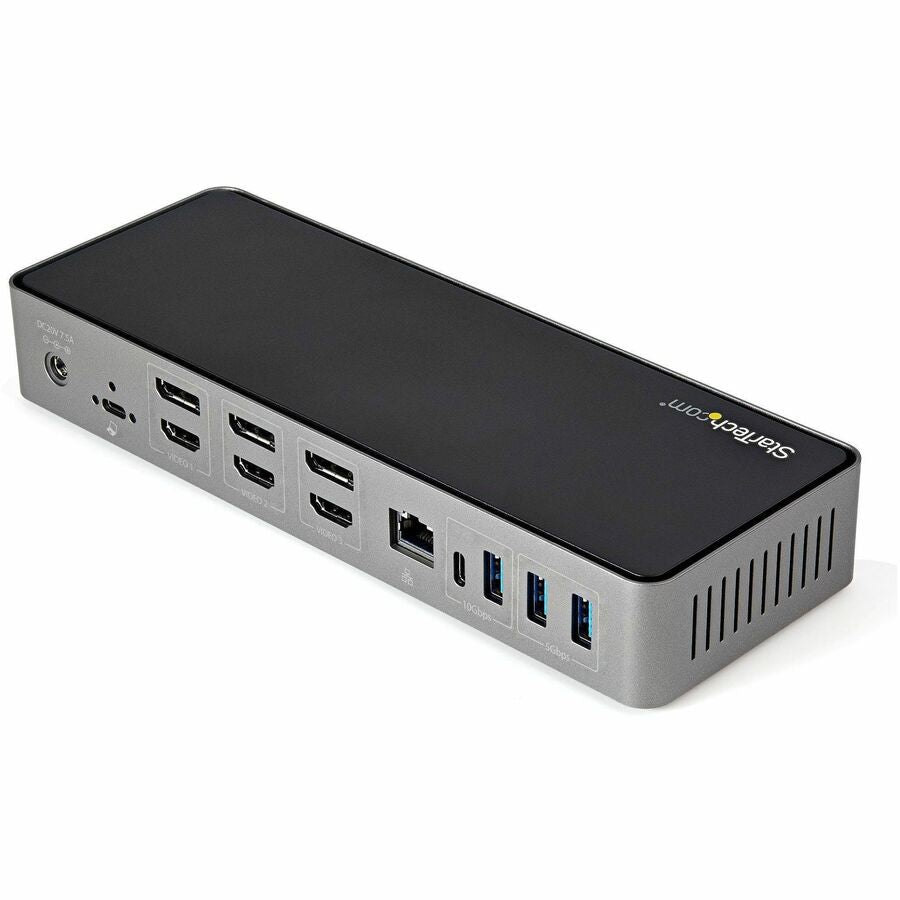

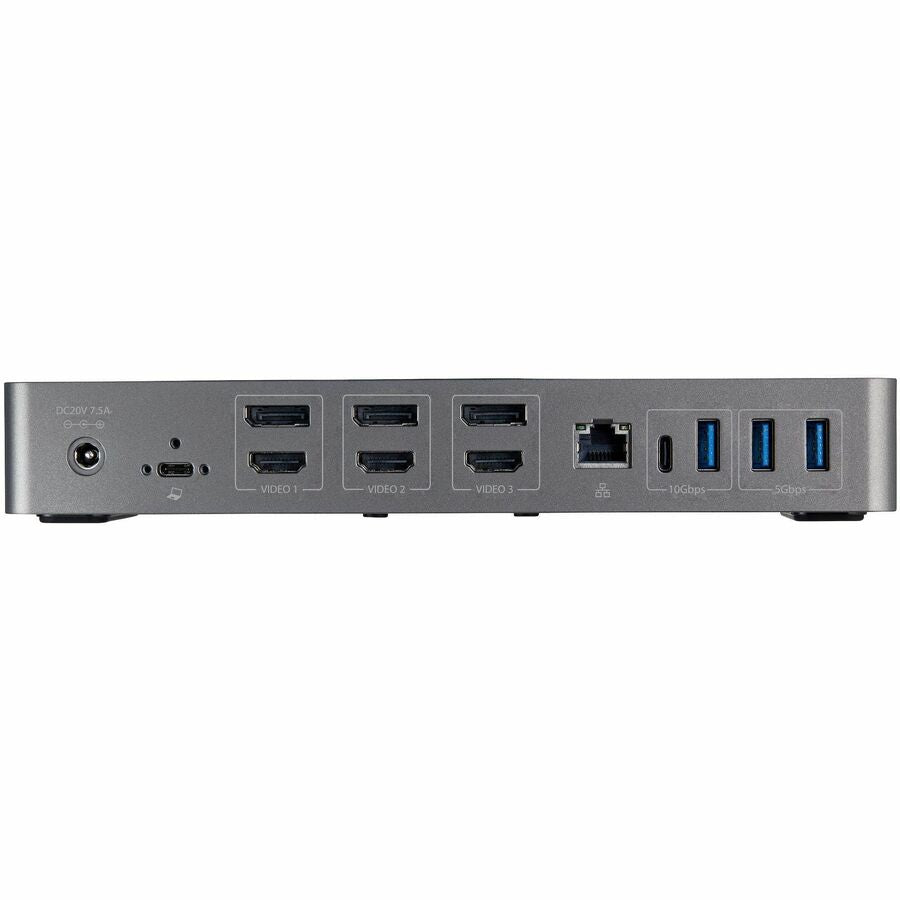

Interfaces/Ports

Host Interface: USB 3.1 (3.1 Gen 2) Type C
Total Number of USB Ports: 6
Number of USB Type-C Ports: 2
USB Type-C: Yes
USB Type-C Detail: USB Type-C (24pin, Gen 2, 10Gbps), USB Type-C (24 pin) USB 3.0 (5Gbps)
Number of USB Type-A Ports: 4
USB Type-A: Yes
Network (RJ-45): Yes
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
HDMI: Yes
Thunderbolt: Yes

Software

Operating System Supported: Windows 10,Windows 11,Windows 8.1,Windows 8,Mac OS X 10.6 Snow Leopard,Mac OS X 11.0 Big Sur,Ubuntu 18.04,Ubuntu 20.04,ChromeOS

Power Description

Maximum Power Supply Wattage: 85 W

Physical Characteristics

Height: 1.50" (38.10 mm)
Width: 3.30" (83.82 mm)
Depth: 9.20" (233.68 mm)
Weight (Approximate): 12.90 oz (365.71 g)

Miscellaneous

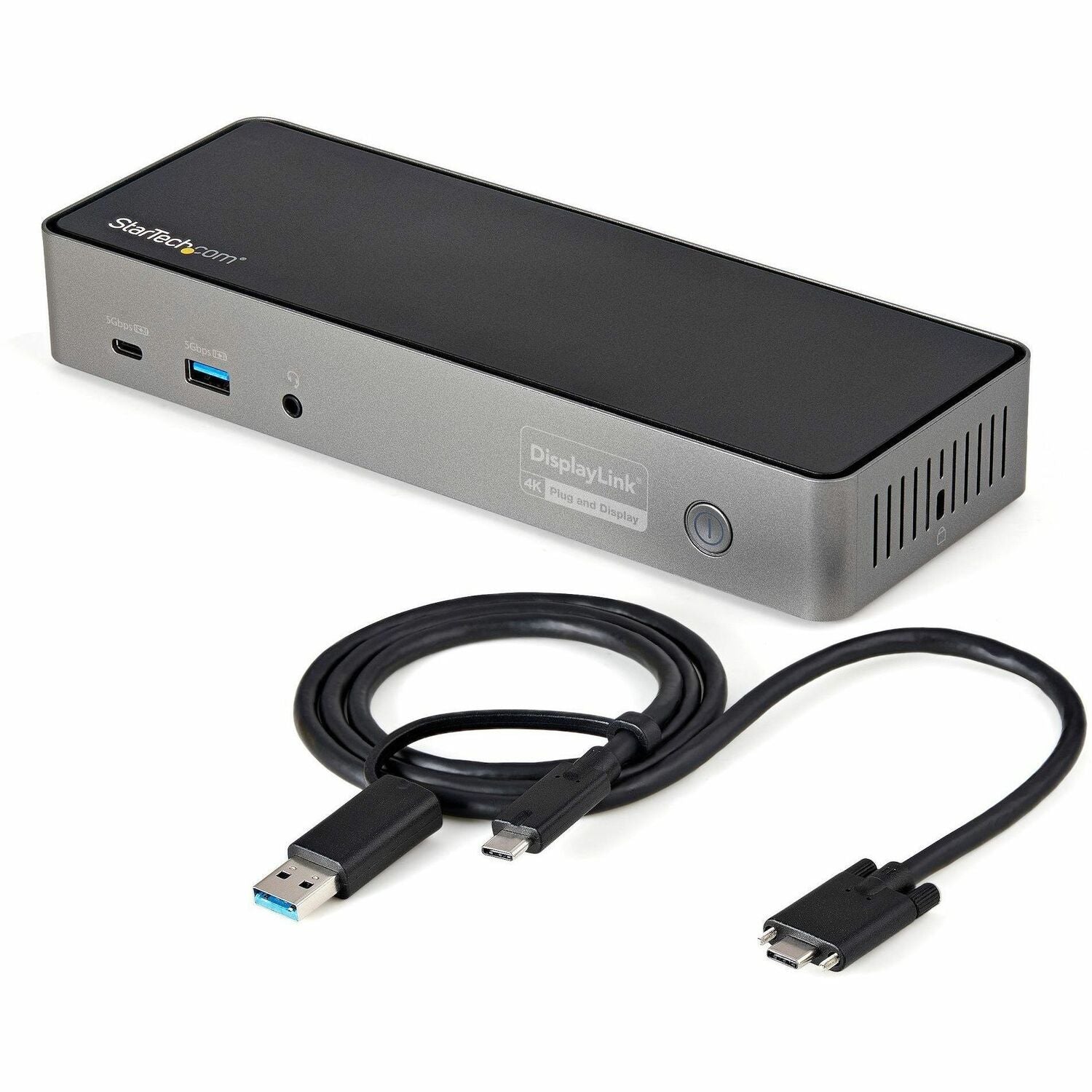

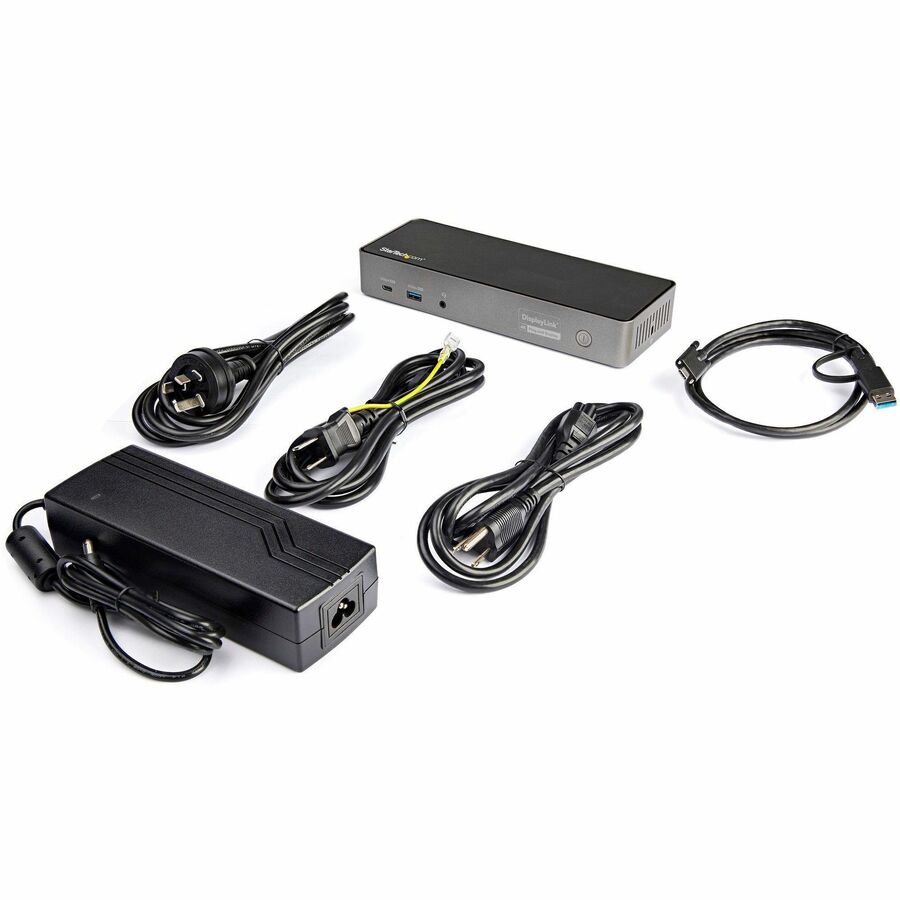

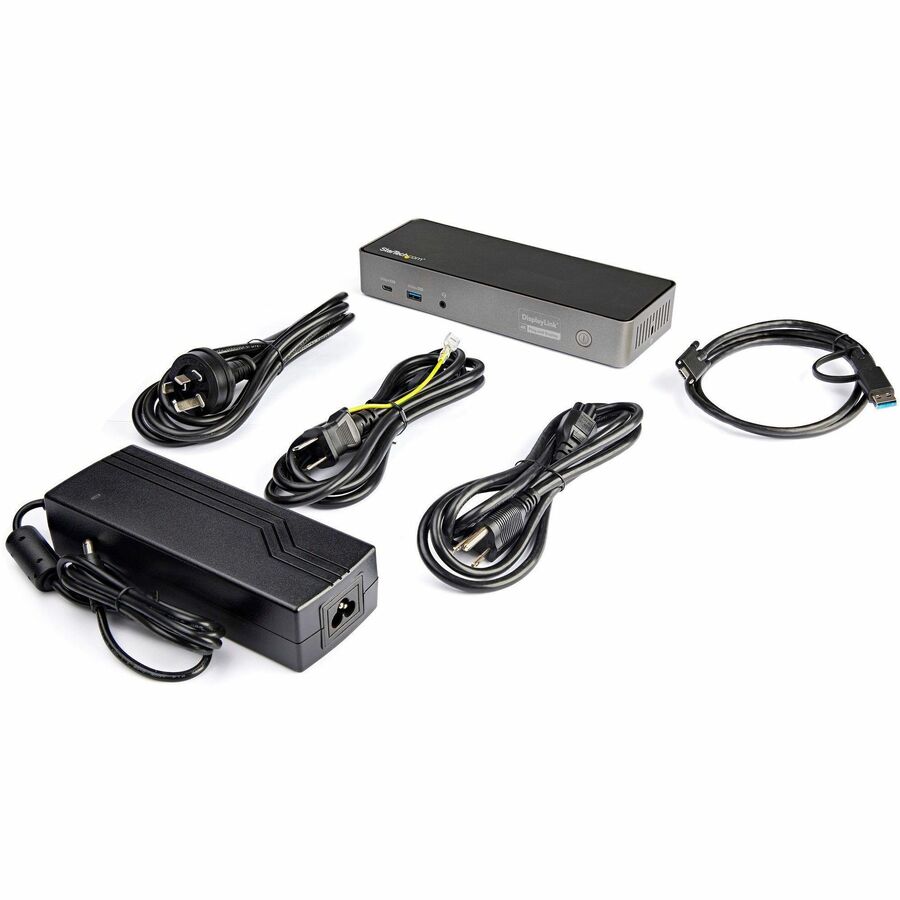

Package Contents:

• Docking Station

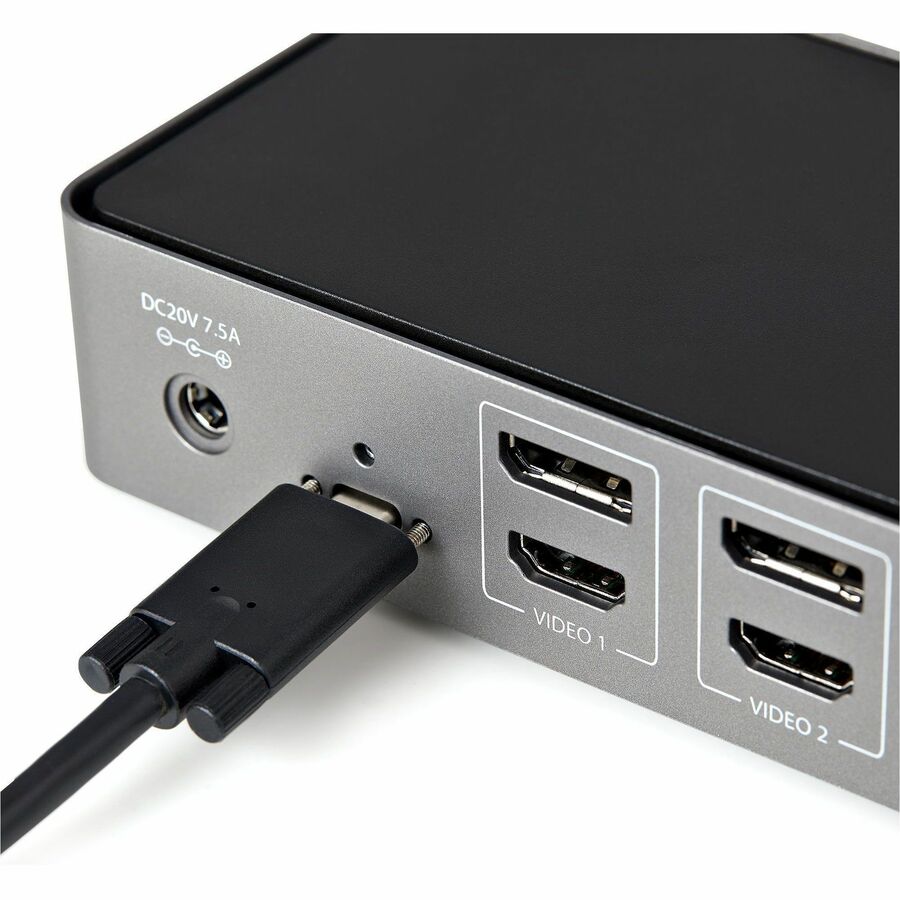

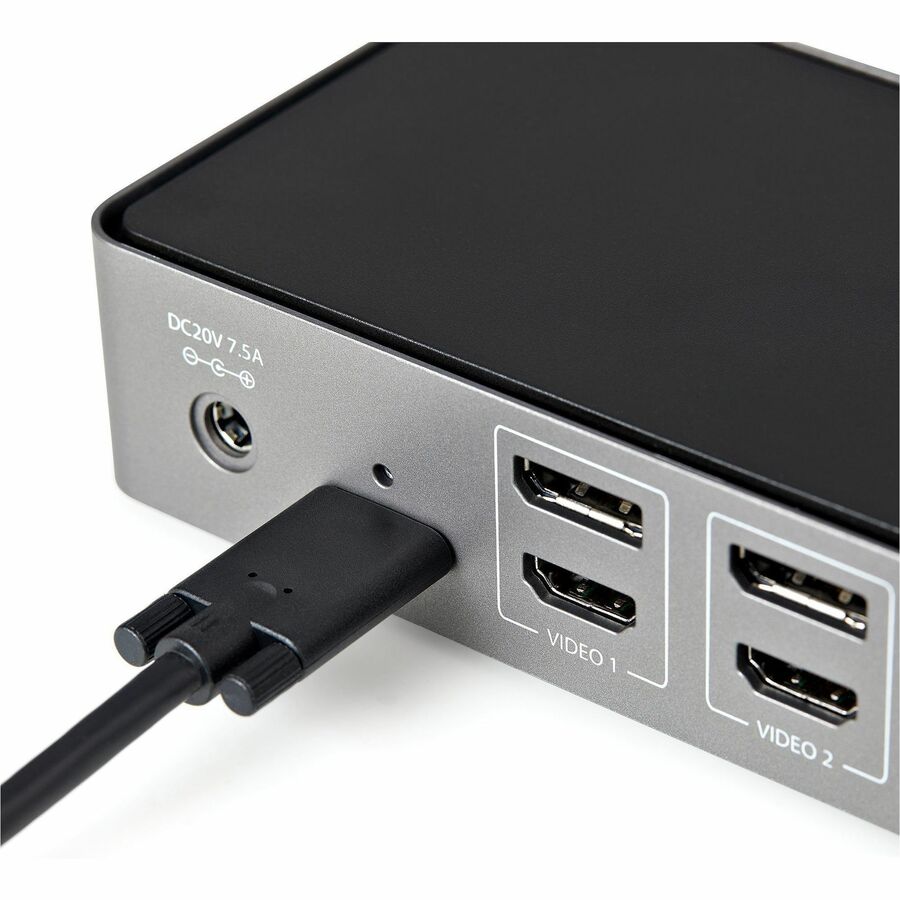

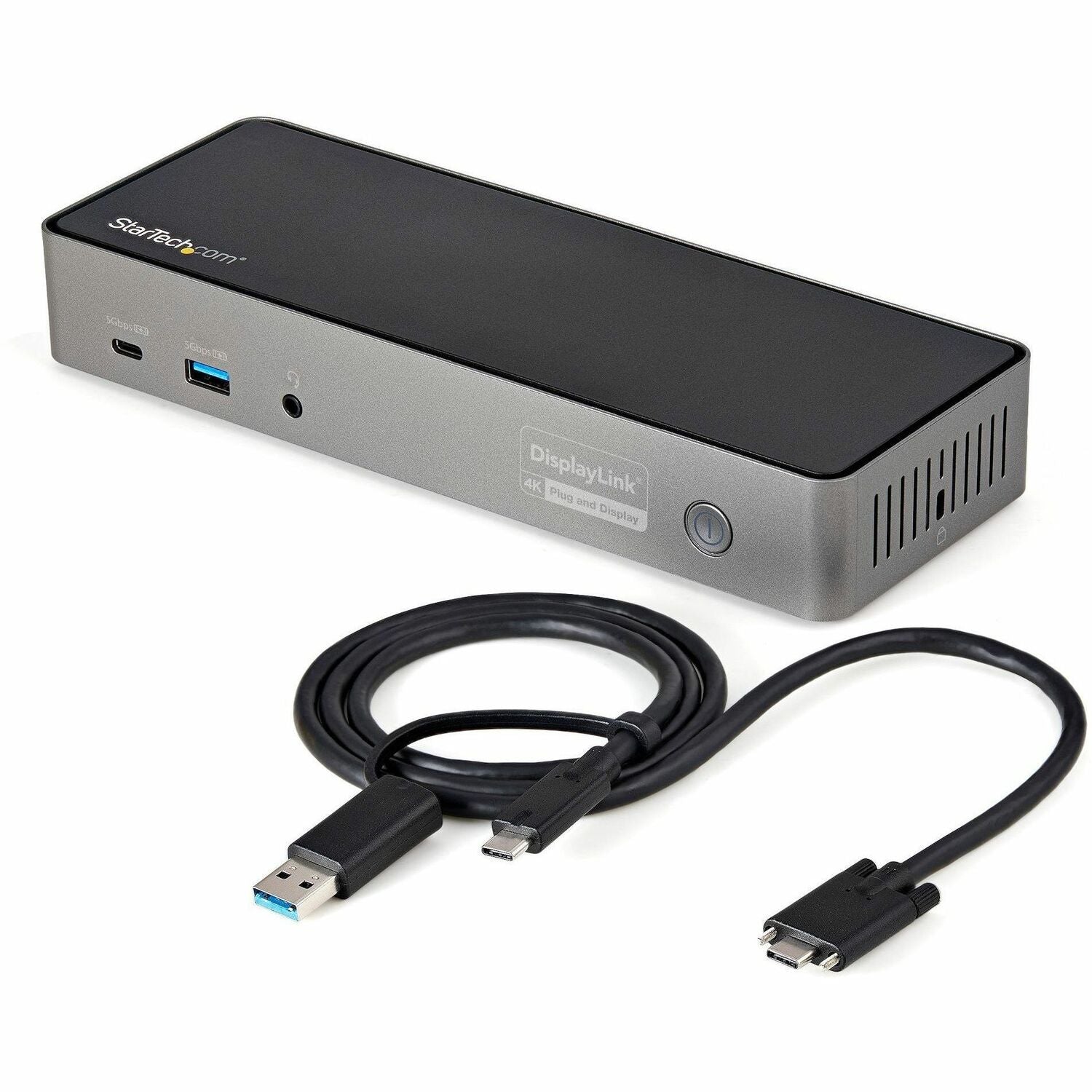

• USB-C Screw Lock Cable with USB-A Adapter
• Universal Power Adapter (NA, JP, ANZ)
• Quick-Start Guide

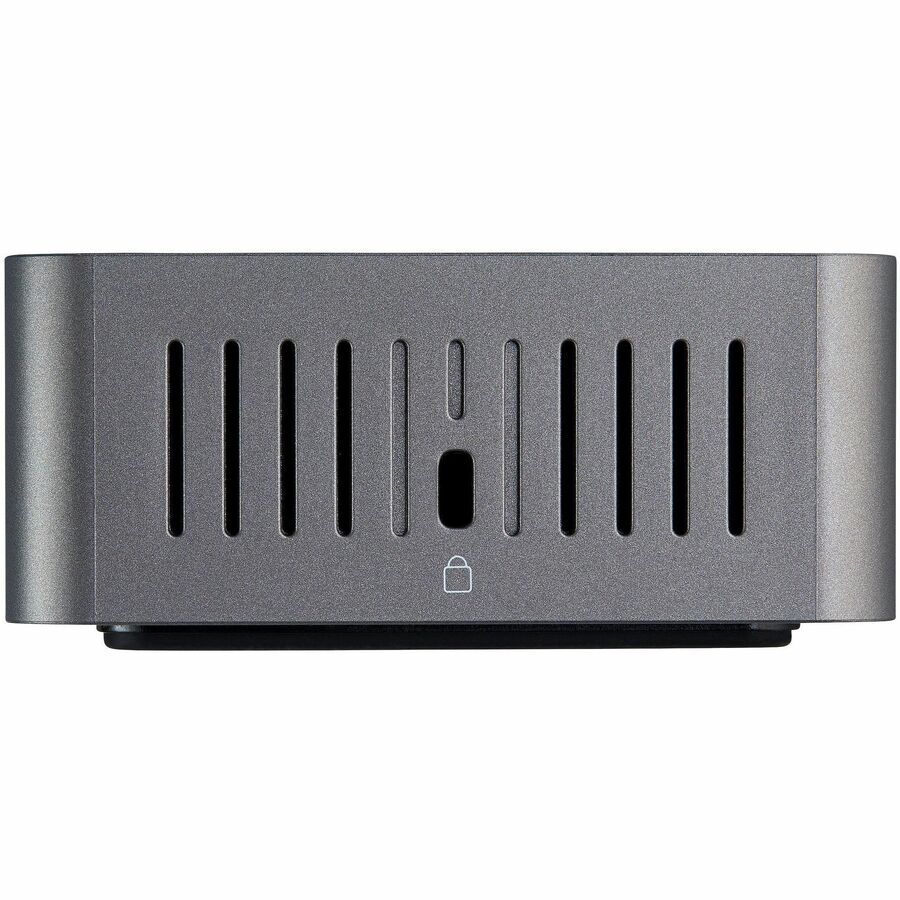

Kensington Security Slot: Yes
Compatibility: Compatible Products:

• Lenovo X1 Carbon
• Lenovo ThinkPad P Series
• Dell Latitude
• Dell Precision
• Dell XPS 15
• HP Spectre
• HP ZBook
• MacBook Pro 16

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan

Warranty

Limited Warranty: 3 Year
