DKM30CHDPD StarTech.com USB C Dock, USB-C to DisplayPort 4K 30Hz or VGA, 65W PD3.0, 4-Port USB 3.1 Gen 1 Hub, GbE, Universal USB C Docking Station

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: DKM30CHDPD
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Docking Station
Marketing Information:

This USB-C docking station lets you use a single USB Type-C port on your laptop or tablet to add essential connectivity while charging your device via 65W USB Power Delivery 3.0. The dock enables you to connect your device to a single monitor of your choice between DisplayPort (4K 30Hz) or VGA (1080p 60Hz) video output. For peripheral connectivity the dock features three USB 3.1 Gen 1 (5Gbps) Type-A ports including a BC 1.2 port to power and charge your USB devices, a USB 3.1 Gen (5Gbps) Type-C port, a 3.5mm headset audio port, and Gigabit Ethernet.

Versatile Display Connectivity

The docking station features single video output with DisplayPort or VGA connectivity so you connect to different monitor depending upon your workstation -- ideal for home office IT deployment, where different monitors may be used by different users. The DisplayPort connection offers resolutions up to 4096x2160 (4K) 30Hz, while the VGA connection offers resolutions up to 1920x1200/1080p 60Hz.

Essenti
Product Type: Docking Station

Technical Information

Connectivity Technology: Wired
Number of Displays Supported: 1
Supported Resolutions: 4096 x 2160,1920 x 1200,1920 x 1080
Screen Mode Supported: 4K
Device Supported: Notebook,Headset,Keyboard,Smartphone,Mouse,Workstation,Monitor,Tablet,Desktop PC

Network & Communication

Ethernet Technology: Gigabit Ethernet

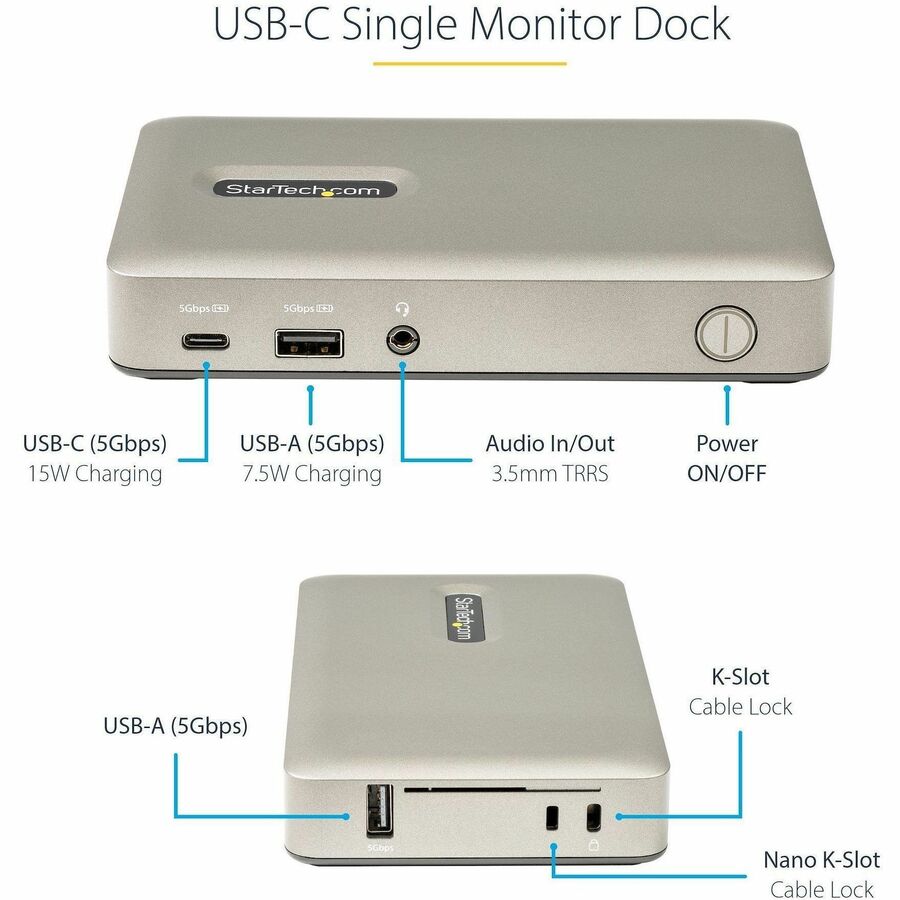

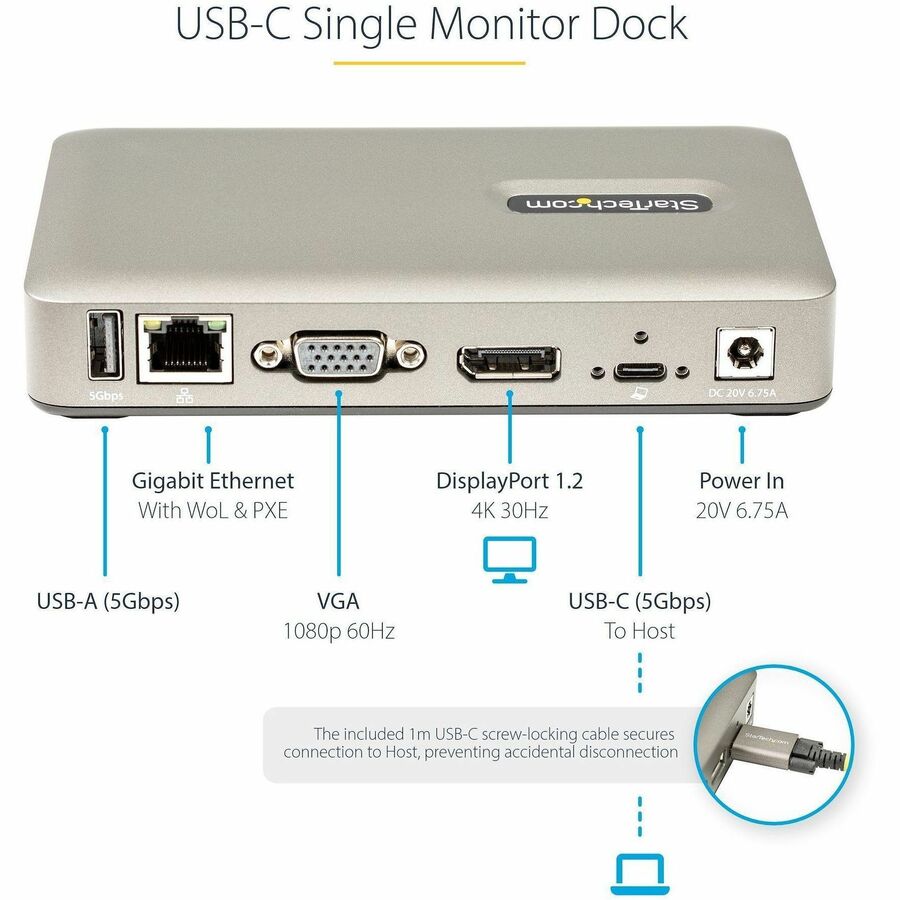

Interfaces/Ports

Host Interface: USB 3.1 (Gen 1) Type C
Total Number of USB Ports: 4
Number of USB 3.1 Gen 1 Type-A Ports: 3
Number of USB 3.1 Gen 1 Type-C Ports: 1
Number of USB Type-C Ports: 1
USB Type-C: Yes
Number of USB Type-A Ports: 3
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
VGA: Yes
DisplayPort: Yes
DisplayPort Version: 1.2
Headphone/Microphone Combo Port: Yes

Software

Operating System Supported: iPadOS,Windows,ChromeOS,Android,Linux,macOS,Windows 8,Windows 10,Windows 11,Android 9.0,Android 10,Android 11

Power Description

Maximum Power Supply Wattage: 65 W

Physical Characteristics

Product Color: Space Gray
Form Factor: Portable
Height: 1.10" (27.94 mm)
Width: 5.70" (144.78 mm)
Weight (Approximate): 11 oz (311.84 g)

Miscellaneous

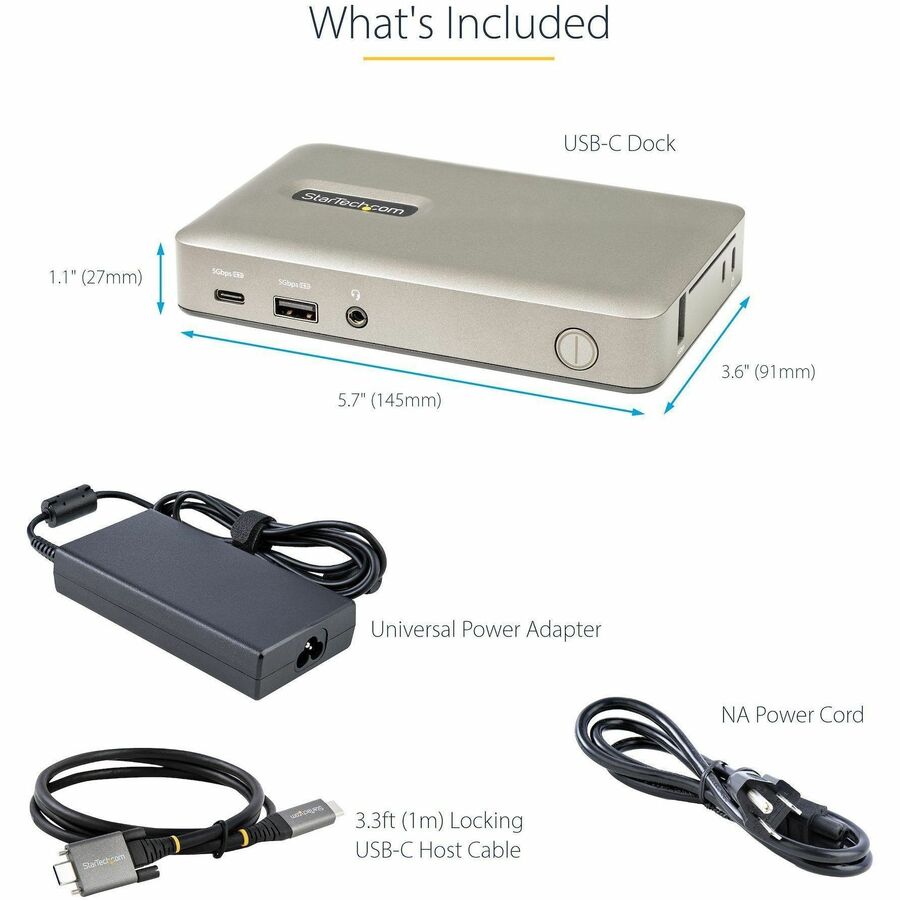

Package Contents:

• Docking Station
• 3.3 ft [1 m] Locking USB-C Host Cable
• Universal Power Adapter (NA/JP, ANZ)
• Quick-Start Guide

Kensington Security Slot: Yes
Compatibility: Compatible with USB-C Laptops, Ultrabooks & Chromebooks, plus Thunderbolt 3 laptops from HP, Dell, Lenovo, Surface and MacBooks (Intel processor and M1 chip)
Country of Origin: Taiwan

Warranty

Limited Warranty: 3 Year
