DKT30CHVSDPD StarTech.com Docking Station

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: DKT30CHVSDPD
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Docking Station
Marketing Information:

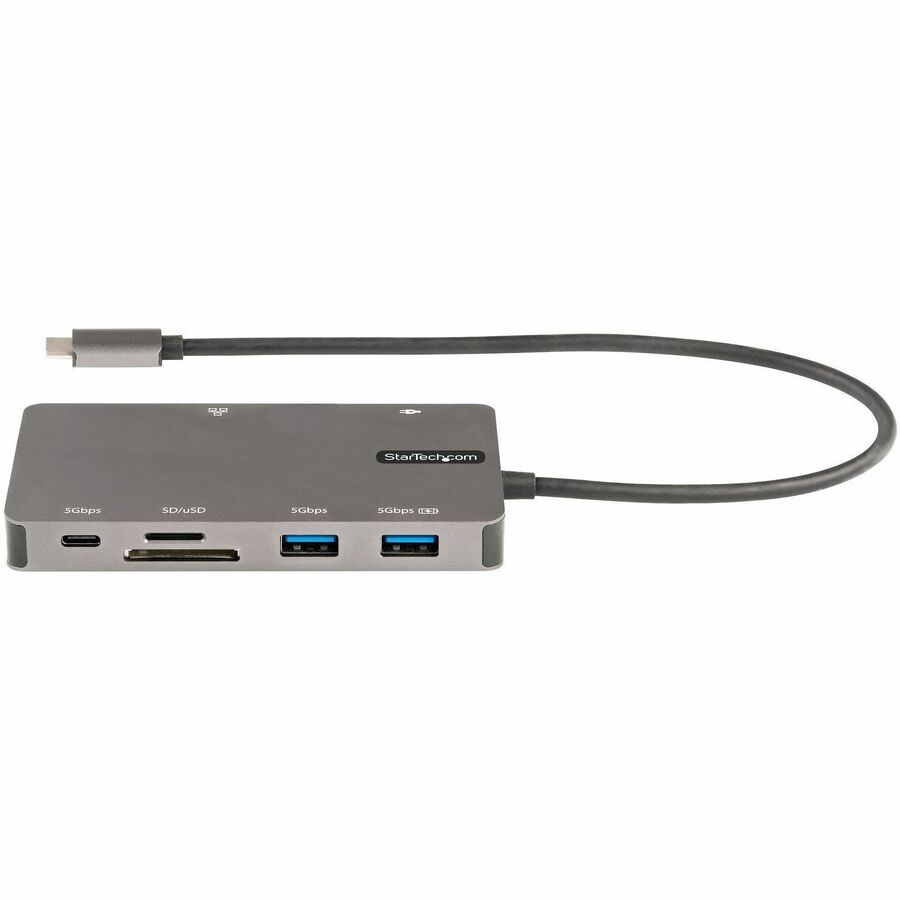

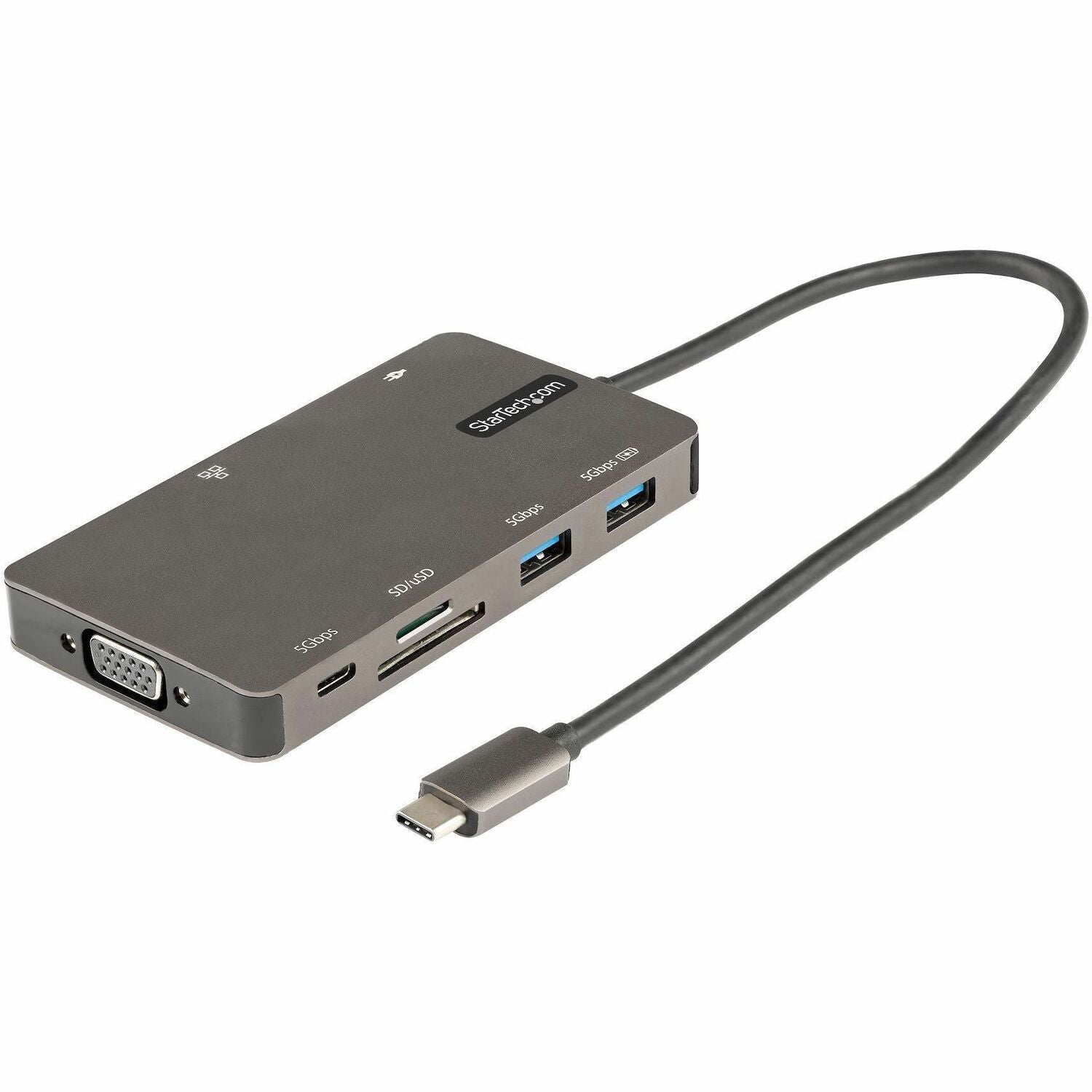

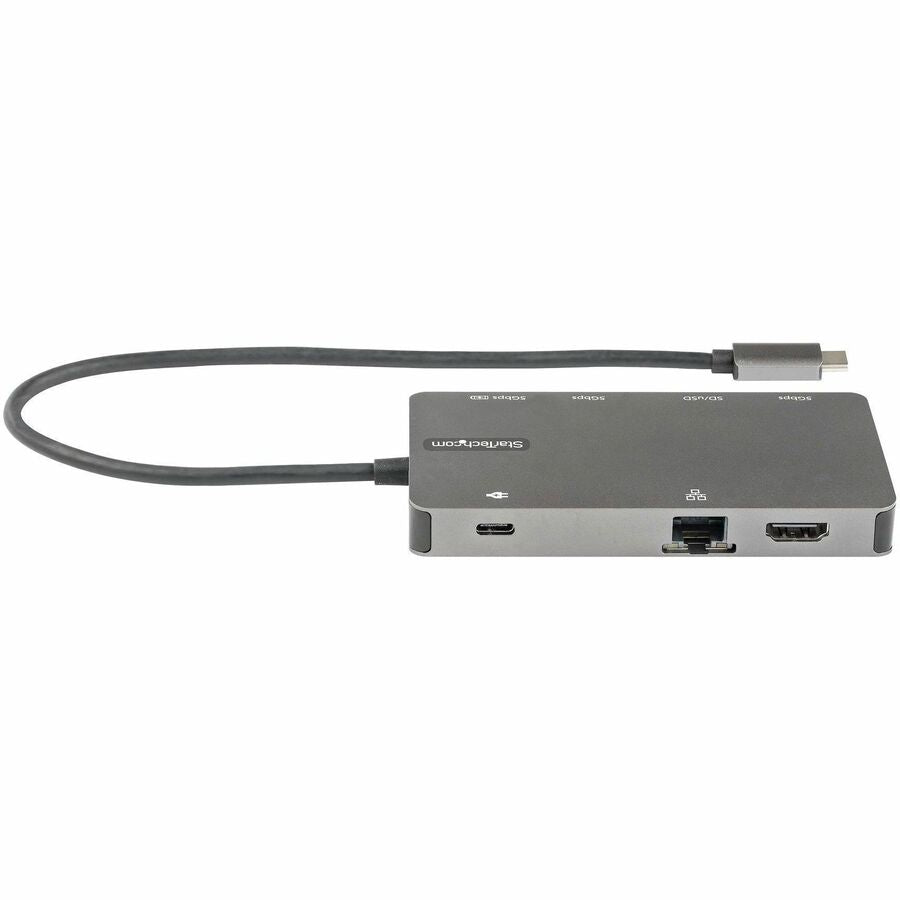

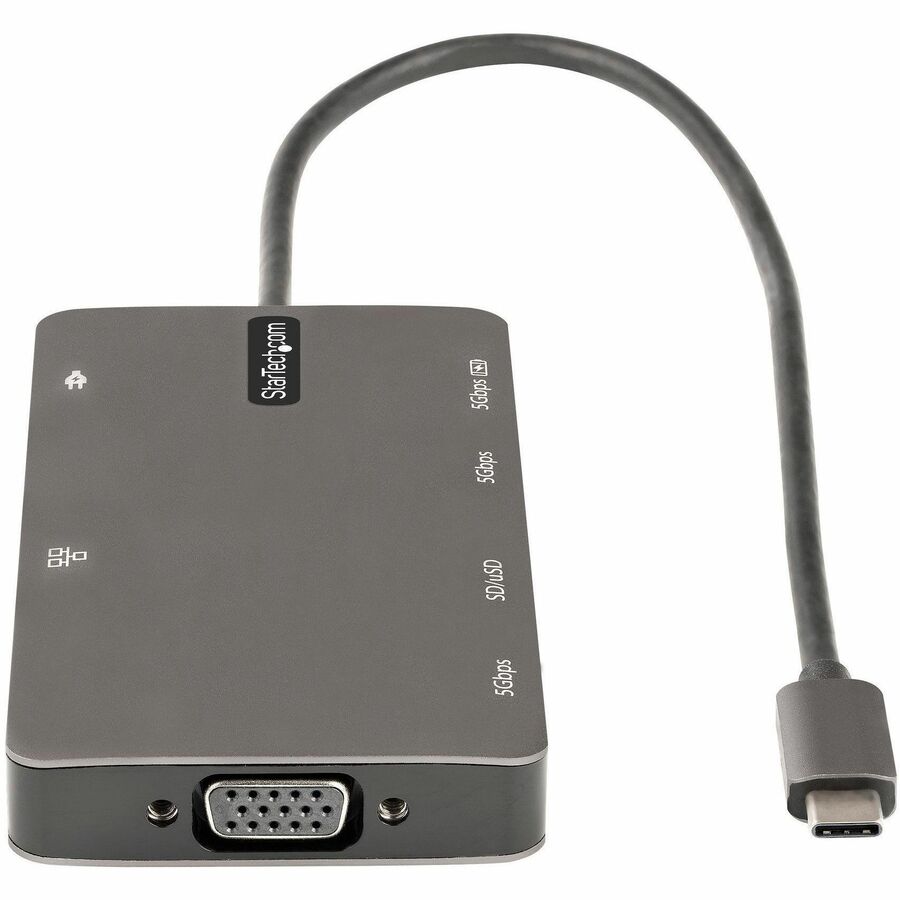

This USB-C multiport adapter supports 4K 30Hz HDMI® or 1080p VGA and turns your MacBook Pro, Dell XPS, or other USB-C™ laptops or tablet into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K HDMI or 1080p VGA video output, two USB 3.1 Gen 1 Type-A (5Gbps) ports (including 1x Fast Charge port), a single USB 3.1 Gen 1 Type-C (5Gbps) port, an SD/MicroSD card reader and a Gigabit Ethernet port, all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. Plus, it offers advanced charging through USB Power Delivery 3.0 and an extra-long attached 12-inch (30 cm) host cable for an extended reach to offer more set up flexibility.

USB 3.1 Gen 1 (5Gbps) is also known as USB 3.2 Gen 1 (5Gbps) and USB 3.0 (5Gbps).

Enhance Productivity

The portable docking station offers versatile video flexibility by connecting your laptop to a 4K 30Hz HDMI monitor (4096 x 2160p) or a 1080p (60Hz) VGA monitor (1920x1080) to create a powerful worksta
Product Type: Docking Station

Technical Information

Connectivity Technology: Wired
Number of Displays Supported: 1
Supported Resolutions: 4096 x 2160,3840 x 2160,1920 x 1080
Screen Mode Supported: 4K
Memory Card Reader: Yes
Memory Card Supported: SD,microSD
Device Supported: Monitor,Tablet,Notebook

Network & Communication

Ethernet Technology: Gigabit Ethernet

Interfaces/Ports

Host Interface: USB 3.1 (Gen 1) Type C
Number of USB 3.1 Gen 1 Type-A Ports: 2
USB Type-C: Yes
USB Type-C Detail: USB Type-C (24 pin, 5Gbps), USB Type-C (24 pin) USB Power Delivery only, USB Type-C (24 pin)
USB Type-A: Yes
Network (RJ-45): Yes
VGA: Yes
HDMI: Yes

Software

Operating System Supported: macOS 14,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Mac OS X 10.9 Mavericks,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,ChromeOS

Power Description

Maximum Power Supply Wattage: 100 W

Physical Characteristics

Product Color: Space Gray
Form Factor: Portable
Height: 0.60" (15.24 mm)
Width: 12.80" (325.12 mm)
Weight (Approximate): 4.80 oz (136.08 g)

Miscellaneous

Compatibility: Fully compatible with USB-C laptops, Ultrabooks & Chromebooks, plus Thunderbolt 3/4 laptops from HP, Dell, Lenovo, MacBooks (Intel processor and M1 chip), and Surface; works w/ Windows, macOS, iPadOS, Android and Chrome OS
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
