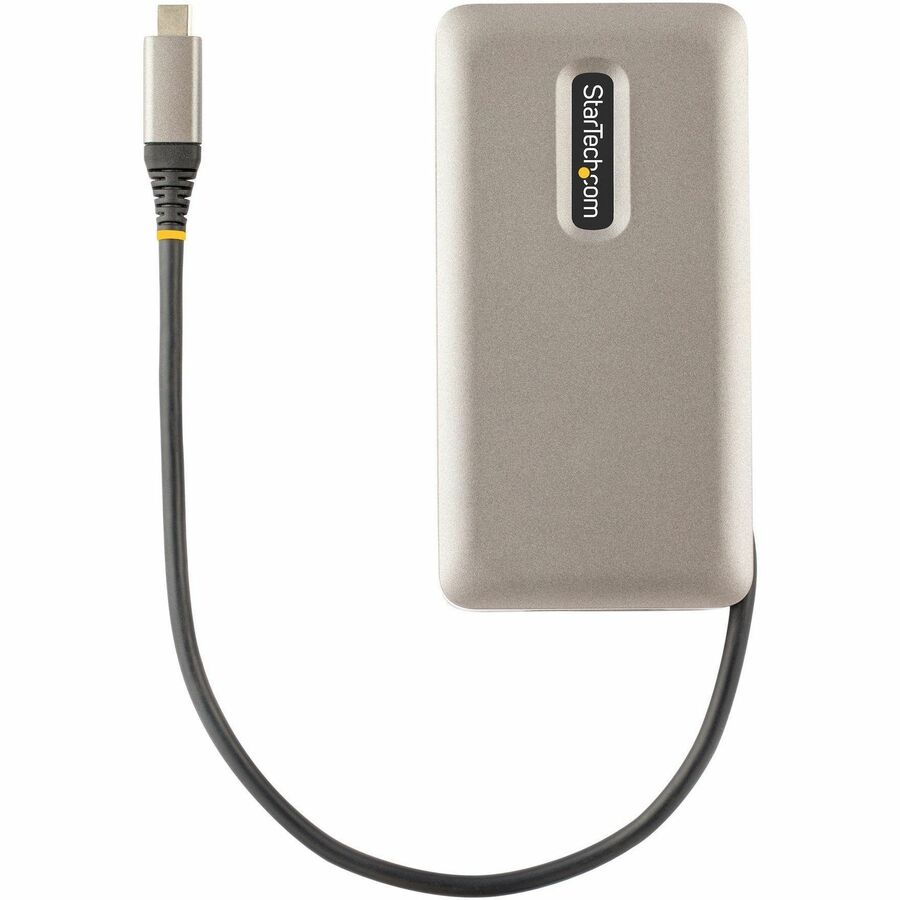

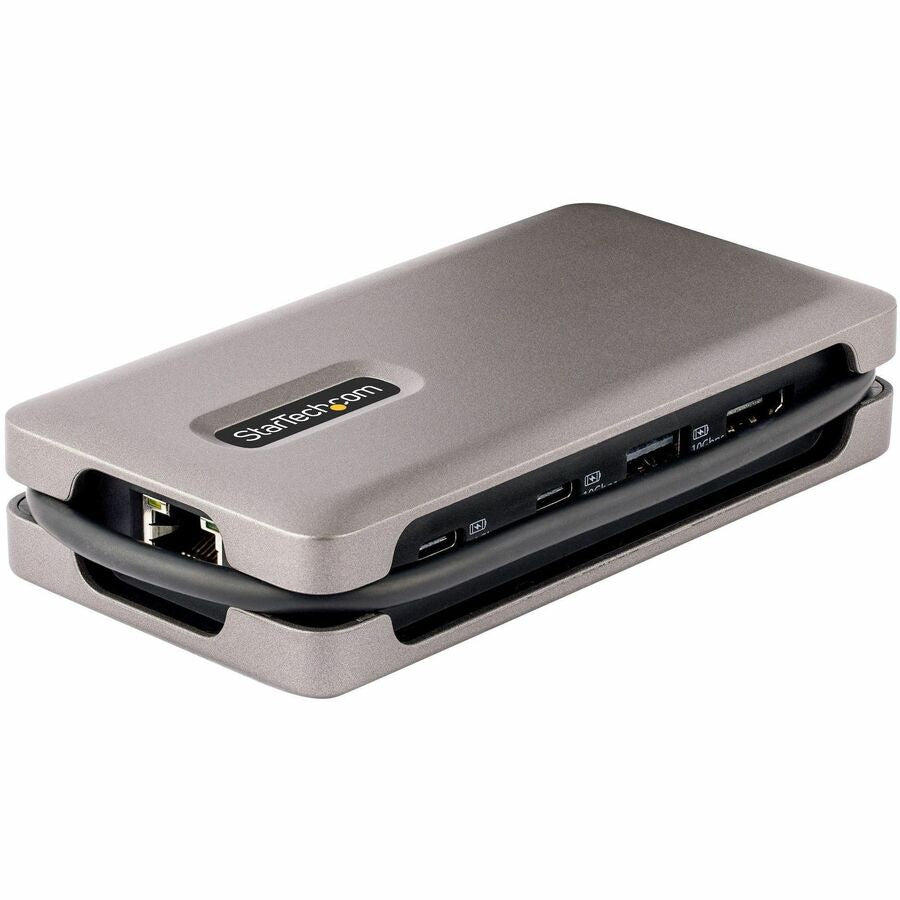

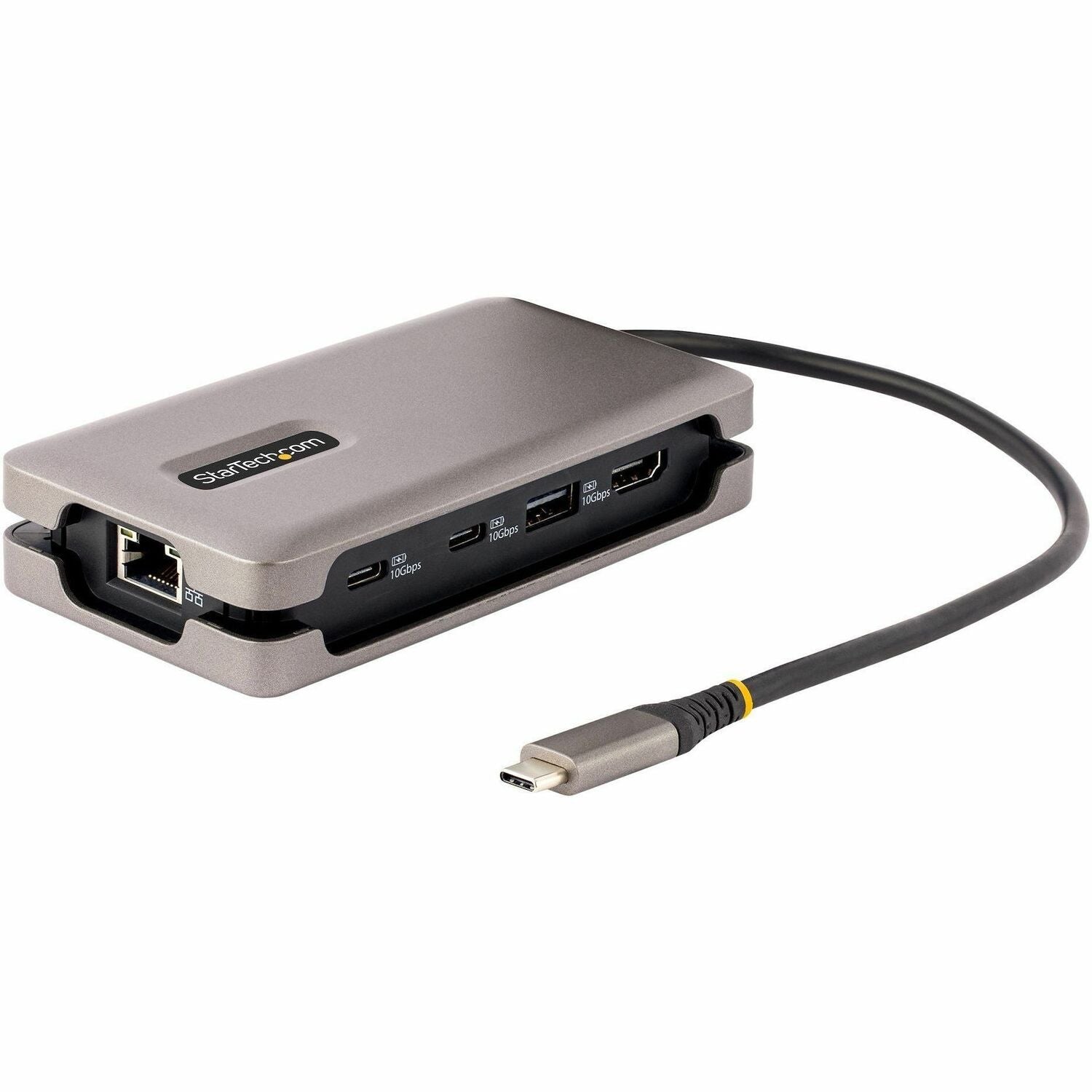

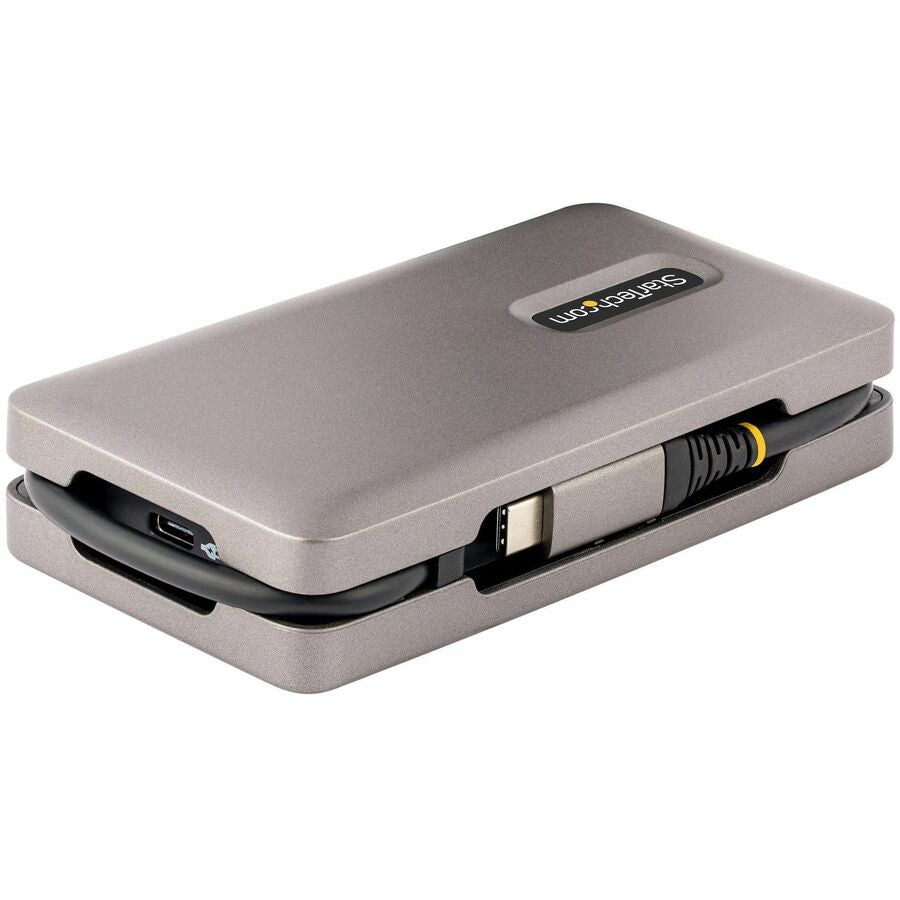

DKT31CH2CPD3 StarTech.com USB-C Multiport Adapter, 4K 60Hz HDMI (HDR), USB 3.2 Gen 2 10Gbps Hub (2xUSB-C/1xUSB-A), 100W PD Pass-Through, GbE, Mini Dock

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: DKT31CH2CPD3
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Model: DKT31CH2CPD3
Product Name: DKT31CH2CPD3 Docking Station
Marketing Information:

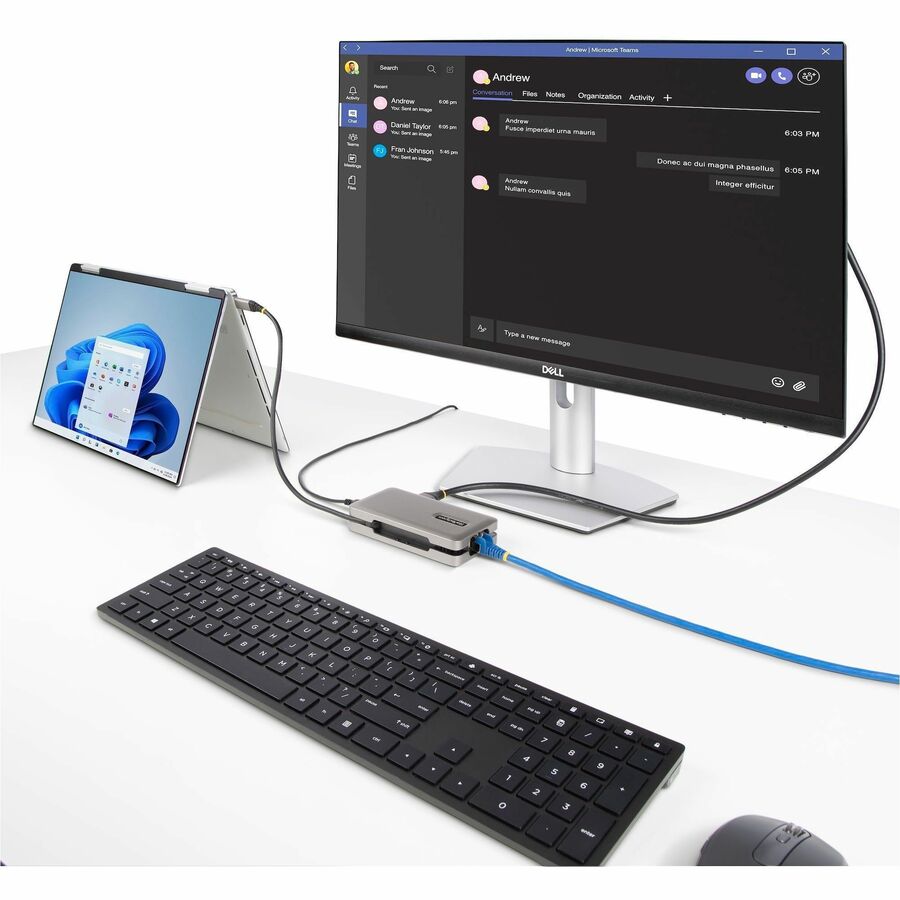

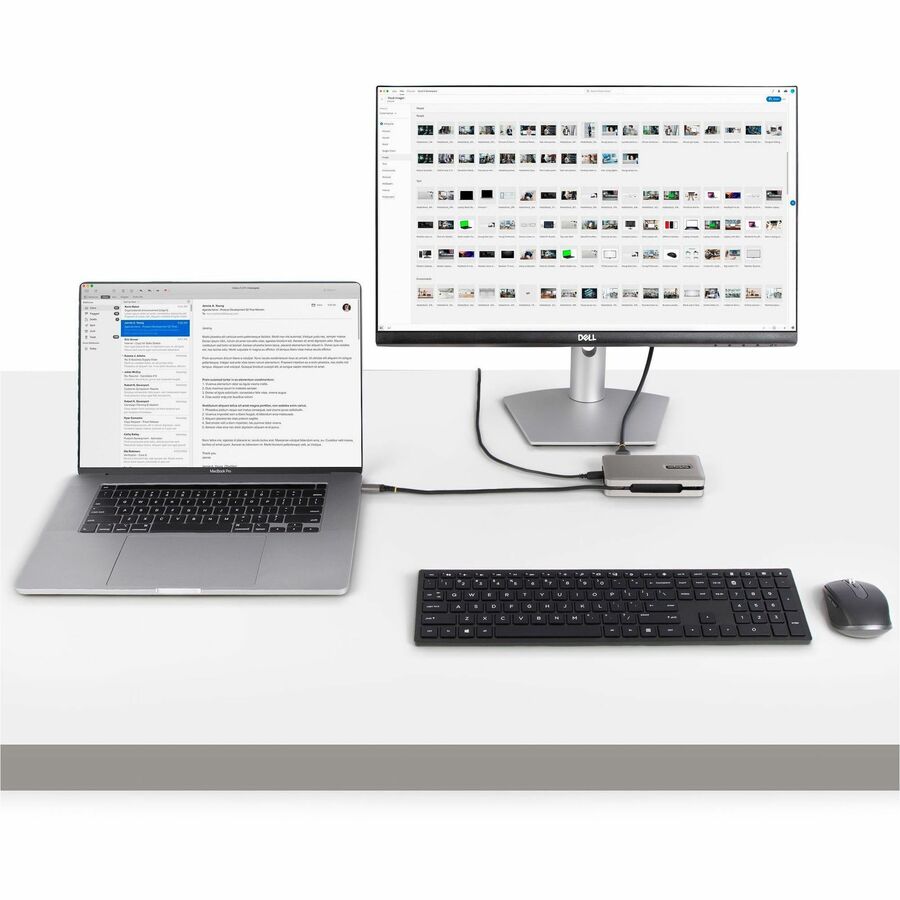

This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns a USB-C™ laptop or tablet into a workstation, anywhere you go.

Enhance Productivity

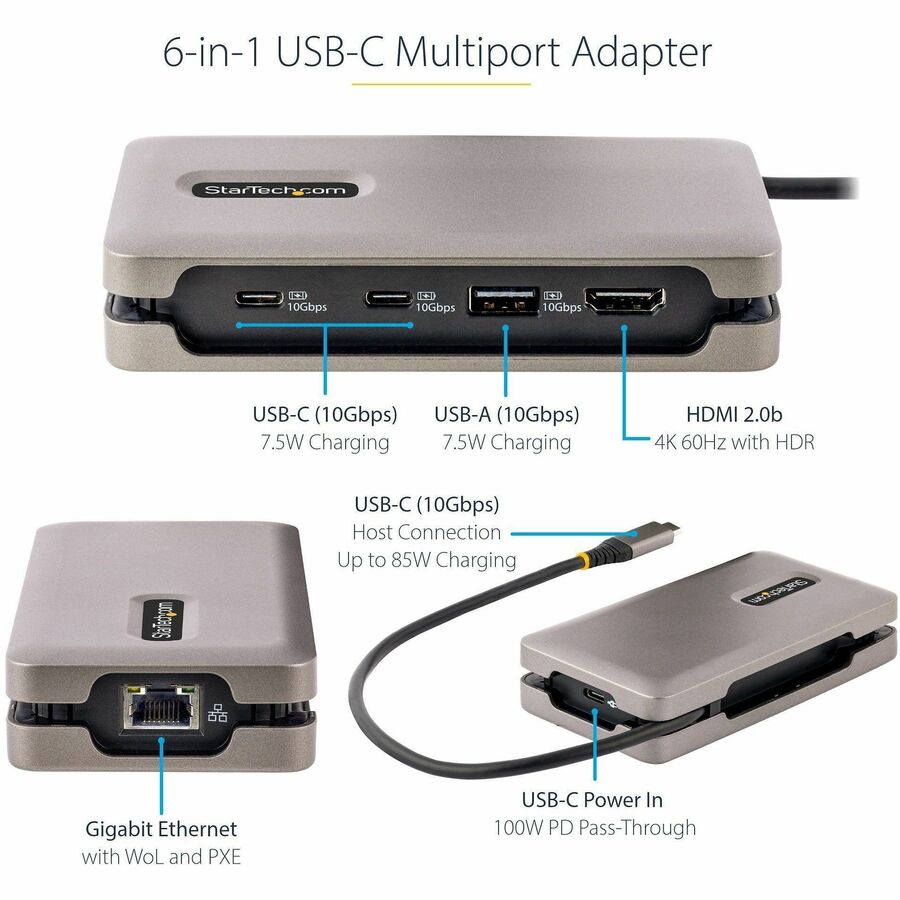

The portable docking station provides 4K 60Hz HDMI video output, two USB 3.2 Gen 2 Type-C (10Gbps) ports, one USB 3.2 Gen 2 Type-A (10Gbps) port, and a Gigabit Ethernet port (PXE and WoL support) all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. A USB-C DisplayPort 1.4 Alt-Mode port is required for 4K 60Hz HDMI output.

Host Connection Maximum Resolution DP 1.4 Alternate Mode Up to 4K 60Hz DP 1.2 Alternate Mode Up to 4K 30Hz

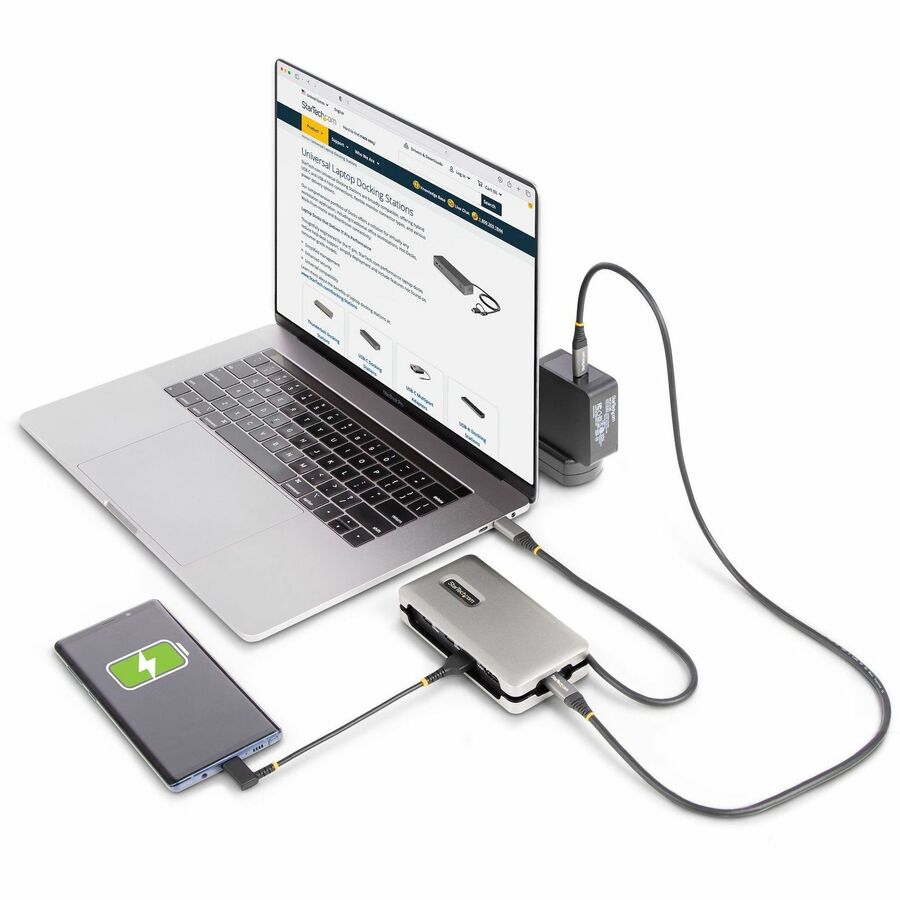

Connect and Charge Your USB Devices

The USB hub features two USB-C (10Gbps) ports and one USB-A (10Gbps) port for connecting up to three USB peripherals. The USB PD pass-through port enables charging of the host laptop. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. Connect a USB-C P
Packaged Quantity: 1
Product Type: Docking Station

Technical Information

Connectivity Technology: Wired
Number of Displays Supported: 1
Supported Resolutions: 3840 x 2160
Screen Mode Supported: 4K
Device Supported: Notebook,Workstation

Network & Communication

Ethernet Technology: Gigabit Ethernet

Interfaces/Ports

Host Interface: USB 3.2 (Gen 2) Type C
Number of USB 3.2 Gen 2 Type-A Ports: 1
Number of USB Type-C Ports: 2
USB Type-C: Yes
USB Type-C Detail: USB Type-C (24 pin) USB Power Delivery Only
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
DisplayPort: Yes
DisplayPort Version: 1.4
Number of HDMI Ports: 1
HDMI: Yes
Thunderbolt: Yes

Software

Operating System Supported: Windows 10,Windows 11,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,iPadOS,Android,Linux 4.x,ChromeOS

Power Description

Maximum Power Supply Wattage: 100 W

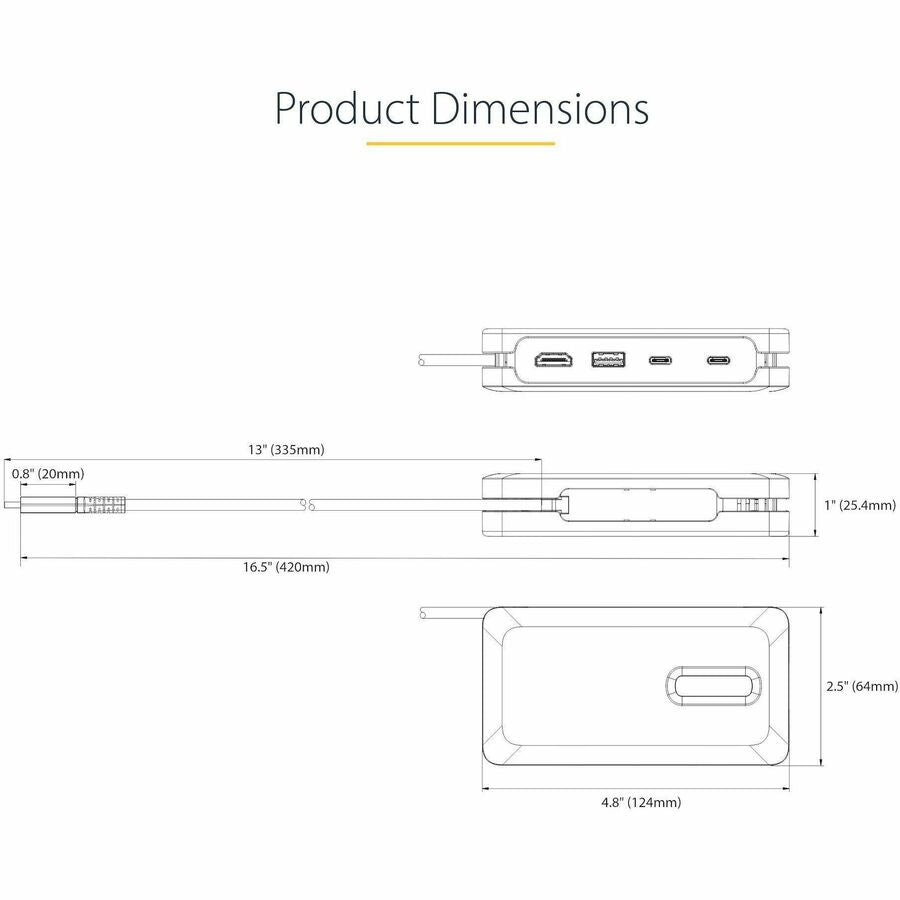

Physical Characteristics

Product Color: Space Gray
Form Factor: Portable
Height: 1" (25.40 mm)
Width: 2.50" (63.50 mm)
Weight (Approximate): 3.30 oz (93.55 g)

Miscellaneous

Compatibility:

Mini dock is Compatible with USB-C laptops, Ultrabooks, Chromebooks, USB4 and Thunderbolt 3/4 laptops from HP, Dell, Lenovo, MacBooks (Intel & M1 Pro/Max processors) and Surface - Works w/ Windows, macOS, iPadOS, Android, Linux & Chrome OS

Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
