Description
Manufacturer-Brochure
General Information
Manufacturer: CyberPower Systems, IncManufacturer Part Number: EC750G
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: Ecologic UPS
Product Model: EC750G

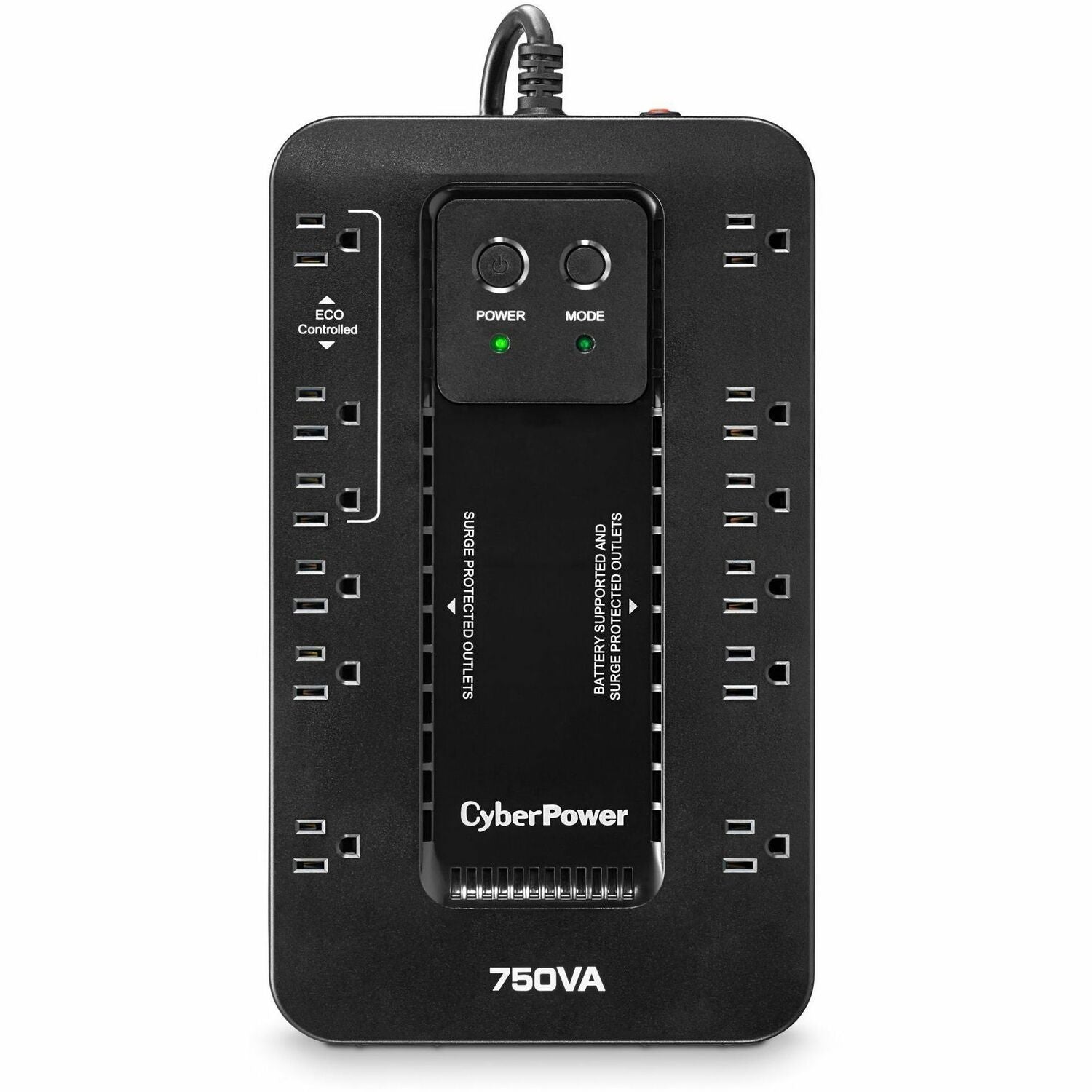

Product Name: EC750G Ecologic UPS Systems
Marketing Information:
A compact UPS with standby topology, the CyberPower Ecologic EC750G provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC750G offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The EC750G comes with a three-year warranty (including coverage of batteries) and a
- 100,000 Connected Equipment Guarantee.
Product Type: Standby UPS
Technical Information
Plug/Connector Type: NEMA 5-15PReceptacle Type: NEMA 5-15R

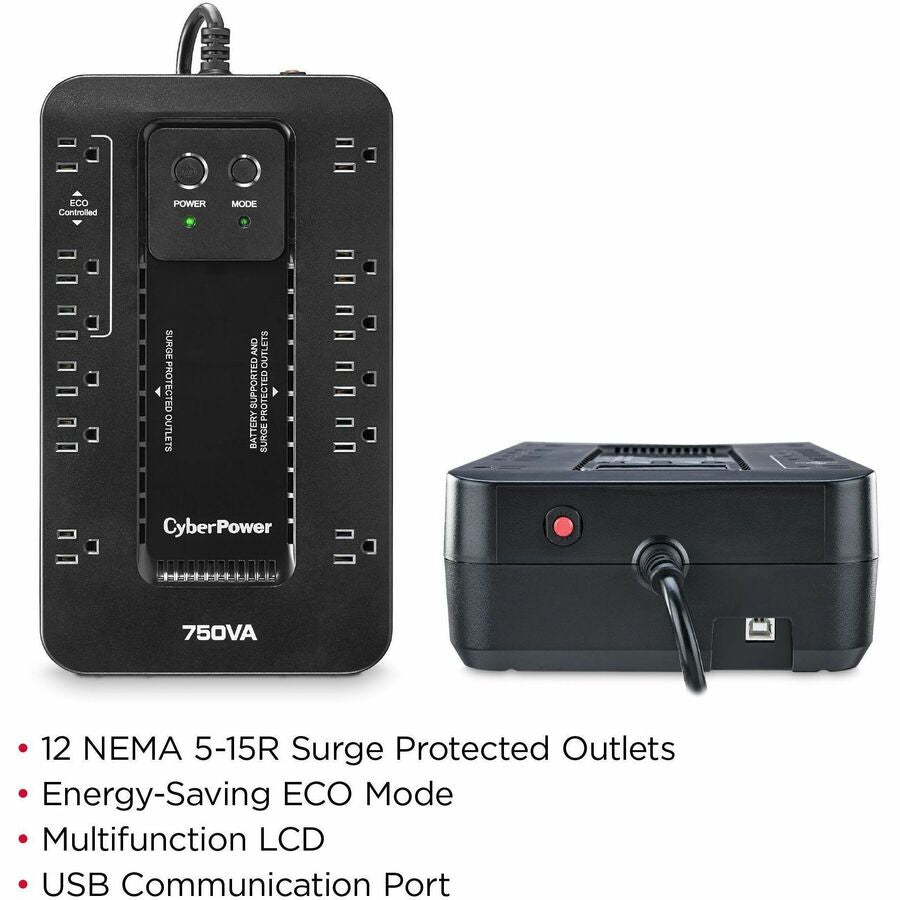

Receptacle Detail: 12 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Number of Surge-only Outlets: 6
Overload Protection: Yes
Cord Length: 5 ft (1.52 m)
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS™ High-Efficiency
Application/Usage: Desktop Computer,Workstation,Network Device,Home Entertainment System,Computer Peripheral,Home Theater,Equipment,Personal Electronic,Home Network,Router,Modem,VoIP Phone
Surge Suppression: Yes
Features: Audible Alarm
Power Description
Load Capacity (VA): 750 VALoad Capacity (Watt): 450 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Input Frequency: 47 Hz,63 Hz
Output Frequency: 60 Hz,50 Hz
Waveform Type: Simulated Sine Wave
Surge Energy Rating: 526 J
Circuit Breaker: Yes
Output Power Factor: 0.6
Management
Alarm: Battery Mode,Low Battery,OverloadControls/Indicators
Status Indicators:LED Indicators:
- Power On
- ECO On/Of
Interfaces/Ports
USB: YesUSB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 1Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2.80 Minute
Backup/Run Time (Half Load): 10 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Elevation: 10000 ft (3048000 mm)Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 0% - 90%
Storage Relative Humidity: 0% - 95%
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics

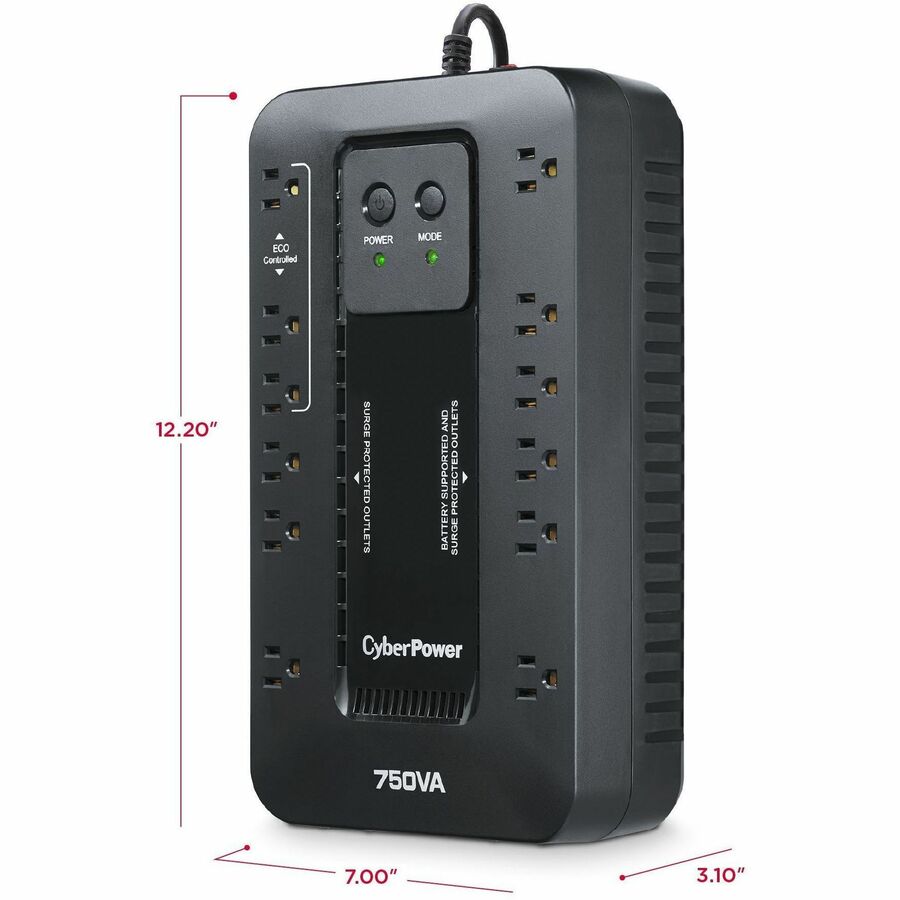

Product Color: BlackHeight: 3.11" (79 mm)
Width: 12.20" (310 mm)
Depth: 7.01" (178 mm)
Form Factor: Compact
Weight (Approximate): 7.69 lb (3490 g)
Miscellaneous
Energy Star: YesEnvironmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 YearAdditional Warranty Information:
Three-year warranty (including coverage of batteries)
