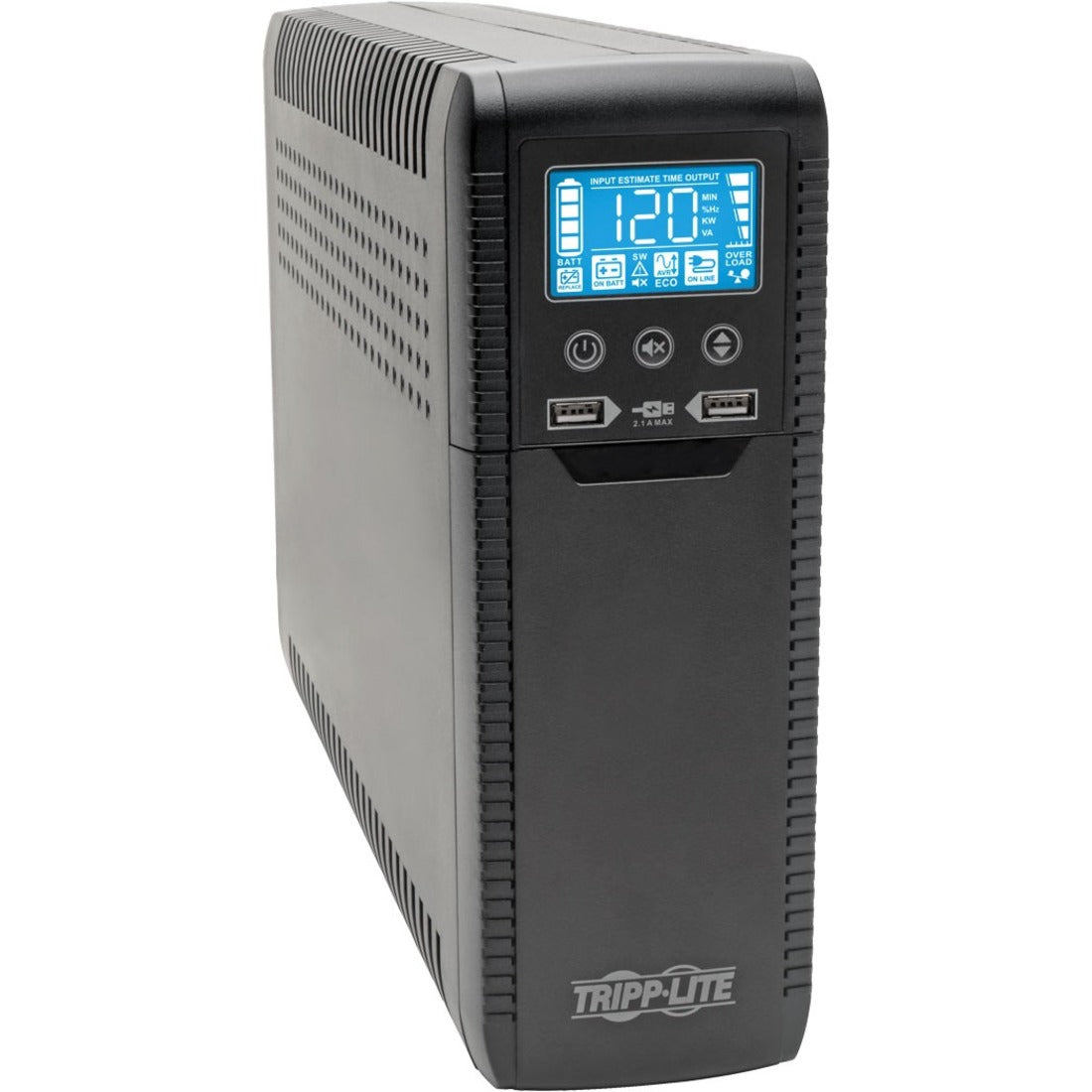

ECO1300LCD Tripp Lite series ECO1300LCD 1300VA Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: ECO1300LCD
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Series: ECO
Product Model: ECO1300LCD
Product Name: ECO1300LCD 1300VA Tower UPS
Marketing Information:

Not for sale in California until further notice.

Energy-Saving 1300VA/720W USB Battery Backup for PCs or Home Theater Systems

This 120V line-interactive AVR UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The 10-outlet UPS is ideal protection for your home office or media center components, including computers, routers, printers, NAS drives, HDTVs, Blu-ray players, game consoles, media players, DVRs and audio receivers.

Allows Time to Back Up Critical Files During a Blackout

Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with LCD monitor powered as long as 75 minutes. During normal operati
Product Type: Line-interactive UPS

Technical Information

AVR: Yes

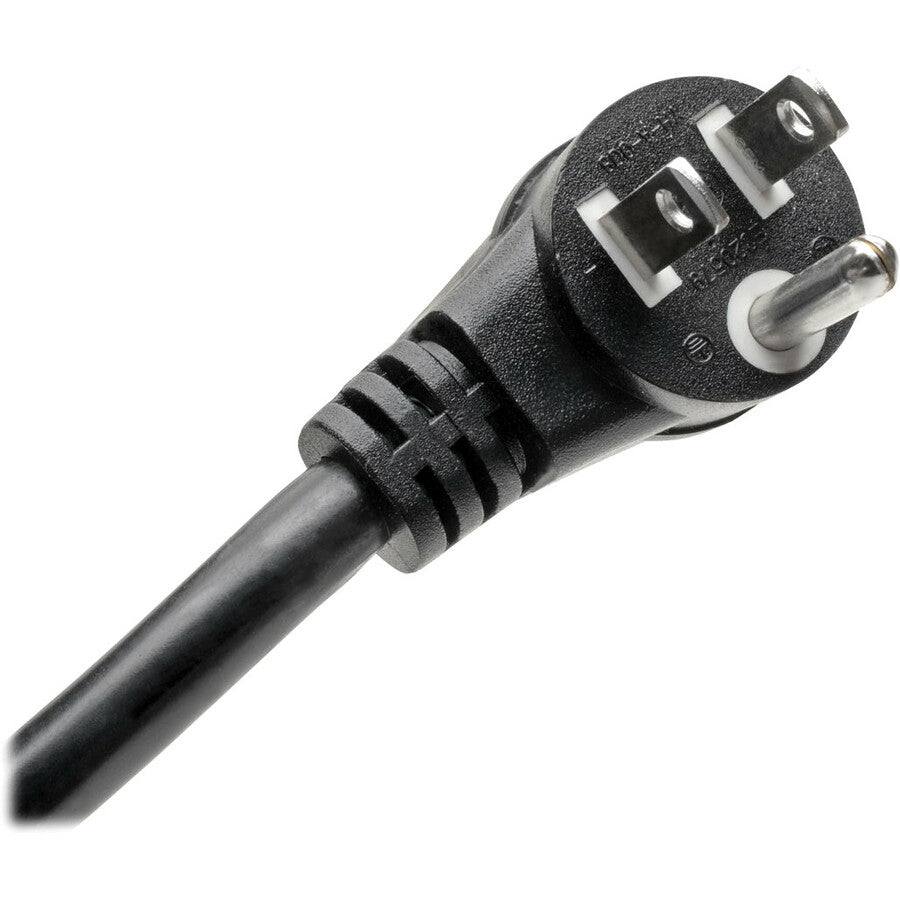

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 10 x NEMA 5-15R
Number of Battery & Surge Outlets: 5
Number of Surge-only Outlets: 5
Dataline Protection: RJ-11,RJ-45
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage: Desktop Computer,Home Theater,Router,Printer,Office,Media Player,Blu-ray Player,Scanner,Audio Receiver,Gaming Console,Storage Device,Television,DVR

Power Description

Load Capacity (VA): 1.30 kVA
Load Capacity (Watt): 720 W
Input Voltage: 120 V AC
Output Voltage: 110 V AC,115 V AC,120 V AC
Output Frequency: 60 Hz
Waveform Type: Sine Wave

Management

Alarm: Low Battery,Replace Battery,Overload,Fault

Interfaces/Ports

USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 24 V DC
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 12 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 7 Hour

Physical Characteristics

Height: 11" (279.40 mm)
Width: 3.90" (99.06 mm)
Depth: 16.14" (409.96 mm)
Form Factor: Tower
Weight (Approximate): 22.44 lb (10178.61 g)

Miscellaneous

Package Contents:

• ECO1300LCD 1300VA Tower UPS
• USB Cable
• Owner's Manual

Energy Star: Yes
Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
