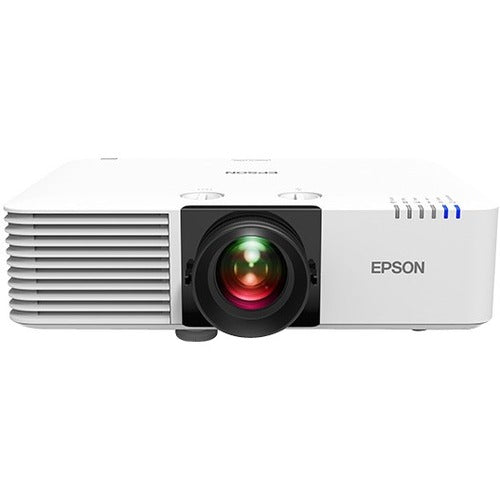

Epson PowerLite L770U 3LCD Projector - 21:9 - Ceiling Mountable

General Information

Manufacturer: Epson Corporation
Manufacturer Part Number: V11HA96020
Manufacturer Website Address: http://epson.ca
Brand Name: Epson
Product Line: PowerLite
Product Model: L770U
Product Name: PowerLite L770U 3LCD Laser Projector With 4K Enhancement
Marketing Information: Deliver brilliant displays with remarkable brightness and 4K Enhancement

Ultra bright, true-to-life images - Best-in-Class Color Brightness with 3-chip 3LCD technology and 7,000 lumens of color and white brightness.

4.6 million pixels on screen - WUXGA with 4K Enhancement provides a visibly smoother and sharper display, even at close viewing distances; accepts 4K content

Virtually maintenance-free - 20,000-hour laser light source and air filter

Large, ultra wide display - display images up to 500" diagonal either in standard 16:10 and 16:9 or in ultra wide 16:6 and 21:9 for immersive video conferencing

Streamlined installation - wide lens shift, 1.6x optical zoom, built-in edge blending and geometric correction tools via on-screen menu or Epson Professional Projector Tool software setup application for Windows and macOS

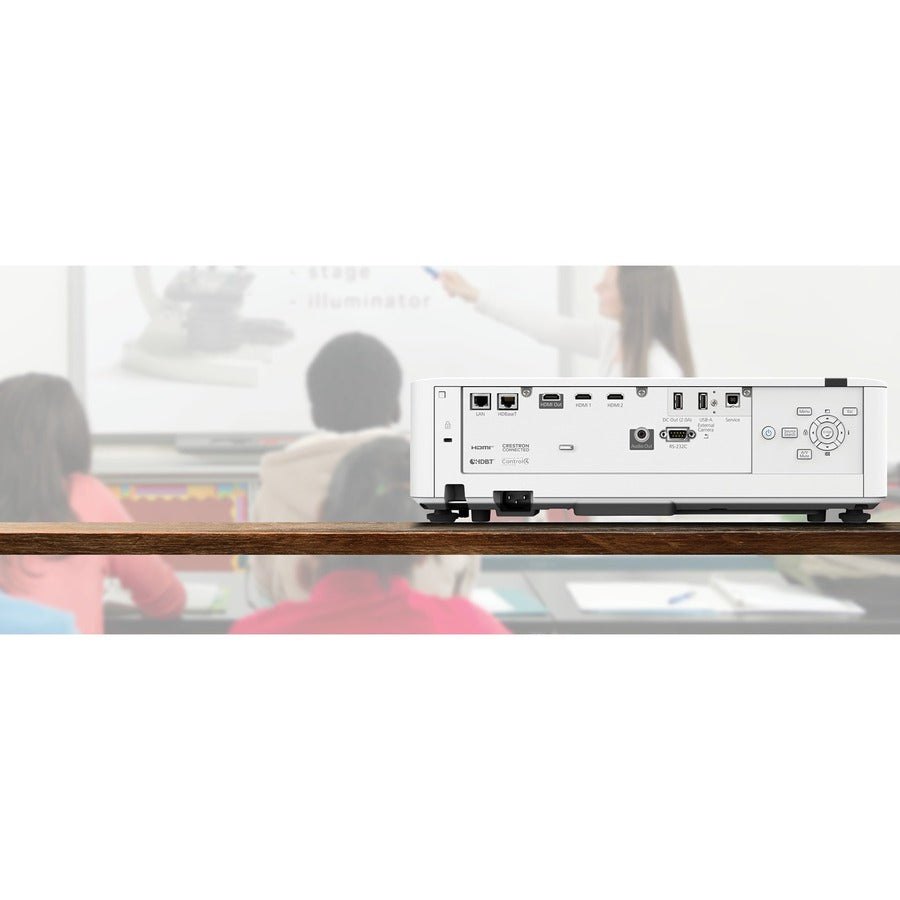

Versatile connectivity options - HDBaseT, 2x HDMI inputs, HDMI output, RJ-45, RS-232 and control management tools

Simplified operation and content sharing - auto power-on, split screen , screen sharing with Epson iProjection and optional wireless networking with the ELPAP11 adapter

Customizable brightness modes - set the projector to maintain a consistent brightness level over time, or set the brightness to Extended to help maximize the life of the laser light source

Optional PixAlign camera - adds powerful multi-projector tools; blending assist for super-wide displays; simple stacking without an external PC; screen matching and auto color calibration

Easily programmable with the built-in media player and content creation app - includes templates, effects, color filters and customizable options; playlist and playback functions allow for seamless content management directly or via the network

Product Type: 3LCD Projector

Technical Information

Projection Method: Front,Rear,Ceiling

Projection Lens

Minimum Focal Length: 20 mm (0.79")
Maximum Focal Length: 31.8 mm (1.25")
Maximum Diagonal Image Size: 41.67 ft (12700 mm)
Optical Zoom: 1.6x

Lamp

Number of Lamps: 1
Lamp Type: Laser Diode
Normal Mode Lamp Life: 20000 Hour
Economy Mode Lamp Life: 30000 Hour


Standard Mode Brightness: 7000 lm
Native Resolution: 1920 x 1200
Graphic Mode: WUXGA
Native Aspect Ratio: 21:9
Contrast Ratio: 2,500,000:1

Interfaces/Ports

HDMI: Yes
USB: Yes
Network (RJ-45): Yes

Power Description

Operating Power Consumption: 382 W

Physical Characteristics

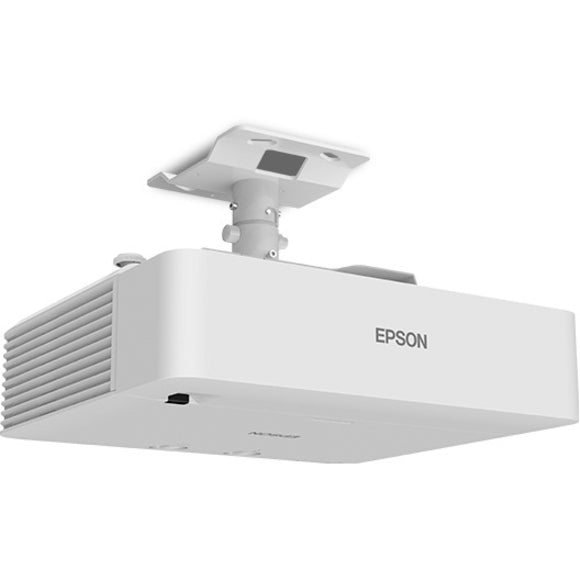

Form Factor: Ceiling Mountable
Height: 4.80" (121.92 mm)
Width: 17.32" (439.93 mm)
Depth: 11.97" (304.04 mm)
Weight (Approximate): 19.10 lb (8663.61 g)

Miscellaneous

Application/Usage: Business,Meeting,Class Room
Package Contents:

• PowerLite L770U Laser Projector
• Power Cable
• Computer Cable (HDMI)
• Projector Remote Control With Batteries
• Quick Reference Card
• Cable Cover

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
