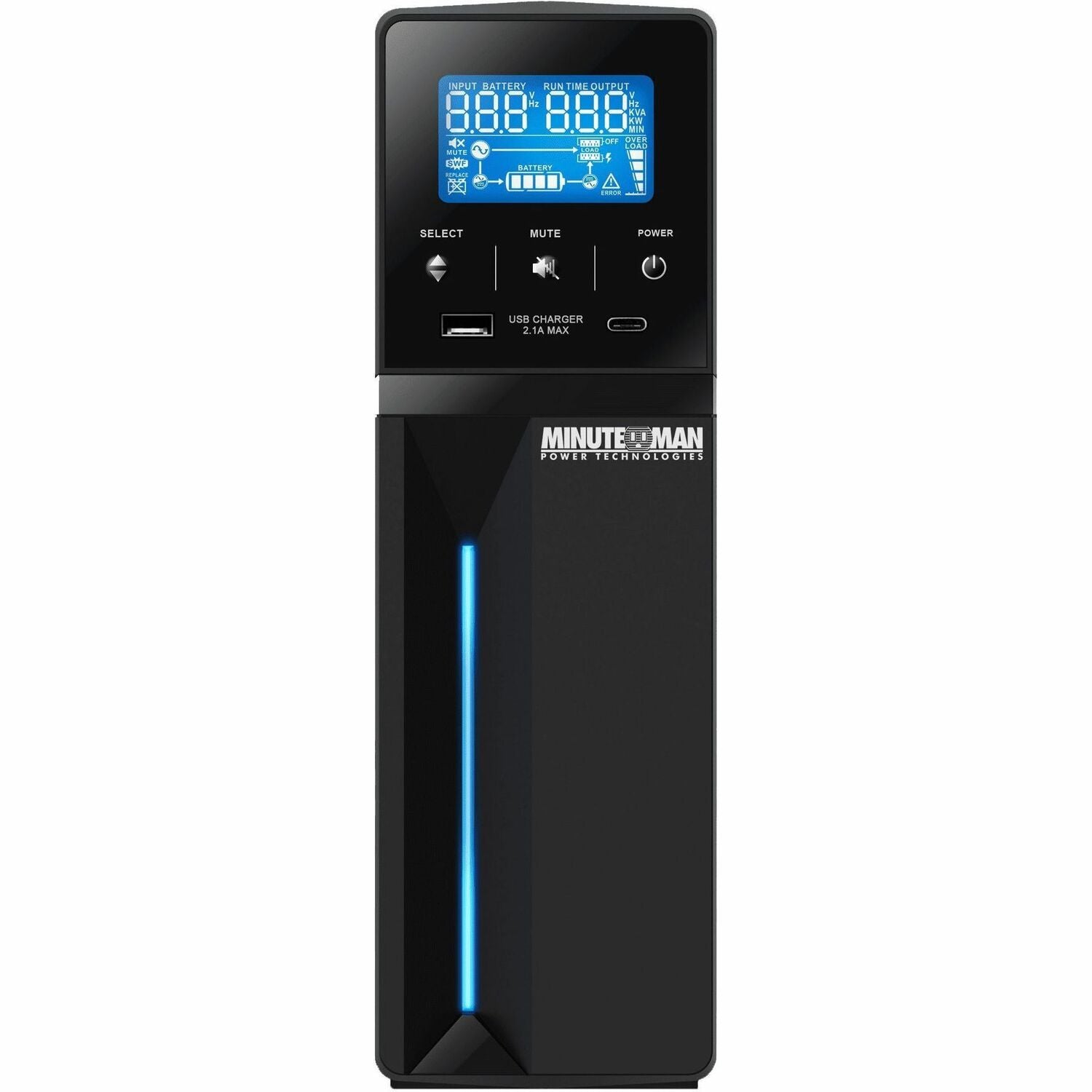

ETR850LG Minuteman Entrust-LG ETR850LG 850VA Mini-tower UPS

General Information

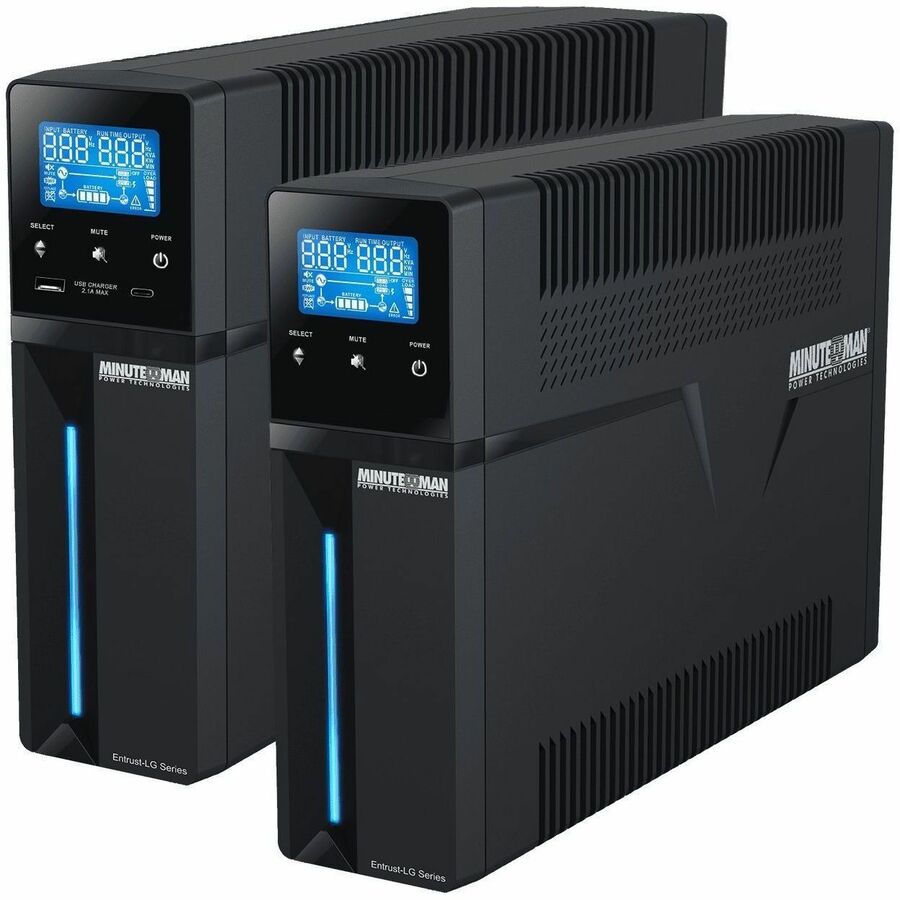

Entrust-LG Series | Line-interactive mini tower UPS

The Entrust-LG UPS Series is a compact line-interactive mini tower UPS, perfect for small to medium-load applications. Its versatile form factor integrates seamlessly into any environment, providing reliable protection against power fluctuations and outages.

Key Fetures

The Entrust-LG's compact footprint makes it an ideal solution for cramped spaces including network and security closets, AV cabinets, tight desks, and more. With sizes ranging from 550VA to 2000VA, the Entrust-LG series can support a wide range of equipment, including personal computers, small to midsize security DVRs, network devices, small telephone systems, and more.

• Automatic Voltage Regulation (AVR)
• Four surge and battery-protected outlets (550/850VA models)
• Four surge-only outlets for protection of non-critical accessories (550/850VA models)
• Five surge and battery-protected outlets (1000/1350VA models)
•
  Product Type: Line-interactive UPS


  Technical Information

  AVR: Yes
  Plug/Connector Type: NEMA 5-15P
  Receptacle Type: NEMA 5-15R
  Receptacle Detail: 8 x NEMA 5-15R
  Number of Battery & Surge Outlets: 4
  Number of Surge-only Outlets: 4
  Dataline Protection: Coax,RJ-45
  Cord Length: 6 ft
  Application/Usage: Gaming Console,Computer,Desktop,Workstation,Network Equipment,VoIP,Telephone System,Security Closet,AV Cabinet,CCTV Camera,DVR,Non-critical Device
  Surge Suppression: Yes


  Power Description

  Load Capacity (VA): 850 VA
  Load Capacity (Watt): 510 W
  Input Voltage: 120 V AC
  Input Voltage Range: 90 V AC - 140 V AC
  Input Current: 11 A
  Output Voltage: 104 V AC,140 V AC,120 V AC
  Input Frequency: 60 Hz
  Waveform Type: Step Simulated Sine Wave
  Surge Energy Rating: 1200 J
  Circuit Breaker: Yes


  Display & Graphics

  Display: LCD


  Interfaces/Ports

  USB: Yes
  Network (RJ-45): Yes
  USB (HID Compliant) Port: Yes


  Battery Information

  Hot Swappable: Yes
  Replaceable Battery: Yes


  Environmental Conditions

  Maximum Operating Elevation: 10000 ft (3048000 mm)
  Operating Humidity: 0% - 95%
  Minimum Operating Temperature: 32°F (0°C)
  Maximum Operating Temperature: 104°F (40°C)


  Physical Characteristics

  Height: 11" (279.40 mm)
  Width: 3.90" (99.06 mm)
  Length: 11.40" (289.56 mm)
  Form Factor: Mini-tower
  Weight (Approximate): 39.46 lb (17900 g)


  Miscellaneous

  Package Contents:
  • Entrust-LG ETR850LG 850VA Mini-tower UPS
  • Communication Cable

  Energy Star: Yes
  Country of Origin: Vietnam
  Environmentally Friendly: Yes
  Energy Efficiency Certification: ENERGY STAR 2.0
  Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Restriction of Hazardous Substances (RoHS)


  Warranty

  Limited Warranty: 3 Year
  Additional Warranty Information:

  3 Years Electronics / 2 Years Batteries
