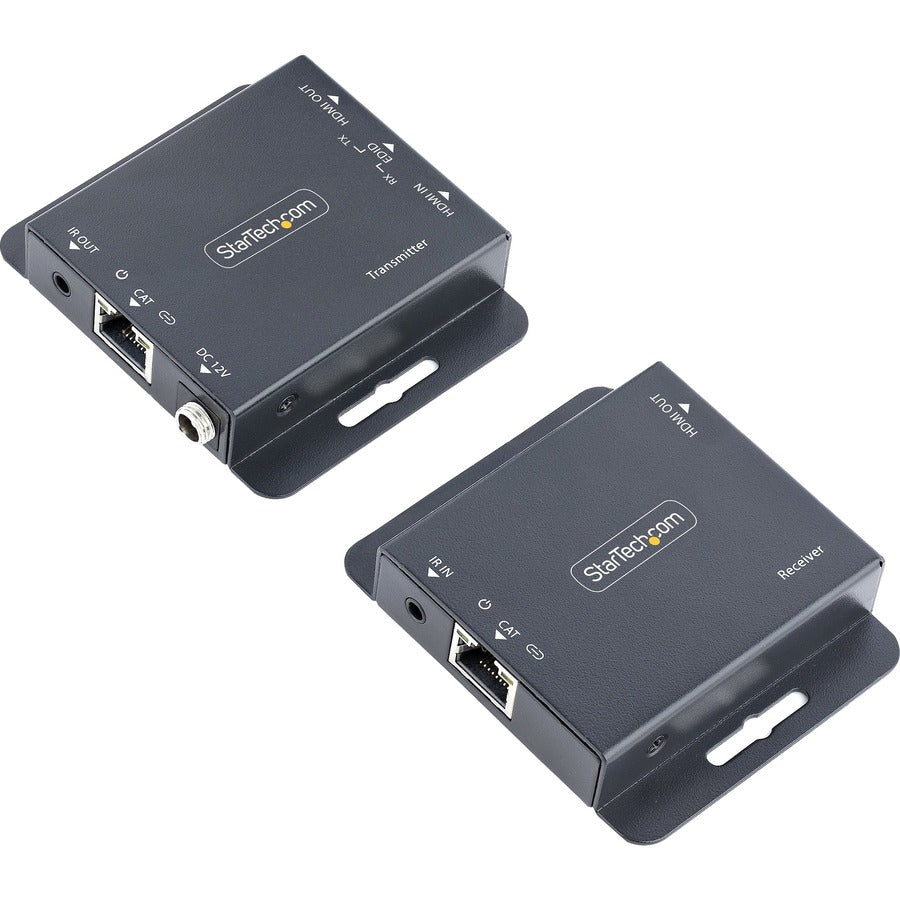

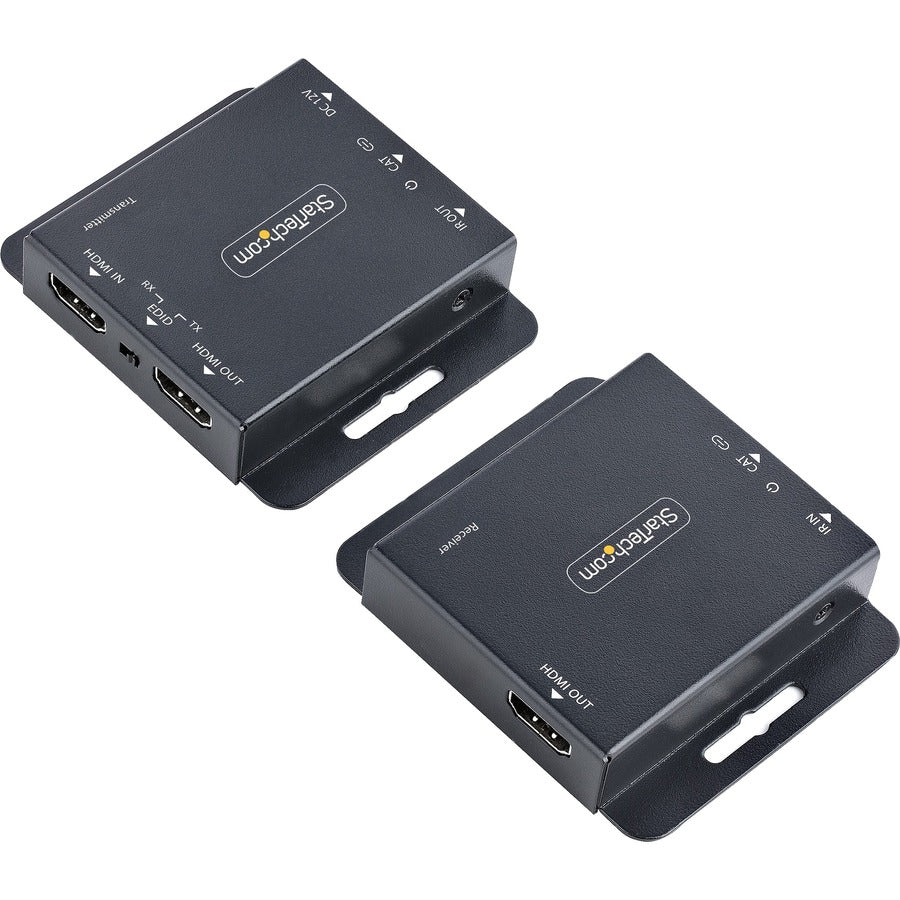

EXTEND-HDMI-4K40C6P1 StarTech.com 4K HDMI Extender over CAT6/CAT5 Ethernet Cable, 4K 30Hz or 1080p 60Hz Video Extender, HDMI Transmitter and Receiver Kit

StarTech.comSKU: EXTEND-HDMI-4K40C6P1
No reviews
Price:
$314.99

Description

User-Manual
Manufacturer-Brochure

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: EXTEND-HDMI-4K40C6P1
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: HDMI Extender
Marketing Information:

This HDMI® Extender over CAT6 lets you transmit a 4K 30Hz HDMI® audio video signal up to 130ft (40m), or 230ft (70m) for 1080p resolutions. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.

4K Picture Quality

This HDMI extender supports 7.1ch audio and resolutions of up to 4K at 30Hz (3840 x 2160) over a single CAT6/5e cable. The UHD HDMI Extender supports HDMI 1.4 and 4:4:4 chroma subsampling, which ensures a crystal-clear picture.

Simplify your setup

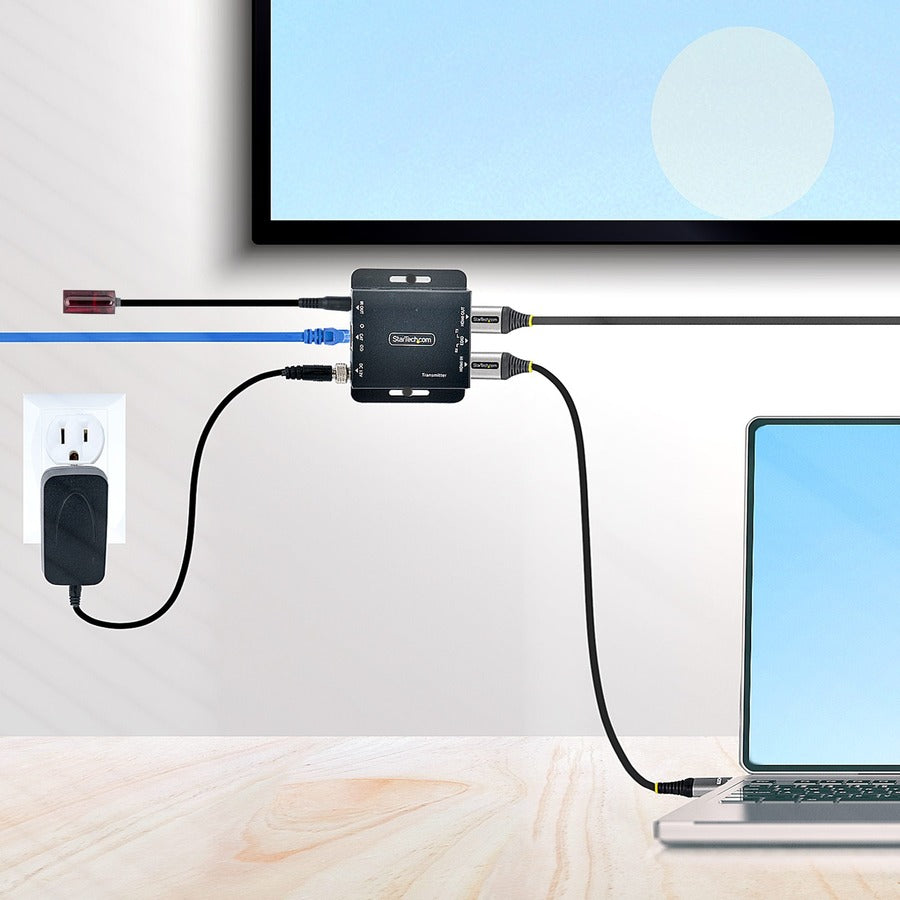

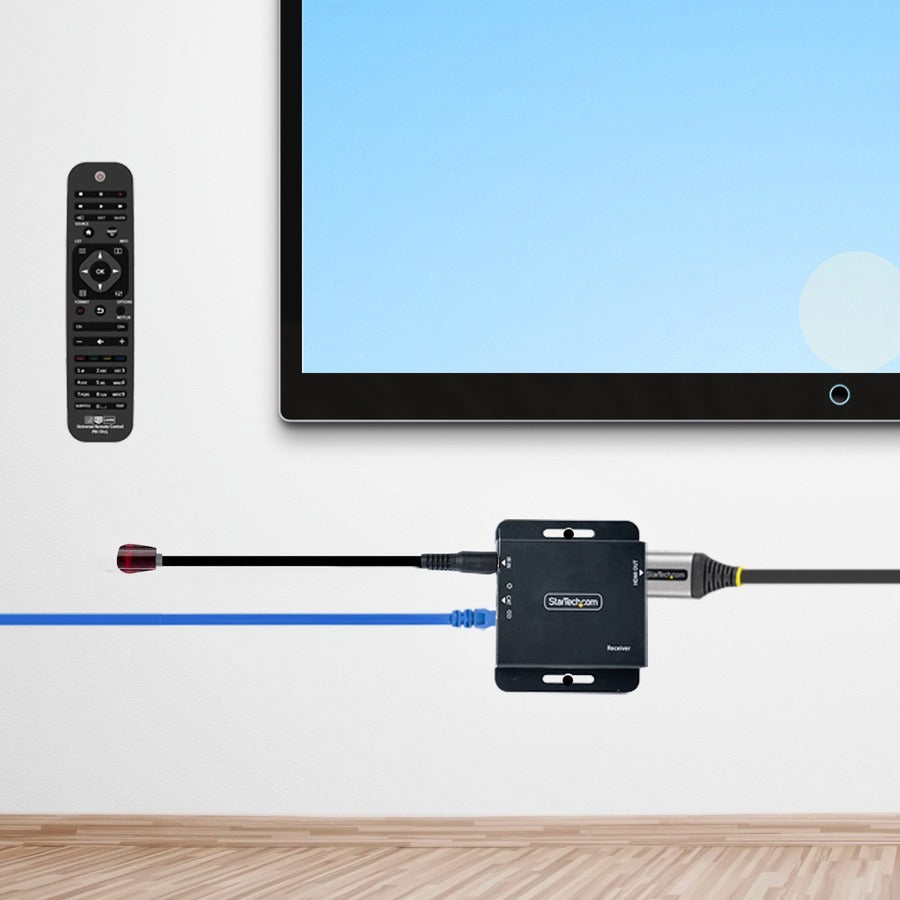

With support for Power over Cable (PoC), only one power, connected to the transmitter, is required to power both units of the transmitter and receiver kit. IR extension, using the included IR Blaster and Receiver, makes controlling a source device from a remote location easy.

Easy Installation

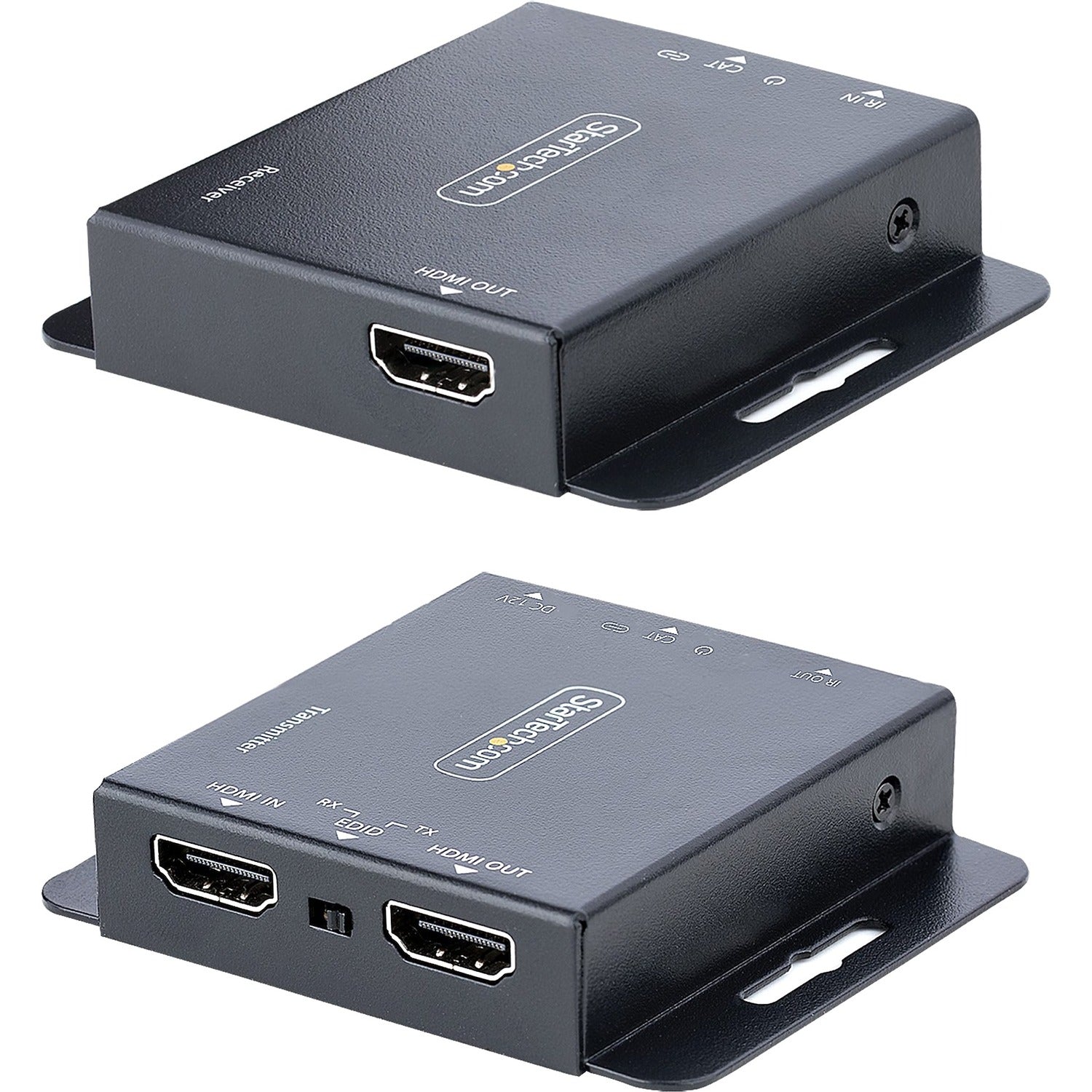

The 4K HDMI Extender over Ethernet cable has an HDMI output on the transmitter unit allowing the solution to be cascaded to other video extenders or f
Packaged Quantity: 1
Product Type: HDMI Extender

Technical Information

Maximum Extended Range: 229.66 ft (70000 mm)
Maximum Data Transfer Rate: 1.28 GB/s

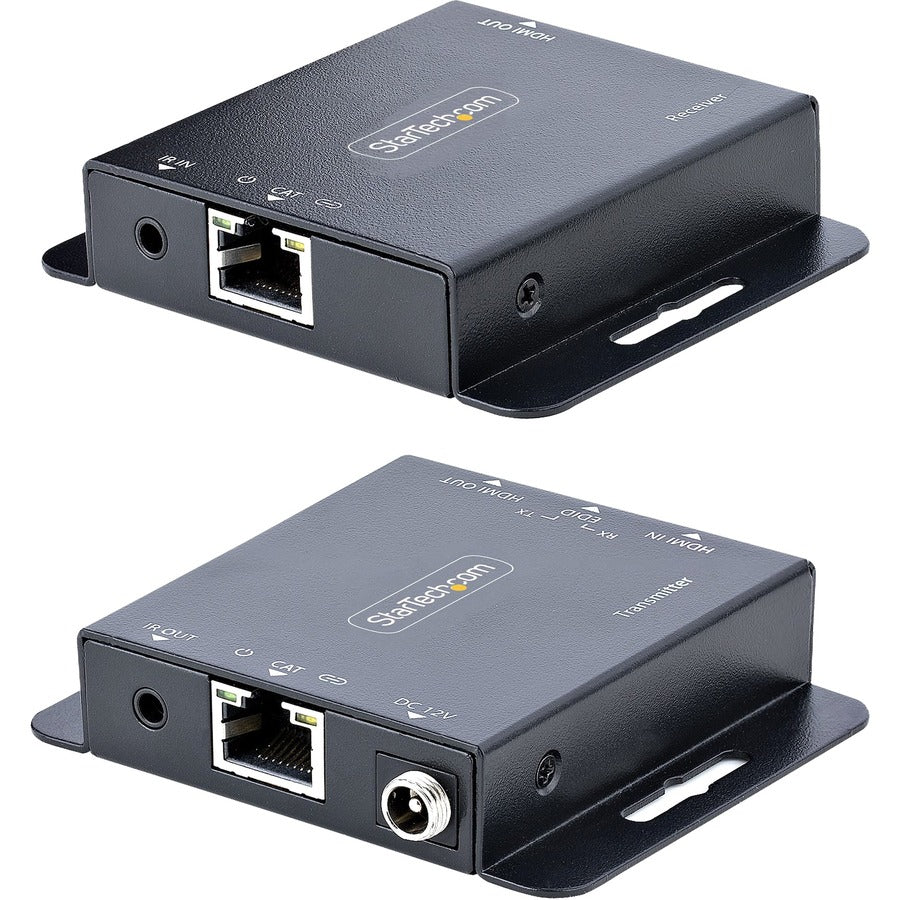

Interfaces/Ports

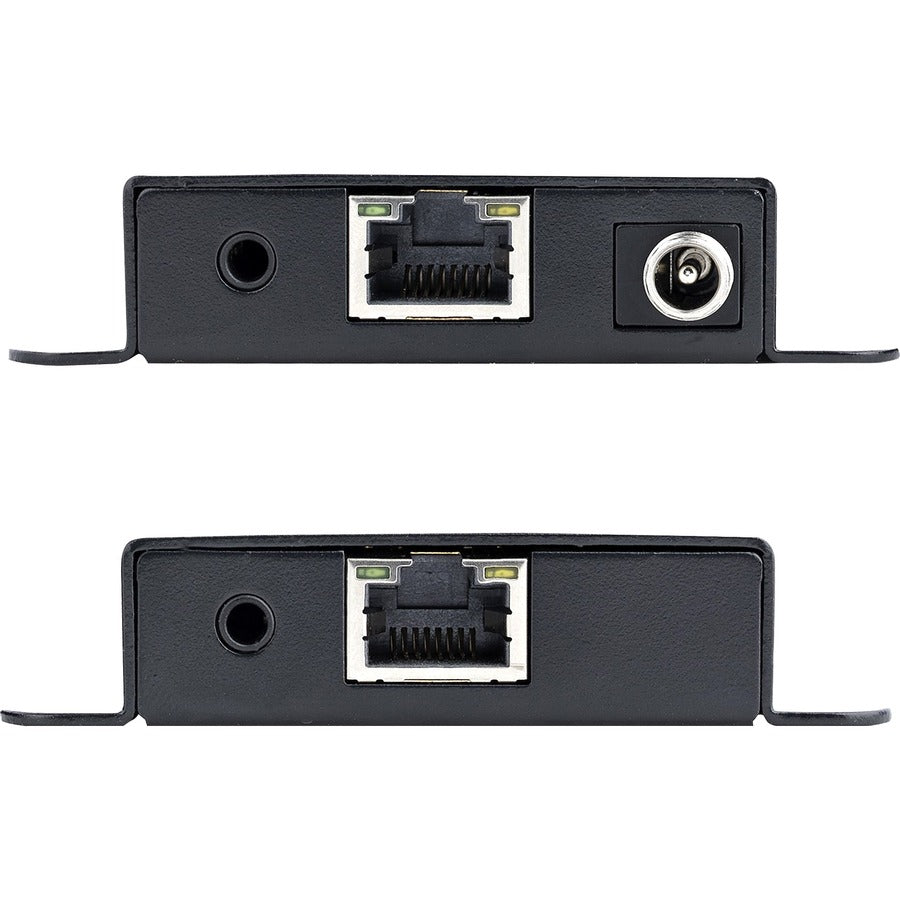

Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2

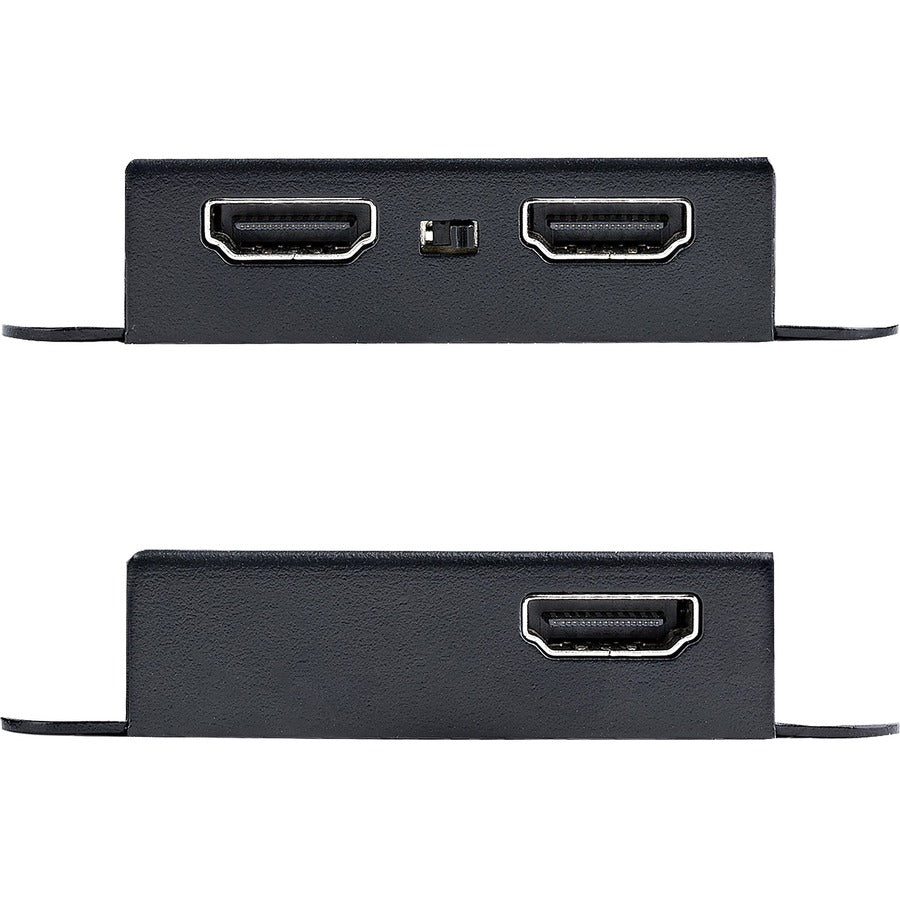

HDMI: Yes
Number of HDMI Ports: 2

Power Description

Input Voltage: 230 V AC

Physical Characteristics

Product Color: Black
Product Material: Metal
Height: 0.70" (17.78 mm)
Width: 2.70" (68.58 mm)
Length: 2.20" (55.88 mm)

Miscellaneous

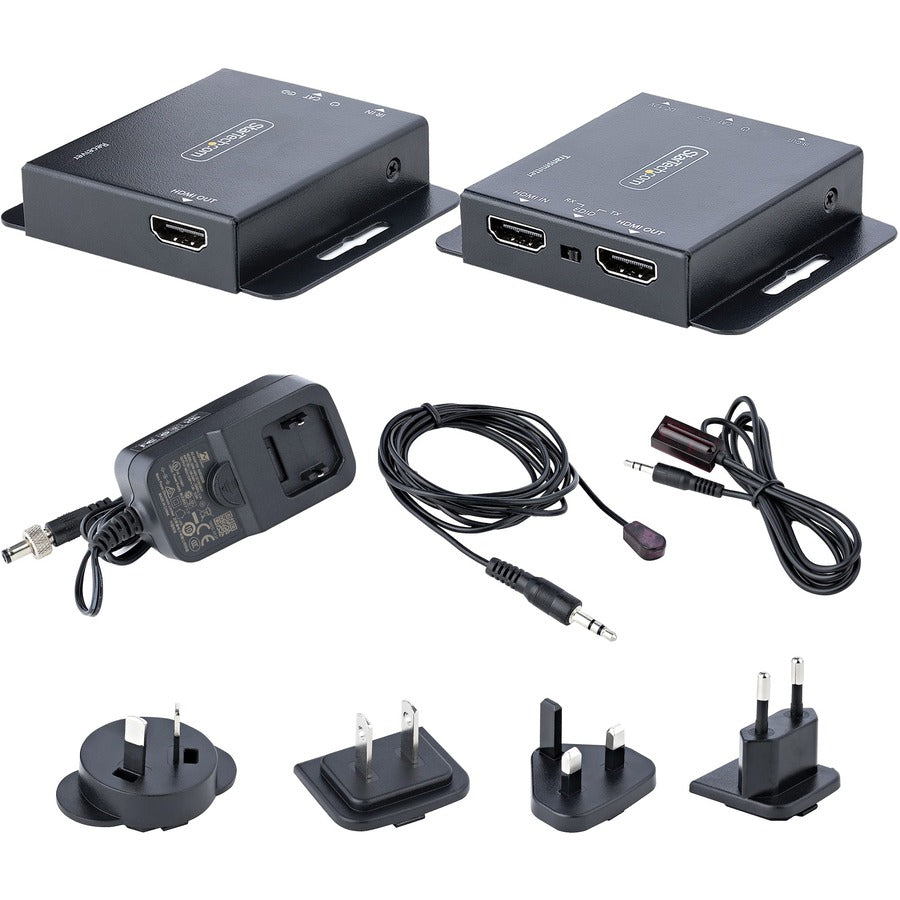

Package Contents:
  • 1 x Local HDMI Transmitter Unit
  • 1 x Remote HDMI Receiver Unit
  • 1 x IR Blaster
  • 1 x IR Receiver
  • 1 x Power Adapter
  • 1 x Quick-Start Guide

Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 2 Year
