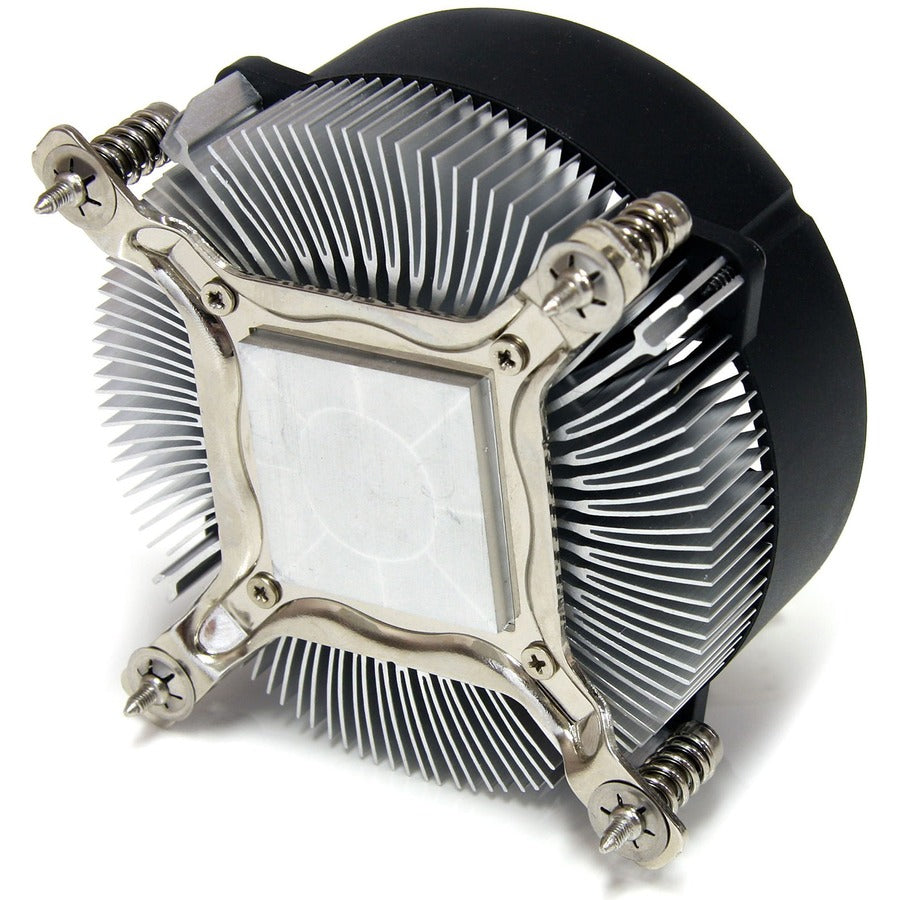

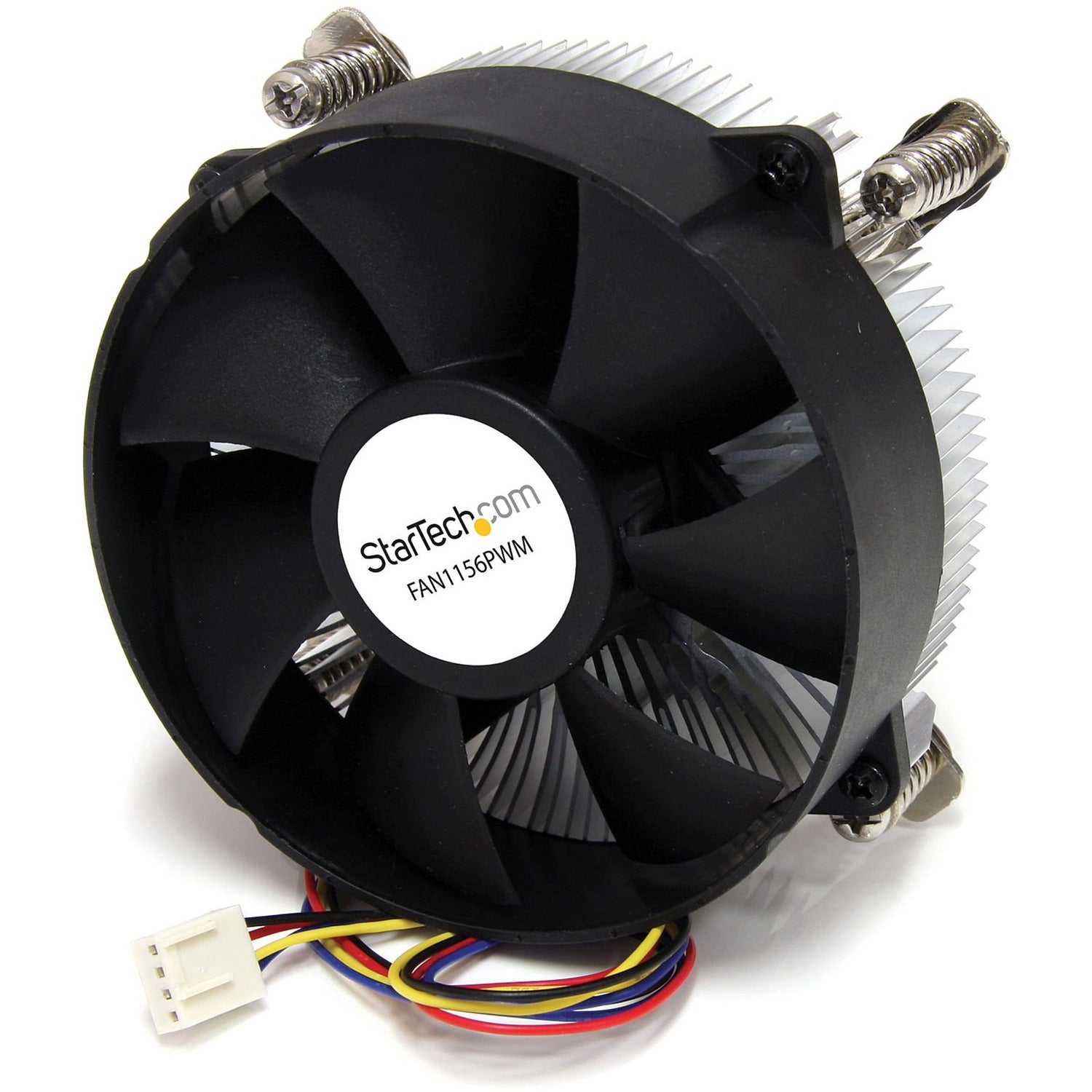

StarTech.com 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155 with PWM

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: FAN1156PWM
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Model: FAN1156PWM
Product Name: 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155 with PWM
Marketing Information:

Add a Variable Speed PWM-Controlled CPU Cooler to an LGA1156/1155 System. The FAN1156PWM CPU Cooler with PWM Cooling Fan for Socket LGA1156/1155 systems provides reliable and efficient cooling for compatible Intel® Core™ i3/i5/i7 CPUs.

With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Product Type: Cooling Fan/Heatsink

Fan Information

Number of Fans: 1
Fan Bearing Type: Lubricate Bearing
Fan Speed (Max): 3000 rpm
Maximum Airflow: 1857.6 L/min
Airflow Details:

1 x 65.60CFM

Heatsink Information

Compatible Intel Socket: H2 LGA-1155,H LGA-1156

Interfaces/Ports

Connectors: 4-pin PWM

Power Description

Input Voltage: 12 V DC

Physical Characteristics

Product Color: Black
Heatsink Material: Aluminum
Form Factor: Internal
Maximum Fan Diameter: 3.74" (95 mm)
Fan Diameter Details:

1 x 95mm

Height: 2.20" (55.88 mm)
Width: 3.70" (93.98 mm)
Depth: 3.70" (93.98 mm)
Weight (Approximate): 272.2 g

Miscellaneous

Compatibility:

Intel Core processors:

• i3
• i5
• i7

Application/Usage: Processor
Certifications & Standards:

CE

Environmentally Friendly: Yes
Country of Origin: China

Warranty

Limited Warranty: 2 Year
