General Information
Manufacturer: StarTech.comManufacturer Part Number: FPWARTS2
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

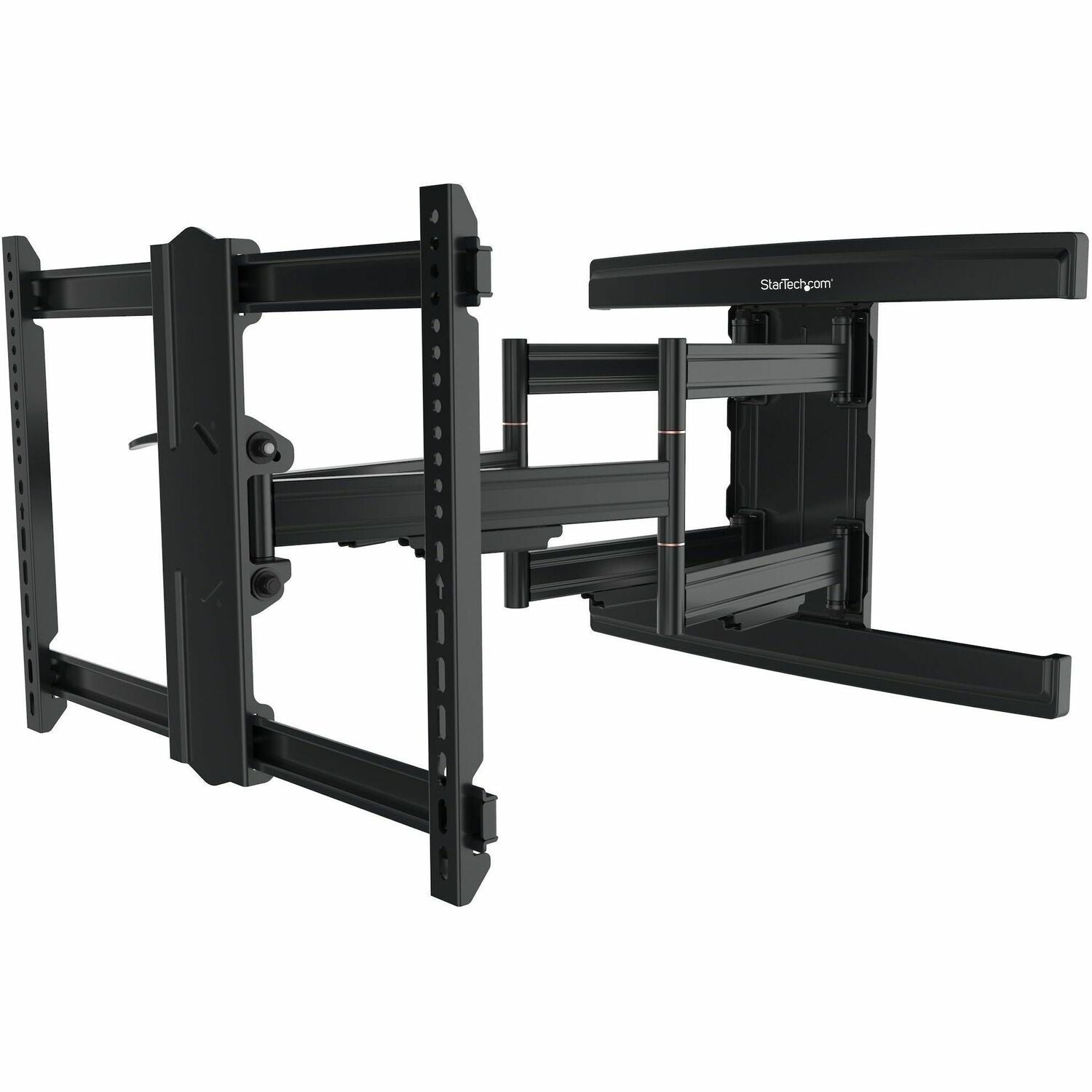

Product Name: TV Wall Mount - Full Motion Articulating Arm
Marketing Information:
This swivel tv wall mount is ideal for a meeting space, lobby, boardroom, classroom or other venues. It provides an impressive and secure way to display a flat-panel TV or mount a digital signage display, while saving valuable space.
Robust Steel Construction
Engineered from high-grade steel, the heavy duty tv wall mount securely supports VESA compatible displays, including curved TVs, up to 100" with a weight capacity of 165 lb. (75 kg).
Full-Motion Adjustment
With a smooth and effortless motion, you can extend the articulating arm out from the wall up to 31.7" (805 mm). You can also retract the arm back to nest just 2.9" (75 mm) away from the wall.
Find the Right Viewing Angle
Swivel your screen +/- 60 degrees and tilt your screen -2 to +15 degrees for ideal viewing and to reduce glare. The TV wall mount bracket also has a screen level adjustment, so you can adjust your display up to 3 degrees clockwise or counterclockwise after it is
Packaged Quantity: 1 Each
Product Type: Wall Mount
Product Information
Device Supported: TV,Flat Panel Display,Curved Screen Display,Digital Signage DisplayNumber of Displays Supported: 1
Maximum Load Capacity: 165.35 lb (75000 g)
Maximum Screen Size Supported: 100"
Features: Full Motion,Heavy Duty,Adjustable,Swivel,Tilt,Rotate,Cable Management
Physical Characteristics
Product Material: SteelVESA Mount Compatible: Yes
Mounting Pattern: 200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 400,200 x 300,200 x 400,600 x 200,600 x 300
Height: 19.17" (487 mm)
Width: 31.50" (800 mm)
Length: 26.38" (670 mm)
Miscellaneous

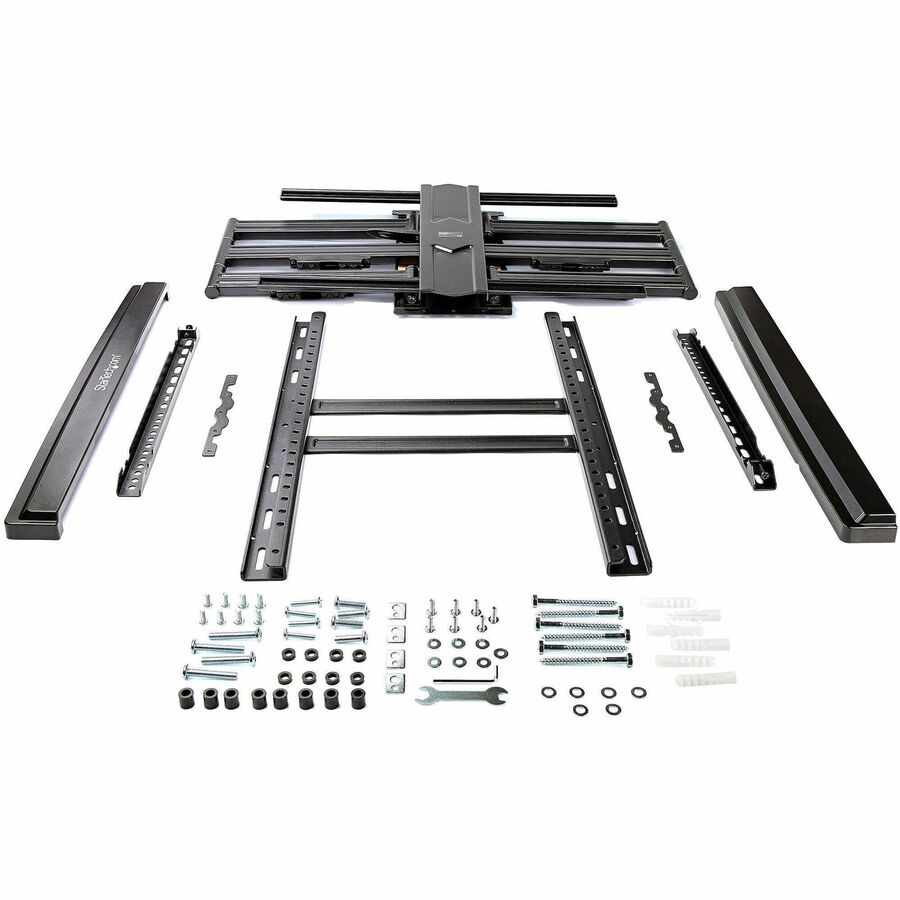

Package Contents:- 1 x TV Wall Mount Assembly
- 1 x Wall Mounting Bracket
- 2 x TV Mounting Brackets
- 2 x Decorative Covers
- 2 x Mounting Plates
- 7 x M6 x 15 screws
- 7 x Round Washers, Small
- 1 x Wrench
- 1 x Hex Key
- 4 x M5 x 14 Screws
- 4 x M6 x 14 Screws
- 4 x M6 x 30 Screws
- 4 x M8 x 30 Screws
- 4 x M8 x 50 Screws
- 4 x Rectangular Washers
- 8 x Small Spacers
- 8 x Large Spacers
- 6 x Mounting Screws
- 6 x Wall Anchors
- 6 x Round Washers, Large
- 1 x User Manual
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty: 5 Year
