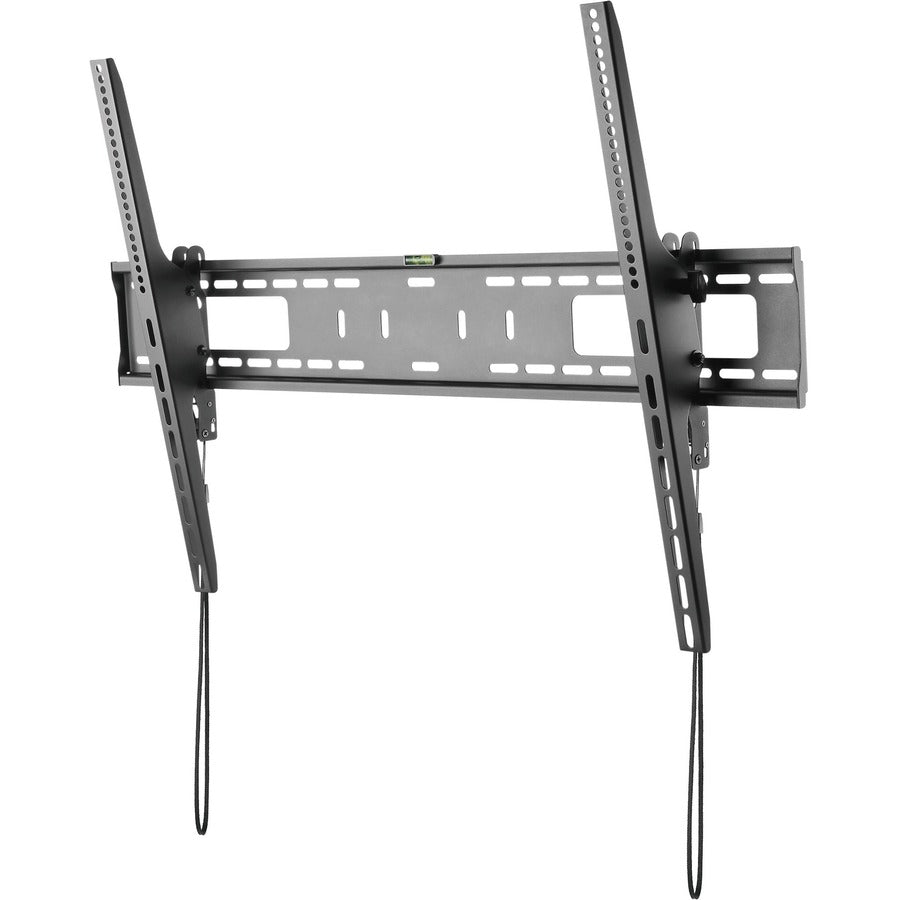

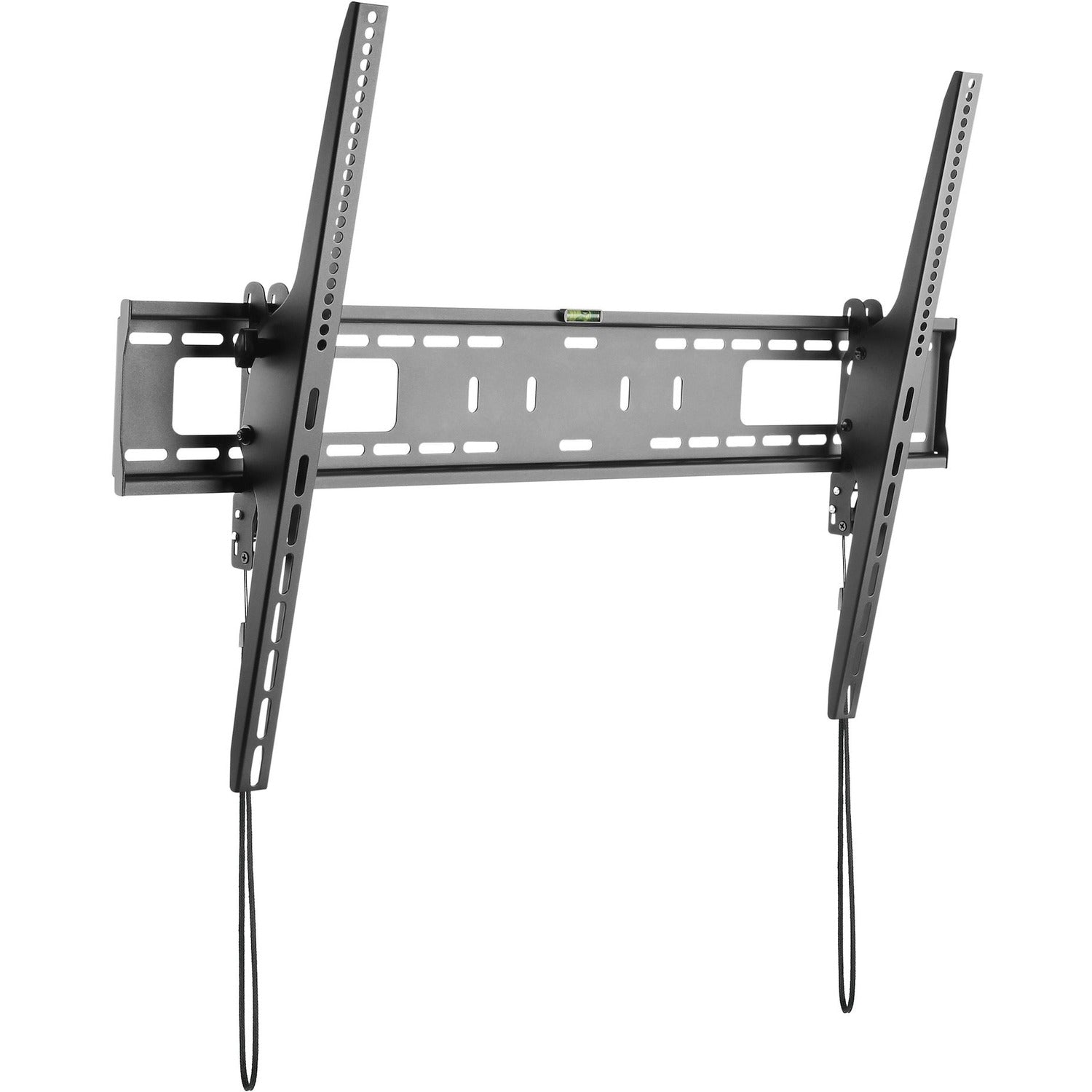

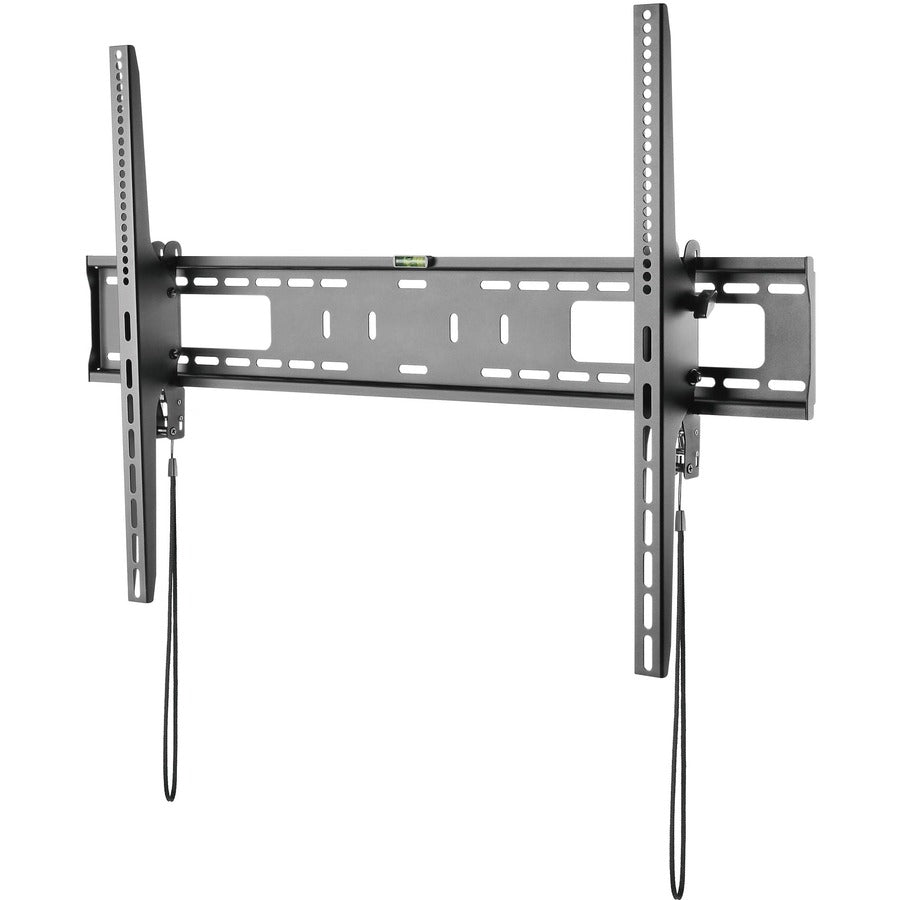

StarTech.com TV Wall Mount for 60-100 inch VESA Displays (165lb) - Heavy Duty Tilting Universal TV Mounting Bracket for Large Flat Screens

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: FPWTLTB1
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Model: FPWTLTB1
Product Name: Flat-Screen TV Wall Mount - Tilting
Marketing Information:

Save space and create an impressive display by wall-mounting a large TV in a boardroom or customer-facing area. This tilting flat-screen TV wall mount securely supports a TV up to 100" and features an attractive low-profile design.

Create an Engaging Display for Digital Signage

Mount your large flat-screen TV in a location that's convenient for visitors, clients and employees. Create an engaging display to keep guests informed or entertained, ideal in lobbies, lecture halls, restaurants, health care centers and other meeting spaces.

The television wall mount supports most 60" to 100" (812.8 to 1778 mm) LED or LCD flat panel TVs weighing up to 165 lb. (75 kg). It also supports curved TVs, with a compatible VESA mount up to 900x600.

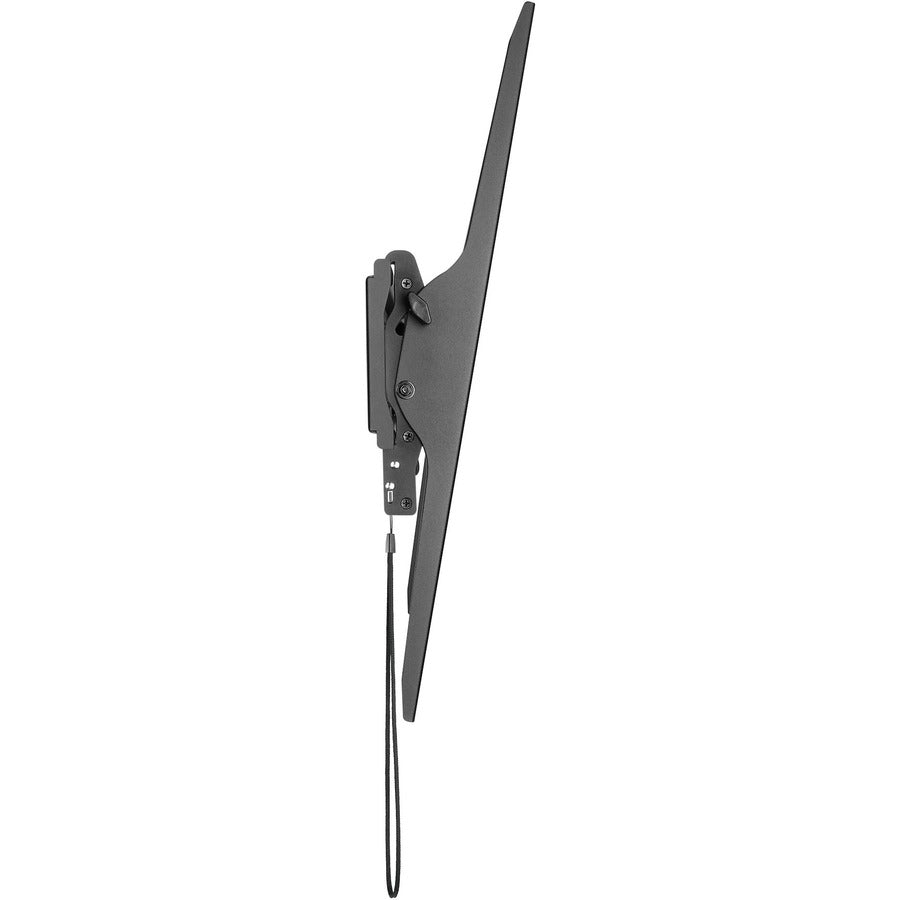

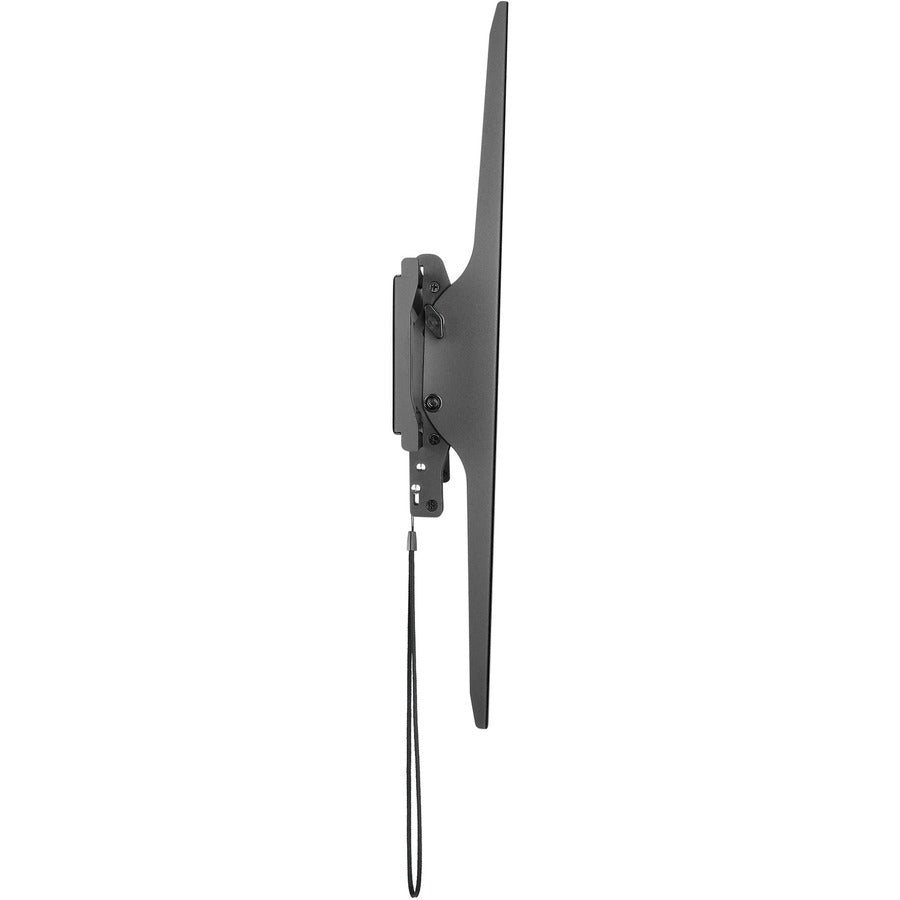

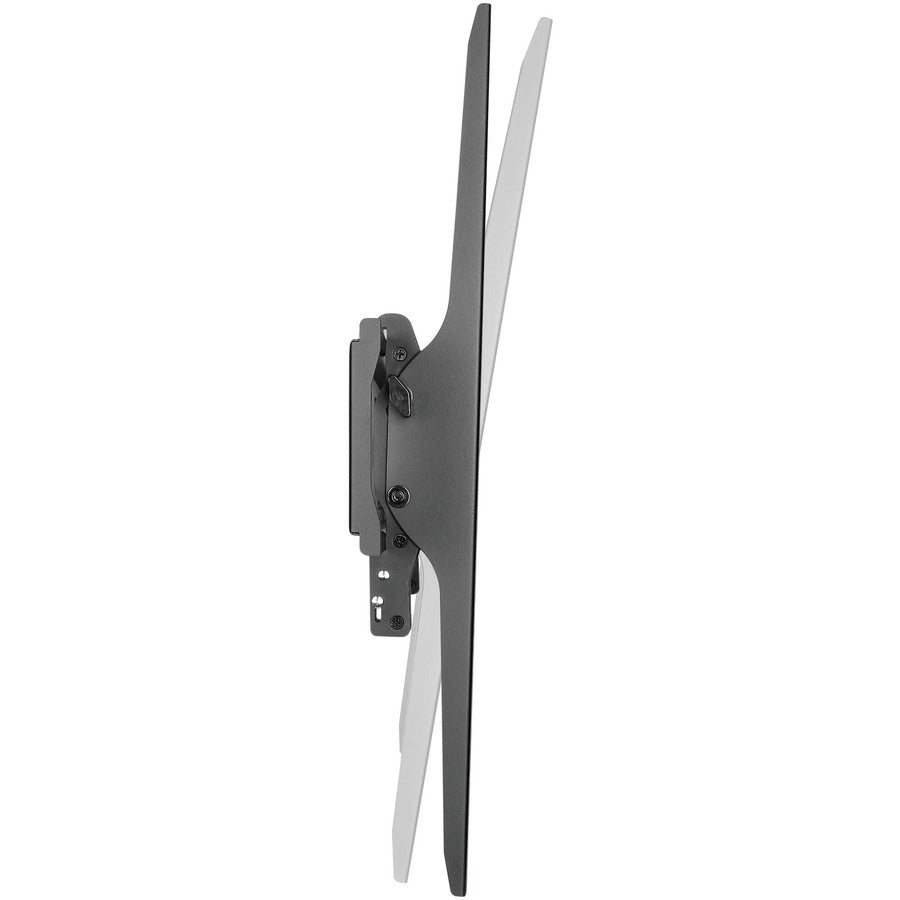

Tilting Design for Optimal Viewing

Find the ideal viewing angle. The tilting TV wall mount lets you tilt your display up (maximum 5 degrees) or down (maximum 10 degrees) with ease.

Low-Profile Design

Save space with this slim TV wall mount. With its low-profile design, your TV sits just 3.3" (85 mm) from the wall.

Robust Steel Construction and Easy Installation

The heavy-duty TV mounting bracket securely supports your large flat-screen TV and is easy to install. The spring locks allow quick attachment and release. The open architecture provides ventilation and easy access to wires.

FPWTLTB1 is backed by a StarTech.com 5-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Packaged Quantity: 1 Each
Product Type: Wall Mount

Product Information

Device Supported: Flat Panel Display,Curved Screen Display,LCD Display,LED Display
Number of Displays Supported: 1
Maximum Load Capacity: 165.35 lb (75000 g)
Minimum Screen Size Supported: 60"
Maximum Screen Size Supported: 100"
Features: Heavy Duty,Tilt,Adjustable,Bubble Level,Space Saving Design,Robust,Spring Lock,Quick Release Mechanism,Durable

Physical Characteristics

Color Family: Black
Product Color: Black
Product Material: Steel
Mounting Pattern: 400 x 300,300 x 200,600 x 600,600 x 400,900 x 600,400 x 200,800 x 600,300 x 300,200 x 200,200 x 300,200 x 400,400 x 400,600 x 200,600 x 300,800 x 440,200 x 100,100 x 100,100 x 200,800 x 400
Height: 3.30" (83.82 mm)
Width: 24.60" (624.84 mm)
Length: 37.60" (955.04 mm)
Weight (Approximate): 7.72 lb (3500 g)

Miscellaneous

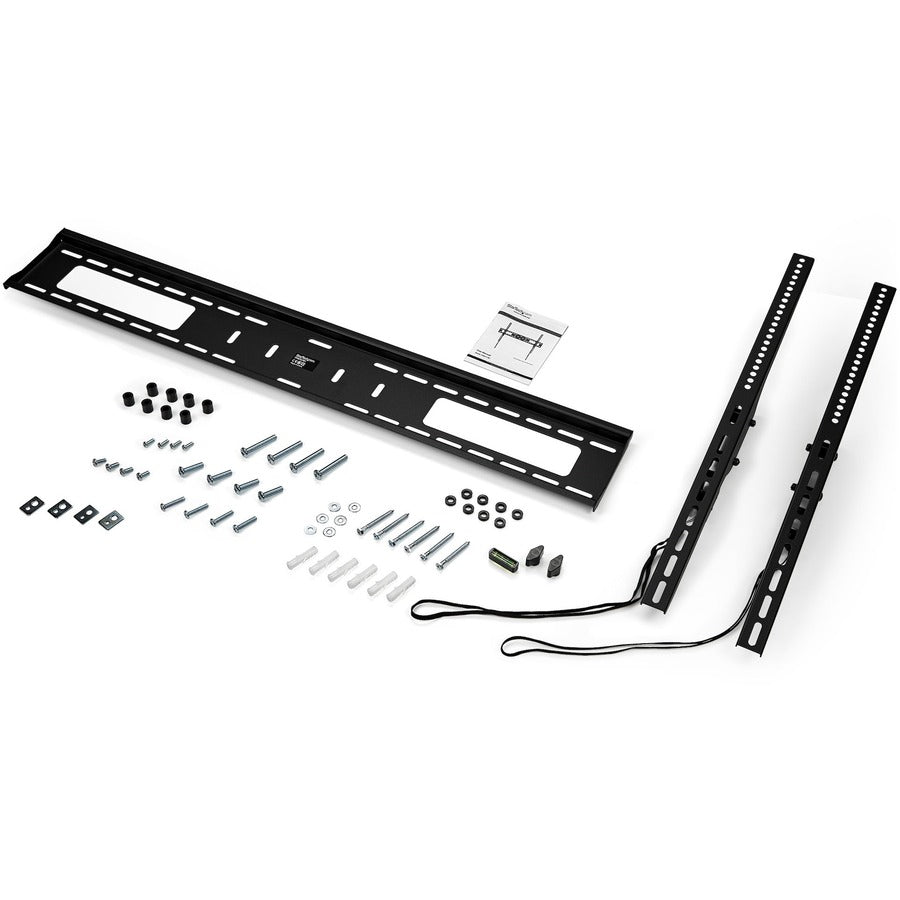

Package Contents:

• 1 x Wall Bracket
• 2 x Vertical Brackets
• 2 x Tilt-Adjustment Knobs
• 1 x Bubble Level
• 4 x (M5 x 14) Screws
• 4 x (M6 x 14) Screws
• 4 x (M6 x 30) Screws
• 4 x (M8 x 30) Screws
• 4 x (M8 x 50) Screws
• 4 x Rectangular Washers
• 8 x Small Spacers
• 8 x Large Spacers
• 6 x Wall Screws
• 6 x Concrete Anchors
• 6 x Round Washers
• 1 x User Manual

Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty: 5 Year
