Description
User-Manual
Manufacturer-Brochure
Manufacturer Part Number: FPWTLTBAT
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

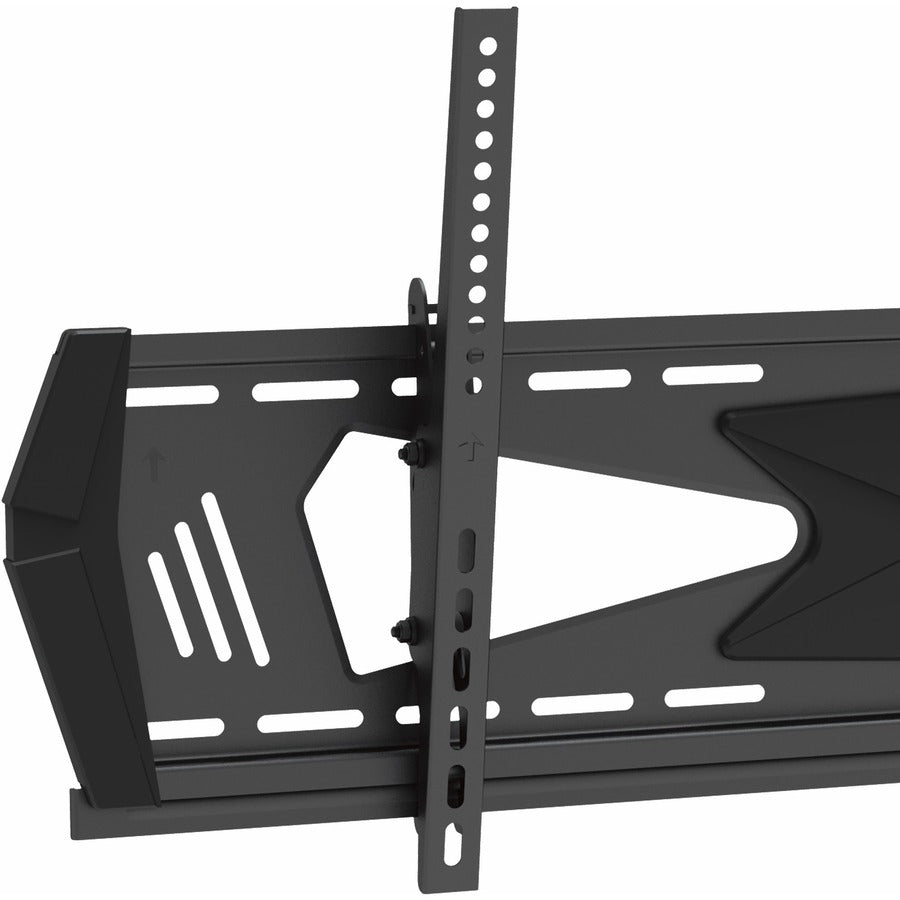

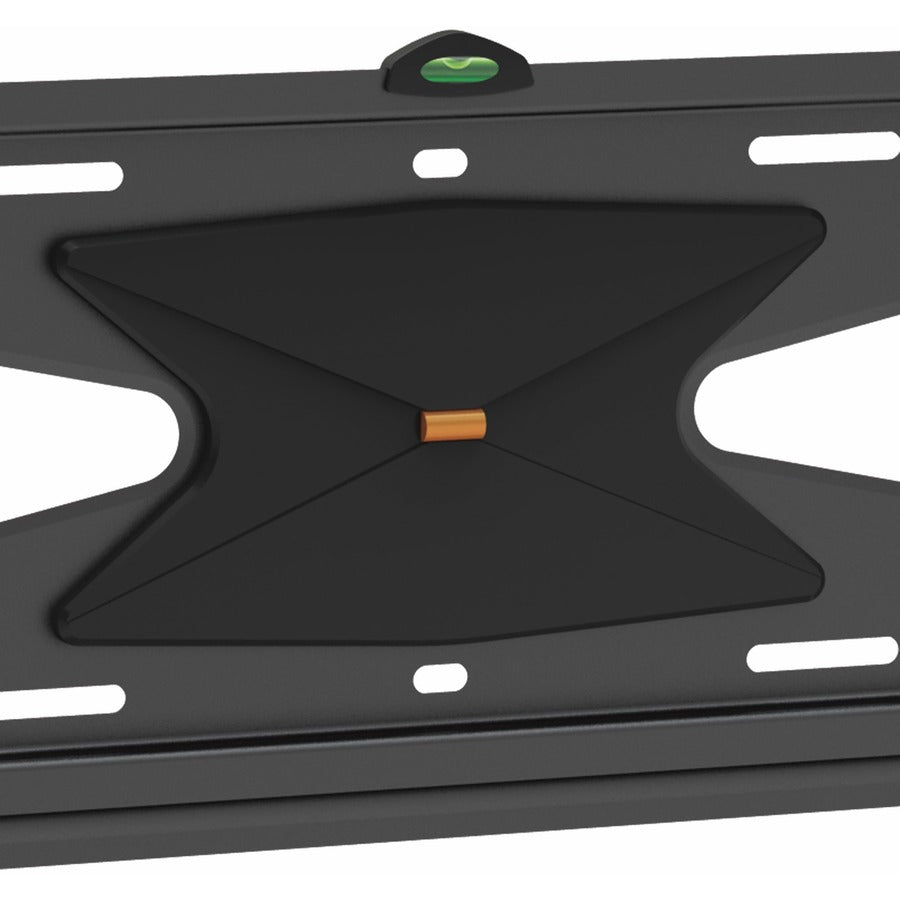

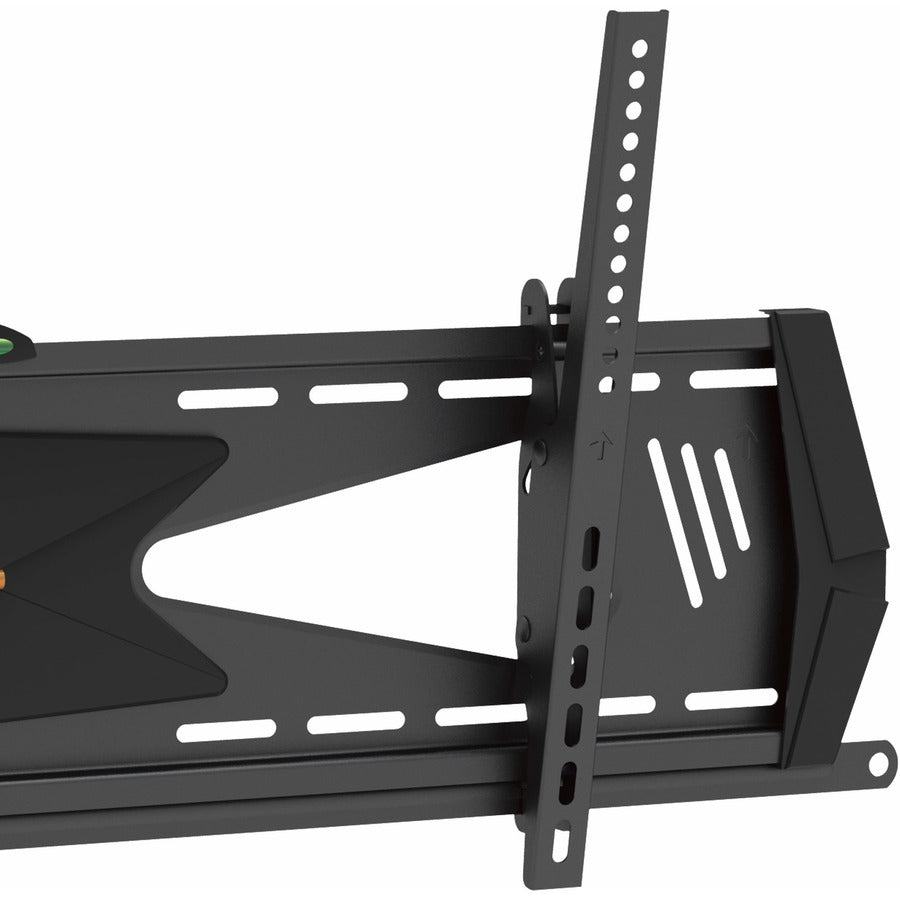

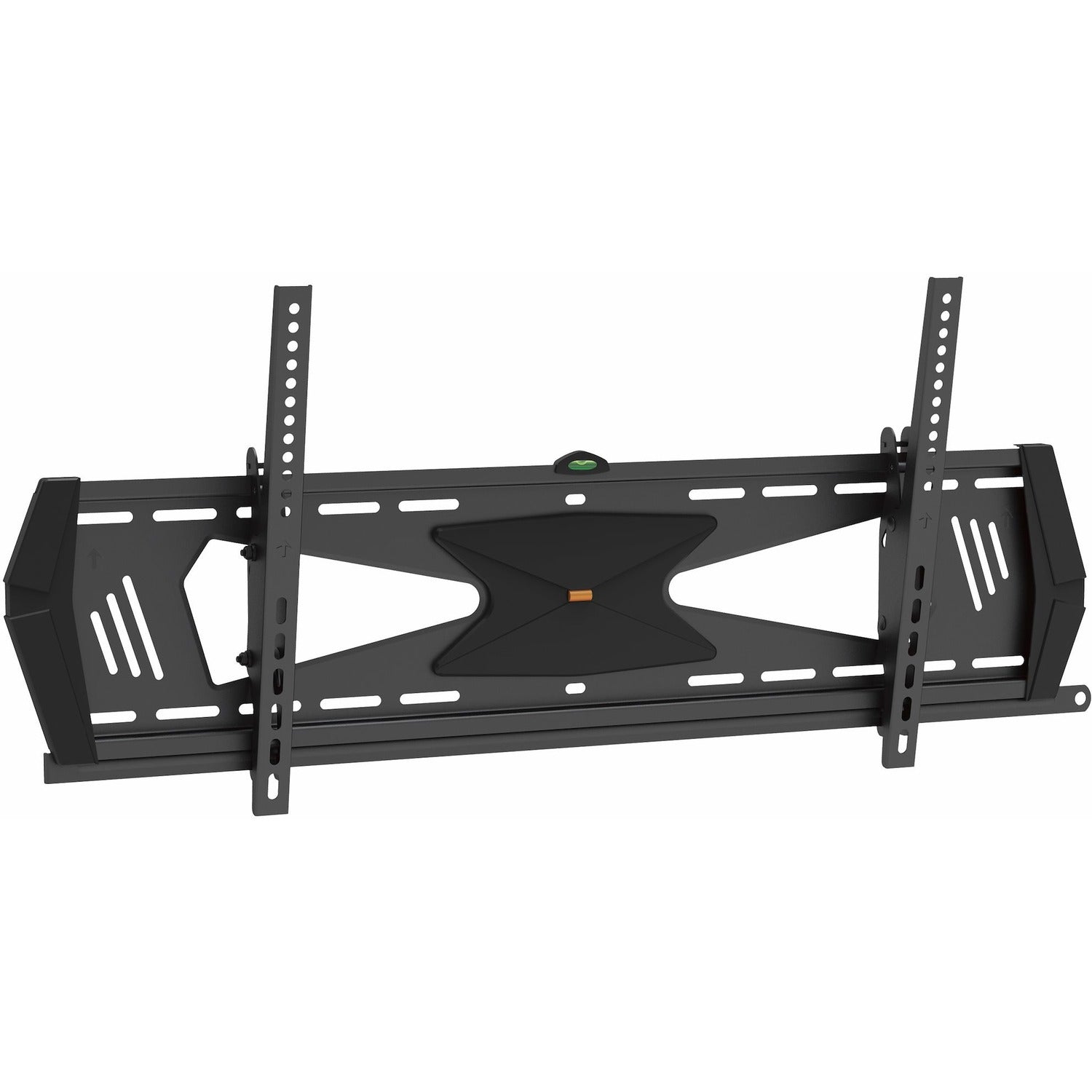

Product Name: Low-Profile TV Wall Mount - Tilting
Marketing Information: Save space while improving the appearance of your work area, with this low-profile TV wall mount. The mount sits close to the wall to support a VESA Mount compliant TV from 37" to 75" , and offers anti-theft protection as well as titling capability that makes it easy to find the perfect viewing position.
Low-Profile Design for Meeting Areas or Digital Signage
Mount your flat-screen TV or monitor in a location that's convenient for visitors, clients or employees. The wall mount safely and securely supports your TV about two inches (51 mm) from the wall to provide a sleek, low-profile look.
It's ideal for lobbies, hallways, boardrooms, works areas, customer-facing areas or for creating digital signage. The wall mount supports most 37" to 75" (940 to 1905 mm) LED or LCD flat panel TVs weighing up to 88 lb. (40 kg).
Adjust Your Viewing Angle
This TV wall mount tilts -10 to +5 degrees, so you can adjust the angle of your display with ease to customize your viewing experience
Packaged Quantity: 1 Each
Product Type: Wall Mount
Number of Displays Supported: 1
Maximum Load Capacity: 88.18 lb (40000 g)
Minimum Screen Size Supported: 37"
Maximum Screen Size Supported: 75"
Features: Anti-theft,Tilt,Heavy Duty,Space Saving Design,Robust,Lockable
Product Color: Black
Product Material: Steel
VESA Mount Compatible: Yes
Mounting Pattern: 800 x 400,600 x 400,400 x 200,400 x 400,300 x 300,200 x 200,400 x 300,300 x 200,600 x 200,600 x 300
Height: 17.30" (439.42 mm)
Width: 2" (50.80 mm)
Length: 39.30" (998.22 mm)
Weight (Approximate): 8.10 lb (3674.10 g)
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Manufacturer-Brochure
General Information
Manufacturer: StarTech.comManufacturer Part Number: FPWTLTBAT
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Low-Profile TV Wall Mount - Tilting
Marketing Information: Save space while improving the appearance of your work area, with this low-profile TV wall mount. The mount sits close to the wall to support a VESA Mount compliant TV from 37" to 75" , and offers anti-theft protection as well as titling capability that makes it easy to find the perfect viewing position.
Low-Profile Design for Meeting Areas or Digital Signage
Mount your flat-screen TV or monitor in a location that's convenient for visitors, clients or employees. The wall mount safely and securely supports your TV about two inches (51 mm) from the wall to provide a sleek, low-profile look.
It's ideal for lobbies, hallways, boardrooms, works areas, customer-facing areas or for creating digital signage. The wall mount supports most 37" to 75" (940 to 1905 mm) LED or LCD flat panel TVs weighing up to 88 lb. (40 kg).
Adjust Your Viewing Angle
This TV wall mount tilts -10 to +5 degrees, so you can adjust the angle of your display with ease to customize your viewing experience
Packaged Quantity: 1 Each
Product Type: Wall Mount
Product Information
Device Supported: TV,Monitor,LCD Display,LED DisplayNumber of Displays Supported: 1
Maximum Load Capacity: 88.18 lb (40000 g)
Minimum Screen Size Supported: 37"
Maximum Screen Size Supported: 75"
Features: Anti-theft,Tilt,Heavy Duty,Space Saving Design,Robust,Lockable
Physical Characteristics
Color Family: BlackProduct Color: Black
Product Material: Steel
VESA Mount Compatible: Yes
Mounting Pattern: 800 x 400,600 x 400,400 x 200,400 x 400,300 x 300,200 x 200,400 x 300,300 x 200,600 x 200,600 x 300
Height: 17.30" (439.42 mm)
Width: 2" (50.80 mm)
Length: 39.30" (998.22 mm)
Weight (Approximate): 8.10 lb (3674.10 g)
Miscellaneous

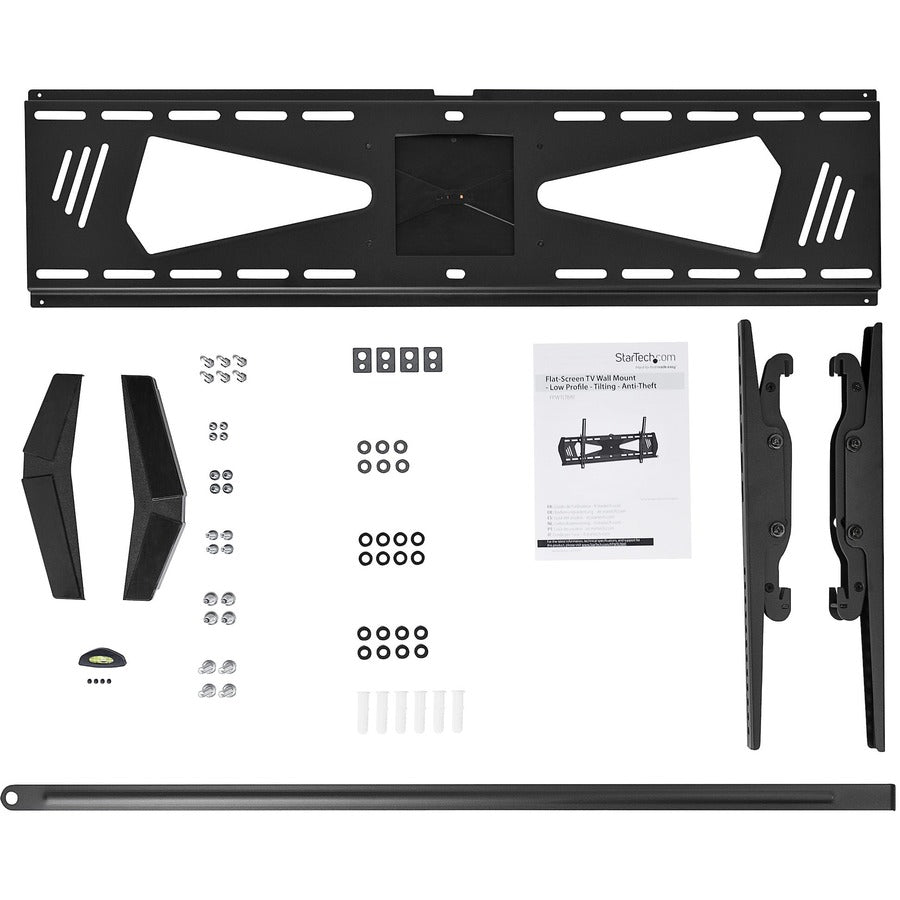

Package Contents:- 1 x Wall Mount
- 1 x Safety Bar
- 1 x Left Adapter Bracket
- 1 x Right Adapter Bracket
- 1 x Level
- 2 x Decorative Covers
- 4 x Decorative Cover Screws
- 4 x M5x14 mm Screws
- 4 x M6x14 mm Screws
- 4 x M8x50 mm Screws
- 4 x M6x30 mm Screws
- 4 x M8x30 mm Screws
- 4 x Rectangular Washers
- 8 x Small Spacers
- 8 x Large Spacers
- 6 x Screws
- 6 x Concrete Anchors
- 6 x Circular Washers
- 1 x Instruction Manual
Country of Origin: China
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty: 5 Year
