Description
Manufacturer-Brochure
Manufacturer Part Number: GXT5-3000LVRT2UXL
Manufacturer Website Address: http://www.vertiv.com/
Brand Name: Vertiv Liebert
Product Series: GXT

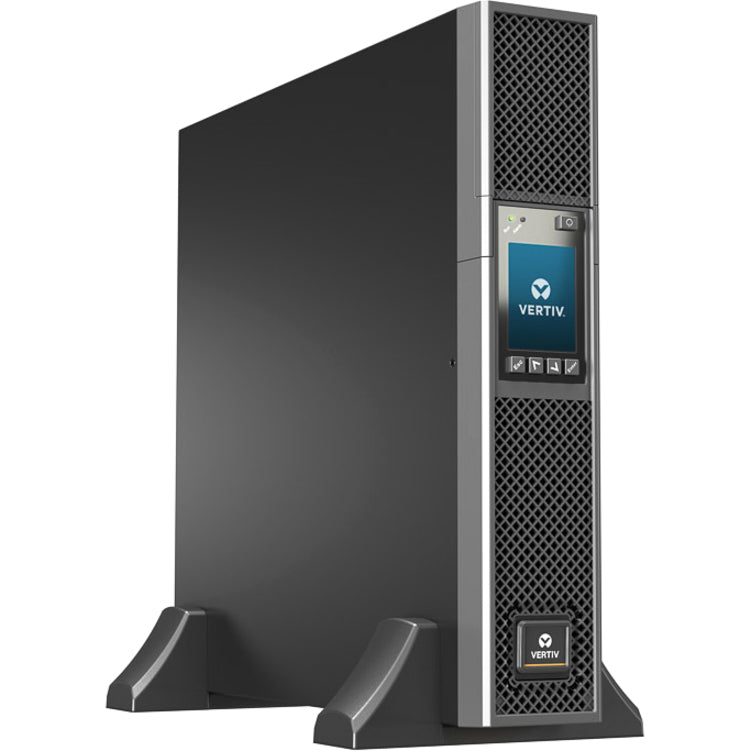

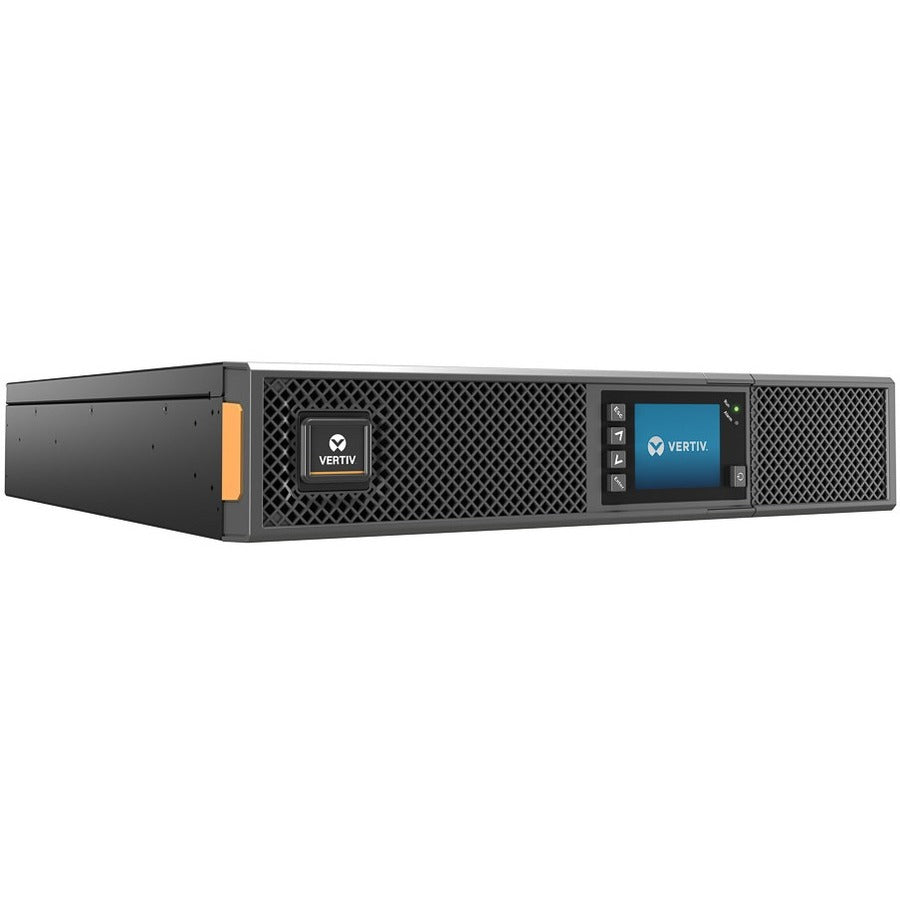

Product Name: GXT5 3000VA 120V UPS
Marketing Information: The Vertiv Liebert GXT5 UPS, with a capacity of 3000VA/2700W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a
Product Type: Double Conversion Online UPS
Receptacle Type: NEMA 5-20R,NEMA L5-30R
Receptacle Detail: 6 x NEMA 5-20R,1 x NEMA L5-30R
Cord Length: 10 ft (3.05 m)
Transfer Time: 0 ns
Phase: Single Phase
Application/Usage: IT Equipment,Mission Critical Equipment
Load Capacity (Watt): 2.70 kW
Input Voltage: 120 V AC
Input Voltage Range: 60 V AC - 150 V AC
Input Current: 24 A
Output Voltage: 120 V AC
Input Frequency: 70 Hz
Waveform Type: Sine Wave
Circuit Breaker: Yes
User Selectable Output:
Utility (AC) Mode Overload:
EPO Port: Yes
USB (HID Compliant) Port: Yes
Battery Characteristics: Valve-regulated, Non-spillable
Battery Chemistry: Lead Acid
Battery Size: 12V
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 9 Minute
Number of External Battery Cabinets: 1
Backup/Run Time With External Battery Cabinet (Full Load): 17 Minute
Backup/Run Time With External Battery Cabinet (Half Load): 43.50 Minute
Battery Life: 5 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Maximum Storage Elevation: 49212.60 ft (15000000 mm)
Storage Temperature: -4°F (-20°C) - 140°F (60°C)
Maximum Operating Temperature: 104°F (40°C)
Height: 3.40" (86.36 mm)
Width: 16.90" (429.26 mm)
Depth: 21.30" (541.02 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 66 lb (29937.10 g)
Software Included: Power Insight 2.2
Energy Star: Yes
Country of Origin: China
TAA Compliant: No
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) 2,Waste Electrical and Electronic Equipment Directive (WEEE)
General Information
Manufacturer: VertivManufacturer Part Number: GXT5-3000LVRT2UXL
Manufacturer Website Address: http://www.vertiv.com/
Brand Name: Vertiv Liebert
Product Series: GXT
Product Name: GXT5 3000VA 120V UPS
Marketing Information: The Vertiv Liebert GXT5 UPS, with a capacity of 3000VA/2700W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support as wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. The unit includes a rack mounting hardware kit and base for tower installation in open environments. It has a
Product Type: Double Conversion Online UPS
Technical Information
Plug/Connector Type: NEMA L5-30PReceptacle Type: NEMA 5-20R,NEMA L5-30R
Receptacle Detail: 6 x NEMA 5-20R,1 x NEMA L5-30R
Cord Length: 10 ft (3.05 m)
Transfer Time: 0 ns
Phase: Single Phase
Application/Usage: IT Equipment,Mission Critical Equipment
Power Description
Load Capacity (VA): 3 kVALoad Capacity (Watt): 2.70 kW
Input Voltage: 120 V AC
Input Voltage Range: 60 V AC - 150 V AC
Input Current: 24 A
Output Voltage: 120 V AC
Input Frequency: 70 Hz
Waveform Type: Sine Wave
Circuit Breaker: Yes
User Selectable Output:
Typical 120V User Selectable Output: 110/115/120VAC (user-configurable); ±3%
Utility (AC) Mode Overload:
- >200% for 250ms
- 150- 200% for 2 seconds
- 125- 150% for 10 seconds
- 105-125% for 15 seconds
Controls/Indicators
Status Indicators: Color LCDInterfaces/Ports
Serial Port: YesEPO Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 3Battery Characteristics: Valve-regulated, Non-spillable
Battery Chemistry: Lead Acid
Battery Size: 12V
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 9 Minute
Number of External Battery Cabinets: 1
Backup/Run Time With External Battery Cabinet (Full Load): 17 Minute
Backup/Run Time With External Battery Cabinet (Half Load): 43.50 Minute
Battery Life: 5 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 3 Hour
Environmental Conditions
Environmental Sensors: Leak Detection Sensor,Temperature Sensor,Humidity SensorMaximum Operating Elevation: 9842.52 ft (3000000 mm)
Maximum Storage Elevation: 49212.60 ft (15000000 mm)
Storage Temperature: -4°F (-20°C) - 140°F (60°C)
Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
Product Color: BlackHeight: 3.40" (86.36 mm)
Width: 16.90" (429.26 mm)
Depth: 21.30" (541.02 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 66 lb (29937.10 g)
Miscellaneous
Package Contents:- GXT5 3000VA 120V UPS
- 4 Post Rack Mounting
- Tower Stand
- USB Cable
- User Guide
- Safety Instruction Manual
Software Included: Power Insight 2.2
Energy Star: Yes
Country of Origin: China
TAA Compliant: No
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) 2,Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 3 Year
