PC43KA003000001 Honeywell PC43K Business, Desktop Direct Thermal Printer - Monochrome - Label Print - USB - Bluetooth - Wireless LAN - US

General Information

Manufacturer: Honeywell International, Inc
Manufacturer Part Number: PC43KA003000001
Manufacturer Website Address: http://www.honeywell.com
Brand Name: Honeywell
Product Model: PC43K
Product Name: PC43K Direct Thermal Printer
Marketing Information:

The PC43K all-in-one kiosk solution includes a tablet, printer, scanner, and software from a single vendor, making it extremely easy to use and develop custom applications to fit any business model.

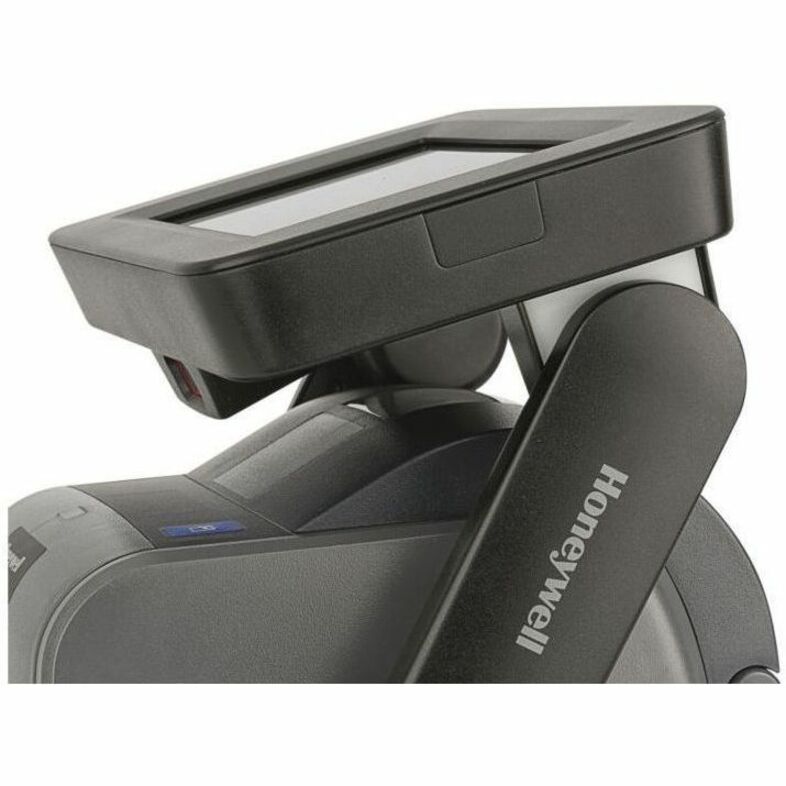

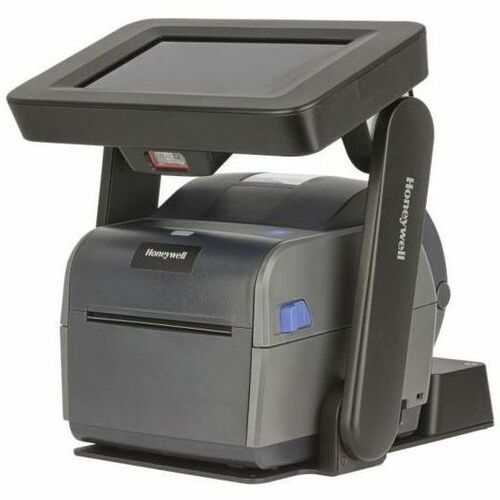

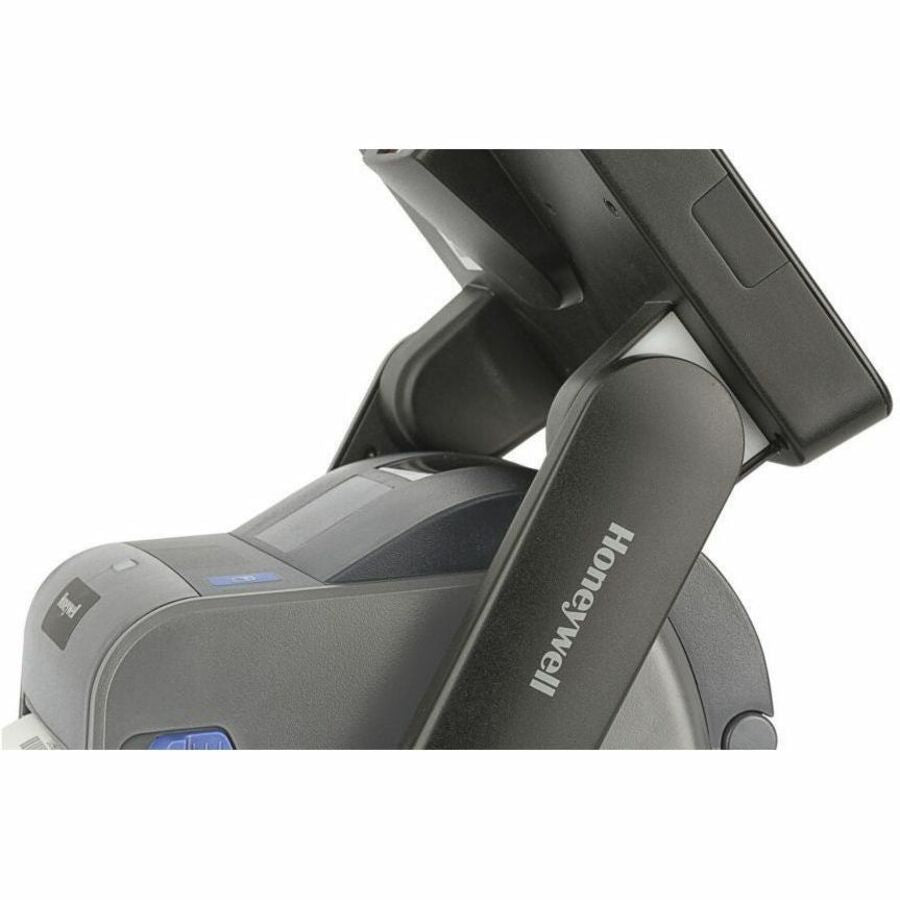

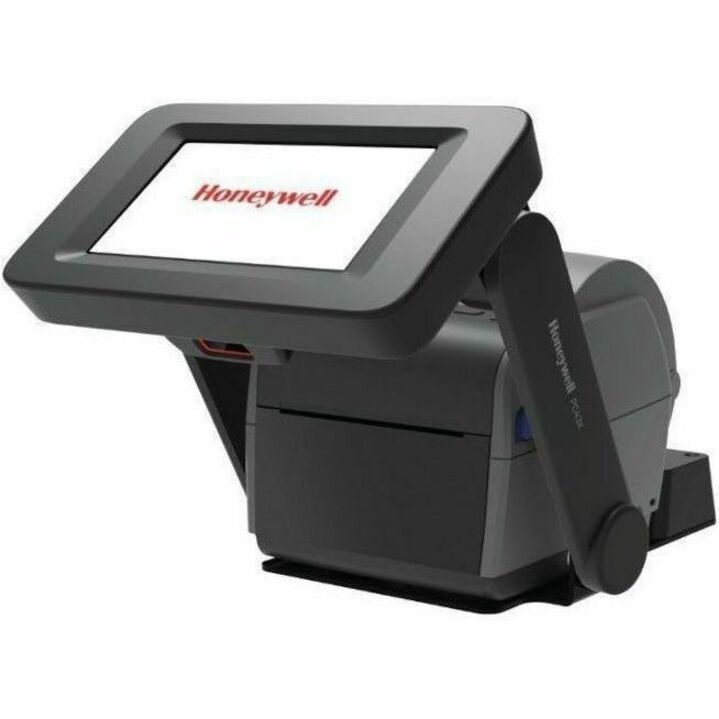

The PC43K comes with an integrated scan engine, ScanPal™ EDA71 tablet on an articulating arm, PC43 direct thermal printer, I/O board, and wall/desk mount to ensure that it is ready for direct consumer operations.

The ScanPal EDA71 tablet is loaded with the world's most advanced and widely adopted mobile operating system, Android™ 8. The Android operating system is the most flexible platform for any ISV or mobile application developer to customize and develop applications that fit any business model. This enables our customers to easily configure and develop custom applications to take full advantage of the PC43K solution.

Security is a key element of the PC43K solution. Capable of full mobile device management (MDM) support, and with security patch releases for Android and central
Product Type: Direct Thermal Printer

Technical Information

Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 6 in/s (152.40 mm/s)
Maximum Print Resolution (dpi): 300
Maximum Print Length: 35.43" (900 mm)
Maximum Print Width: 4.20" (106.68 mm)
Barcode Symbology Supported: AZTEC,Plessey,Code 49,Data Matrix,RSS-14,Maxi Code,PDF417,EAN-8,EAN-13,QR Code,PLANET,EAN.UCC 128,POSTNET,HIBC Code 128,HIBC Code 39,MSI (Modified Plessey),Grid Matrix,Code 16K,Dot Code
Connectivity Technology: Wireless
Application/Usage: Business,Desktop

Memory

Standard Memory: 128 MB
Flash Memory: 128 MB

Interfaces/Ports

USB: Yes

Network & Communication

Ethernet: Yes
Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11b/g

Display & Graphics

Display Screen: Yes
Screen Size: 7"
Display Screen Type: LCD

Media Types & Handling

Media Type: Label
Maximum Roll Diameter: 5" (127 mm)
Maximum Label Width: 4.65" (118.11 mm)
Maximum Label Length: 35.40" (899.16 mm)

Fonts & Emulation

Language Emulation: EPL,ZPL II,DPL,IPL

Environmental Conditions

Operating Temperature: 14°F (-10°C) - 104°F (40°C)
Storage Temperature: 4°F (-15.6°C) - 140°F (60°C)
Storage Relative Humidity: 10% - 80%

Physical Characteristics

Height: 9.80" (248.92 mm)
Width: 9.60" (243.84 mm)
Depth: 16.10" (408.94 mm)
Weight (Approximate): 10 lb (4535.92 g)

Miscellaneous

Power Cable Localization: US
Platform Supported: PC

Warranty

Limited Warranty: 1 Year
