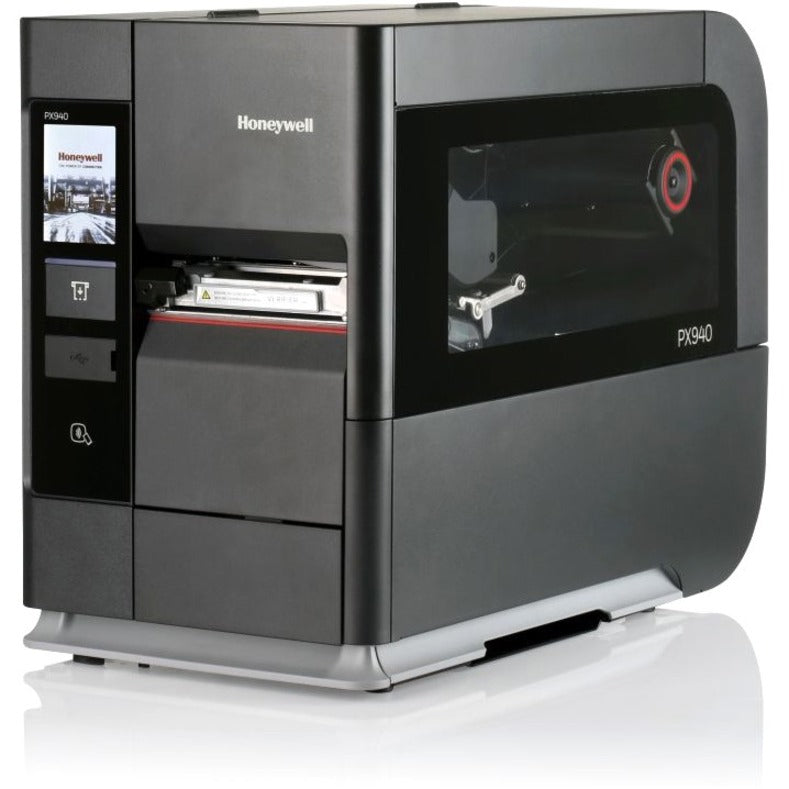

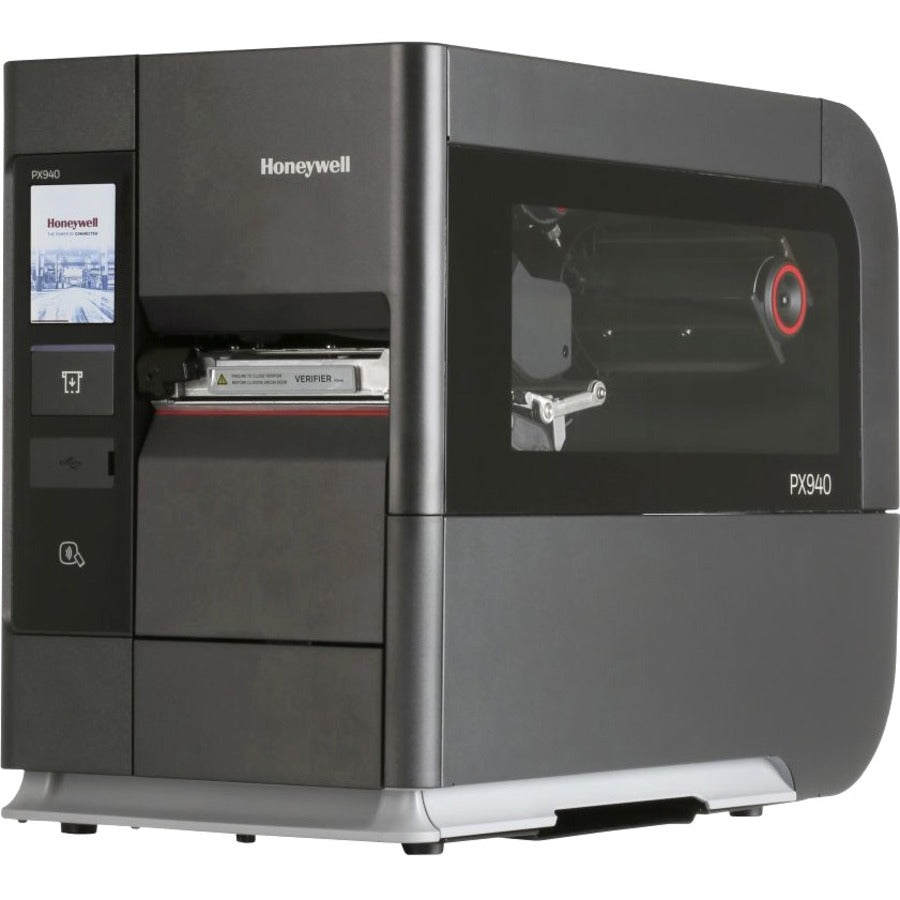

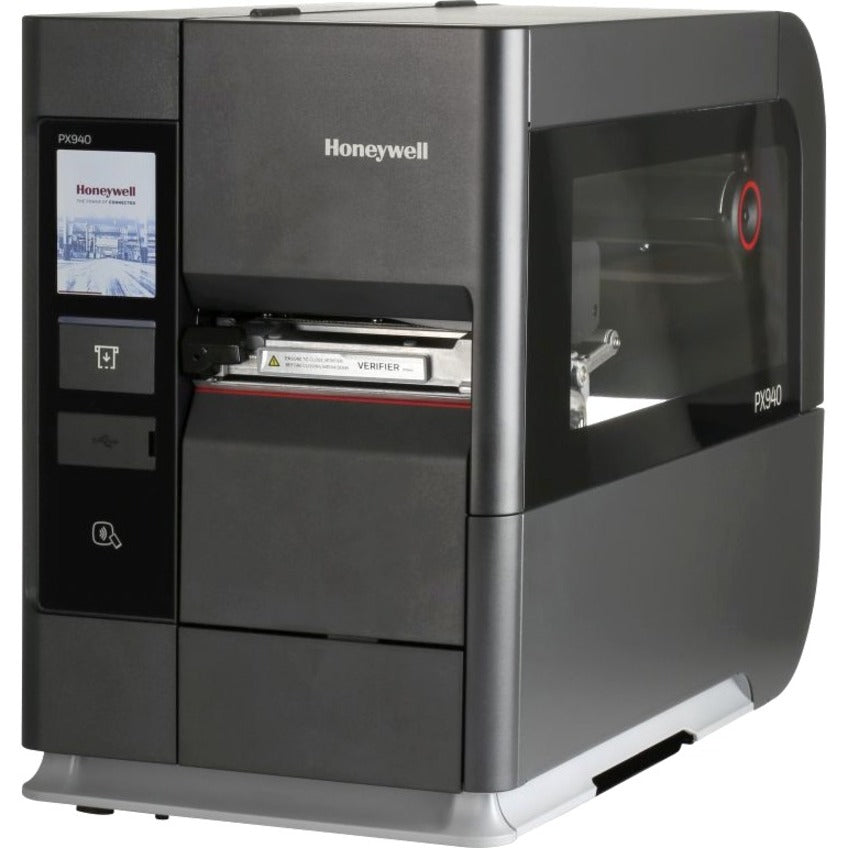

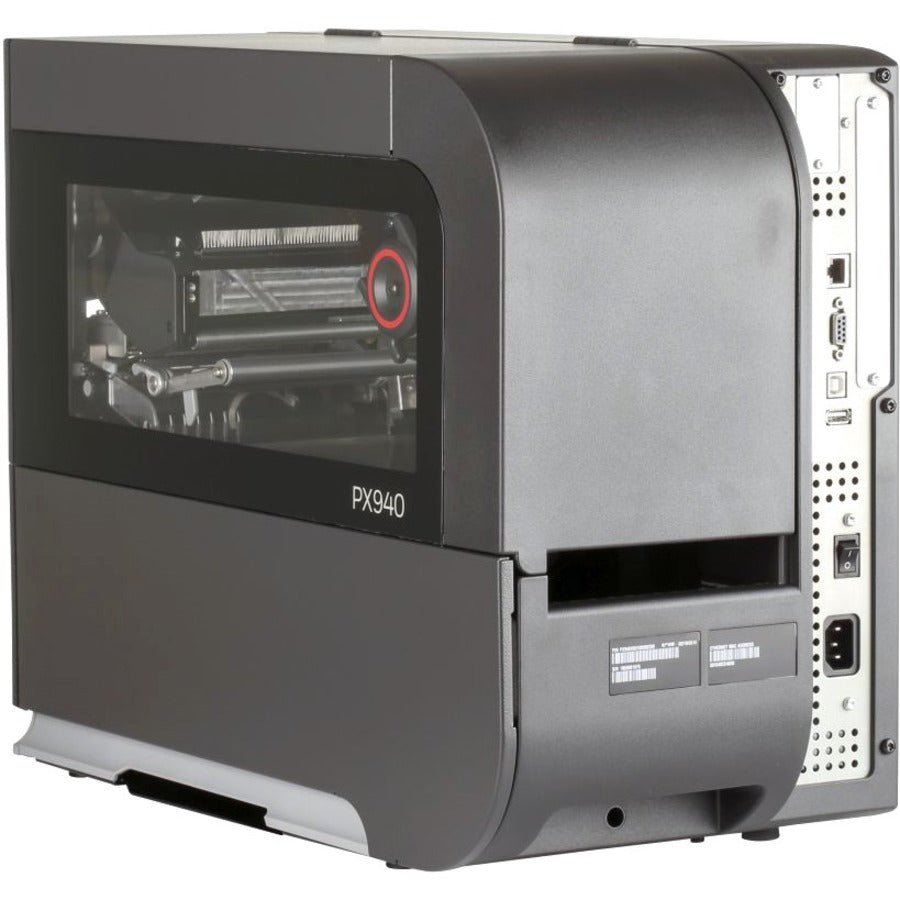

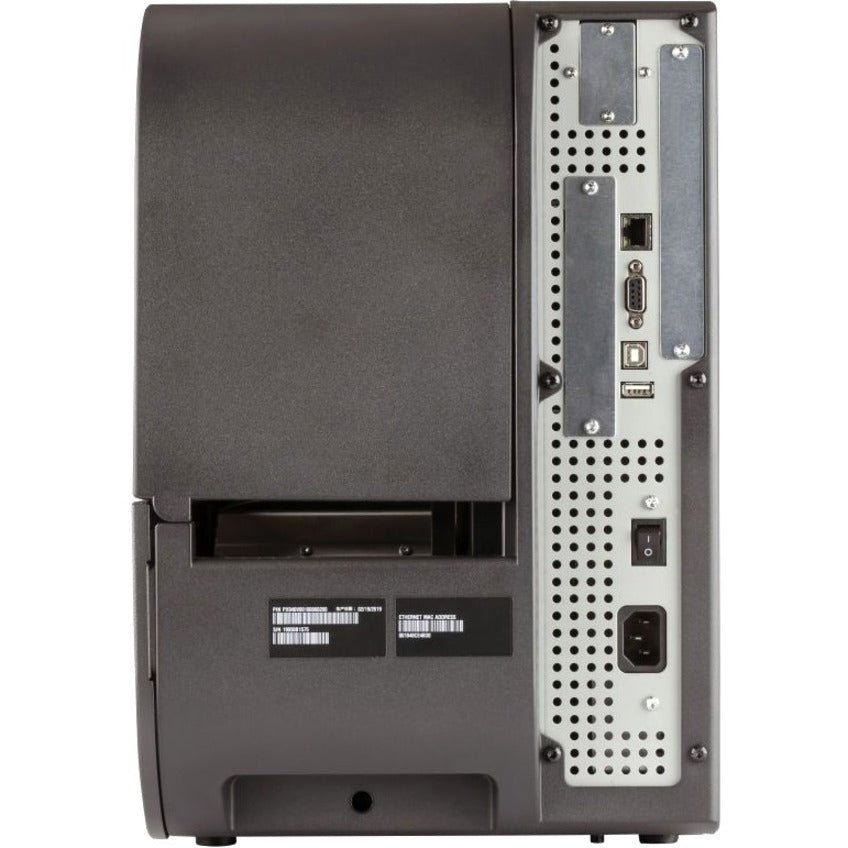

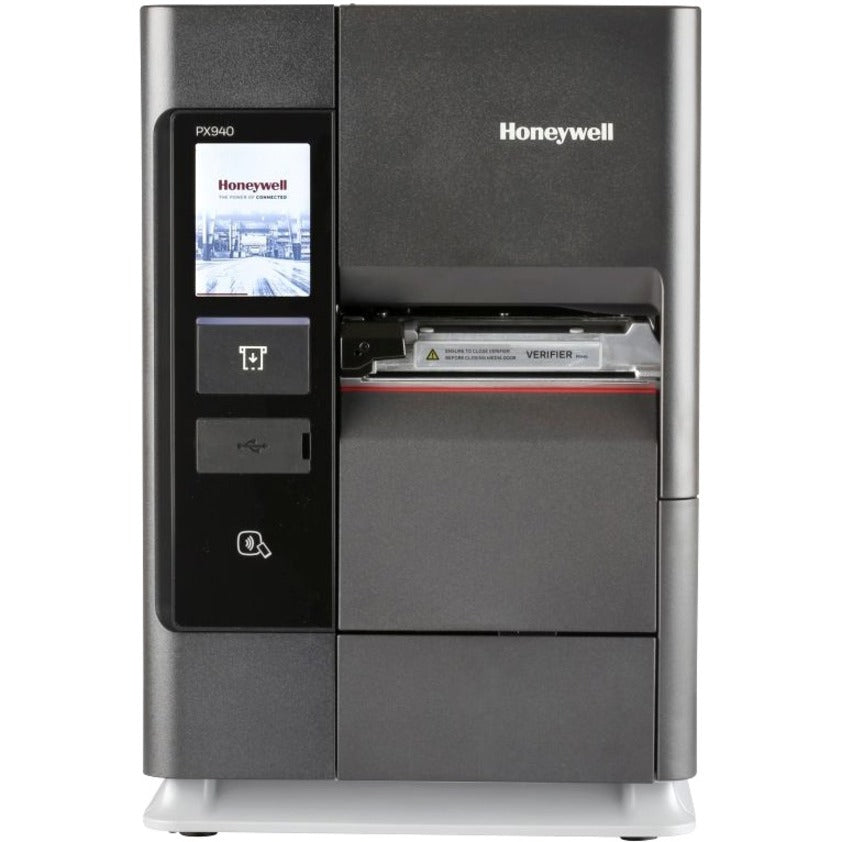

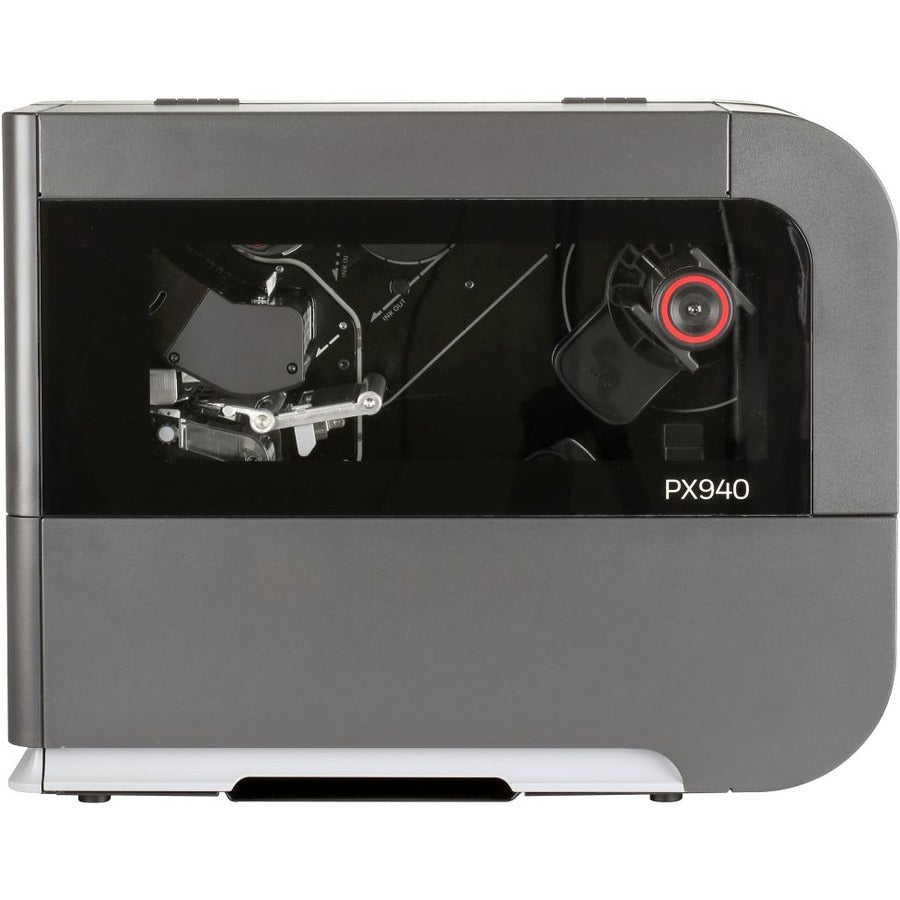

PX940A00100060202 Honeywell PX940 Desktop, Industrial Direct Thermal/Thermal Transfer Printer - Monochrome - Label Print - Fast Ethernet - USB - USB Host - Bluetooth - Near Field Communication (NFC) - US

General Information

Manufacturer: Honeywell International, Inc
Manufacturer Part Number: PX940A00100060202
Manufacturer Website Address: http://www.honeywell.com
Brand Name: Honeywell
Product Series: PX940
Product Model: PX940
Product Name: PX940 Industrial Printer
Marketing Information: High-Performance Industrial Printer with Integrated Label Verification

The PX940 high-performance industrial printer with integrated label verification technology provides error-free printing.

Developed for companies that are subjected to fines levied for non-compliance to regulatory standards and returned shipments due to unreadable barcodes, the PX940 prints barcodes that are 100% readable every time. With pass/ fail and ANSI grades from 0.0 (F) to 4.0 (A), bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.2 mm (0.0079 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with high precision

The PX940 printer is suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers
Product Type: Direct Thermal/Thermal Transfer Printer

Technical Information

Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 14 in/s (355.60 mm/s)
Maximum Print Resolution (dpi): 203
Maximum Print Length: 15.75 ft (4800.60 mm)
Maximum Print Width: 4.25" (108 mm)
Barcode Symbology Supported: Code 39,HIBC Code 39,Code 93,Code 128,ISBT-128,HIBC Code 128,GS1-128,EAN-8,EAN-13,UPC-A,UPC-E,Interleaved 2 of 5,ITF-14,GS1 DataBar Expanded,Data Matrix,QR Code,1D,2D,UPC/EAN Shipping Container,POSTNET,UCC/EAN 128 Serial Shipping Container,HIBCC,GM1724,OGMARS,AIAG,MH10.8,ISBT Data Matrix,RSS14E,SCC-14,EAN 128
Connectivity Technology: Wired
Fonts Included: Monotype font engine,non-Latin fonts available through WTLE
Rewinder: Yes
Real Time Clock: Yes
Peel Facility: Yes
Application/Usage: Desktop,Industrial
Features: Rugged

Memory

Standard Memory: 1 GB

Interfaces/Ports

USB Host: Yes
USB: Yes

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
Near Field Communication (NFC): Yes

Display & Graphics

Display Screen: Yes
Screen Size: 3.5" (88.90 mm)
Display Screen Type: LCD

Media Types & Handling

Media Type: Label,Gap,Black Mark,Tag,Notch,Continuous Label,Roll Fed,Fanfold
Media Thickness: 10 mil (0.254000 mm)
Maximum Roll Diameter: 8.4" (212.70 mm)
Maximum Label Width: 4.49" (114 mm)

Fonts & Emulation

Language Emulation: ZSim2,DPL,XML,IPL,ZPL II,DP,FP,WMS

Software

Software Included:

• Fingerprint (FP)
• Direct Protocol (DP)
• Intermec Printer Language (IPL) support on 203 dpi and 300 dpi only
• ZSim2 (ZPL-II)
• DPL
• XML-enabled for SAP® AII and Oracle® WMS

Power Description

Power Source: AC Supply
Input Voltage: 120 V AC,230 V AC

Environmental Conditions

Operating Temperature: 41°F (5°C) - 104°F (40°C)
Operating Relative Humidity: 20% - 85%
Storage Temperature: -4°F (-20°C) - 158°F (70°C)

Physical Characteristics

Height: 15.70" (398.70 mm)
Width: 10.28" (261 mm)
Depth: 19.92" (506 mm)
Weight (Approximate): 50.71 lb (23000 g)

Miscellaneous

Power Cable Localization: US
Platform Supported: PC,Android,iOS
Energy Star: Yes
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 2.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
