PX940V30100000202 Honeywell PX940 Single Sided Industrial, Healthcare, Manufacturing, Warehouse, Automotive Direct Thermal Printer - Color - Label Print - Fast Ethernet - USB - USB Host - Serial - Bluetooth - Near Field Communication (NFC) - RFID - US

General Information

Manufacturer: Honeywell International, Inc
Manufacturer Part Number: PX940V30100000202
Manufacturer Website Address: http://www.honeywell.com
Brand Name: Honeywell
Product Model: PX940
Product Name: PX940 Industrial Printer
Marketing Information:

The PX940 high-performance industrial printer with integrated label verification technology provides error-free printing.

Developed for companies that are subjected to fines levied for non-compliance to regulatory standards and returned shipments due to unreadable barcodes, the PX940 prints barcodes that are 100% readable every time. With pass/ fail and ANSI grades from 0.0 (F) to 4.0 (A), bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.2 mm (0.0079 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with high precision.

The PX940 printer is suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 pr
Product Type: Direct Thermal Printer

Technical Information

Recommended Use: Label Print
Print Color Capability: Color
Printing Capability: Single Sided
Maximum Mono Print Speed: 13.78 in/s (350 mm/s)
Maximum Print Resolution (dpi): 203
Maximum Print Length: 15.75 ft (4800.60 mm)
Maximum Print Width: 4.25" (108 mm)
Barcode Symbology Supported: 2D,1D,Code 128,Code 39,EAN-128,EAN-13,EAN-8,GS1 DataBar Expanded,GS1-128,HIBC Code 128,HIBC Code 39,ISBT-128,ITF-14,Interleaved 2 of 5,RSS14E,SCC-14,UPC-A,UPC-E
Application/Usage: Industrial,Healthcare,Manufacturing,Warehouse,Automotive
Features: LCD Display,Verifier

Memory

Standard Memory: 1 GB
Flash Memory: 256 MB

Interfaces/Ports

USB Host: Yes
Serial Port: Yes
USB: Yes

Network & Communication

Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
Near Field Communication (NFC): Yes
RFID: Yes

Display & Graphics

Display Screen: Yes

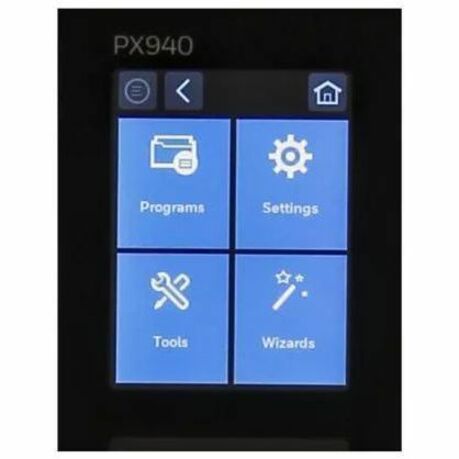

Display Screen Type: LCD

Media Types & Handling

Media Type: Gap,Black Mark,Tag,Notch,Label,Continuous Label
Maximum Roll Diameter: 8.4" (213 mm)
Maximum Label Width: 4.49" (114 mm)

Fonts & Emulation

Language Emulation: DPL,Fingerprint,ZSim2,ZPL II,WMSDirect Protocol (DP),Intermec Printer Language (IPL),XML-enabled for SAP AII & Oracle WMS,PDF

Power Description

Power Source: AC Supply

Environmental Conditions

Operating Temperature: 41°F (5°C) - 104°F (40°C)
Operating Relative Humidity: 20% - 85%
Storage Temperature: 68°F (20°C) - 158°F (70°C)
Storage Relative Humidity: 20% - 85%

Physical Characteristics

Height: 15.70" (398.70 mm)
Width: 10.28" (261 mm)
Depth: 19.92" (506 mm)
Weight (Approximate): 51.81 lb (23500 g)

Miscellaneous

Power Cable Localization: US
Platform Supported: PC
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
