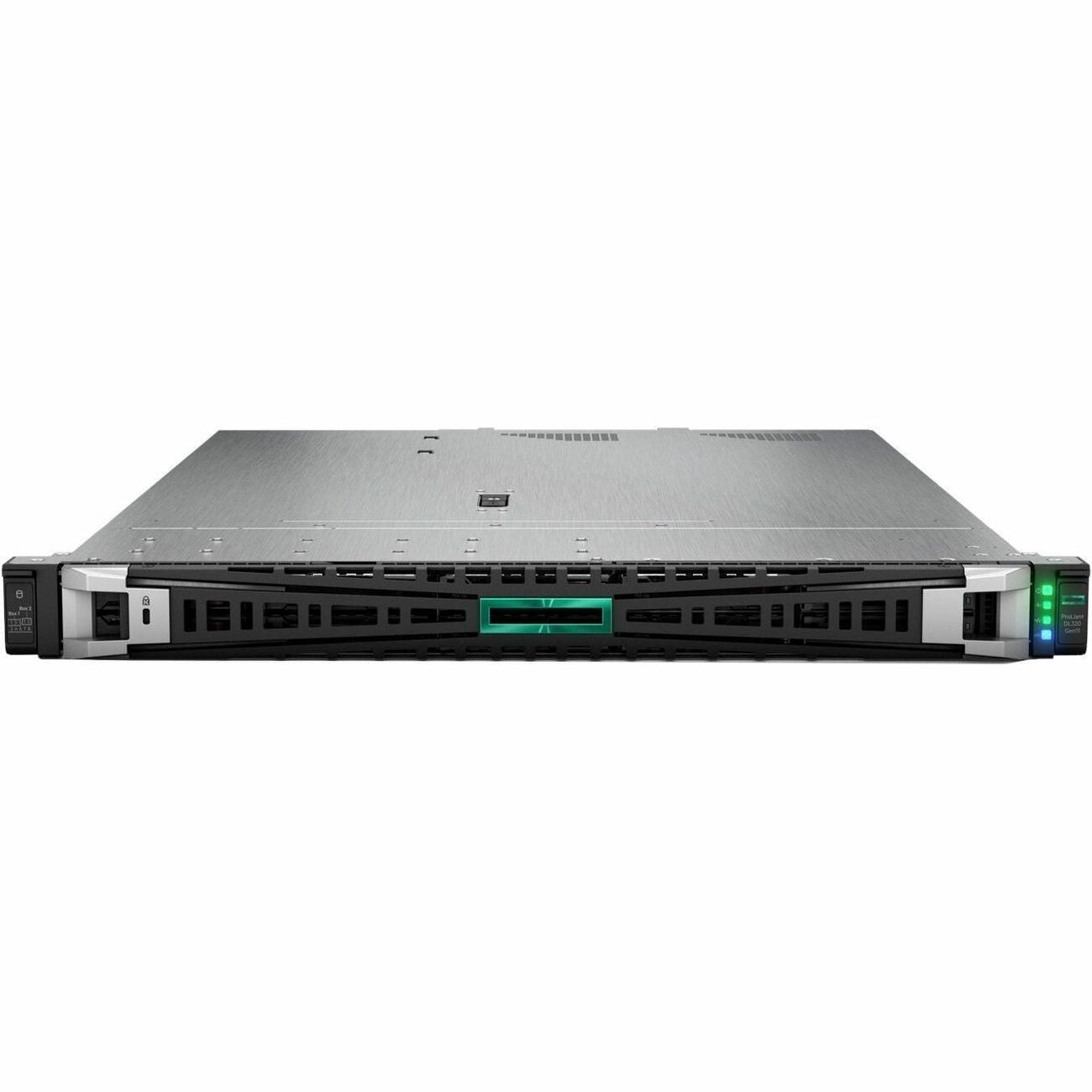

P69302-005 HPE ProLiant DL320 G11 1U Rack Server - 1 Xeon Gold 5416S 2 GHz - 64 GB RAM - NVMe Controller

General Information

Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: P69302005
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Line: ProLiant
Product Series: DL320 G11
Product Name: ProLiant DL320 G11 Server
Marketing Information:

HPE ProLiant DL320 Gen11

Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads.

Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with up to 60 cores and 270W, increased memory capability (up to 2 TB 5200 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.

Product Type: Server

Processor

Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Type: Xeon Gold
Processor Generation: 4th Gen
Processor Model: 5416S
Processor Core: Hexadeca-core (16 Core)
Processor Speed: 2 GHz
Cache: 30 MB

Chipset

Chipset Manufacturer: Intel
Chipset Model: C741

Memory

Standard Memory: 64 GB
Maximum Memory Supported: 2.04 TB
Memory Technology: DDR5 SDRAM
Total Number of Memory Slots: 16
Number of Occupied Memory Slots: 2
Error Checking: ECC
Signal Processing: Registered (Buffered)

Controllers

Controller Type: NVMe
Controller Model: NS204i-u

I/O Expansions

Number of Total Expansion Bays: 9
Number of Internal 2.5" Bays: 8
Number of Media Drive Bays: 1
Number of SFF Bays: 8
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 2
PCI Express Details: 1 x16 FHHL PCIe Gen5; 1 OCP 3.0 Slot as default. 1 x16 FHHL PCIe Gen5 optional

Display & Graphics

Graphics Memory Capacity: 16 MB

Network & Communication

Ethernet Technology: Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports: 4
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
VGA: Yes
Remote Management: Yes
Remote Management Controller: HPE iLO6

Operating System

Operating System Supported: Windows Server,Red Hat Enterprise Linux,SuSE Linux Enterprise Server,Ubuntu,Oracle Linux,Citrix XenServer,CentOS

Power Description

Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Plug/Connector Type: C13/C14
Maximum Power Supply Wattage: 800 W
Redundant Power Supply: Yes
Hot Swappable Power Supply: Yes

Miscellaneous

Package Contents:

• ProLiant DL320 G11 Server
• Rail Kit
• 6-foot IEC C-13/C-14 Jumper Cord

Security Features:

• UEFI Secure Boot and Secure Start support
• Tamper-free updates - components digitally signed and verified
• Immutable Silicon Root of Trust
• Ability to rollback firmware
• FIPS 140-2 validation
• Secure erase of NAND/User data
• Common Criteria certification
• Configurable for PCI DSS compliance
• Embedded TPM (Trusted Platform Module) 2.0. Excluded for shipments to China.
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Bezel Locking Kit option
• Support for Commercial National Security Algorithms (CNSA)
• Chassis Intrusion detection option
• Secure Recovery - recover critical firmware to a known good state on detection of compromised firmware

Energy Star: Yes
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 4.0
Energy Efficiency Compliance: Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)

Physical Characteristics

Form Factor: Rack
Rack Height: 1U
Height: 1.69" (42.80 mm)
Width: 17.11" (434.60 mm)
Depth: 23.82" (605.10 mm)
Weight (Approximate): 36.84 lb (16710 g)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information:

3-year parts, 3-year labor, 3-year onsite support with next business day response.
