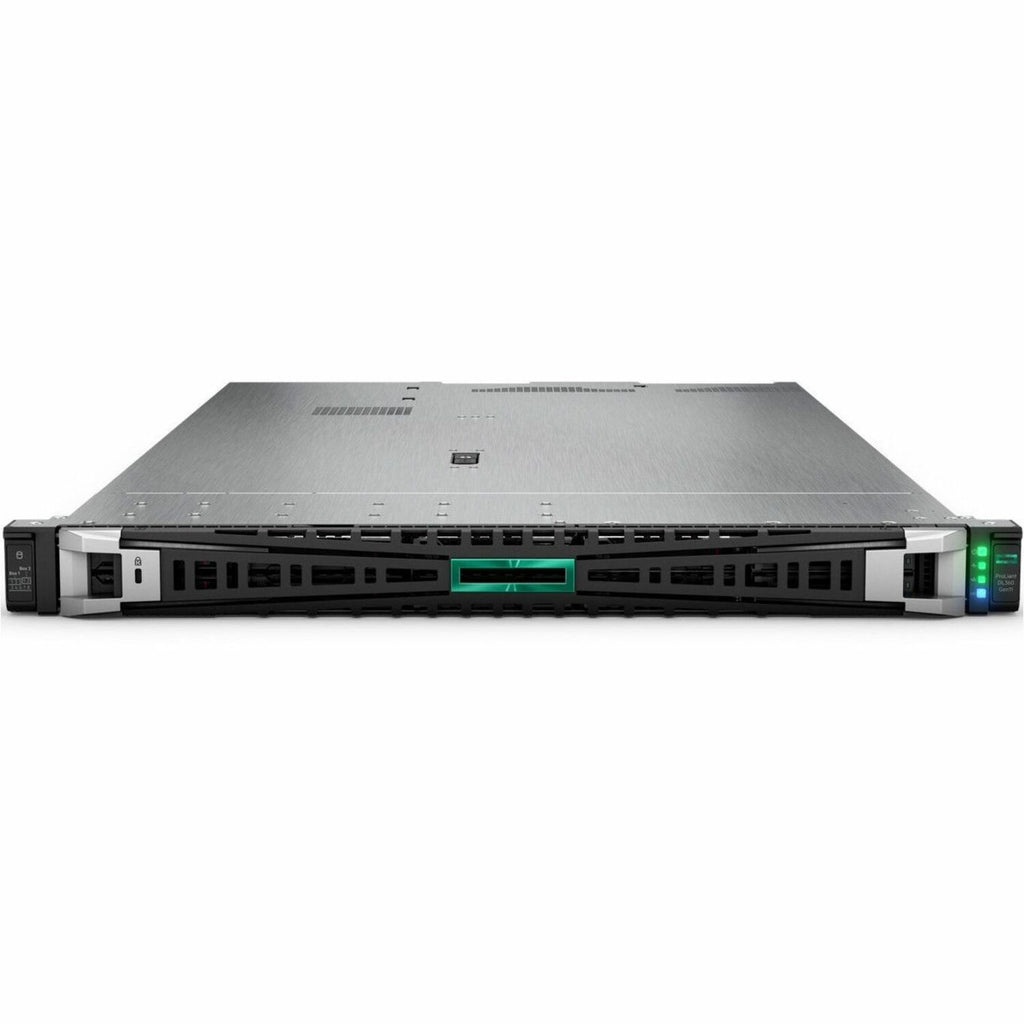

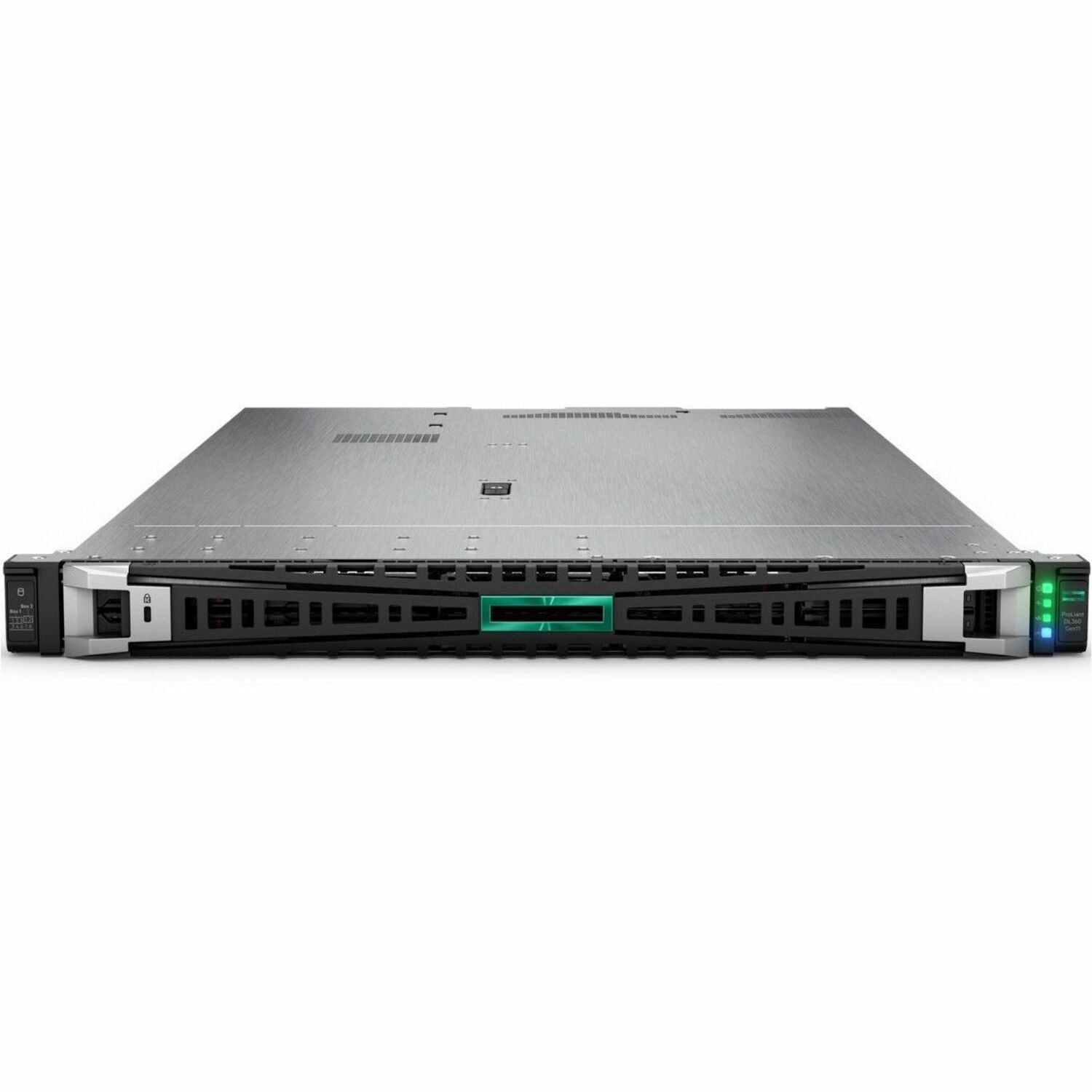

P72985-005 HPE ProLiant DL360 Gen11 1U Rack Server - 1 Xeon Silver 4514Y 2 GHz - 128 GB RAM - 2.40 TB HDD - (2 x 1.2TB) HDD Configuration - Serial ATA/600, 12Gb/s SAS Controller

General Information

Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: P72985-005
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Line: ProLiant
Product Series: DL360 Gen11
Product Name: ProLiant DL360 Gen11 Server
Marketing Information:

Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen11 delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen11 is ideal for IT infrastructure, either physical, virtual, or containerized.

The HPE ProLiant DL360 Gen11 supports the 4th & 5th Generation Intel® Xeon® Scalable Processors with up to 64 cores, plus 5600 MT/s HPE DDR5 Smart Memory up to 4.0 TB per socket. Introducing PCIe Gen5 and Intel® Software Guard Extensions (SGX) support on the dual-socket segment, the HPE ProLiant DL360 Gen11 complements Gen10 Plus reach by delivering premium compute, memory, networking communication, discrete graphic, I/O, and security capabilities for customers focused on performance at any cost. DL360 Gen11 server is an execellent c
Product Type: Server

Processor

Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Type: Xeon Silver
Processor Generation: 5th Gen
Processor Model: 4514Y
Processor Core: Hexadeca-core (16 Core)
Processor Speed: 2 GHz
Cache: 30 MB

Chipset

Chipset Manufacturer: Intel
Chipset Model: C741

Memory

Standard Memory: 128 GB
Maximum Memory Supported: 8 TB
Memory Technology: DDR5 SDRAM
Number of Occupied Memory Slots: 4
Error Checking: ECC
Signal Processing: Registered (Buffered)

Storage

Number of Hard Drives: 2
Total Hard Drive Capacity: 2.40 TB
Hard Drive Interface: 12Gb/s SAS
Hard Drive RPM: 10000

Controllers

Controller Type: Serial ATA/600,12Gb/s SAS
Controller Model: MR408i-o Gen11
RAID Supported: Yes

I/O Expansions

Number of Total Expansion Bays: 9
Number of External 5.25" Bays: 1
Number of Internal 2.5" Bays: 8
Number of SFF Bays: 8
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 2
PCI Express Details: Slot 1 x16 PCIe 5.0 - Full Height; Slot 2 x16 PCIe 5.0 - Low Profile

Display & Graphics

Graphics Memory Capacity: 16 MB

Network & Communication

Ethernet Technology: Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports: 5
Number of USB 2.0 Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 4
VGA: Yes
Remote Management: Yes
Remote Management Controller: HPE iLO 6

Operating System

Operating System Supported: Windows Server,Red Hat Enterprise Linux,SuSE Linux Enterprise Server,Oracle Linux,Linux,Ubuntu

Power Description

Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Plug/Connector Type: C13/C14
Maximum Power Supply Wattage: 1 kW
Redundant Power Supply: Yes
Hot Swappable Power Supply: Yes

Miscellaneous

Package Contents:

• ProLiant DL380 G11 Server
• 6-foot IEC C-13/C-14 Jumper Cord
• ProLiant DL3XX Gen11 Easy Install Rail 3 Kit

Security Features:

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-3 validation (iLO 6 certification in progress)
• Common Criteria certification (iLO 6 certification in progress)
• Configurable for PCI DSS compliance
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Support for Commercial National Security Algorithms (CNSA)
• iLO Security Modes
• Granular control over iLO interfaces
• Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
• Tamper-free updates - components digitally signed and verified
• Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
• Ability to rollback firmware
• Secure erase of NAND/User Data
• TPM 2.0 (Trusted Platform Module 2.0)

Energy Star: Yes
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 4.0
Energy Efficiency Compliance: Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)

Physical Characteristics

Form Factor: Rack
Rack Height: 1U
Height: 1.69" (42.90 mm)
Width: 17.11" (434.60 mm)
Depth: 29.65" (753.10 mm)
Weight (Approximate): 45.06 lb (20440 g)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information:

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.
