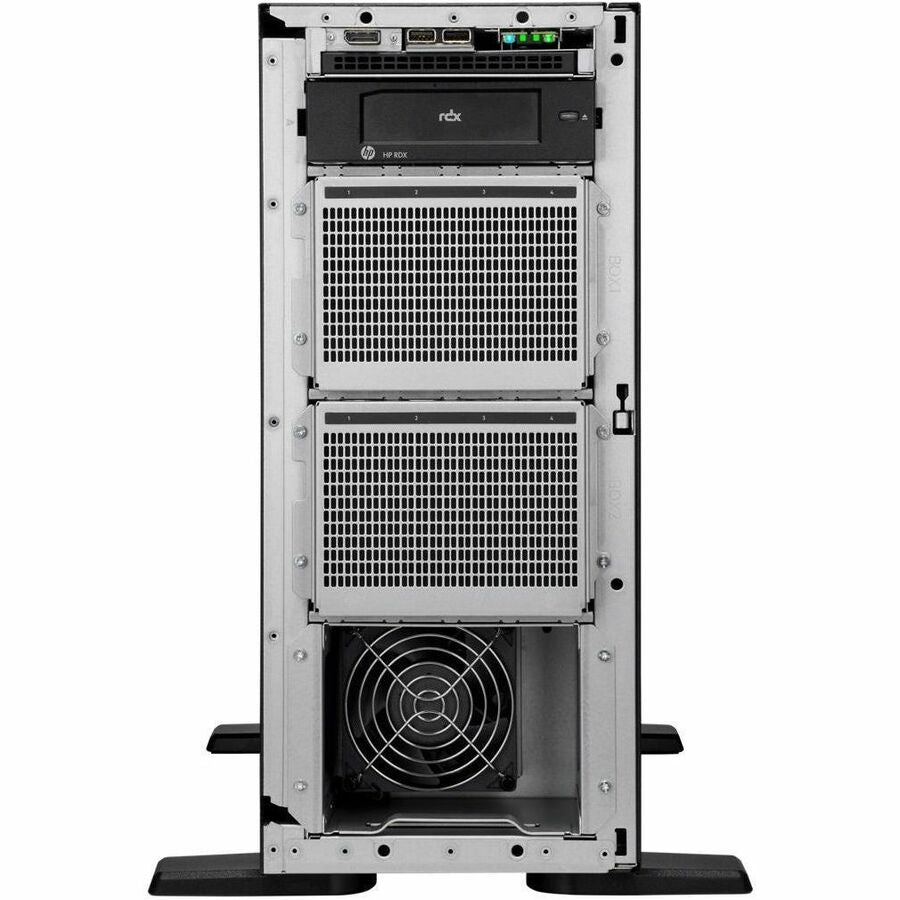

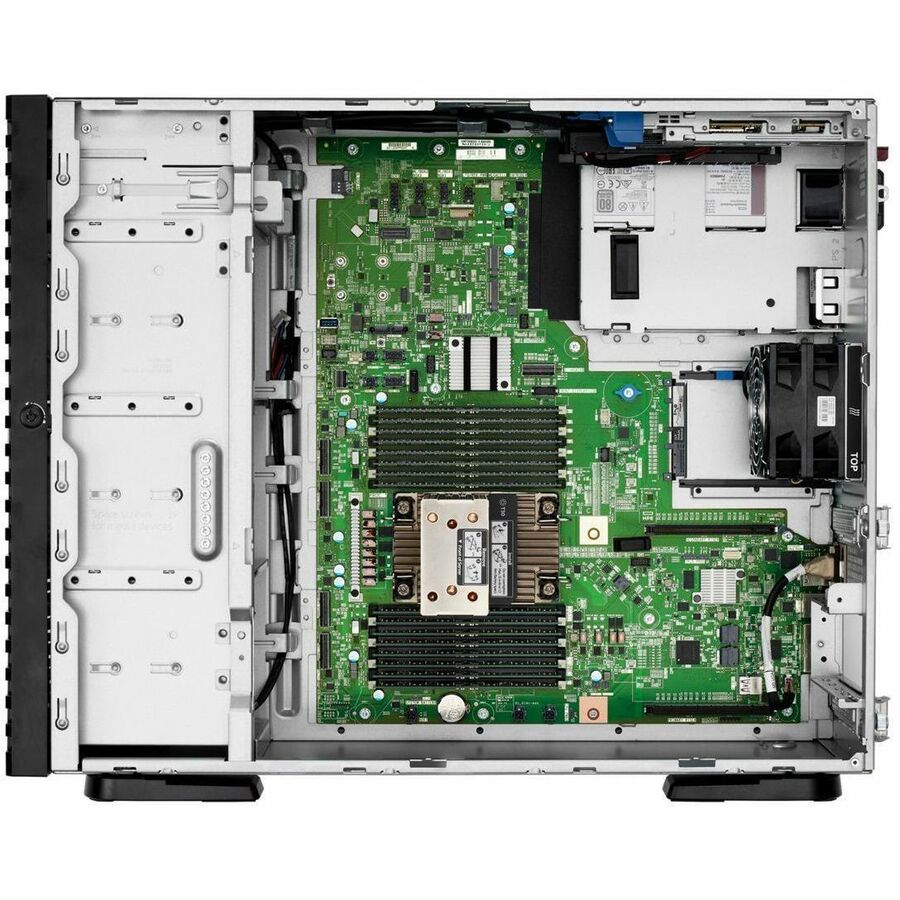

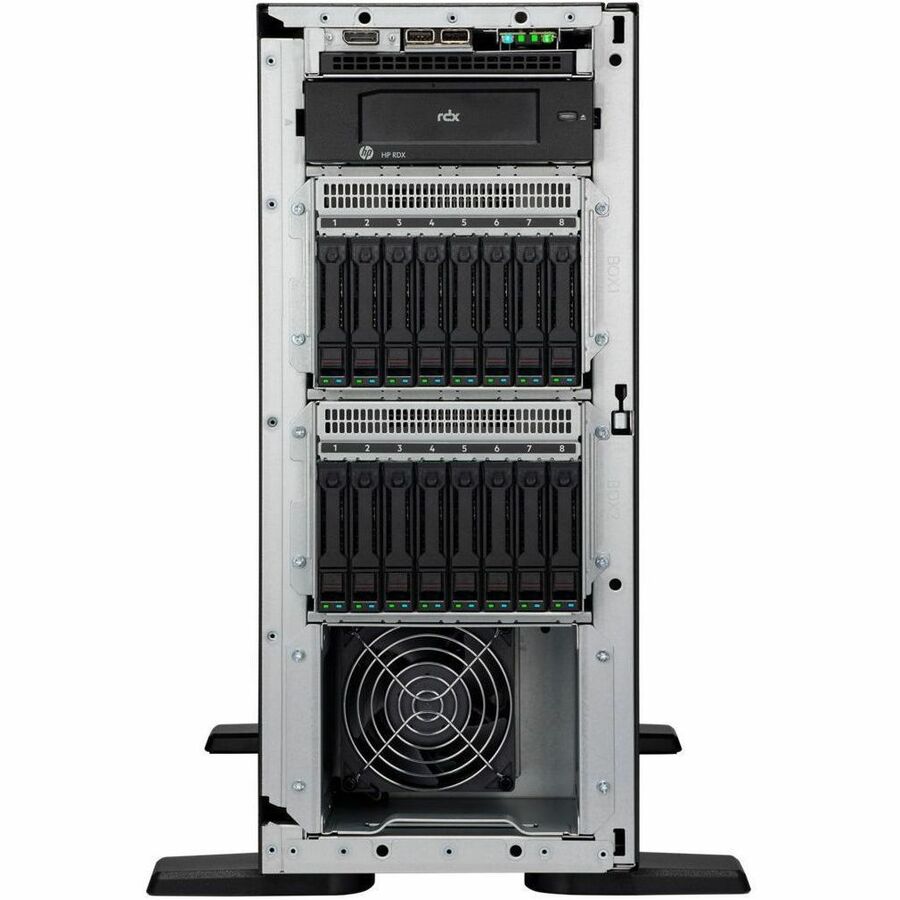

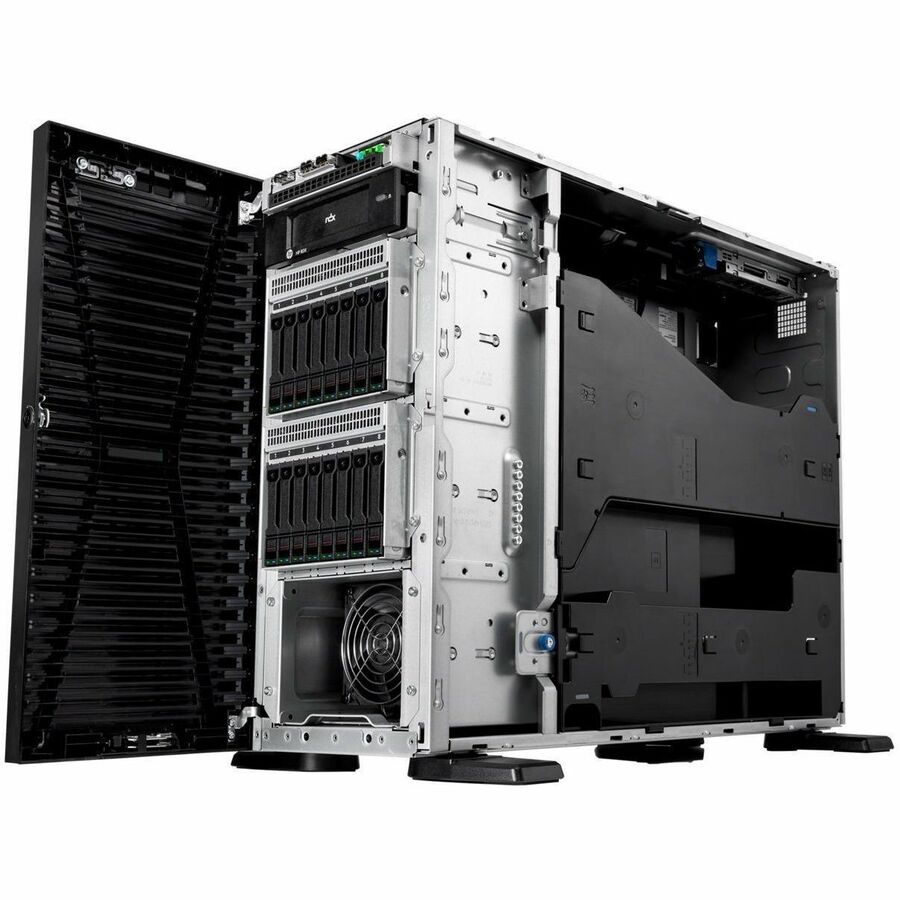

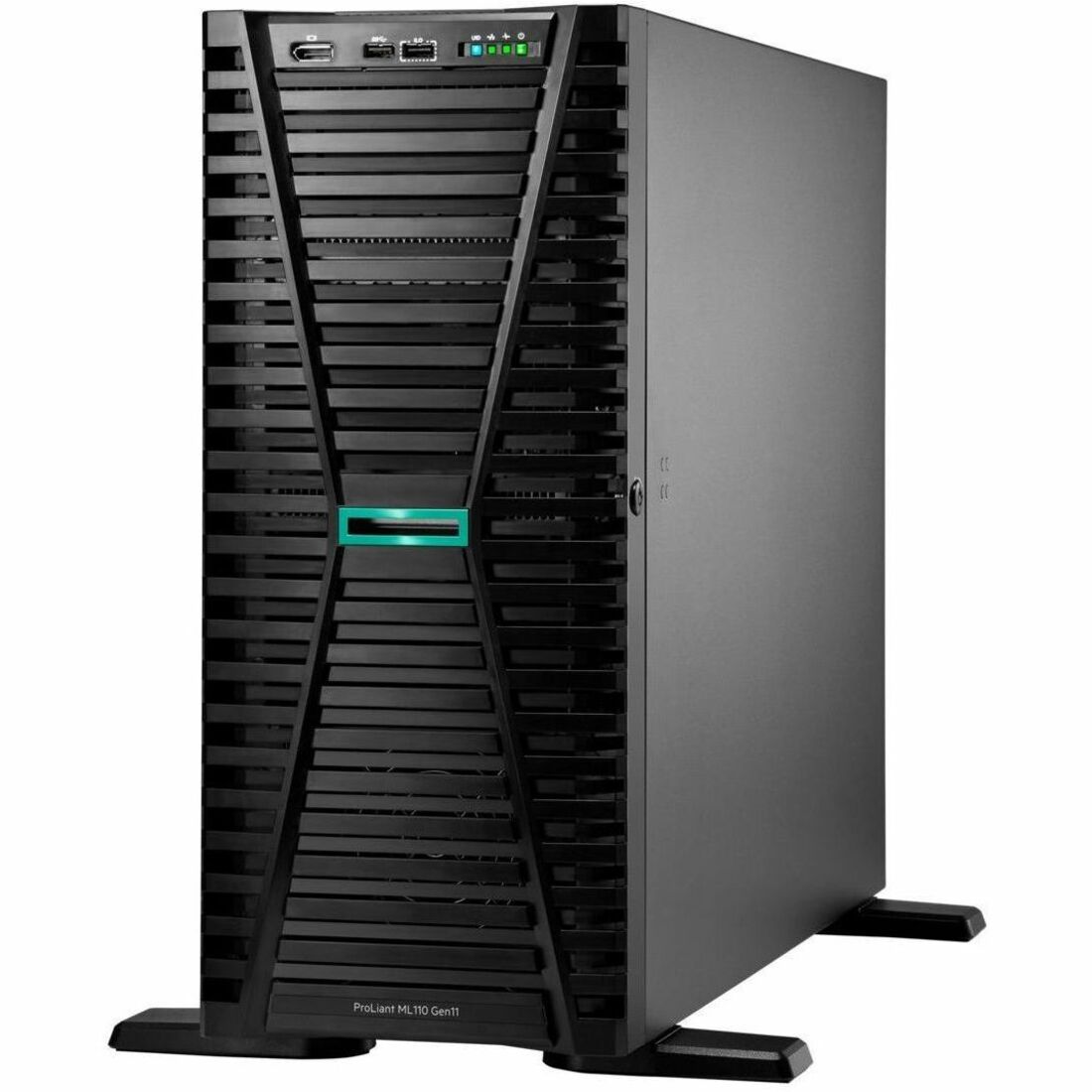

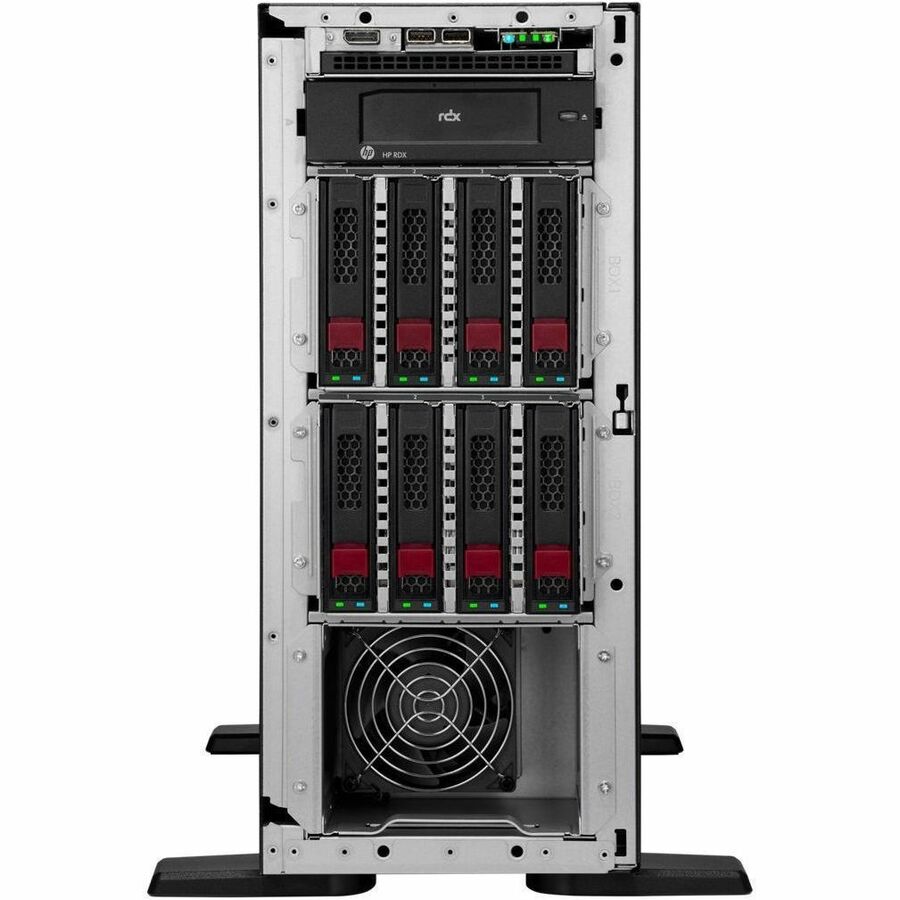

P71683-005 HPE ProLiant ML110 G11 4.5U Tower Server - 1 Xeon Bronze 3508U 2.10 GHz - 32 GB RAM - 4 TB HDD - (2 x 2TB) HDD Configuration - Serial ATA, Serial Attached SCSI (SAS) Controller

General Information

Manufacturer: Hewlett Packard Enterprise
Manufacturer Part Number: P71683-005
Manufacturer Website Address: http://www.hpe.com
Brand Name: HPE
Product Line: ProLiant
Product Series: ML110 G11
Product Name: ProLiant ML110 G11 Server
Marketing Information:

HPE ProLiant ML110 Gen11

Provide enhanced single processor and storage flexibility in a 4.5U 1P tower optimized server with optional rackable chassis, outstanding compute performance, security, reliability, and expandability at an affordable price. Fill a mid-range of workloads for small offices, remote and branch offices of large enterprises, growing SMBs and data centers with the power of 4th and 5th Gen Intel® Xeon® Scalable Processors (up to 32 cores) increased bandwidth with DDR5 and PCIe Gen5. HPE ProLiant ML110 Gen11 server is an excellent choice to accelerate your growing business.

Product Type: Server

Processor

Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Type: Xeon Bronze
Processor Generation: 5th Gen
Processor Model: 3508U
Processor Core: Octa-core (8 Core)
Processor Speed: 2.10 GHz
Cache: 22.50 MB

Chipset

Chipset Manufacturer: Intel
Chipset Model: C741

Memory

Standard Memory: 32 GB
Maximum Memory Supported: 1.50 TB
Memory Technology: DDR5 SDRAM
Number of Occupied Memory Slots: 1
Error Checking: ECC
Signal Processing: Registered (Buffered)

Storage

Number of Hard Drives: 2
Total Hard Drive Capacity: 4 TB
Hard Drive Interface: Serial ATA/600
Hard Drive RPM: 7200

Controllers

Controller Type: Serial ATA,Serial Attached SCSI (SAS)
Controller Model: MR408i-o Gen11
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60

I/O Expansions

Number of Total Expansion Bays: 6
Number of External 5.25" Bays: 1
Number of 3.5" Bays: 4
Number of Media Drive Bays: 1
Number of LFF Bays: 4
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 2
PCI Express Details: PCIe Gen5: 2 slots (x16), upgradable to 4 slots (x16); OCP3 with PCIe Gen5: 1 slot (x16)

Display & Graphics

Graphics Memory Capacity: 16 MB

Network & Communication

Ethernet Technology: Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports: 5
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
VGA: Yes
Remote Management: Yes
Remote Management Controller: iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses)
DisplayPort: Yes

Operating System

Operating System Supported: Windows Server,Red Hat Enterprise Linux,SuSE Linux Enterprise Server,Oracle Linux,Citrix XenServer,Ubuntu

Power Description

Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 2
Plug/Connector Type: C13/C14
Maximum Power Supply Wattage: 500 W
Redundant Power Supply: Yes
Hot Swappable Power Supply: Yes

Miscellaneous

Security Features:

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-3 validation (iLO 6 certification in progress)
• Common Criteria certification (iLO 6 certification in progress)
• Configurable for PCI DSS compliance
• Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
• Support for Commercial National Security Algorithms (CNSA)
• Tamper-free updates -- components digitally signed and verified
• Secure Recovery -- recover critical firmware to known good state on detection of compromised firmware
• Ability to rollback firmware
• Secure erase of NAND
• TPM (Trusted Platform Module) 2.0
• Front bezel key-lock feature -- standard, available in both Tower and Rack models
• Padlock slot, standard
• Kensington Lock slot, standard

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)

Physical Characteristics

Form Factor: Tower
Rack Height: 4.5U
Height: 18.19" (462 mm)
Width: 7.68" (195 mm)
Depth: 23.11" (587 mm)
Weight (Approximate): 73.19 lb (33200 g)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information:

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.
