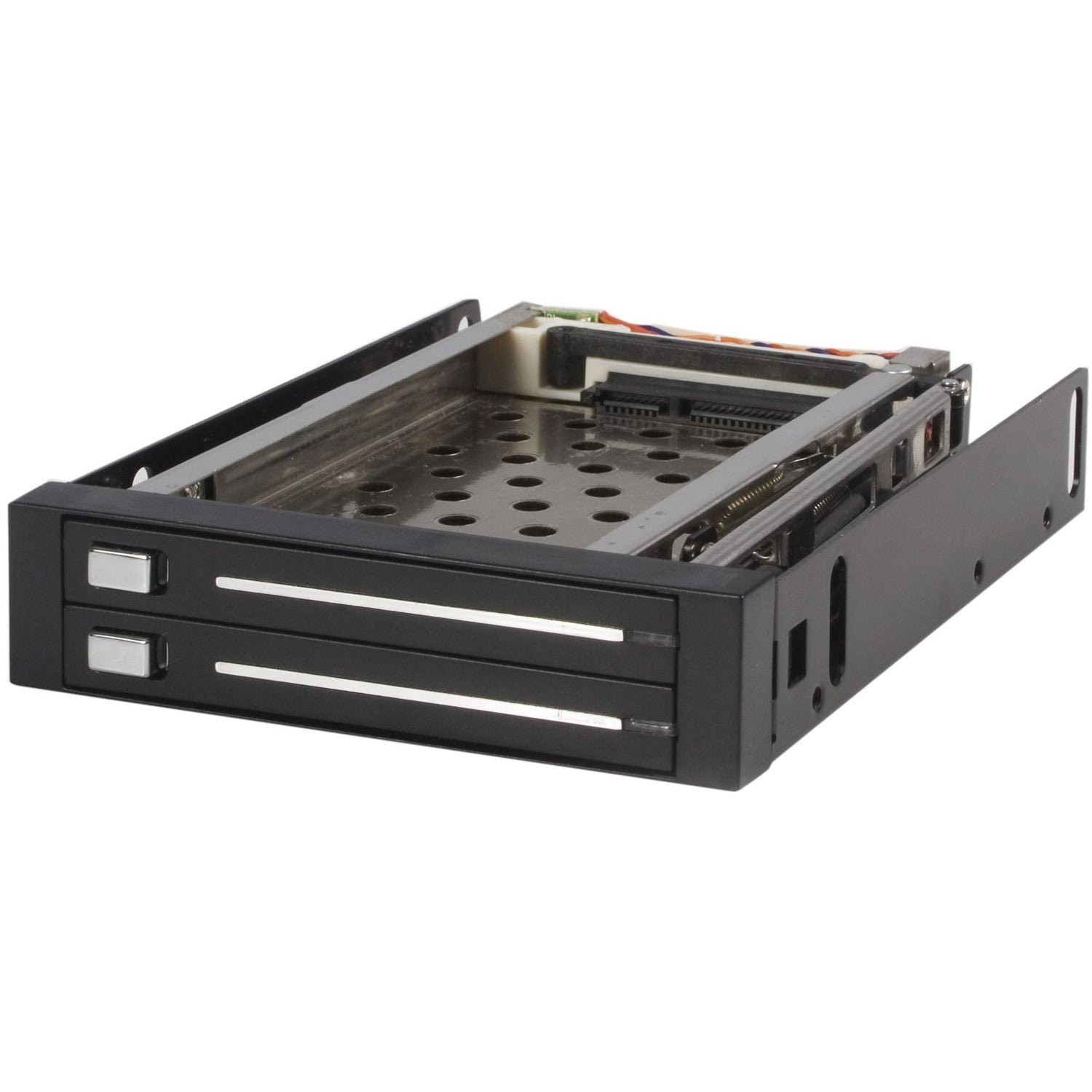

HSB220SAT25B StarTech.com 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane - Storage bay adapter - black

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: HSB220SAT25B
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane
Marketing Information:

This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay.

Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.

To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a relia
Packaged Quantity: 1 Each
Product Type: Drive Enclosure

Technical Information

Number of Hard Drives Supported: 2
Number of Hard Drives Installed: No
Number of Solid State Drive Supported: 2
Number of Solid State Drive Installed: No

Controllers

Controller Type: Serial ATA

I/O Expansions

Number of Total Expansion Bays: 2
Number of 2.5" Bays: 2

Network & Communication

Wireless LAN: No

Interfaces/Ports

Drive Interface: SATA/600
Host Interface: Serial ATA/600

Physical Characteristics

Color Family: Black
Product Color: Black
Product Material: Aluminum
Form Factor: Internal
Compatible Drive Bay Width: 3.5"
Height: 0.90" (22.86 mm)
Width: 4" (101.60 mm)
Depth: 5.30" (134.62 mm)
Weight (Approximate): 10.10 oz (286.33 g)

Miscellaneous

Package Contents:

• 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane
• 2 x Lp4 To SATA And LED Adapter Cable
• 1 x 15-Pin SATA Power And LED Y Cable
• 2 x 7-Pin SATA Data Cable
• 2 x Hard Drive Protector Film
• 1 x Screw Kit
• 1 x Instruction Manual

Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty: 2 Year
