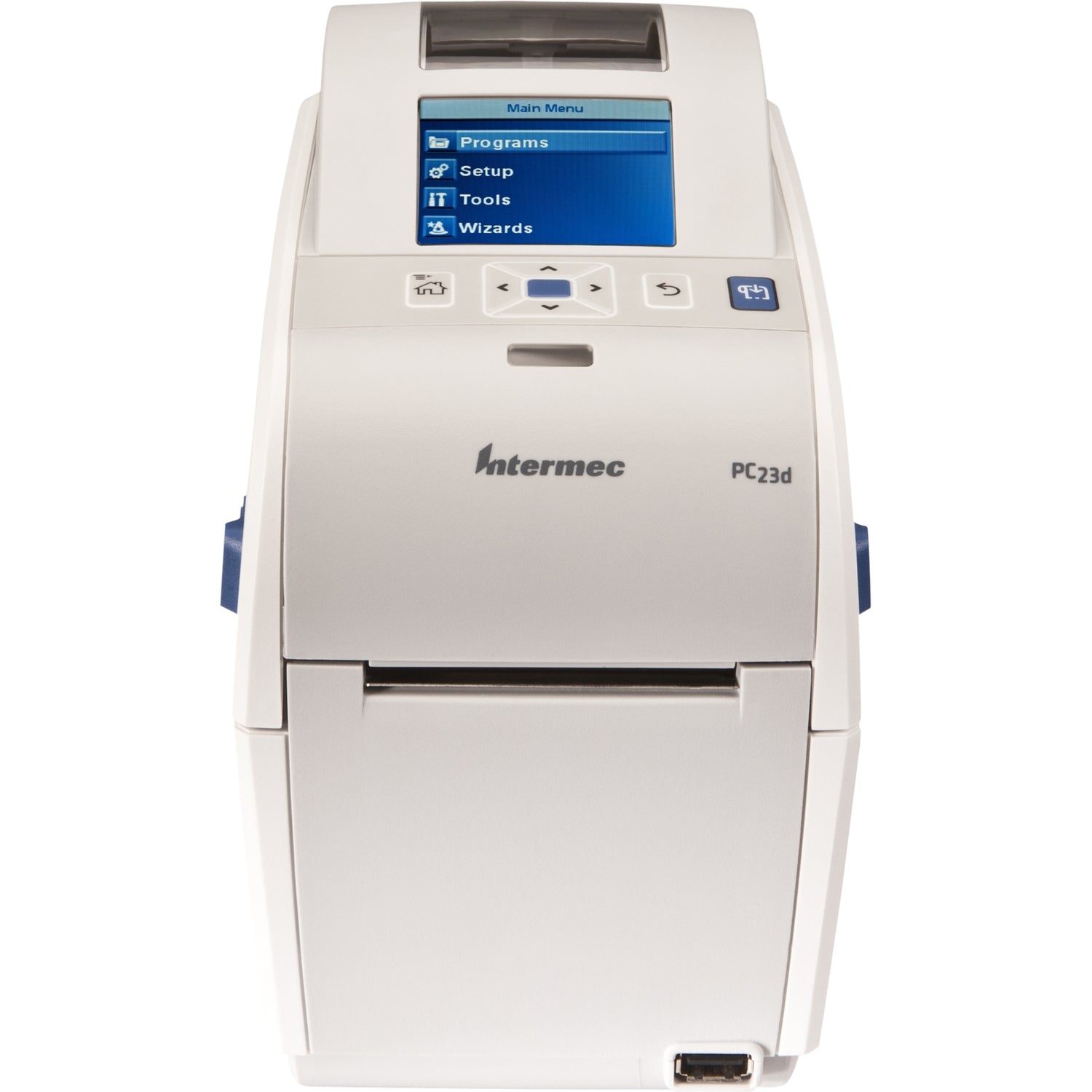

PC23DA0010021 Intermec PC23d Desktop Direct Thermal Printer - Monochrome - Label Print - USB

General Information

Manufacturer: Honeywell International, Inc
Manufacturer Part Number: PC23DA0010021
Manufacturer Website Address: http://www.honeywell.com
Brand Name: Intermec
Product Series: PC
Product Model: PC23d
Product Name: PC23d Desktop Printer
Marketing Information:

Designed to set a new standard in user friendliness and flexibility, the 2"-wide Intermec PC23d direct thermal printer provides an intuitive label-printing solution. PC23d features a multi-language LCD or Icon-graphics user interface for maximum ease of use. User-installable connectivity options and accessories ensure that PC23d will fit your business needs both today and tomorrow. Its low cost and fast operation make the PC23d the smart choice for light-duty labeling applications where users need a reliable, easy-to-use printing solution.

Product Type: Direct Thermal Printer

Technical Information

Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 8 in/s (203.20 mm/s)
Maximum Print Resolution (dpi): 203
Maximum Print Width: 2.20" (55.88 mm)
Barcode Symbology Supported: Aztec Code,Code 16K,Code 49,Data Matrix,EAN-13,EAN-8,EAN.UCC 128,Grid Matrix,HIBC Code 128,HIBC Code 39,Maxi Code,MSI,PDF-417,Micro PDF-417,Planet Code,Plessey,POSTNET,QR Code,RSS-14
Real Time Clock: Yes
Application/Usage: Desktop

Memory

Standard Memory: 128 MB
Flash Memory: 128 MB

Interfaces/Ports

USB: Yes

Display & Graphics

Display Screen: Yes
Screen Size: 2.4"
Display Screen Type: LCD

Media Types & Handling

Media Type: Tag,Linerless,Self Adhesive Label,Continuous Paper,Floodcoat,Non-adhesive Tag
Media Sensor: Transmissive Media Sensor
Maximum Roll Diameter: 5" (127 mm)
Maximum Label Width: 2.40" (60.96 mm)
Maximum Label Length: 68" (1727.20 mm)

Fonts & Emulation

Language Emulation: IPL,Fingerprint,DSim,ZSim,XML,E-Sim

Power Description

Power Source: Power Adapter
Input Voltage: 24 V DC

Physical Characteristics

Height: 6.90" (175.26 mm)
Width: 4.90" (124.46 mm)
Depth: 8.50" (215.90 mm)
Weight (Approximate): 3.20 lb (1450 g)

Miscellaneous

Package Contents:

• PC23d Desktop Printer
• Software, Driver & Documentation CD
• USB Cable
• Power Adapter
• Power Cord
• Handy QuickGuide

Cables Included: USB
Power Adapter Included: Yes
Platform Supported: PC
Certifications & Standards:

• CE
• FCC Class A
• C-UL-US
• UL
• GS
• TUVGS
• BSMI
• D Mark
• cUL
• CCC (China)
• KCC (South Korea)
• C-TICK (Australia/NZ)
• UL 60950-1
• EN 60950-1
• CE marked
• NYCE Certified
• NOM 19
• IEC 60950-1
• USA FCC Title 47
• Part 15
• Subpart A
• Class B
• Europe EMC Directive (EN55022 Class B + EN55024)
• CISPR22

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 1 Year
