Description
User-Manual
Manufacturer-Brochure
Manufacturer Part Number: INTERNET550SER
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: Internet Office
Product Model: INTERNET550SER

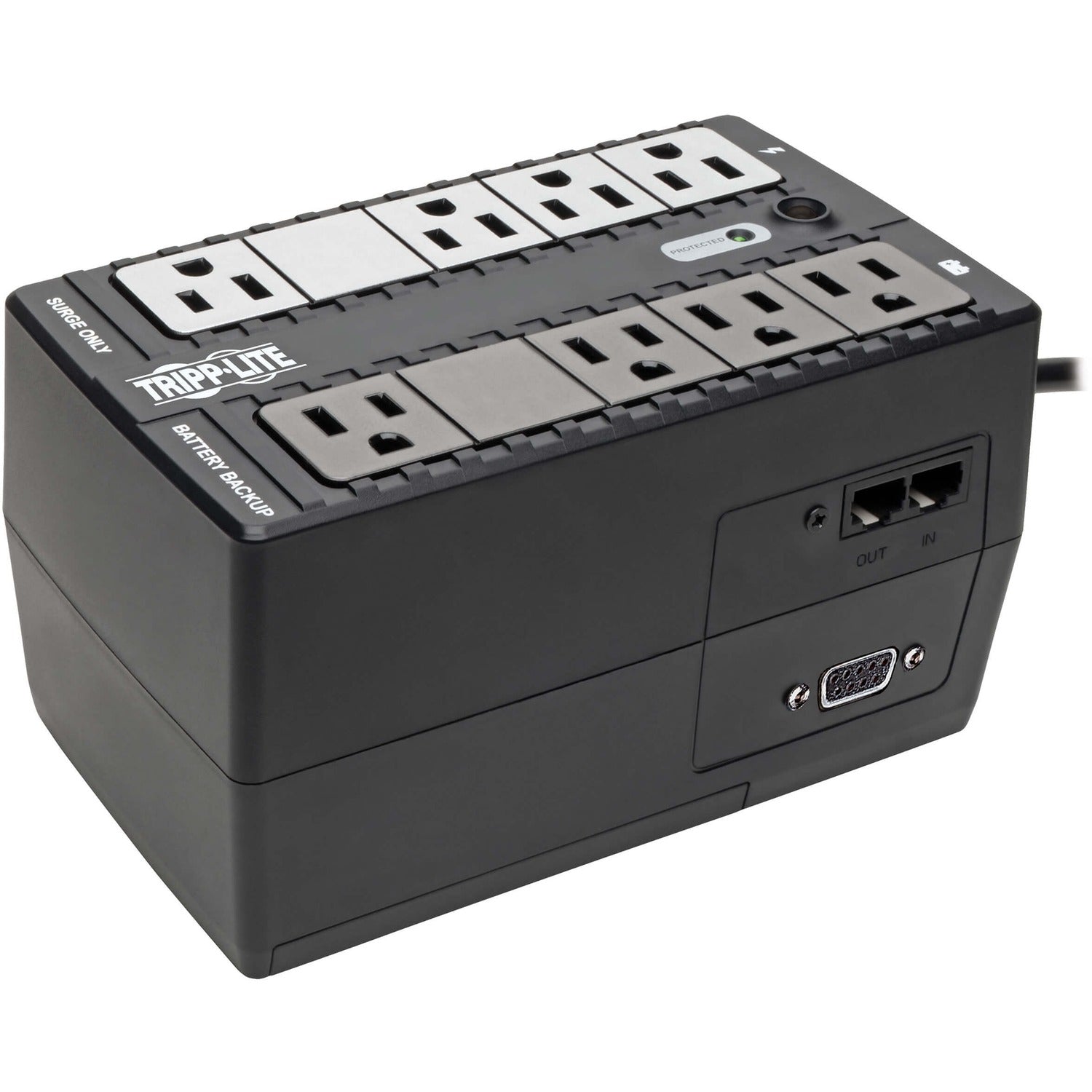

Product Name: Internet Offce INTERNET550SER 550VA Wall-mountable Cabinet UPS
Marketing Information: 550VA/300W/120V Battery Backup for PCs, Home Theater and Digital Signage The standby INTERNET550SER UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for your home office, media center or professional kiosk, security and small-business phone applications that rely on a DB9 serial port for remote notification of site power and UPS operating status information. Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the INTERNET550SER should keep an energy-efficient desktop computer with small LCD monitor powered as long as 16 minutes. During normal operation, incoming utility power keeps t
Product Type: Standby UPS
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Dataline Protection: RJ-11
Cord Length: 6 ft (1.83 m)
Transfer Time: 6 ms
Load Capacity (Watt): 300 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 316 J
Backup/Run Time (Half Load): 5 Minute
Battery Life: 6 Year
Typical Battery Recharge Time: 4 Hour
Height: 3.27" (83 mm)
Width: 11.26" (286 mm)
Depth: 5.98" (152 mm)
Form Factor: Cabinet
Weight (Approximate): 11.02 lb (5000 g)
Software Included: PowerAlert Software
Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Manufacturer-Brochure
General Information
Manufacturer: Eaton CorporationManufacturer Part Number: INTERNET550SER
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: Internet Office
Product Model: INTERNET550SER
Product Name: Internet Offce INTERNET550SER 550VA Wall-mountable Cabinet UPS
Marketing Information: 550VA/300W/120V Battery Backup for PCs, Home Theater and Digital Signage The standby INTERNET550SER UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for your home office, media center or professional kiosk, security and small-business phone applications that rely on a DB9 serial port for remote notification of site power and UPS operating status information. Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the INTERNET550SER should keep an energy-efficient desktop computer with small LCD monitor powered as long as 16 minutes. During normal operation, incoming utility power keeps t
Product Type: Standby UPS
Technical Information
Plug/Connector Type: NEMA 5-15RReceptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Dataline Protection: RJ-11
Cord Length: 6 ft (1.83 m)
Transfer Time: 6 ms
Power Description
Load Capacity (VA): 550 VALoad Capacity (Watt): 300 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 316 J
Management
Alarm: Battery BackupControls/Indicators
Status Indicators:2 LEDs indicate:
- Line Power
- Battery Power
Interfaces/Ports
Serial Port: YesBattery Information
Backup/Run Time (Full Load): 1.20 MinuteBackup/Run Time (Half Load): 5 Minute
Battery Life: 6 Year
Typical Battery Recharge Time: 4 Hour
Environmental Conditions
Maximum Operating Temperature: 122°F (50°C)Physical Characteristics
Product Color: BlackHeight: 3.27" (83 mm)
Width: 11.26" (286 mm)
Depth: 5.98" (152 mm)
Form Factor: Cabinet
Weight (Approximate): 11.02 lb (5000 g)
Miscellaneous
Package Contents:- Internet Offce INTERNET550SER 550VA Wall-mountable Cabinet UPS
- DB9 serial cable for use with PowerAlert UPS monitoring software
- Instruction manual and warranty information
Software Included: PowerAlert Software
Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
