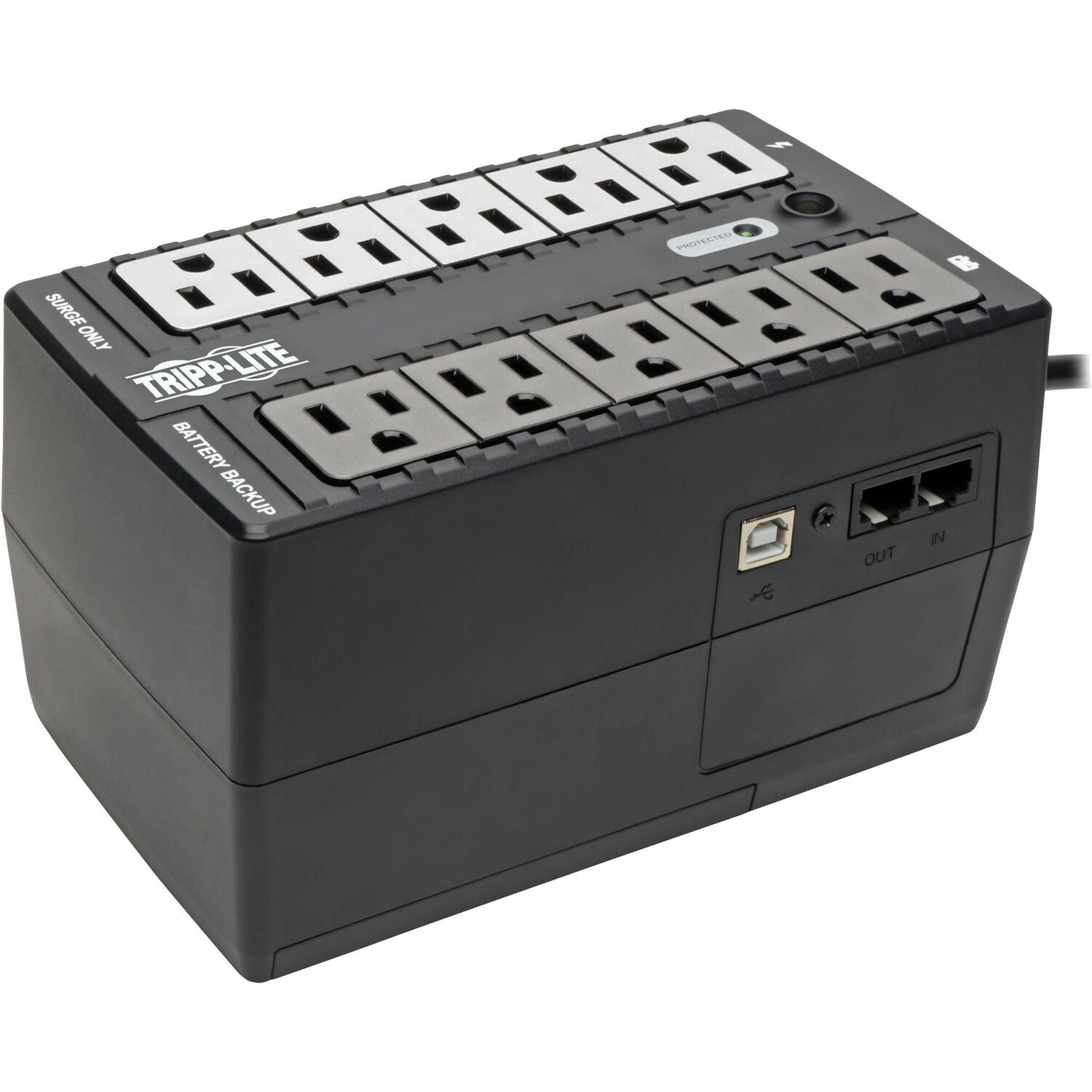

INTERNET600U Tripp Lite series Internet Office INTERNET600U 600VA Ultra-compact desktop/tower/wall mount UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: INTERNET600U
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: Internet Office
Product Model: INTERNET600U
Product Name: Internet Office INTERNET600U 600VA Ultra-compact desktop/tower/wall mount UPS
Marketing Information:

600VA/325W/120V Battery Backup for PCs, Home Theater and Digital Signage

The standby INTERNET600U UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The 10-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, NAS drives, HDTVs, Blu-ray players, game consoles, media players, DVRs and audio receivers.

Allows Time to Back Up Critical Files During a Blackout

Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the INTERNET600U should keep an energy-efficient desktop computer with small LCD monitor powered as long as 16 minutes. During normal operation, incoming utility power keeps the replace
Product Type: Standby UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 10 x NEMA 5-15R
Number of Surge-only Outlets: 5
Dataline Protection: RJ-11/RJ-45
Overload Protection: Yes
Cord Length: 5 ft (1.52 m)
Transfer Time: 10 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage: Home/Office,Network,Digital Signage,Home Theater,Media Center,Computer,Router,Printer,HDTV,Blu-ray Player,Gaming Console,Media Player,DVR,Audio Receiver,Speaker,Desktop,Computer Peripheral,Retail,POS,Hospital
Surge Suppression: Yes
Features: Audible Alarm,Cold Start Function,Green Energy Saving

Power Description

Load Capacity (VA): 600 VA
Load Capacity (Watt): 325 W
Input Voltage: 120 V AC
Input Current: 6 A
Output Voltage: 120 V AC,110 V AC,115 V AC
Input Frequency: 60 Hz
Output Frequency: 50 Hz,60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 316 J
Circuit Breaker: Yes

Display & Graphics

Display: LCD

Management

Alarm: Low Battery,Fault,Overload,Replace Battery

Controls/Indicators

Status Indicators:

LED Indicators:

• Operating Mode
• Fault Status

Interfaces/Ports

USB: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 12 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 1 Minute
Backup/Run Time (Half Load): 4.50 Minute
Typical Battery Recharge Time: 6.50 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 13.10 BTU/h

Physical Characteristics

Height: 4.13" (105 mm)
Width: 4.33" (110 mm)
Depth: 7.28" (185 mm)
Form Factor: Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate): 3.96 lb (1796.23 g)

Miscellaneous

Package Contents:

• Internet Office INTERNET600U 600VA Ultra-compact desktop/tower/wall mount UPS
• USB Cable
• Owner's Manual

Software Included: PowerAlert UPS Monitoring Software
Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information:

• 100,000 Ultimate Lifetime Insurance
