Description
General Information
Manufacturer: StarTech.comManufacturer Part Number: JD118BST
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

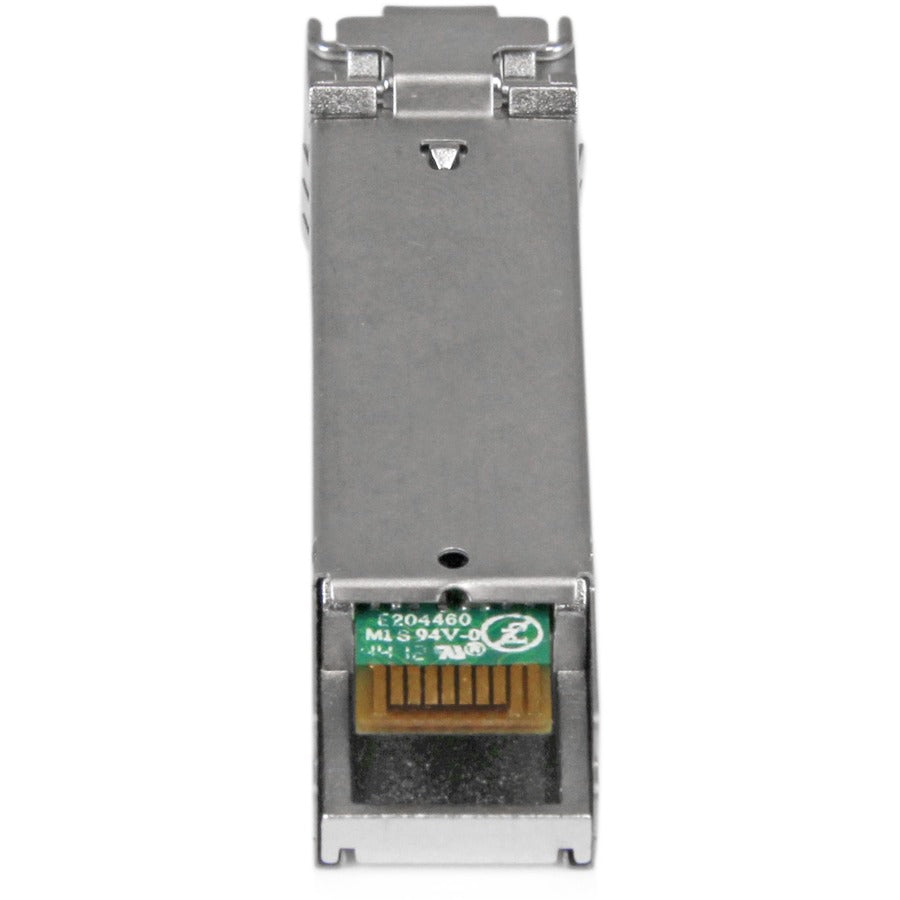

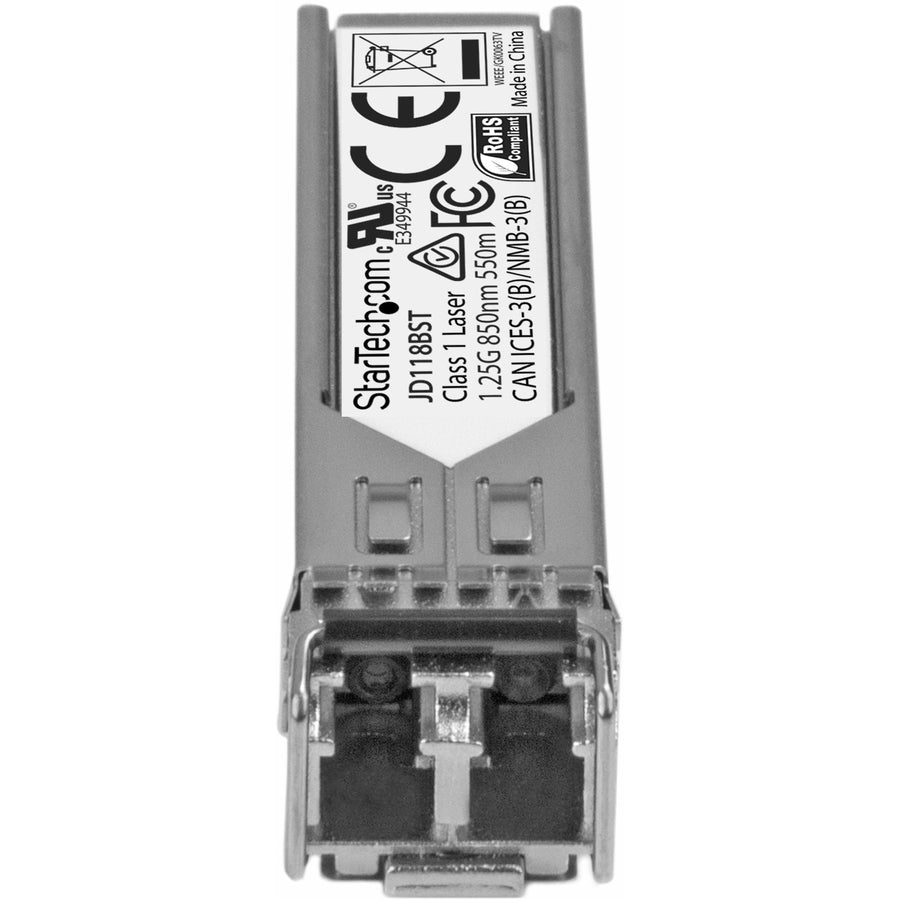

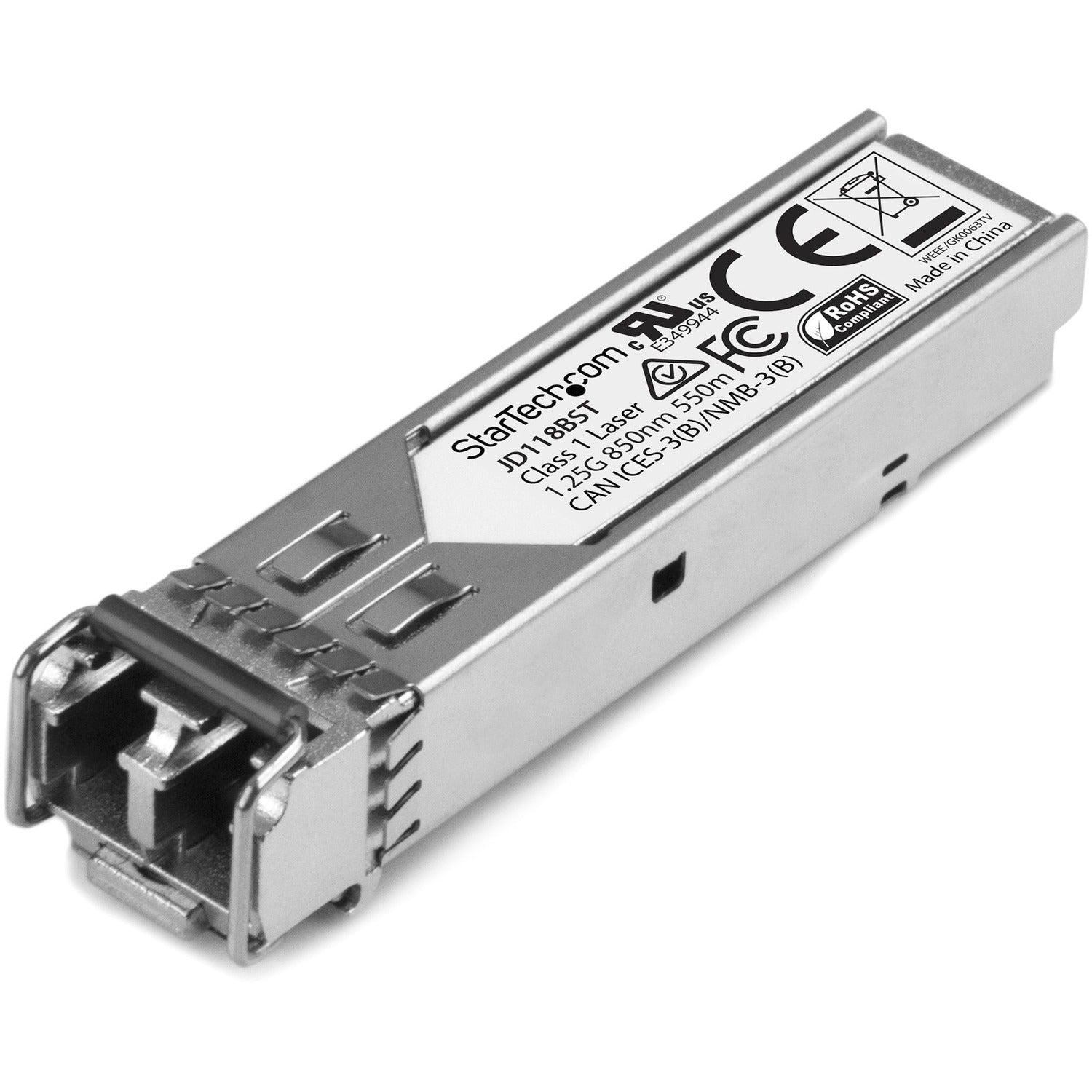

Product Name: HP JD118B Compatible SFP Transceiver Module - 1000BASE-SX
Marketing Information: The JD118BST is an HP JD118B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
- Wavelength: 850 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 550 m (1804 ft)
- MTBF: 3,381,761 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual techn
Product Type: SFP (mini-GBIC)
Packaged Quantity: 1 Each
Technical Information
Application/Usage: Data Networking,Optical NetworkInterfaces/Ports
Total Number of Ports: 1Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 1000Base-SX Network
Media & Performance
Media Type Supported: Optical FiberFiber Mode Supported: Multi-mode
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-SX
Physical Characteristics
Form Factor: Hot-pluggable,Hot-swappableHeight: 0.50" (12.70 mm)
Width: 0.50" (12.70 mm)
Depth: 2.20" (55.88 mm)
Weight (Approximate): 0.60 oz (17.01 g)
Miscellaneous
Compatibility: MSA CompliantHPE Switches:
- 5900
- 12500
- 5500
- 5820
- 5120
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: Lifetime
