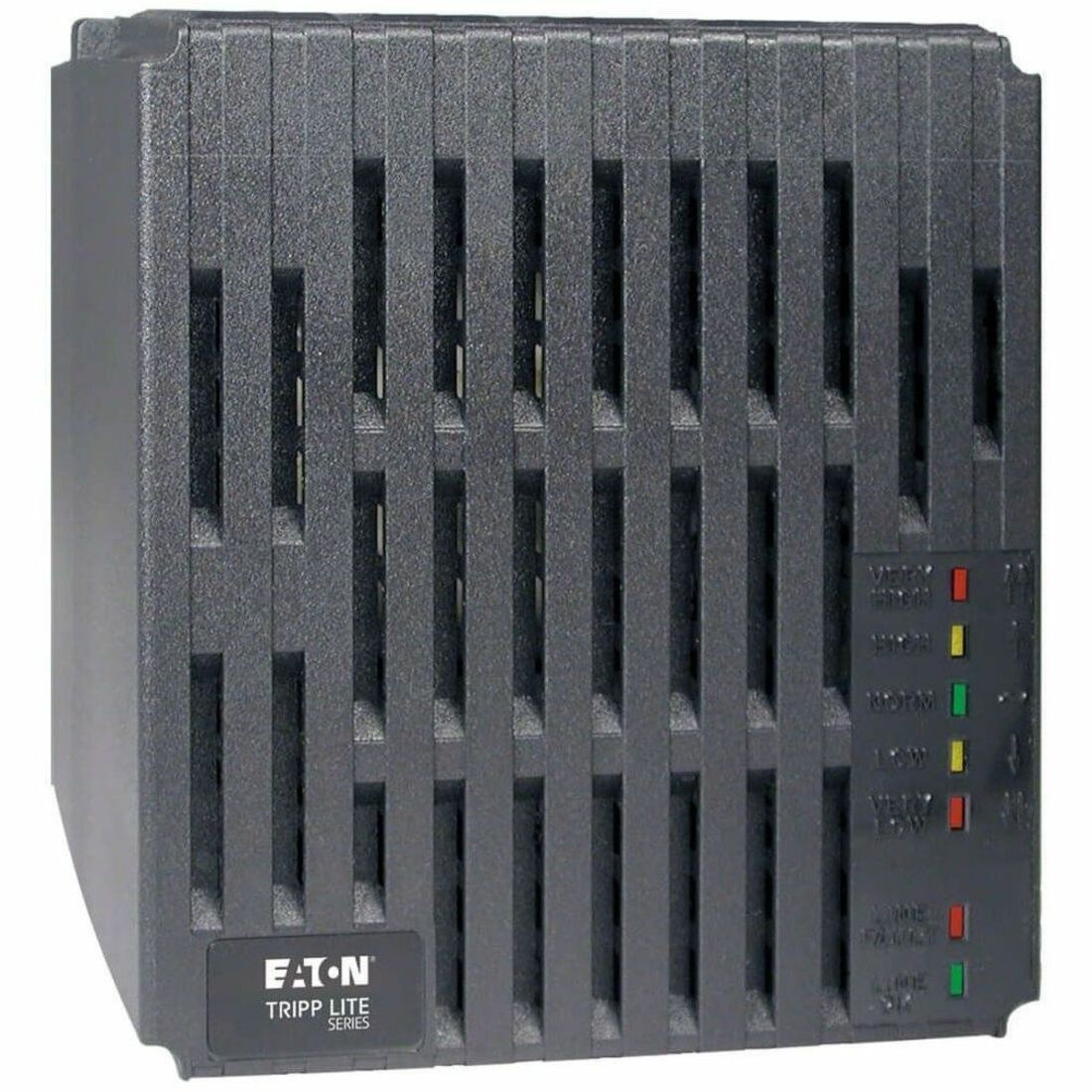

Tripp Lite 1200W Mini Tower Line Conditioner

General Information

Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: LC1200
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite by Eaton
Product Model: LC1200
Product Name: LC1200 1200W Mini Tower Line Conditioner
Marketing Information: The LC1200 1200W 120V Line Conditioner - Automatic Voltage Regulator adjusts under- and overvoltages to provide safe, computer-grade AC power that meets ANSI C84.1 specifications. The automatic voltage regulation (AVR) offers three levels of voltage stabilization that corrects undervoltages as low as 89V and overvoltages as high as 147V back to regulated 120V nominal power. Providing optimum voltage conditions not only extends the life of your equipment, but also keeps your equipment working through brownouts and prolonged overvoltage conditions.A network-grade 1200-joule surge suppression rating exceeds the IEEE-587 standard for surge suppression (both categories A and B) and prevents even the strongest spikes from inflicting damage, data loss or corruption and audio/video performance problems on your connected equipment. EMI/RFI noise filtering protects your AC line from disruptive electromagnetic and radio interference.Just connect the space-saving NEMA 5-15P right-angle plug with 7-foot cord to an AC power source, and plug up to four devices into the NEMA 5-15R outlets. You can monitor AC power, incoming voltage level and AC line status using the seven diagnostic LEDs on the front panel. The compact LC1200 fits comfortably into your computer or home theater setup.
Product Type: Line Conditioner

Technical Information

Protection Type: Surge,EMI / RFI,Over Voltage,Brownout

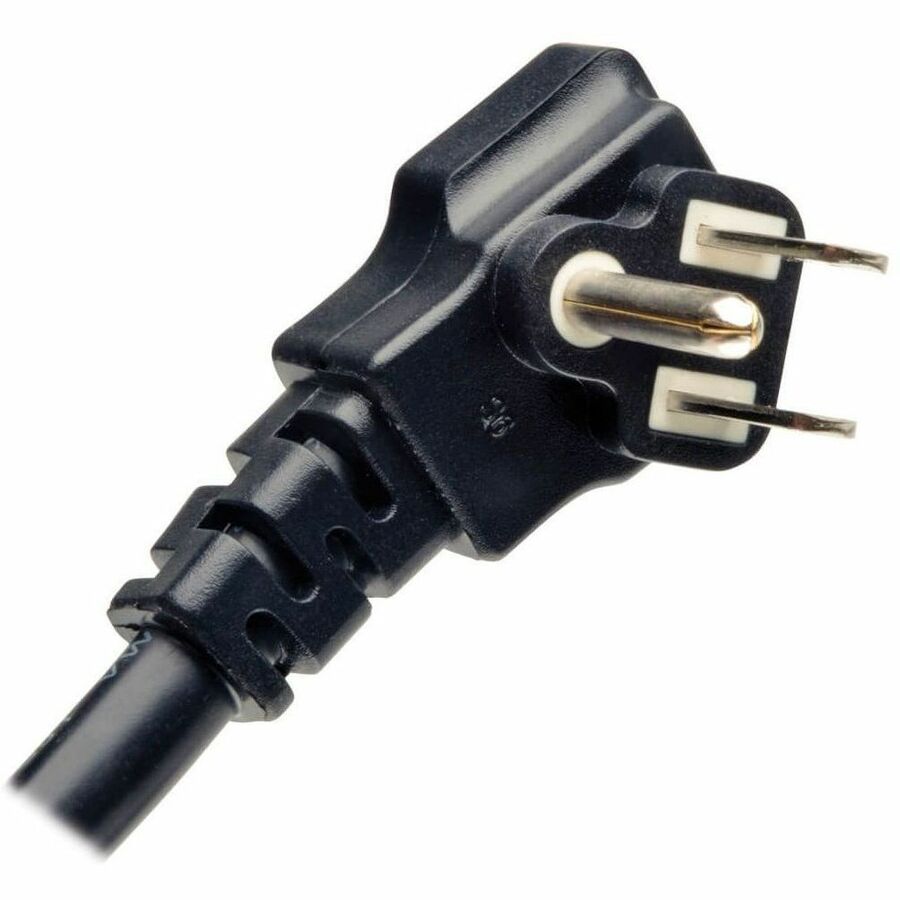

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R

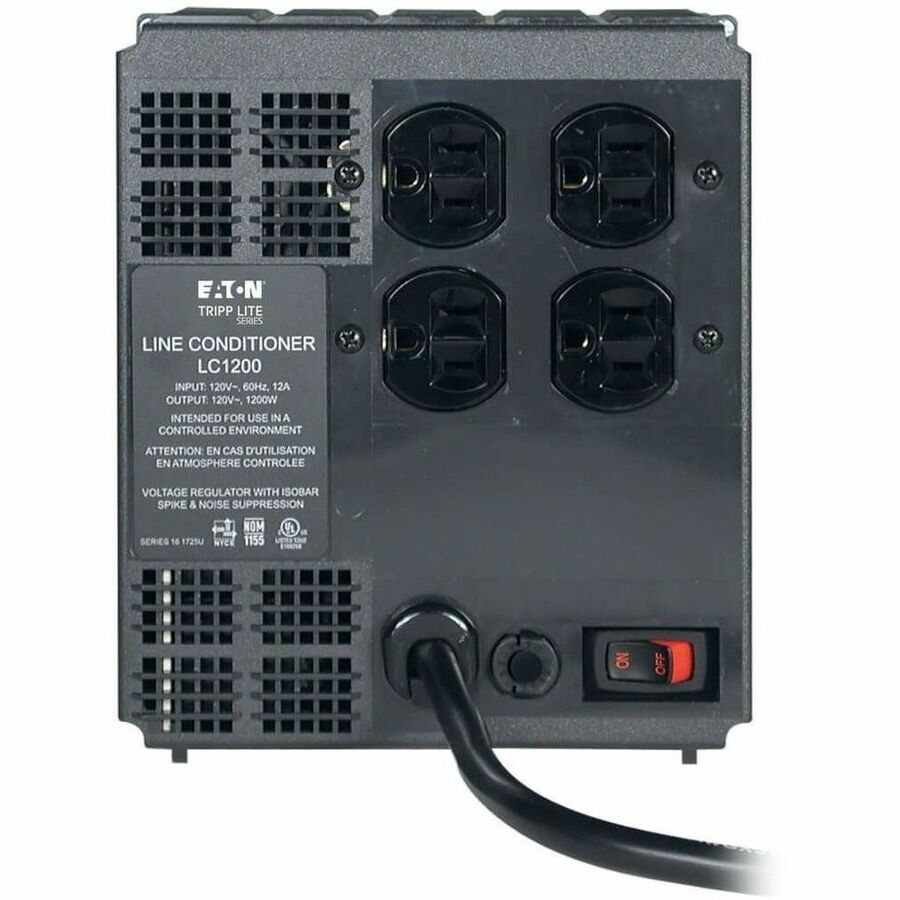

Receptacles Detail: 4 x NEMA 5-15R

Power Description

Load Capacity (VA): 1.20 kW
Load Capacity (Watt): 1.20 kW
Input Voltage: 110 V AC
Input Voltage Range: 89 V AC - 147 V AC
Output Voltage: 120 V AC
Maximum Line Current: 10 A
Maximum Frequency: 60 Hz
Surge Energy Rating: 1200 J

Physical Characteristics

Cord Length: 6 ft
Form Factor: Mini-tower
Height: 7.25" (184.15 mm)
Width: 6" (152.40 mm)
Depth: 7" (177.80 mm)

Miscellaneous

Package Contents:

• LC1200 1200W Mini Tower Line Conditioner
• LC1200 Line Conditioner
• Instruction manual

Additional Information:

• Voltage Regulation: +10%/-12%
• Input voltages over 128V are reduced by 9.6%
• Input voltages between 103 and 112V are boosted by 8.9%
• Input voltages below 102V are boosted by 18.8%
• Network grade AC surge suppression

Maintains regulated output voltage during severe brownouts and overvoltages for computer accessories, printers, home theater equipment, a/v components, point-of-sale equipment, and other applications requiring clean, regulated AC power.

Certifications & Standards:

• IEEE 587 / ANSI C62.41
• UL1012 (USA)
• cUL1012 (Canada)
• NOM (Mexico)

Country of Origin: China

Warranty

Limited Warranty: 2 Year
