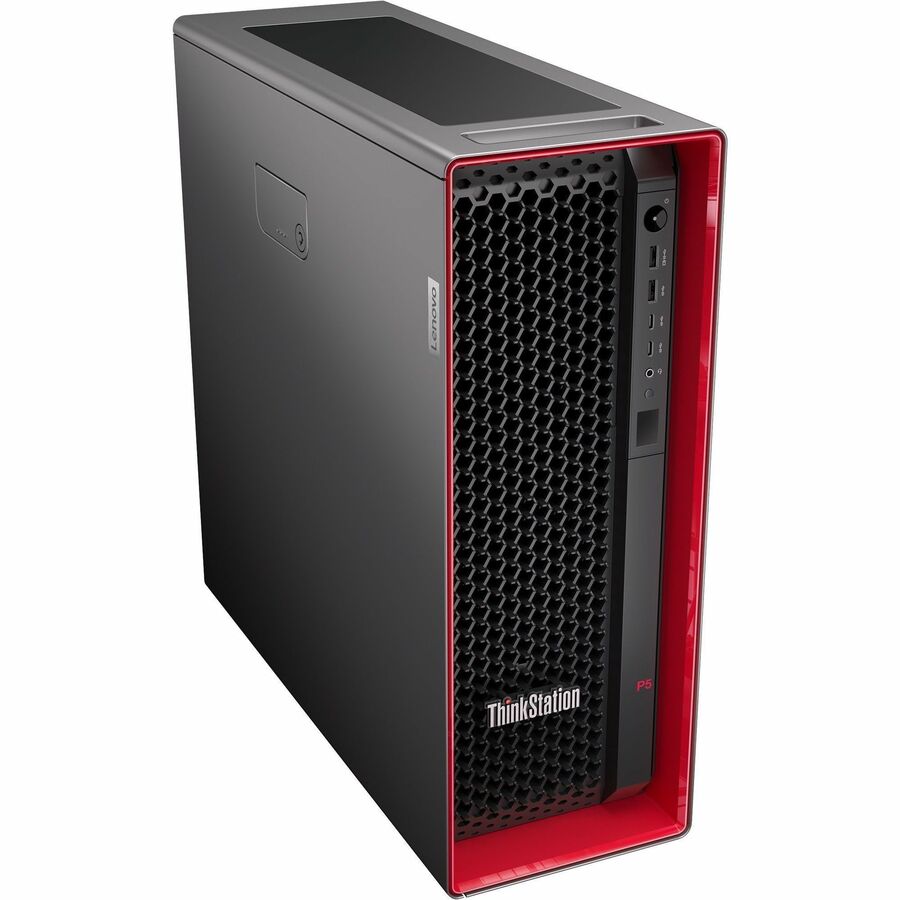

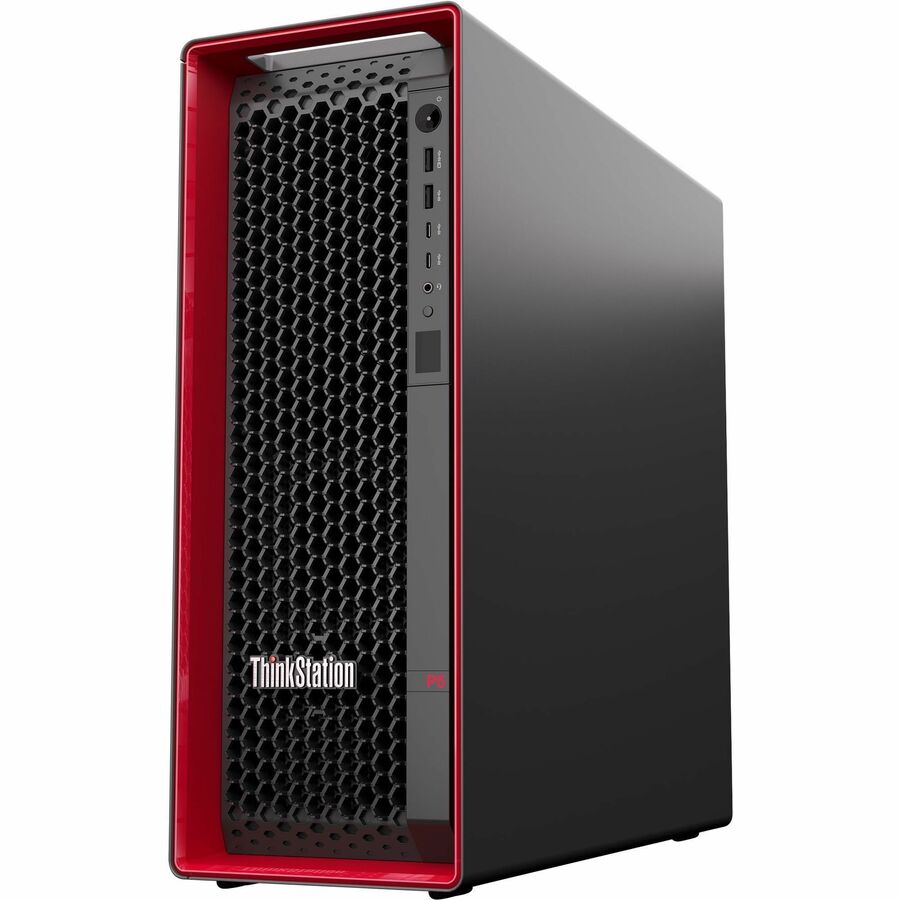

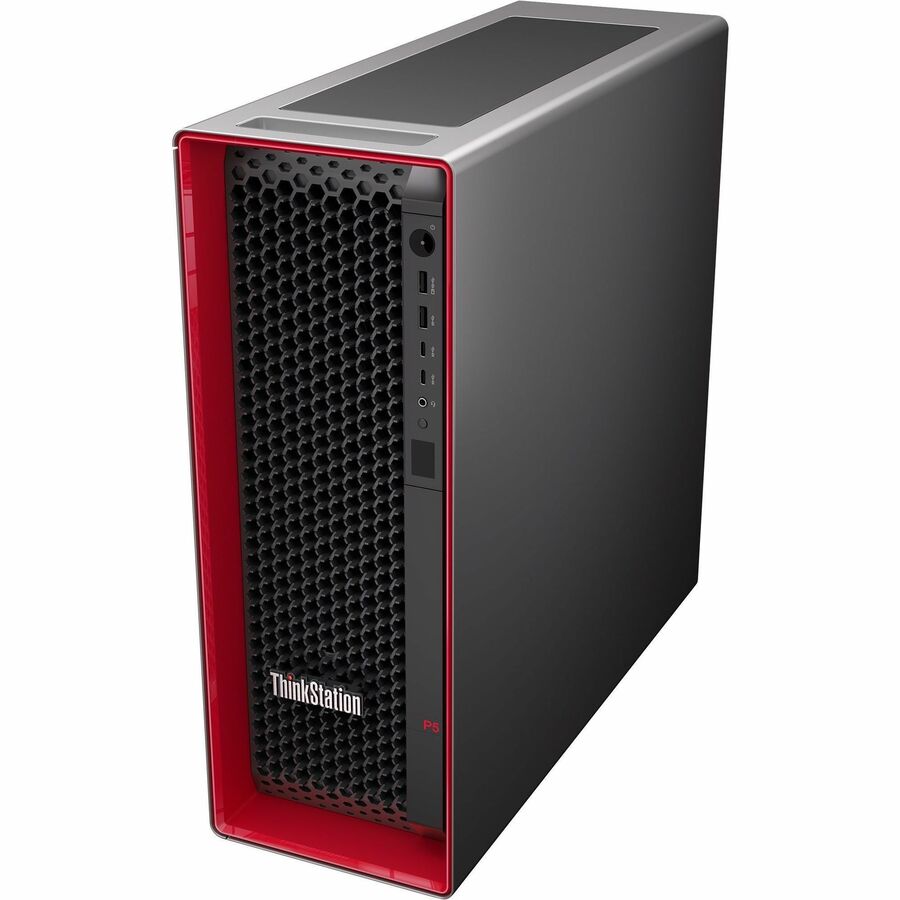

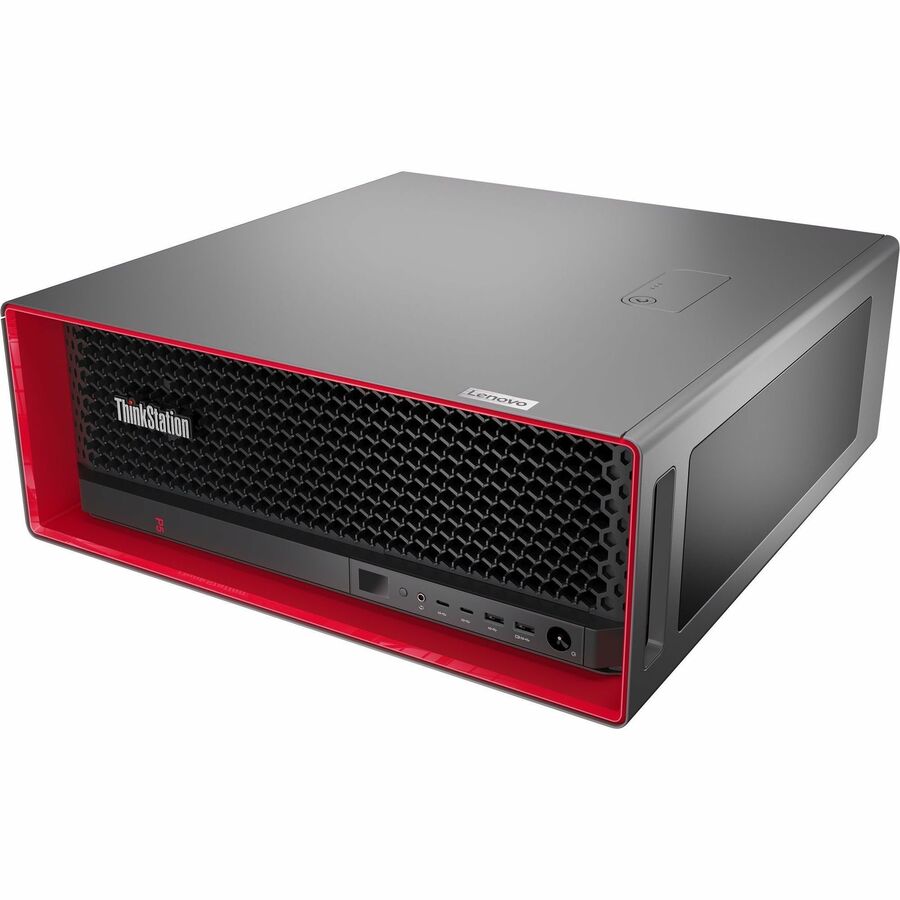

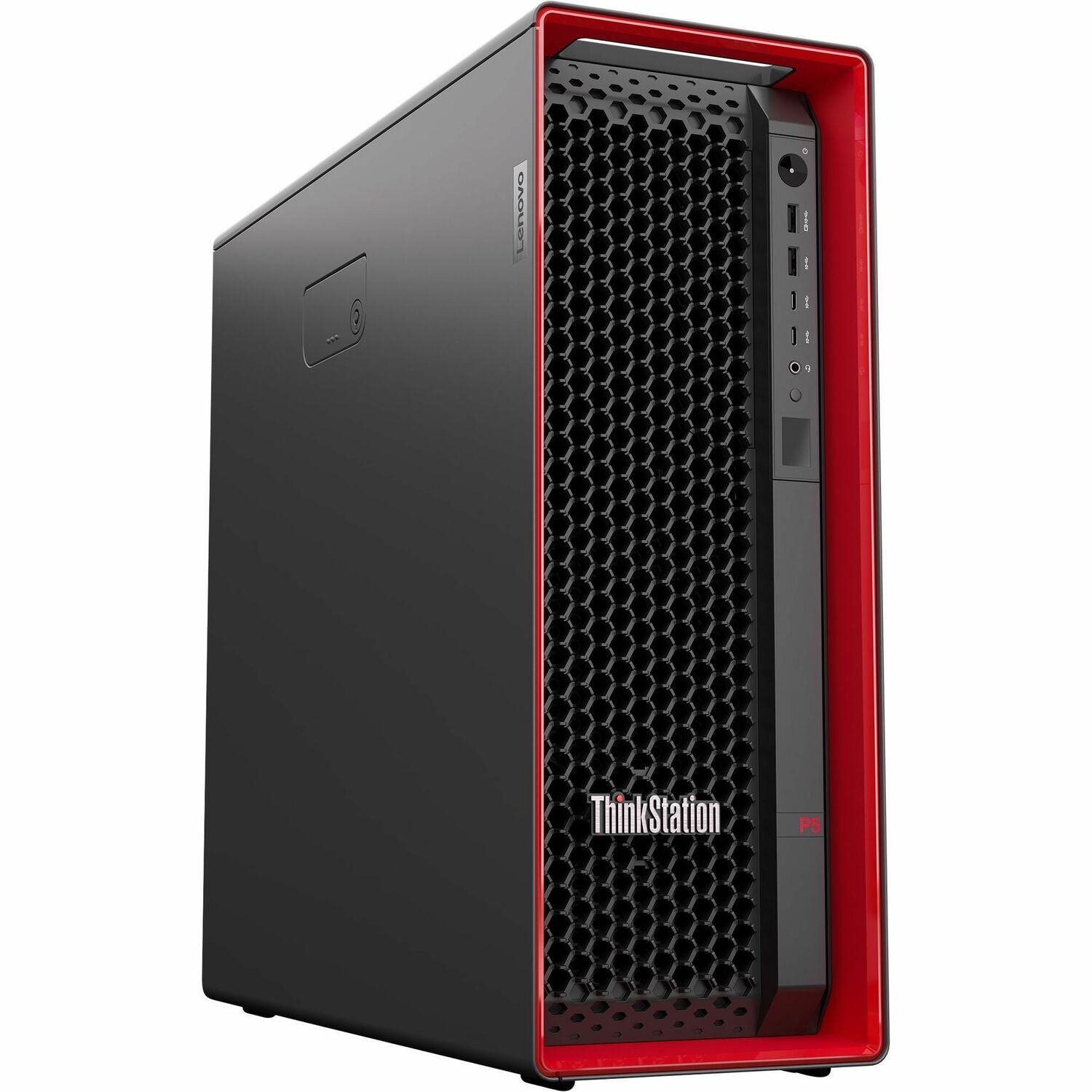

30GA004MUS Lenovo ThinkStation P5 30GA004MUS Workstation - 1 Xeon w3-2425 - vPro Technology - 32 GB - 1 TB SSD

General Information

Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 30GA004MUS
Manufacturer Website Address: http://www.lenovo.com
Brand Name: Lenovo
Product Line: ThinkStation
Product Series: P5
Product Model: 30GA004MUS
Product Name: ThinkStation P5 30GA004MUS
Marketing Information:

THINKSTATION & THINKPAD | P SERIES WORKSTATION FAMILY

Fostering creativity for professionals across industries

Product Type: Workstation

Processor

Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Type: Xeon
Processor Model: w3-2425
Processor Core: Hexa-core (6 Core)
Processor Threads: 12
Processor Speed: 3 GHz
Processor Socket: Socket LGA-4677
vPro Technology: Yes

Chipset

Chipset Manufacturer: Intel
Chipset Model: W790

Memory

Standard Memory: 32 GB
Maximum Memory Supported: 512 GB
Memory Technology: DDR5 SDRAM
Total Number of Memory Slots: 8
Memory Clock Speed: 4.80 GHz
Memory Configuration: 2 x 16GB
Error Checking: ECC
Signal Processing: Registered

Storage

Drive Type: SSD
Total Solid State Drive Capacity: 1 TB
Solid State Drive Interface: PCI Express NVMe 4.0 x4

Controllers

Controller Type: NVMe,Serial ATA
RAID Supported: No

Display & Graphics

Number of Graphic Controllers: 1
Graphics Memory Capacity: 8 GB
Graphics Memory Accessibility: Dedicated

Network & Communication

Ethernet Technology: Gigabit Ethernet
Wireless LAN: Yes
Bluetooth: Yes

Input Devices

Keyboard Localization: English

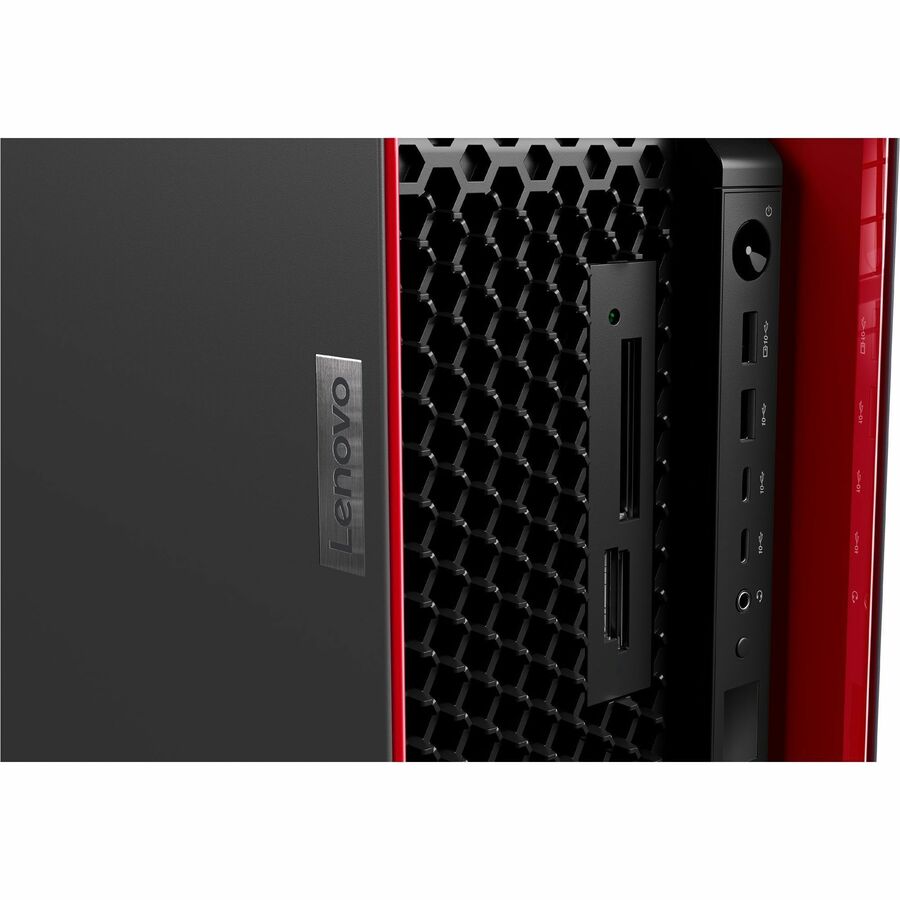

Interfaces/Ports

Total Number of USB Ports: 10
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 2 Ports: 5
USB Type-C: Yes
USB Type-C Detail: 2x USB-C 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only

Operating System

Operating System Platform: Windows
Operating System: Windows 11 Pro for Workstations
Operating System Language: English

Power Description

Maximum Power Supply Wattage: 1 kW

Physical Characteristics

Height: 17.56" (446 mm)
Width: 6.50" (165 mm)
Depth: 17.87" (453.90 mm)
Weight (Approximate): 41.89 lb (19000 g)

Miscellaneous

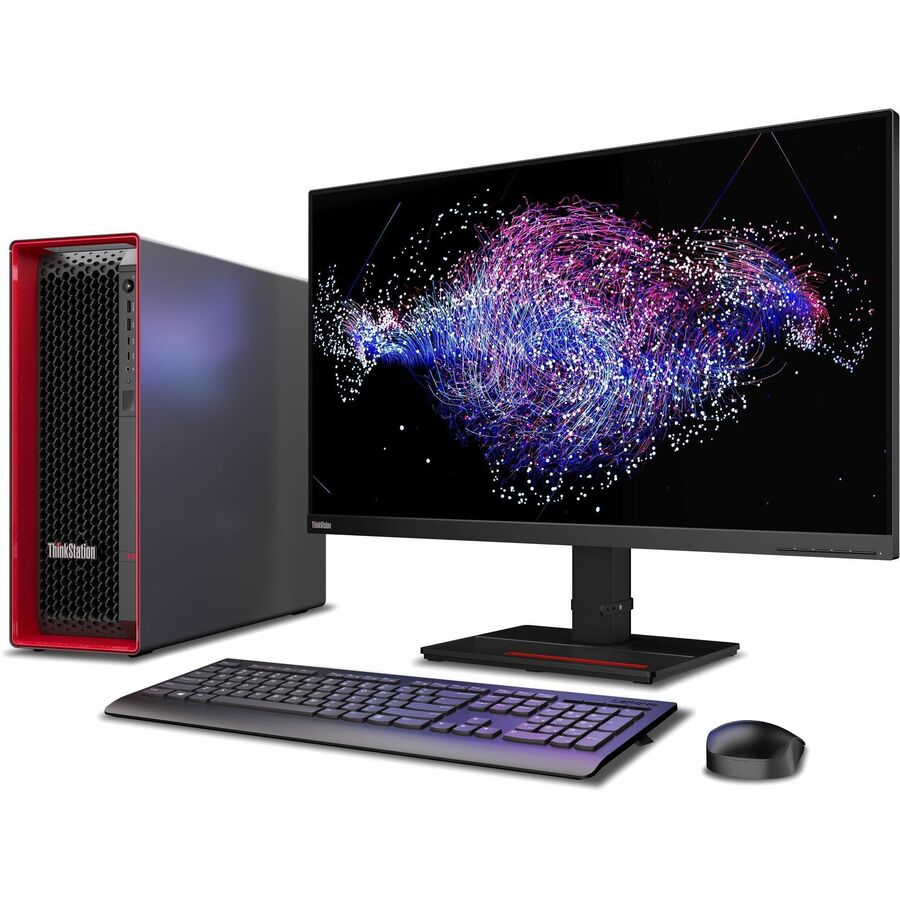

Package Contents:

• ThinkStation P5 30GA004MUS
• Keyboard
• Mouse

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0
Energy Efficiency Certification: ENERGY STAR 8.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
TCO Certified: Yes

Warranty

Limited Warranty: 3 Year
Additional Warranty Information:

• Base Warranty 3-year, Onsite
• Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite
