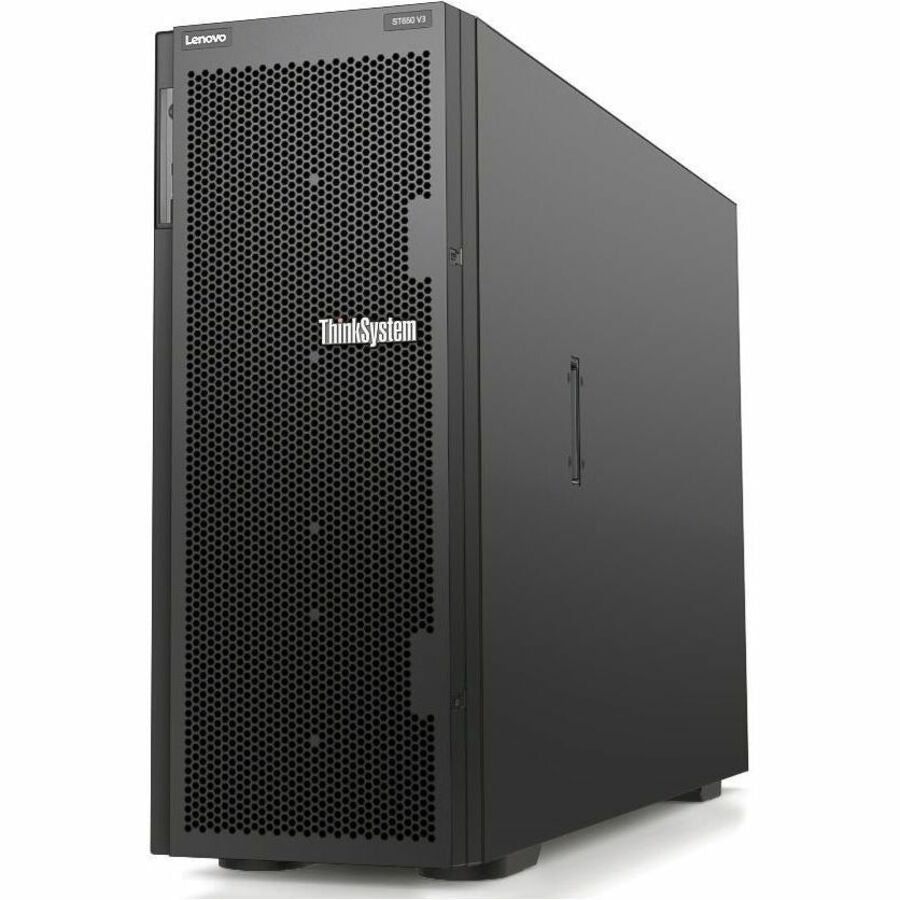

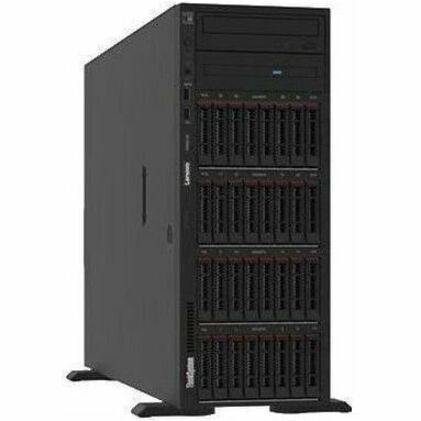

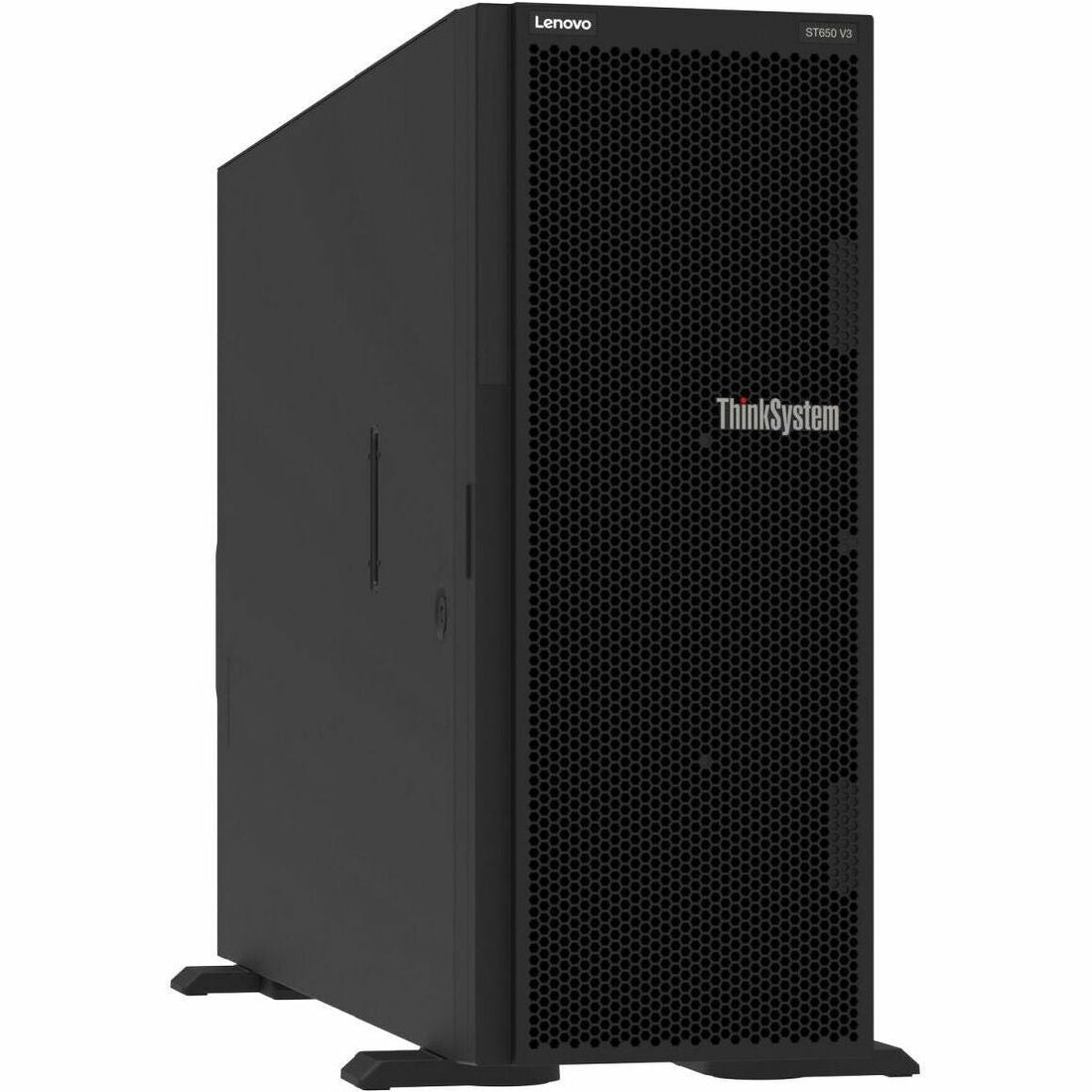

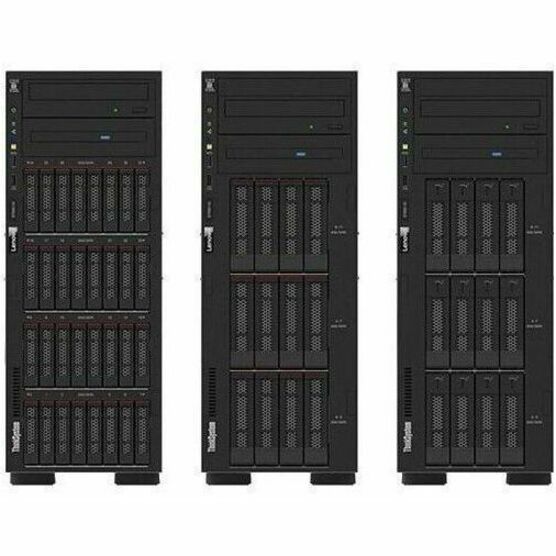

7D7A1005NA Lenovo ThinkSystem ST650 V3 7D7A1005NA 4U Tower Server - 1 Xeon Silver 4416+ 2 GHz - 32 GB RAM - Serial ATA, 12Gb/s SAS Controller

General Information

Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 7D7A1005NA
Manufacturer Website Address: http://www.lenovo.com
Brand Name: Lenovo
Product Line: ThinkSystem
Product Series: ST650 V3
Product Model: 7D7A1005NA
Product Name: ThinkSystem ST650 V3 7D7A1005NA Server
Marketing Information:

The Lenovo ThinkSystem ST650 V3 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

Product Type: Server

Processor

Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Type: Xeon Silver
Processor Generation: 4th Gen
Processor Model: 4416+
Processor Core: Icosa-core (20 Core)
Processor Speed: 2 GHz
Cache: 37.50 MB

Chipset

Chipset Manufacturer: Intel
Chipset Model: C741

Memory

Standard Memory: 32 GB
Maximum Memory Supported: 4 TB
Memory Technology: TruDDR5
Memory Clock Speed: 4.80 GHz
Total Number of Memory Slots: 32
Number of Occupied Memory Slots: 1
Error Checking: ECC
Signal Processing: Registered (Buffered)

Controllers

Controller Type: Serial ATA,12Gb/s SAS
Controller Model: 9350-8i
RAID Supported: Yes

I/O Expansions

Number of Total Expansion Bays: 10
Number of External 5.25" Bays: 2
Number of Internal 2.5" Bays: 8
Number of Media Drive Bays: 2
Number of SFF Bays: 8
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 9
PCI Express Details: Up to nine PCIe slots, five of which are PCIe 5.0.

Display & Graphics

Graphics Memory Capacity: 16 MB

Network & Communication

Ethernet Technology: 10 Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports: 8
Number of USB 2.0 Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
VGA: Yes
Remote Management: Yes
Remote Management Controller: XCC Platinum

Operating System

Operating System Supported: Windows Server 2019,Windows Server 2022,Red Hat Enterprise Linux 8.6,Red Hat Enterprise Linux 8.7,Red Hat Enterprise Linux 9.0,Red Hat Enterprise Linux 9.1,SUSE Linux Enterprise Server 15 SP4,Ubuntu 22.04 LTS x64

Power Description

Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Plug/Connector Type: C13
Maximum Power Supply Wattage: 750 W
Hot Swappable Power Supply: Yes

Miscellaneous

Package Contents:

• ThinkSystem ST650 V3 7D7A1005NA Server
• Power Cord

Security Features:

• Power-on password
• Administrator's password
• Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR).

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: China Environmental Labeling Program (CELP),Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze),GREENGUARD
Energy Efficiency Certification: China Energy Conservation Program (CECP),ENERGY STAR 3.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Physical Characteristics

Form Factor: Tower
Rack Height: 4U
Height: 18.19" (462 mm)
Width: 6.89" (175 mm)
Depth: 28.90" (734 mm)
Weight (Approximate): 86.20 lb (39100 g)

Warranty

Limited Warranty: 3 Year
Additional Warranty Information:

Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
