LH46OHDEBGBXZA Samsung Outdoor Signage OHDX series

General Information

Manufacturer: Samsung
Manufacturer Part Number: LH46OHDEBGBXZA
Manufacturer Website Address: http://www.samsung.com
Brand Name: Samsung
Product Series: OHDX
Product Model: OH46DX
Product Name: Outdoor Signage OHDX series
Marketing Information:

Exceptional usability, stunning vistuals in outdoors

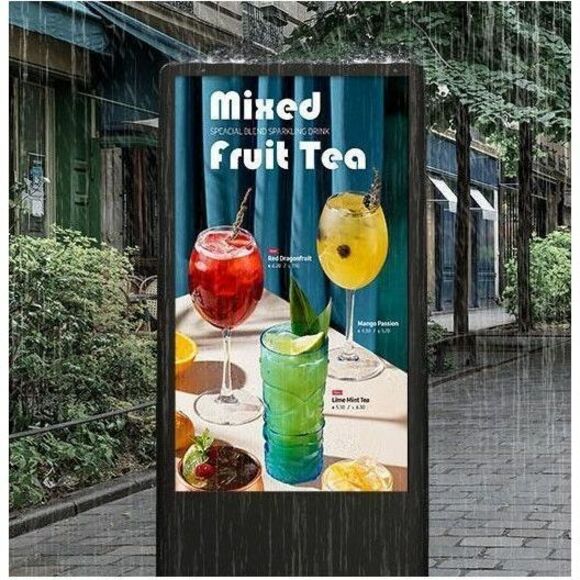

Samsung OHDX series is built for tough environments, allowing you to captivate your audience daily by effectively delivering your business message beyond the storefront. Even in varying weather, the OHDX ensures your brand presence stays powerful and memorable with a dynamic customer experience.

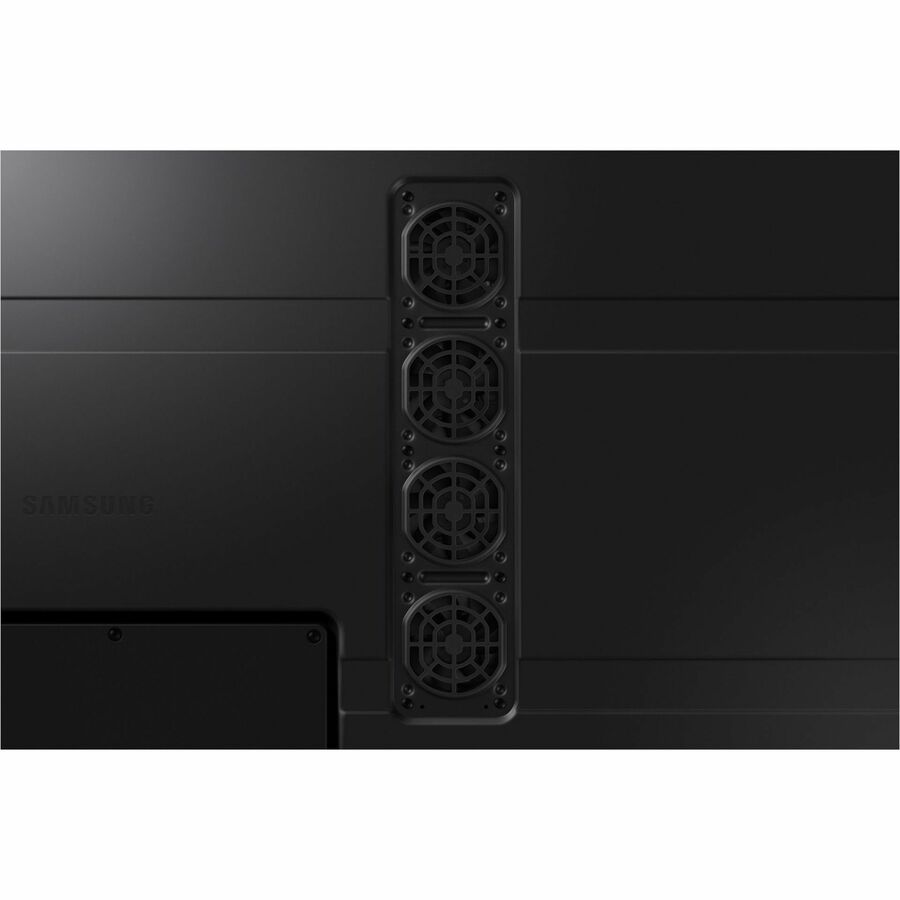

Maintain optimal temperature in the challenging outdoors | Heat dissipation structure

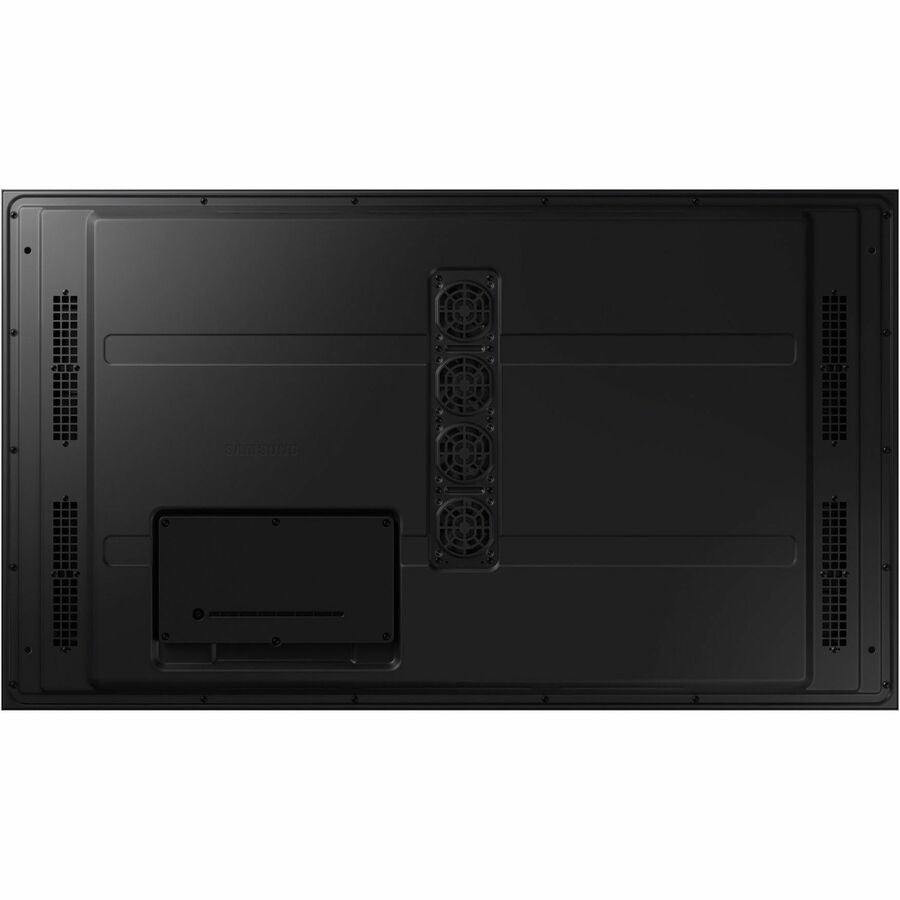

Featuring an advanced heat dissipation system for air circulation, the OHDX series' design will bring effortless performance in a hot summer's day. The display's effective cooling measures help ensure stable performance in tough environments.

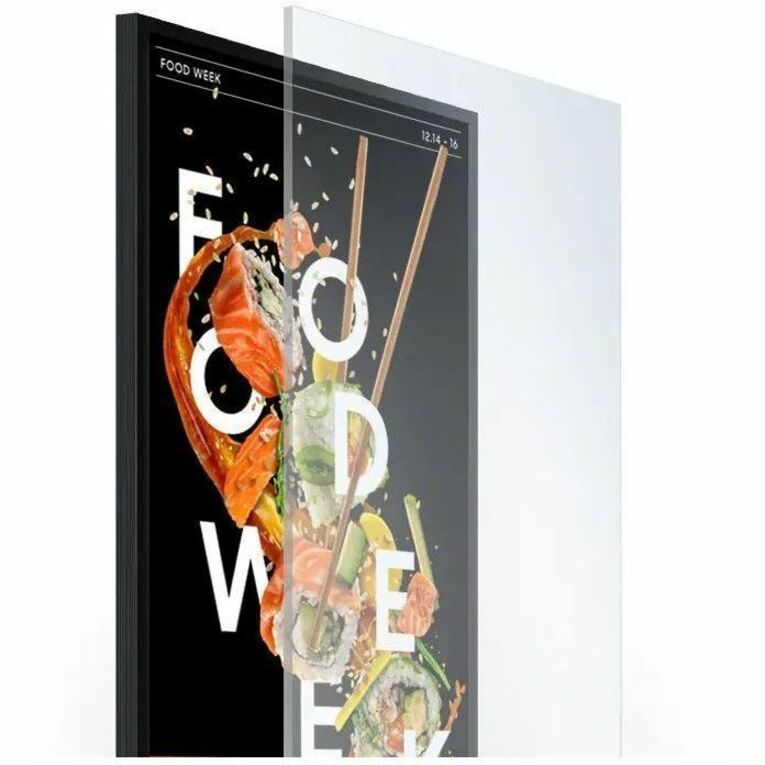

Second glass installation comptability | 2nd Glass Installable Structure

Get more protection for the OHDX with an optional compatible protective glass addition. Featuring an enhanced heat dissipation structure, the OHDX will deliver performance even when using the protective glass add-on, i
Product Type: Digital Signage Display

Technical Information

Bezel Width (Top): 0.98" (24.90 mm)
Bezel Width (Bottom): 0.98" (24.90 mm)
Bezel Width (Left): 0.98" (24.90 mm)
Bezel Width (Right): 0.98" (24.90 mm)
Ingress Protection (IP) Rating: IP56
Impact Protection (IK) Rating: IK10
Panel Technology: Vertical Alignment (VA)
Operation Hours: 24 Hours/7 Days

Processor & Chipset

Processor Core: Quad-core (4 Core)

Display & Graphics

Number of Screens: 1
Viewable Screen Size: 46" (1168.40 mm)
Screen Size Class: 46" (1168.40 mm)
Response Time: 6 ms
Display Resolution: 1920 x 1080

Video

Scan Format: 1080p
Native Contrast Ratio: 6,000:1
Brightness: 4000 cd/m²
Color Gamut: 72%

Network & Communication

Ethernet: Yes
Wireless LAN: Yes
Bluetooth: Yes

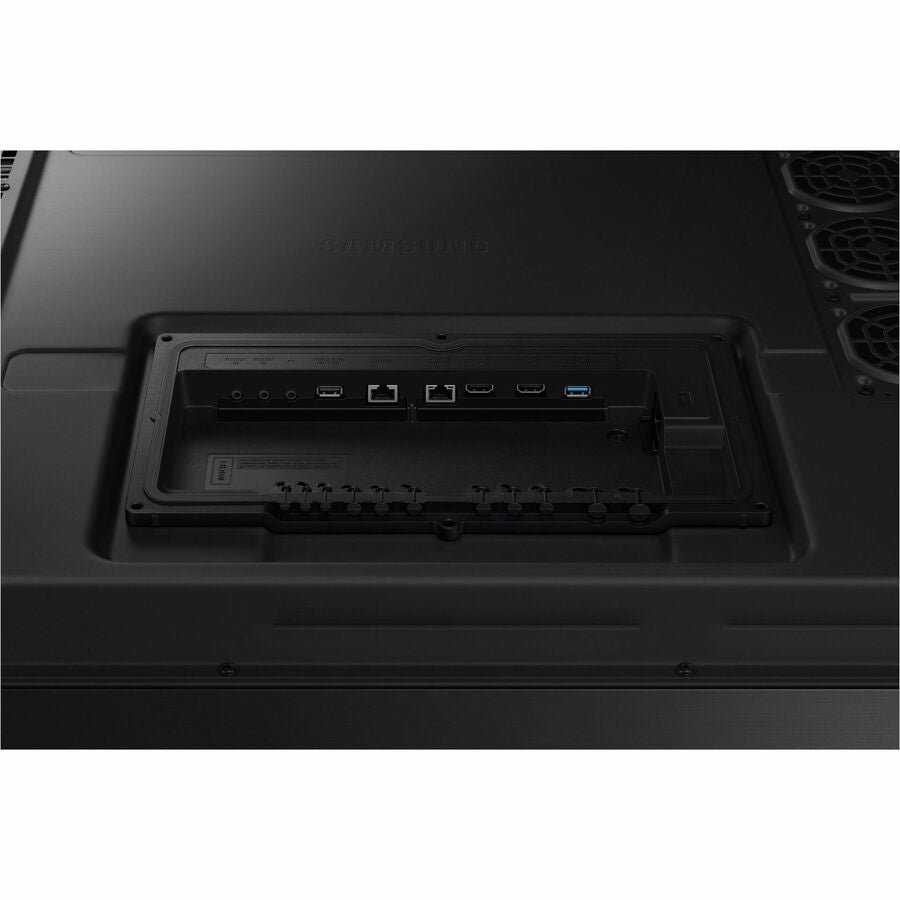

Interfaces/Ports

USB: Yes
HDMI: Yes
Serial: Yes
Number of HDMI Inputs: 2
RS-232C Input: Yes
RS-232C Output: Yes
Number of HDMI 2.0 Ports: 2

Software

Operating System: Tizen 8.0

Power Description

Input Voltage: 120 V AC,230 V AC

Physical Characteristics

Bezel Color: Slate Black
VESA Mount Standard: 995 x 500
Height: 24.55" (623.60 mm)
Width: 42.09" (1069 mm)

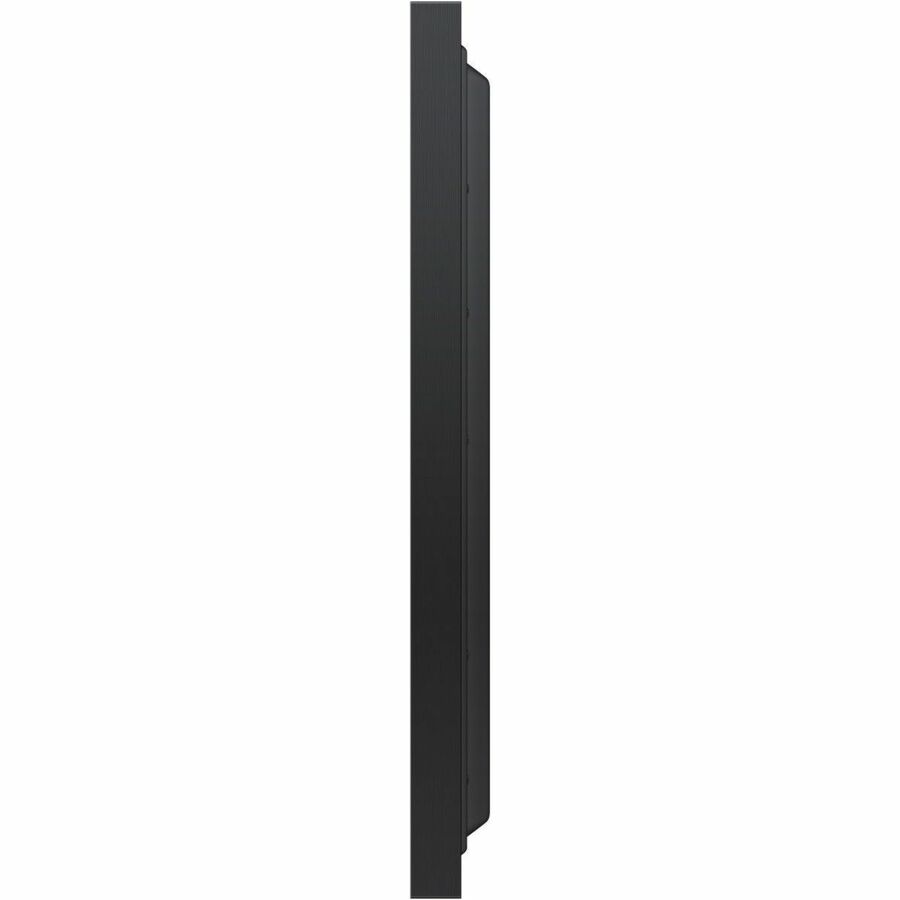

Depth: 2.72" (69 mm)
Weight (Approximate): 62.17 lb (28200 g)

Environmental Conditions

Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 122°F (50°C)

Miscellaneous

Application/Usage: Outdoor,Business
Indoor/Outdoor: Outdoor

Warranty

Limited Warranty: 36 Month
