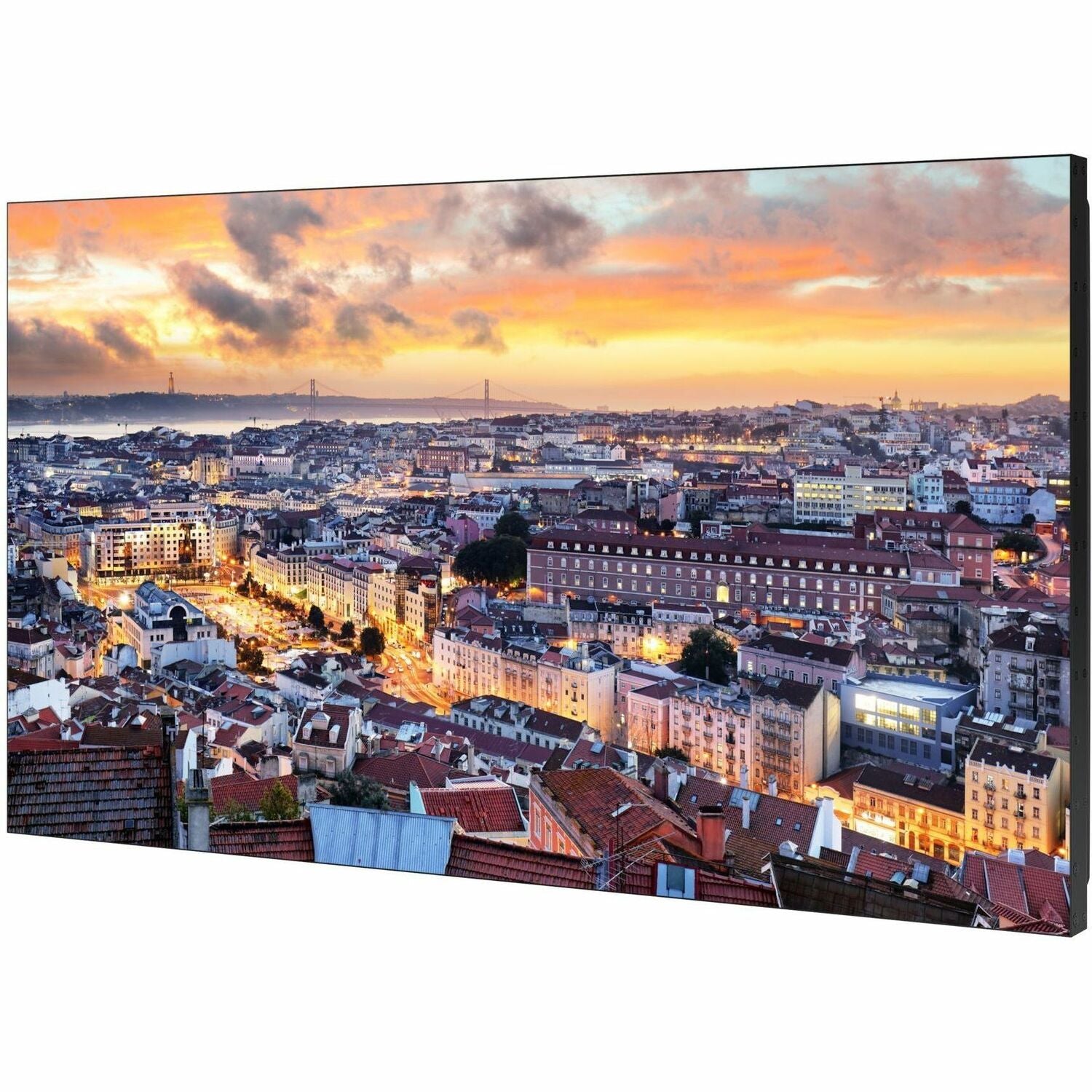

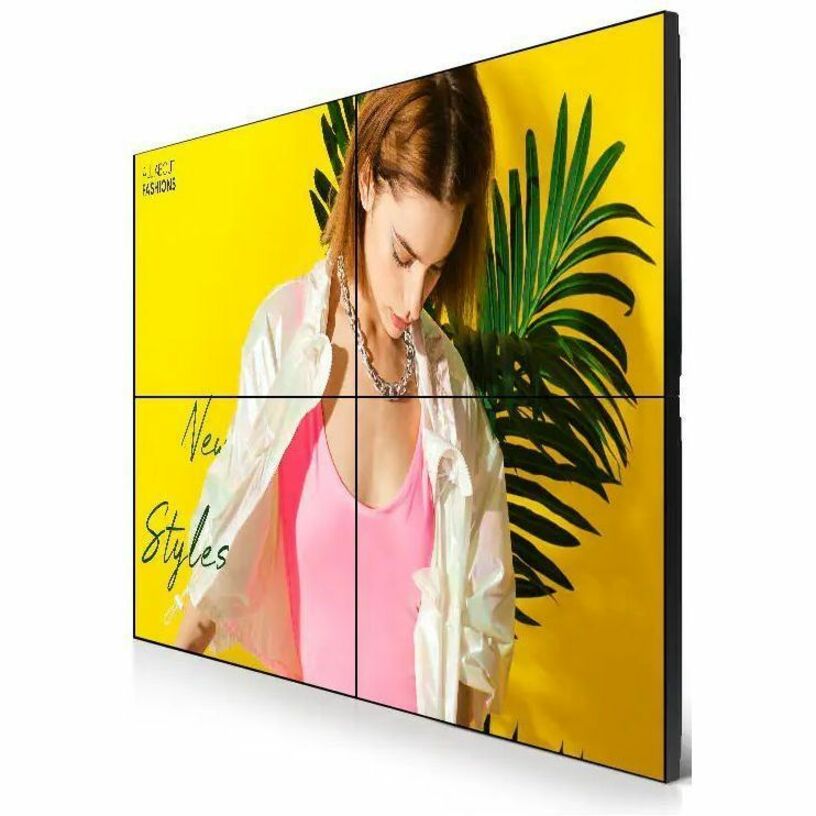

LH55VHCEBGBXZA Samsung VHC-E Extreme Narrow Bezel Video Wall

General Information

Manufacturer: Samsung
Manufacturer Part Number: LH55VHCEBGBXZA
Manufacturer Website Address: http://www.samsung.com
Brand Name: Samsung
Product Line: Extreme
Product Series: VHC-E
Product Model: VH55C-E
Product Name: VHC-E Extreme Narrow Bezel Video Wall
Marketing Information:

Always-on, space-saving solution with extreme-narrow bezels

See an immersive and dependable viewing experience, 24/7 with Samsung's VHC-E series. The display's slim depth and 700 nit brightness enables highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.

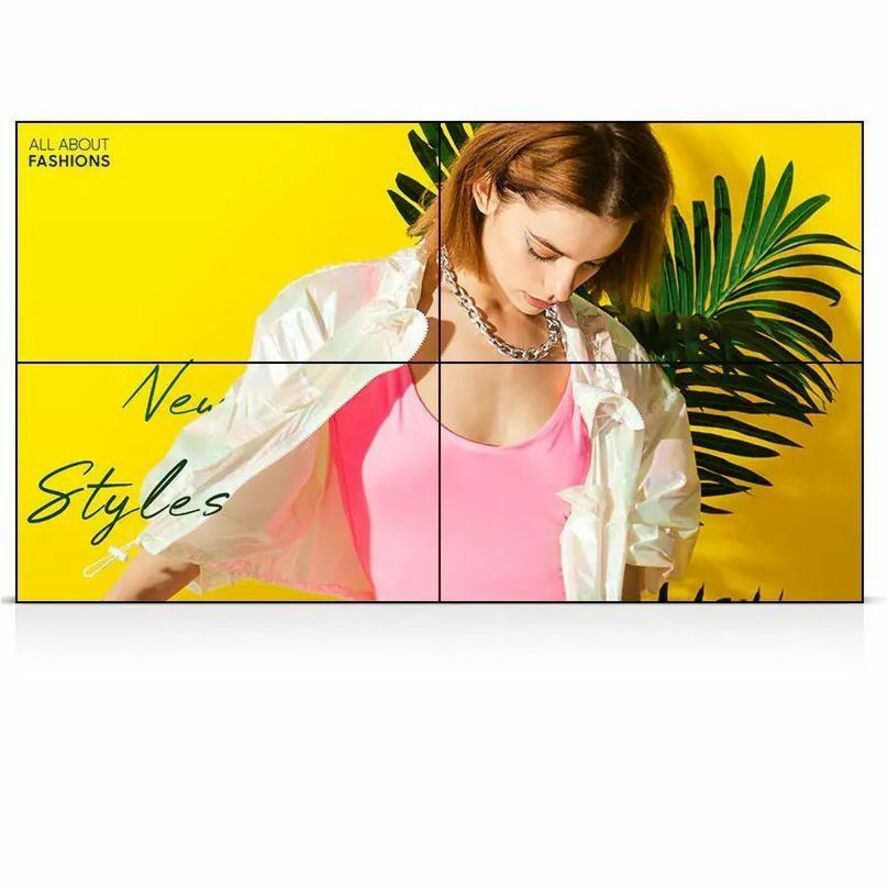

Transform any space with high impact visuals

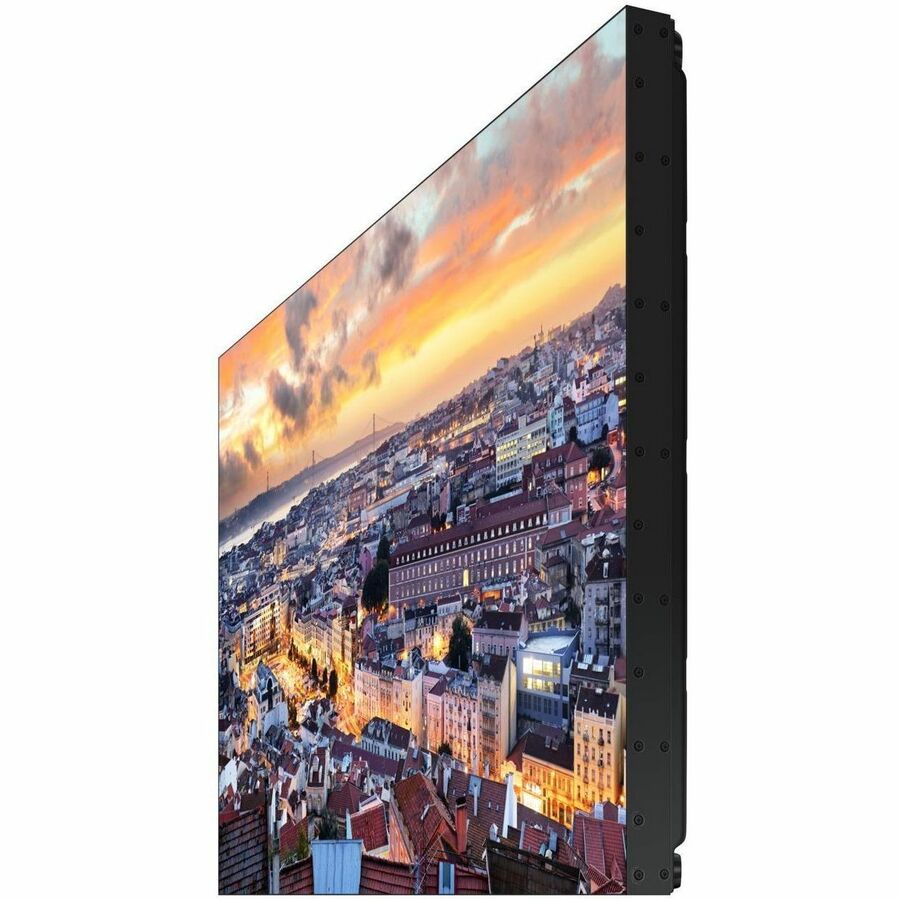

The slender design and 70.4mm cabinet depth provide flexibility for installation and an extreme-narrow 1.74mm bezel-to-bezel width creates a seamless picture opening numerous possibilities for designing a captivating visual experience.

View content from any angle

Wide viewing angles mean content is easily visible even if viewers aren't standing directly in front of the display. Audiences can get clear details and vivid colours all day long.

Vibrant images in any light

Non-glare panels evenly distribute light across
Product Type: Digital Signage Display

Technical Information

Video Wall Compatible: Yes
Bezel Width (Top): 51.18 mil (1.30 mm)
Bezel Width (Bottom): 17.32 mil (0.44 mm)
Bezel Width (Left): 51.18 mil (1.30 mm)
Bezel Width (Right): 17.32 mil (0.44 mm)
Ingress Protection (IP) Rating: IP5X
Panel Technology: In-plane Switching (IPS) Technology
Operation Hours: 24 Hours/7 Days

Display & Graphics

Number of Screens: 1
Viewable Screen Size: 55" (1397 mm)
Display Screen Type: LCD
Response Time: 8 ms
Display Resolution: 1920 x 1080

Video

Scan Format: 1080p
Native Contrast Ratio: 1,000:1
Dynamic Contrast Ratio: 140,000:1
Brightness: 700 cd/m²
Color Gamut: 72%

Network & Communication

Ethernet: Yes
Wireless LAN: No

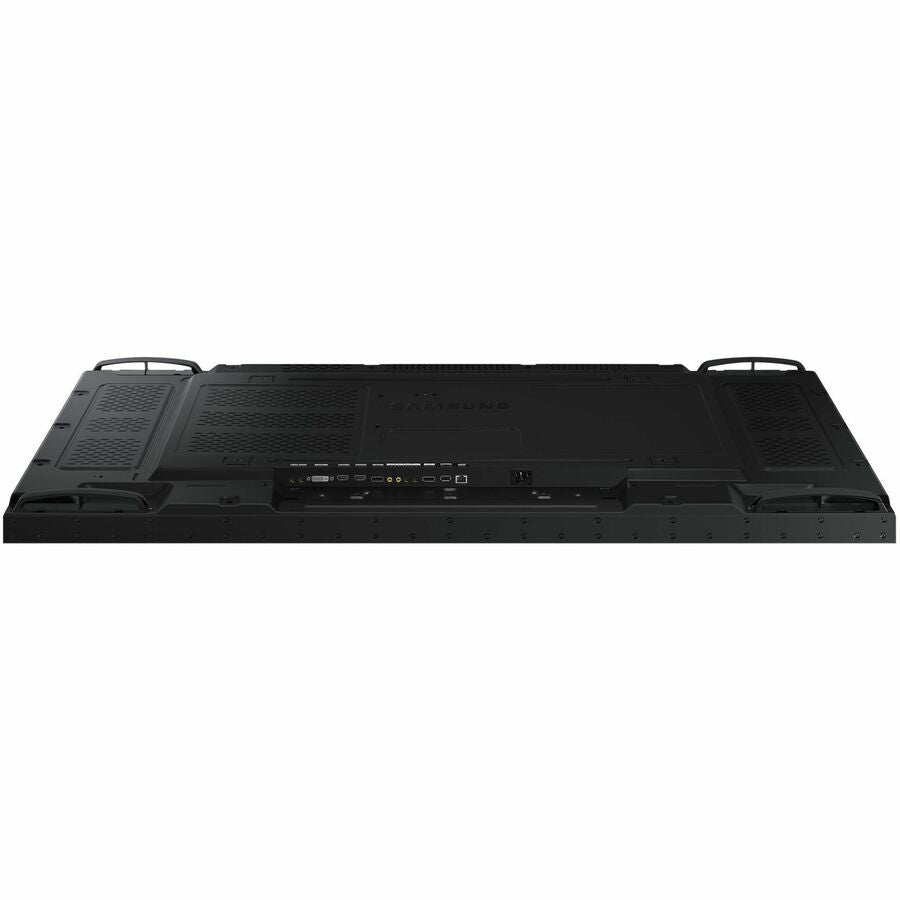

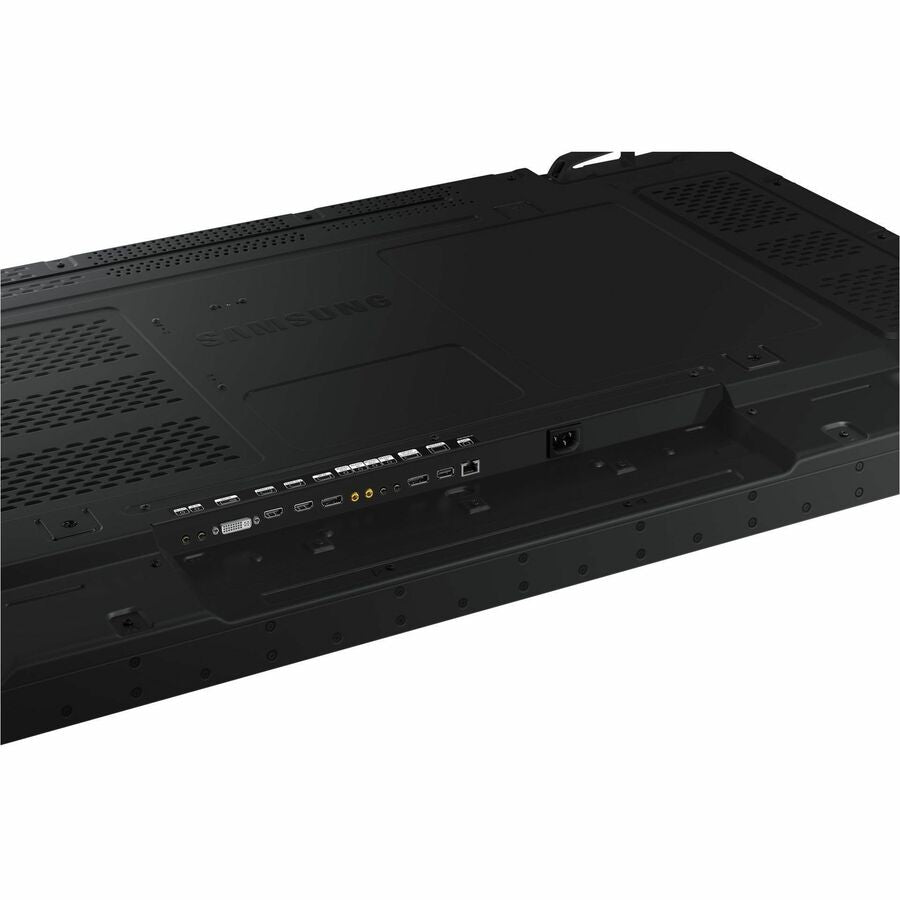

Interfaces/Ports

USB: Yes
DVI: Yes
HDMI: Yes
DisplayPort: Yes
Serial: Yes
Number of HDMI Inputs: 2
Number of DisplayPorts: 1
Number of DVI Ports: 1
RS-232C Input: Yes
RS-232C Output: Yes
Number of HDMI 2.0 Ports: 2
Number of DisplayPort 1.2 Ports: 1

Power Description

Input Voltage: 120 V AC,230 V AC

Physical Characteristics

Bezel Color: Black

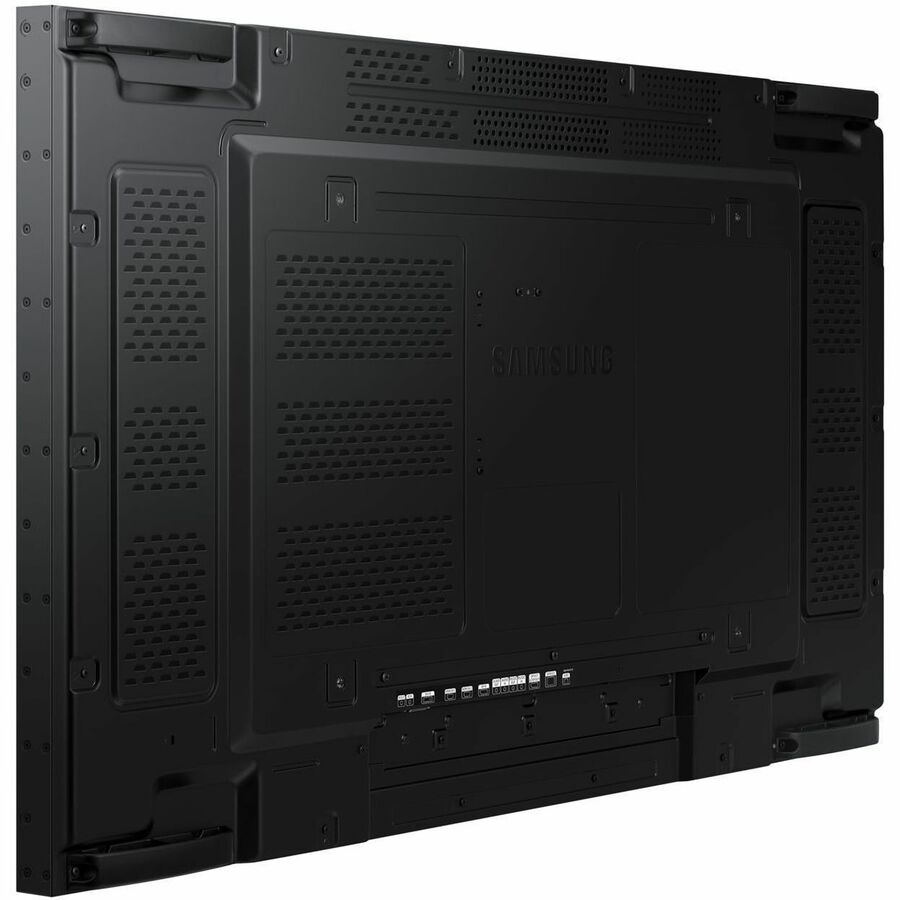

VESA Mount Standard: 600 x 400
Height: 26.89" (683 mm)
Width: 47.72" (1212.20 mm)
Depth: 2.77" (70.40 mm)
Weight (Approximate): 42.99 lb (19500 g)

Environmental Conditions

Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 90%

Miscellaneous

Application/Usage: Shopping Mall,Lobby,Meeting Room,Control Room,Industrial

Warranty

Limited Warranty: 36 Month
