LH75QMCEBGCXGO Samsung QM75C Digital Signage Display

General Information

Manufacturer: Samsung
Manufacturer Part Number: LH75QMCEBGCXGO
Manufacturer Website Address: http://www.samsung.com
Brand Name: Samsung
Product Series: QMC
Product Model: QM75C
Product Name: QM75C Digital Signage Display
Marketing Information:

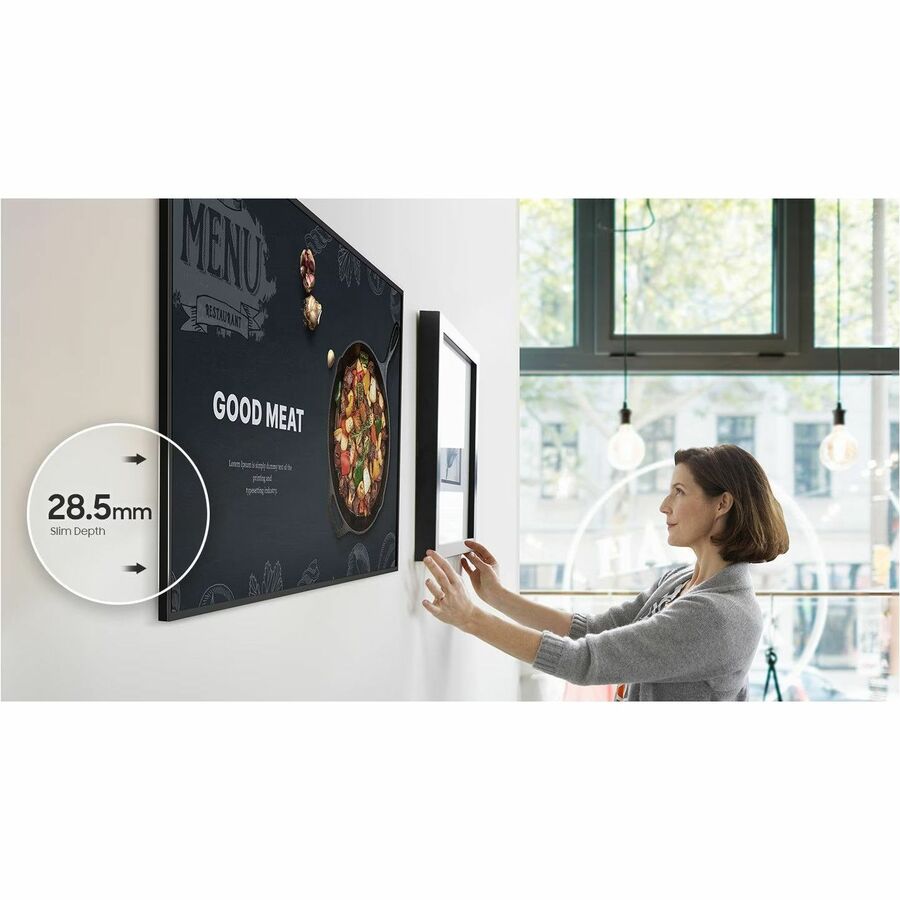

Maximum impact in minimum space | Ultra Slim Depth

The QMC's unparalleled ultra-slim 28.5 mm depth makes it the thinnest option in Samsung's UHD series. It is compatible with a Slim Fit Wall Mount, which allows you to install it neatly and easily in any location. QMC optimizes space with its sleek design that blends seamlessly into your business environment.

Slim design. Stunning performance. | Elegant UHD Signage - QMC Series

Introducing QMC, the slimmest display in the Samsung UHD Signage. It brings elegance to your business display while maximizing space. Its enhanced internal solutions and intuitive home screen UX make it easy to use. Businesses in various verticals can achieve growth with QMC's efficiency and design innovation.

Clean visuals in landscape or portrait mode | Uniform Bezels

The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The uniform design allows for visual consistency when the
Product Type: Digital Signage Display

Technical Information

Bezel Width: 0.53" (13.40 mm)
Ingress Protection (IP) Rating: IP5X
Panel Technology: In-plane Switching (IPS) Technology
Operation Hours: 24 Hours/7 Days

Processor & Chipset

Processor Type: Cortex A73
Processor Speed: 1.60 GHz
Processor Core: Quad-core (4 Core)

Display & Graphics

Number of Screens: 1
Viewable Screen Size: 74.50" (1892.30 mm)
Display Screen Type: LCD
Response Time: 8 ms
Display Resolution: 3840 x 2160
Orientation: Landscape/Portrait
Aspect Ratio: 16:9

Video

Scan Format: 2160p
Brightness: 500 cd/m²
Color Gamut: 72% NTSC

Network & Communication

Ethernet: Yes
Wireless LAN: Yes
Bluetooth: Yes

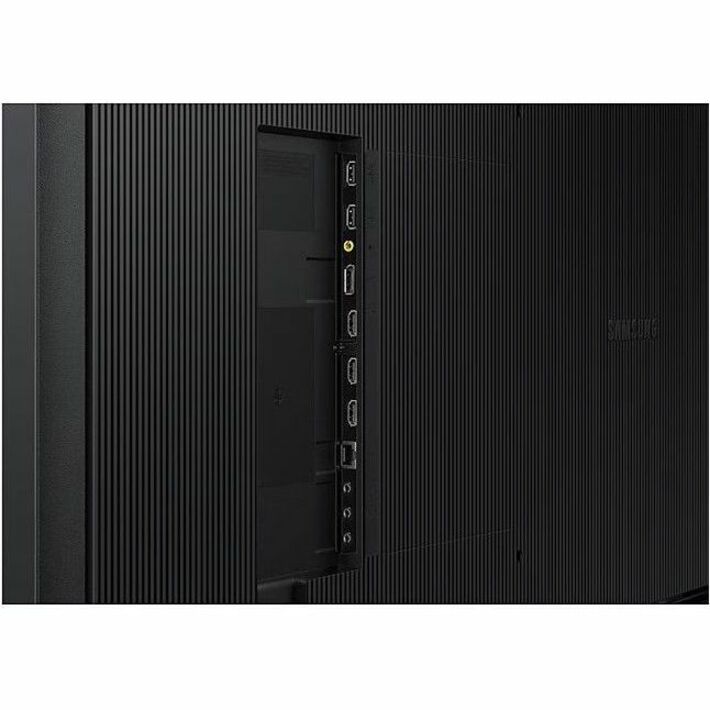

Interfaces/Ports

USB: Yes
HDMI: Yes
DisplayPort: Yes
Serial: Yes
Number of USB 2.0 Ports: 2
Number of HDMI Inputs: 3
Number of DisplayPorts: 1
RS-232C Input: Yes
RS-232C Output: Yes
Number of HDMI 2.0 Ports: 3
Number of DisplayPort 1.2 Ports: 1

Software

Operating System: Tizen 7.0

Power Description

Input Voltage: 120 V AC,230 V AC

Physical Characteristics

VESA Mount Standard: 400 x 400
Mount Type: Wall Mountable
Height: 37.81" (960.40 mm)
Width: 66.23" (1682.30 mm)
Depth: 1.12" (28.50 mm)
Weight (Approximate): 72.80 lb (33021.52 g)

Environmental Conditions

Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 80%

Miscellaneous

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
Energy Efficiency Certification: ENERGY STAR 8.0

Warranty

Limited Warranty: 36 Month
