MCMGBSCMM055 StarTech.com Multimode SC Fiber Ethernet Media Converter - 1000BASE-SX Gigabit Fiber Optic to Copper Bridge - 10/100/1000 Network - 550m

General Information

Manufacturer: StarTech.com
Manufacturer Part Number: MCMGBSCMM055
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
Marketing Information: This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 mover multimode fiber, on 1000BASE-SXnetworks.

Extend your GbE network cost-effectively

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernetnetwork infrastructures.The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connect
Packaged Quantity: 1 Each
Product Type: Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex

Media & Performance

Media Type Supported: Twisted Pair,Optical Fiber
Fiber Mode Supported: Multi-mode
Fiber Optic Cable Wavelength: 850 nm
Maximum Distance Supported: 0.55 km (0.34 Mile)

Network & Communication

Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T,1000Base-SX,1000Base-TX,10Base-T

Power Description

Power Source: AC Adapter
Power Consumption: 10 W
Plug/Connector Type: Type N

Physical Characteristics

Form Factor: Wall Mountable
Height: 1" (25.40 mm)
Width: 3.80" (96.52 mm)
Depth: 2.80" (71.12 mm)
Weight (Approximate): 7.10 oz (201.28 g)

Miscellaneous

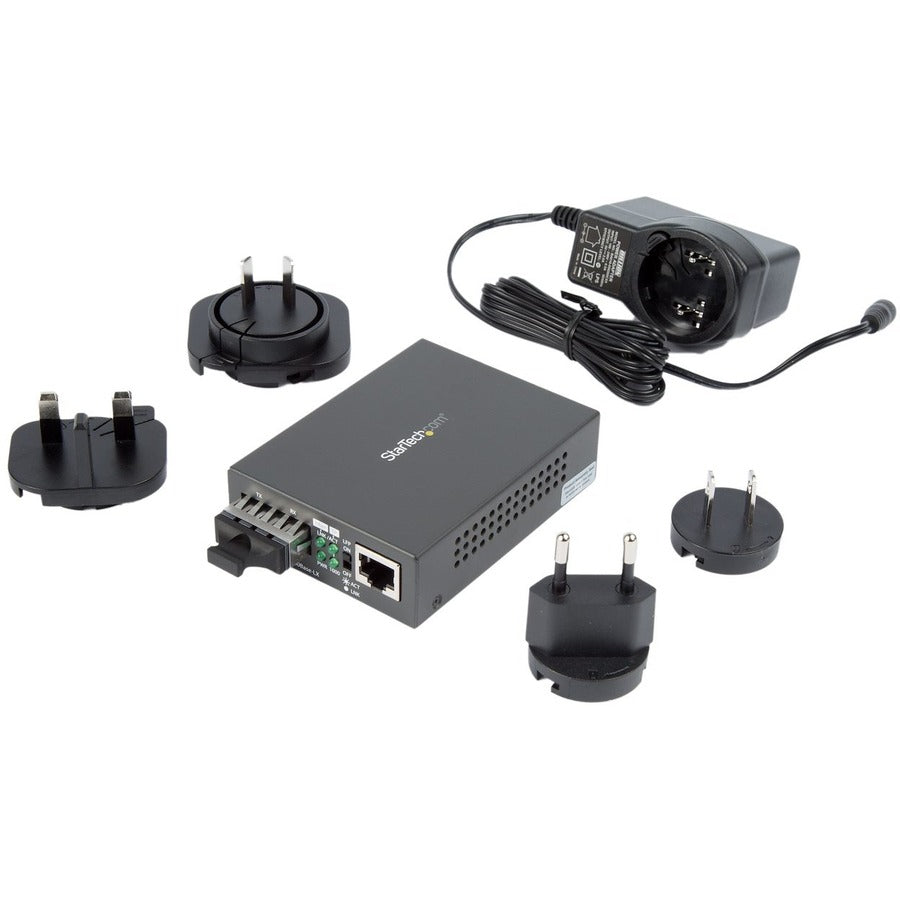

Package Contents:

• Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX - Multimode 550 m
• 1 x Universal power adapter (NA/JP, UK, EU, ANZ)
• 1 x Quick-start guide

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Environmental Compliance: Restriction of Hazardous Substances (RoHS) 2,Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
TAA Compliant: Yes

Warranty

Limited Warranty: 2 Year
