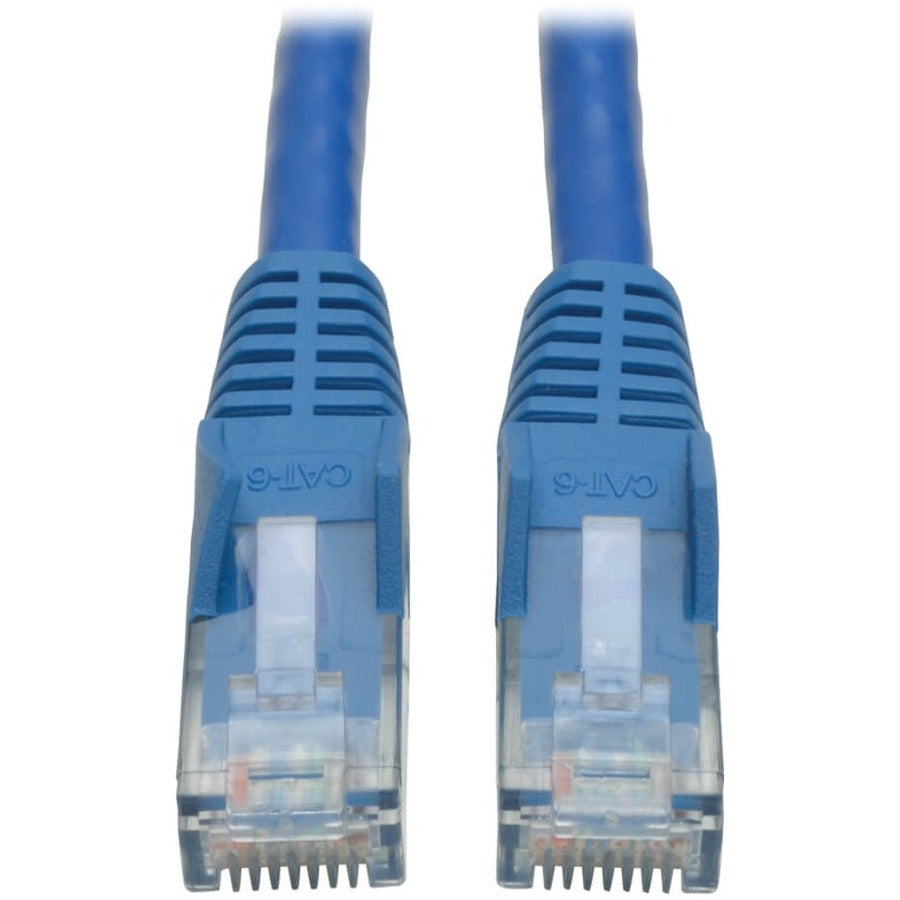

Tripp Lite Cat6 Patch Cable

General Information

Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: N201003BL
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite series
Product Model: N201-003-BL
Product Name: Cat.6 UTP Patch Network Cable
Marketing Information:

With Tripp Lite's new Category 6 snagless molded patch cables you can stay ahead of the game by distributing data, voice and video at higher speeds. These cables deliver stable performance up to 550MHz. Each comes UL verified and meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with high-quality copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum. Designed for use in Category 6, Category 5e and Category 5 applications. Cat6 cables are available in a variety of colors with a snagless boot preventing cable snags. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Product Type: Network Cable

Technical Information

Cable Type: Category 6
Cable Characteristic: Patch Cable
Cable Length: 3 ft
Connector Type on First End: RJ-45 Network - Male
Connector on First End Details: 1 x RJ-45 Network - Male
Connector Type on Second End: RJ-45 Network - Male
Connector on Second End Details: 1 x RJ-45 Network - Male
Contact Plating: Gold
Conductor: Copper
Shielding: No
Jacket Type: CM
Device Supported: Network Device,ATM
American Wire Gauge: 24 AWG
Data Transfer Rate: 1 Gbit/s
Boot Type: Snagless
Number of Pairs: 4
Features: Damage Resistant,Strain Relief,Molded,Stranded,Minimized Near-End Crosstalk (NEXT)

Physical Characteristics

Color Family: Blue
Product Color: Blue
Jacket Color: Blue
Product Material: Copper
Jacket Material: Polyvinyl Chloride (PVC)
Material Details: Copper - Conductor

Miscellaneous

Additional Information:

• Drastically reduce impedance & structural return loss compared to standard 100MHz wire.
• Integral strain relief
• Applications : For 1000 Base-T (1Gbps Ethernet), 10/100 Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring TYPE 3 applications as well as EIA/TIA applications.

Certifications & Standards:

• IEEE 802.3ab
• IEEE 802.5
• ANSI/EIA/TIA 568
• ISO/IEC 11801
• ETL (category 6 draft 11)

Environmentally Friendly: Yes
Country of Origin: China

Warranty

Limited Warranty: Lifetime
