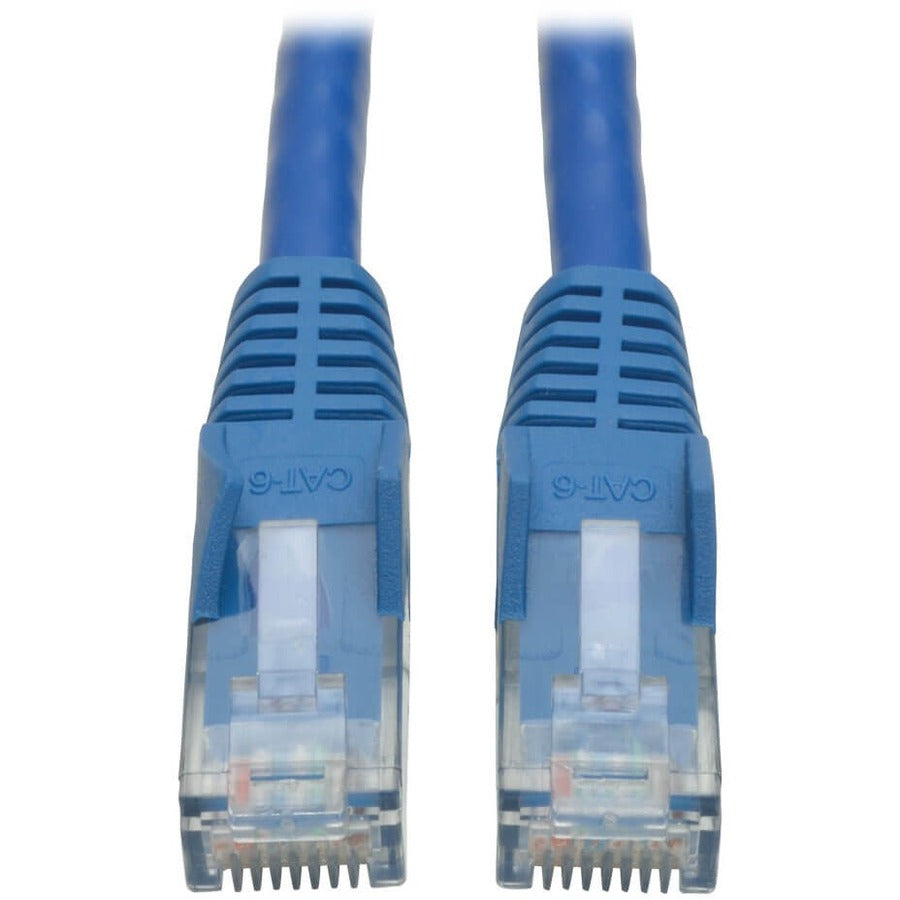

Tripp Lite Cat6 Patch Cable

General Information

Manufacturer: Tripp Lite by Eaton
Manufacturer Part Number: N201010BL
Manufacturer Website Address: https://tripplite.eaton.com/
Brand Name: Tripp Lite series
Product Model: N201-010-BL
Product Name: Cat6 UTP Patch Network Cable
Marketing Information:

With Tripp Lite's new category 6 molded patch cables you can stay ahead of the game by using this high-speed cable to distribute data, voice and video. These cables deliver stable performance up to 550MHz. Each comes UL verified meets EIA/TIA Cat6 TIA/EIA-568-B-2.1 draft 9 standards. Constructed with high-quality copper wire and a staggered-pin plug design, near-end crosstalk levels are kept to a minimum. Designed for use in category 6, category 5e and category 5 applications. Cat6 cables are available in a variety of colors with a snagless boot preventing cable snags. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Product Type: Network Cable

Technical Information

Cable Type: Category 6
Cable Characteristic: Patch Cable
Cable Length: 10 ft
Connector Type on First End: RJ-45 Network - Male
Connector on First End Details: 1 x RJ-45 Network - Male
Connector Type on Second End: RJ-45 Network - Male
Connector on Second End Details: 1 x RJ-45 Network - Male
Contact Plating: Gold
Conductor: Copper
Shielding: No
Jacket Type: CM
Device Supported: Network Device,ATM
American Wire Gauge: 24 AWG
Data Transfer Rate: 1 Gbit/s
Boot Type: Snagless
Number of Pairs: 4
Features: Damage Resistant,Strain Relief,Molded,Stranded,Minimized Near-End Crosstalk (NEXT)

Physical Characteristics

Color Family: Blue
Product Color: Blue
Jacket Color: Blue
Product Material: Copper
Jacket Material: Polyvinyl Chloride (PVC)
Material Details: Copper - Conductor

Miscellaneous

Additional Information:

• Drastically reduce impedance & structural return loss compared to standard 100MHz wire.
• Integral strain relief
• Applications : For 1000 Base-T (1Gbps Ethernet), 10/100 Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring TYPE 3 applications as well as EIA/TIA applications.

Certifications & Standards:

• IEEE 802.3ab
• IEEE 802.5
• ANSI/EIA/TIA 568
• ISO/IEC 11801
• ETL (category 6 draft 11)

Environmentally Friendly: Yes
Country of Origin: China

Warranty

Limited Warranty: Lifetime
