Description
General Information
Manufacturer: CyberPower Systems, IncManufacturer Part Number: OL3000RTXL2UN
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: Smart App Online UPS
Product Model: OL3000RTXL2UN

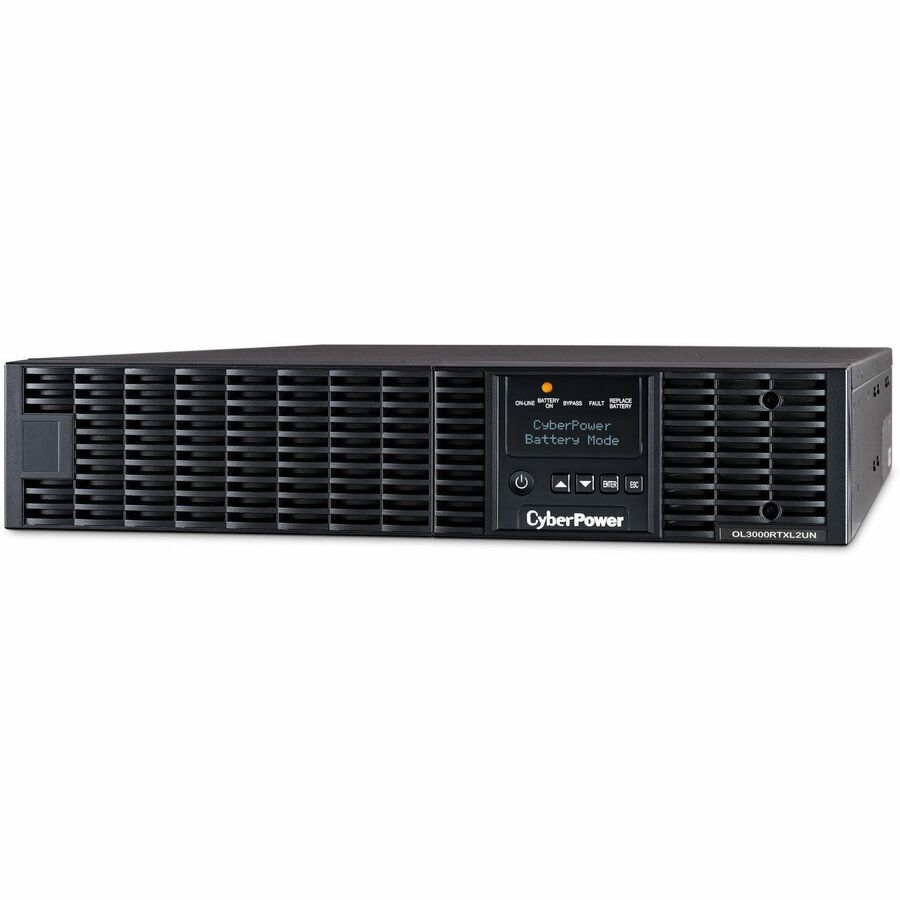

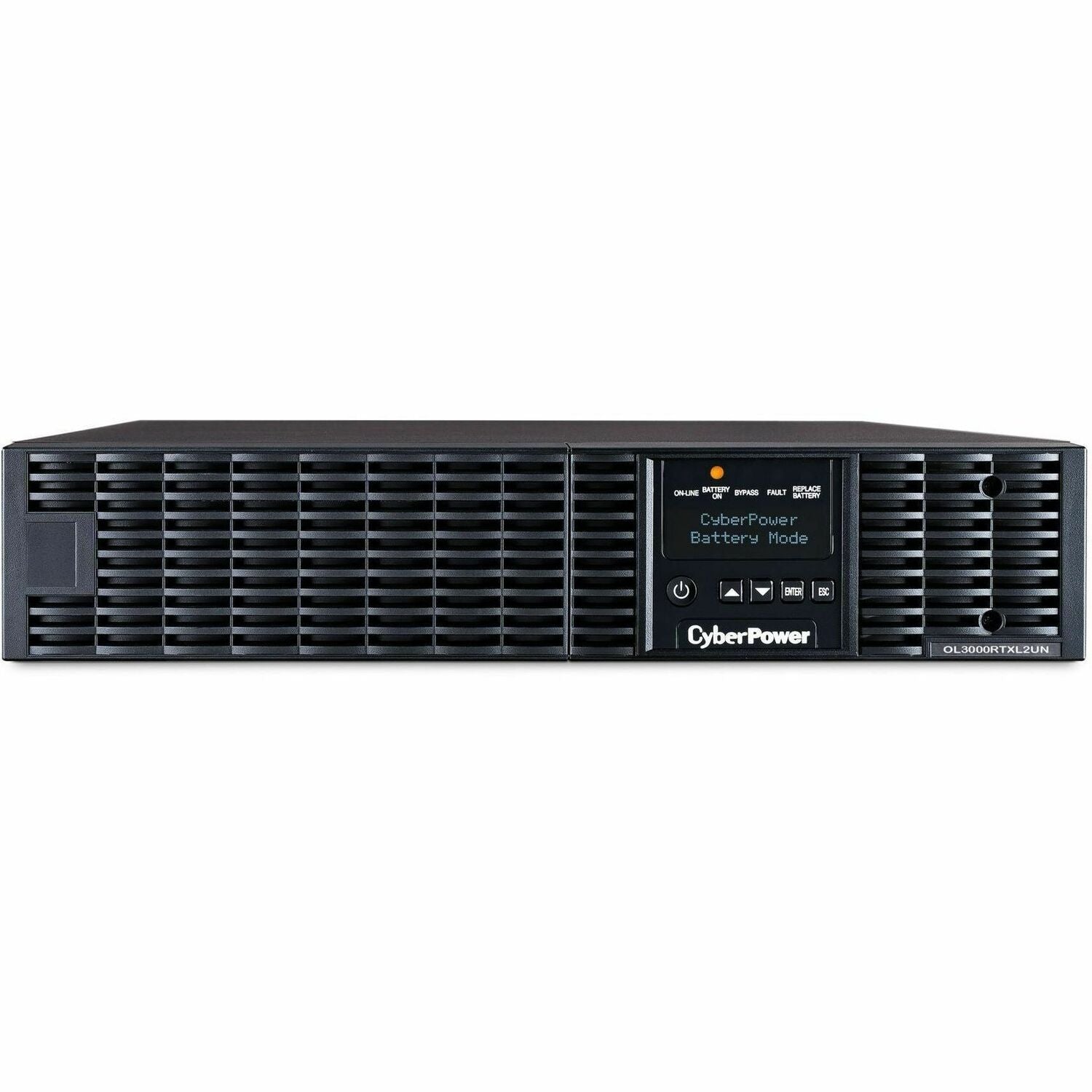

Product Name: OL3000RTXL2UN Smart App Online UPS Systems
Marketing Information:
-
Prevent business interruptions and safeguard mission-critical enterprise network equipment.

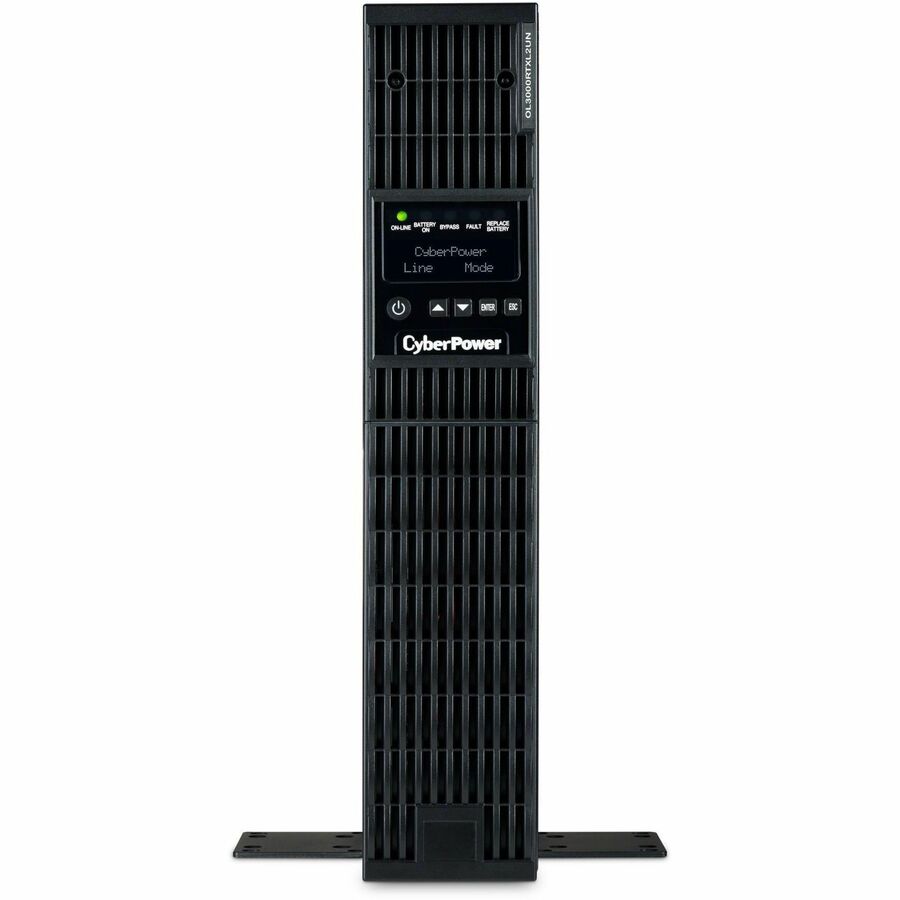

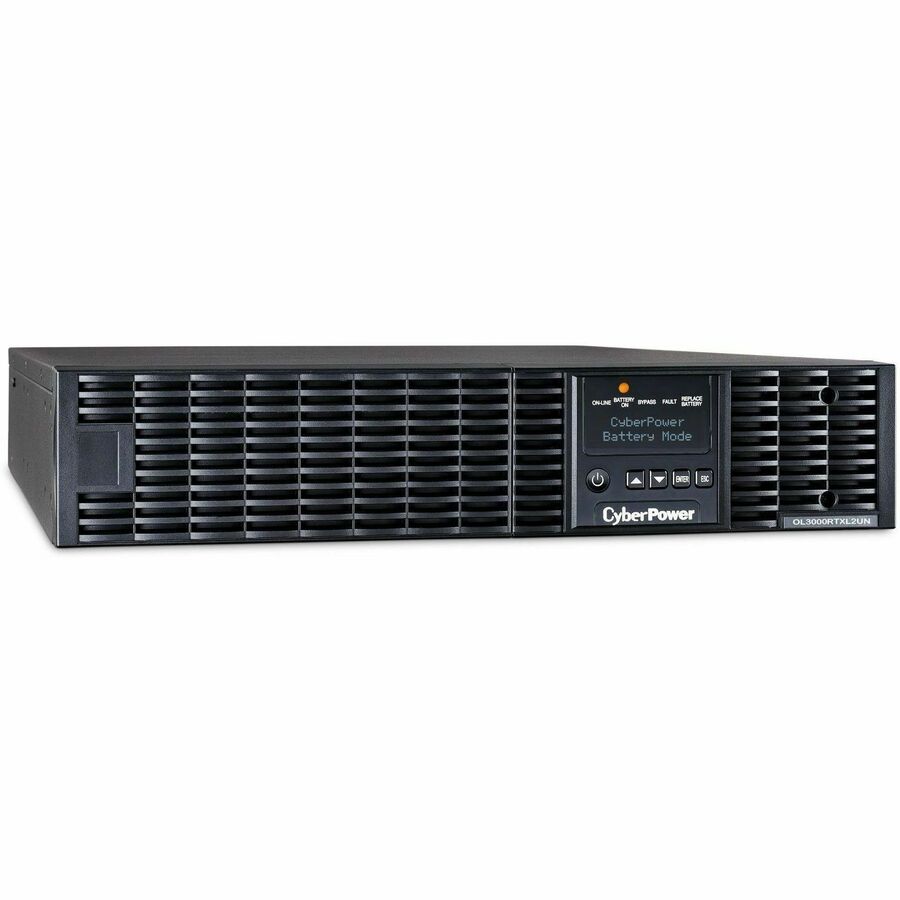

The CyberPower OL3000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL3000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a
- 400,000 lifetime connected equ
Product Type: Double Conversion Online UPS
Technical Information

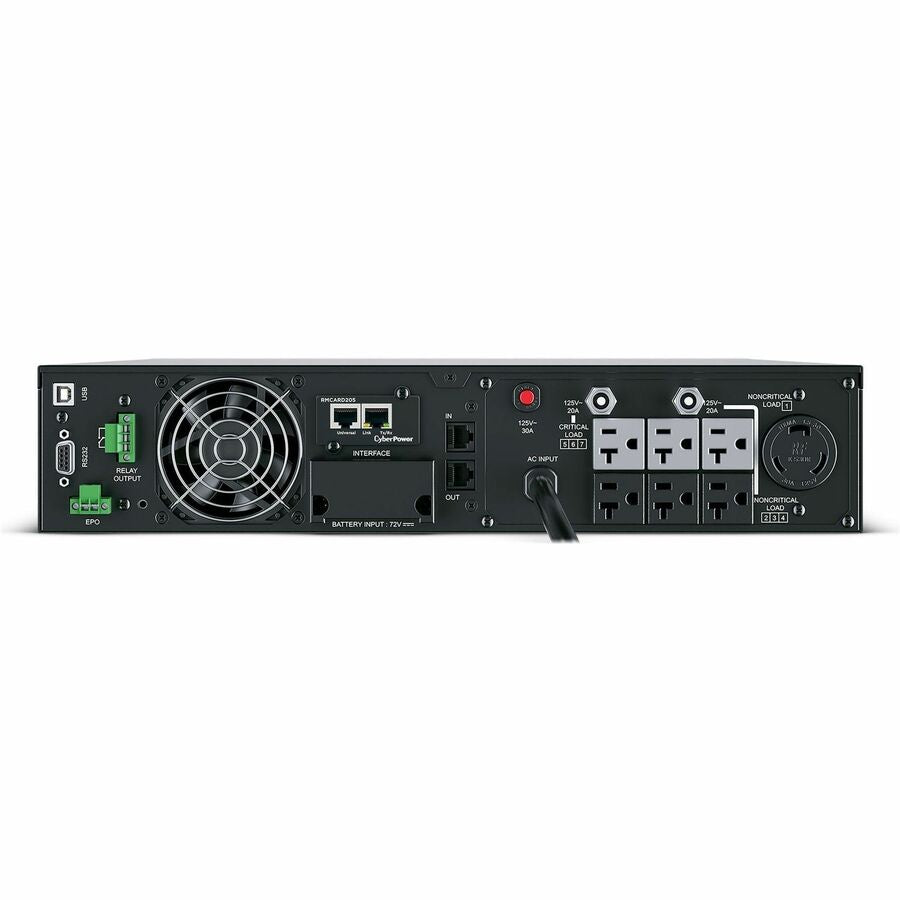

Plug/Connector Type: NEMA L5-30PReceptacle Type: NEMA L5-30R,NEMA 5-20R
Receptacle Detail: 1 x NEMA L5-30R,6 x NEMA 5-20R
Number of Battery & Surge Outlets: 7
Transfer Time: 0 ns
Dataline Protection: RJ-11,RJ-45
Protection Type: Short Circuit
Overload Protection: Yes
EMI/RFI Noise Filter: Yes
Energy Saving: ECO Mode Efficiency >95%
Application/Usage: Server,Network Device,Storage Device,Network Closet,PBX System,VoIP Device,Mission Critical Equipment,Generator
Cord Length: 10 ft (3048 mm)
Circuit Breaker Current Rating: 30 A
Crest Factor: 3:1
Power Description
Load Capacity (VA): 3 kVALoad Capacity (Watt): 2.70 kW
Input Voltage: 120 V AC
Input Voltage Range: 60 V AC - 69 V AC,100 V AC - 125 V AC
Output Voltage: 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC
Input Frequency: 40 Hz,70 Hz
Output Frequency: 50 Hz,60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 1335 J
Input Power Factor: 0.99
Output Power Factor: 0.9
Display & Graphics
Display: LCDManagement
Network Management: Dry Contact,Relay Card,SNMP ManageableAlarm: Battery Mode
Controls/Indicators
Status Indicators: LED Indicators:- Power On (White)
- Line Mode (Green)
- Battery Mode (Yellow)
- Bypass Mode (Yellow)
- Fault (Red)
- Replace Battery (Red)
Interfaces/Ports
Serial Port: YesNetwork (RJ-45): Yes
USB: Yes
USB (HID Compliant) Port: Yes
EPO Port: Yes
Battery Information
Number of Batteries: 6Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 9000 mAh
Backup/Run Time (Full Load): 4 Minute
Backup/Run Time (Half Load): 12.50 Minute
Typical Battery Recharge Time: 4 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 104°F (40°C)Storage Temperature: -4°F (-20°C) - 113°F (45°C)
Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 50000 ft (15240000 mm)
Operating Humidity: 0% - 90%
Storage Relative Humidity: 0% - 95%
Sound Emission (A-Weighted): 55 dB(A)
Thermal Dissipation: 889 BTU/h
Physical Characteristics
Product Color: BlackForm Factor: Rack/Tower
Rack Height: 2U

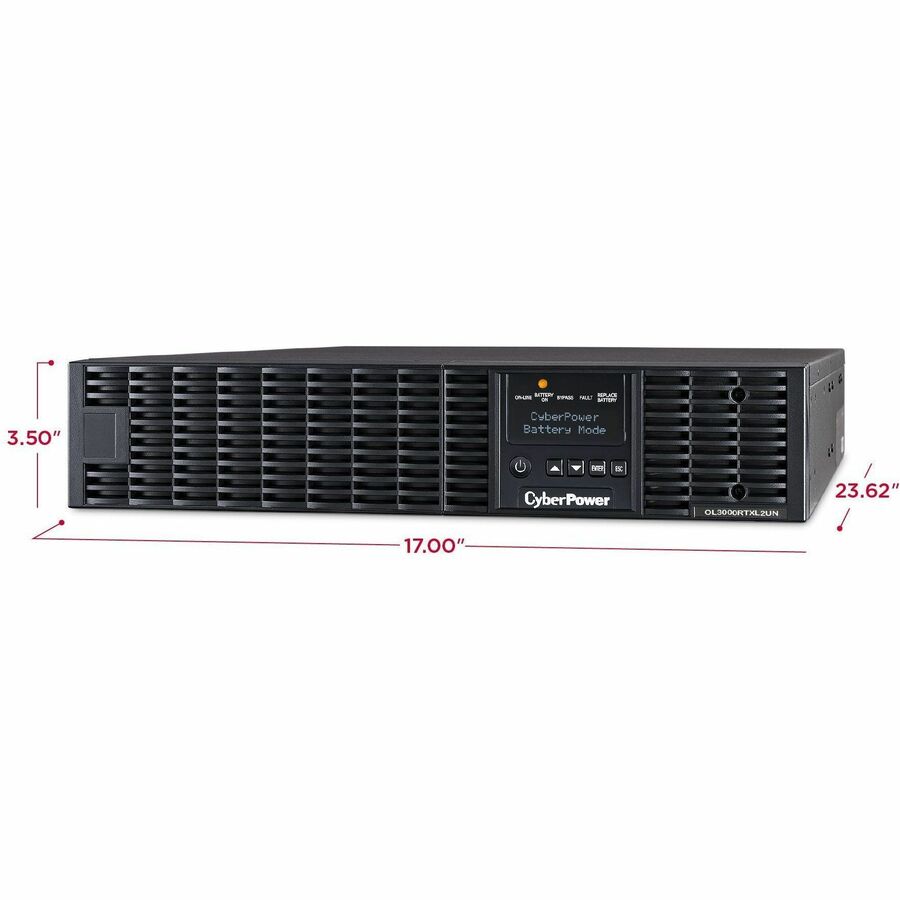

Height: 3.50" (88.90 mm)
Width: 17" (431.80 mm)
Depth: 23.62" (599.95 mm)
Weight (Approximate): 68.20 lb (30935 g)
Miscellaneous
Package Contents:- Smart App Online OL3000RMXL2U 3000VA Rack/Tower UPS
- User Manual
- Registration Card
- 2 x Rackmount Rails
- 2 x Rackmount Ears
- 2 x Hanging Brackets
- Phone Line
- USB Communication Cable
- Serial Interface Cable (RS-232)
- 8 x M5X7L Black Flat Head Screws
- 12 x M5X12L Black Pan Head Screws
- 6 x M5X6l Silver Pan Head Screws
- 8 x Plastic Washers
- 12 x Screw Hole Dust Covers
- 12 x Rubber Pads
- Software Download Card
Software Included: PowerPanel® Business
Energy Star: Yes
Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
