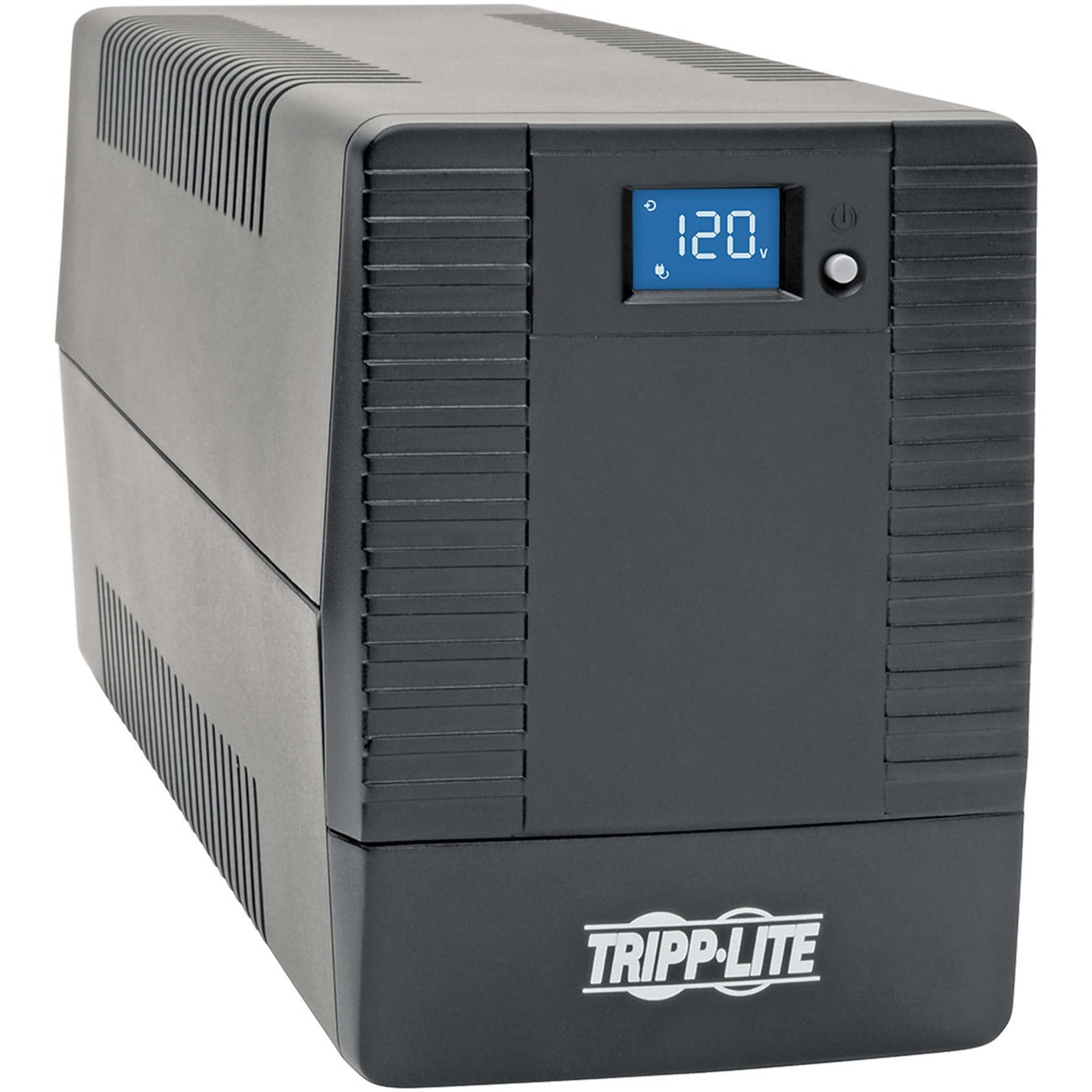

OMNI700LCDT Tripp Lite series OMNI700LCDT 700VA Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: OMNI700LCDT
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Model: OMNI700LCDT
Product Name: OMNI700LCDT 700VA Tower UPS
Marketing Information:

Features

700VA/350W/120V Battery Backup for PCs, Home Theater or Digital Signage

This 120V UPS with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The six-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.

Allows Time to Back Up Critical Files During a Blackout

Backup support allows you to work through short power failures, and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 45 minutes. During normal operation, inco
Product Type: Line-interactive UPS

Technical Information

AVR: Yes

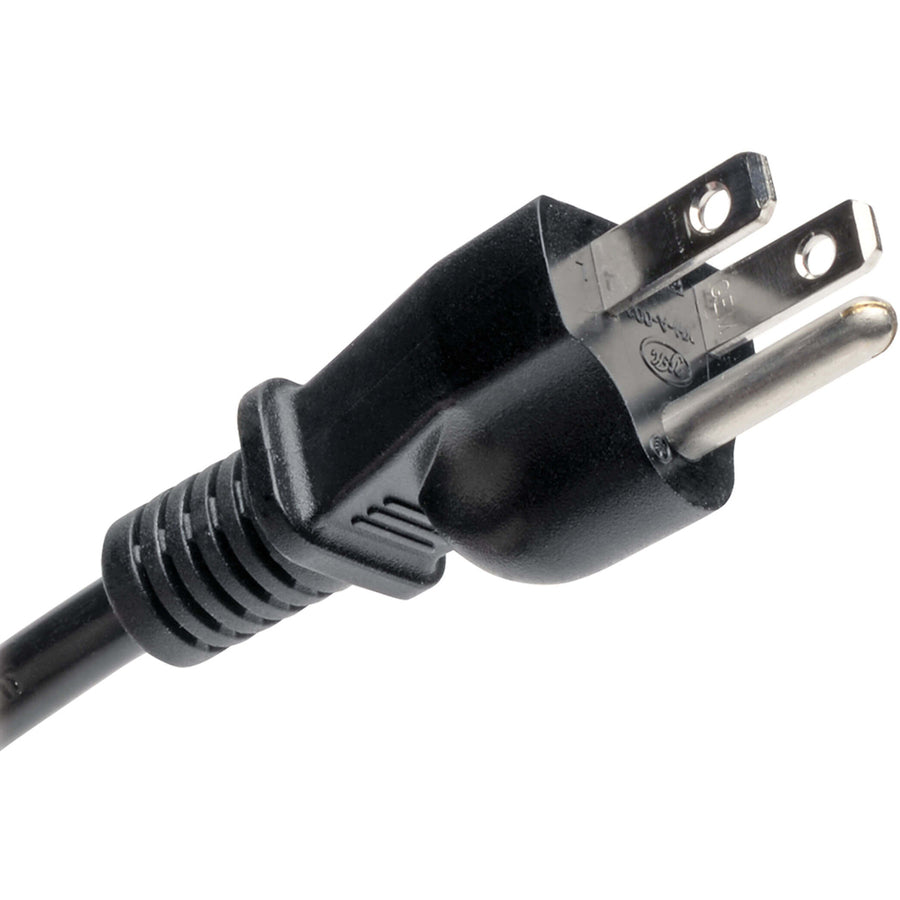

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 2
Dataline Protection: RJ-45
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Green Energy-Saving
Application/Usage: Desktop Computer,Electronic Device,Gaming Console,Router,Television,ATM,Printer,Blu-ray Player,DVR,Digital Signage,Home Theater,Office,Security System,Monitor,Media Center,Scanner

Power Description

Load Capacity (VA): 700 VA
Load Capacity (Watt): 350 W
Input Voltage: 120 V AC
Input Voltage Range: 110 V AC - 120 V AC
Output Voltage: 110 V AC,115 V AC,120 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 316 J

Management

Alarm: Low Battery,Fault,Overload,Replace Battery

Controls/Indicators

Status Indicators:

Front Panel LCD Display:

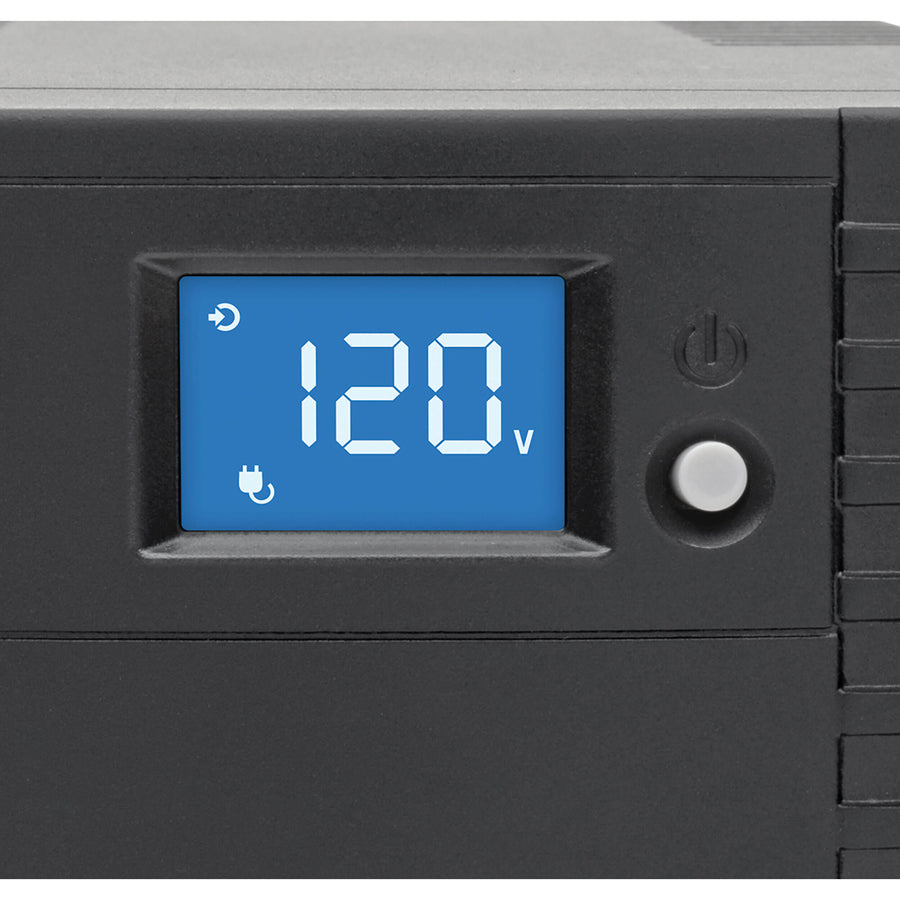

• Input and output voltage

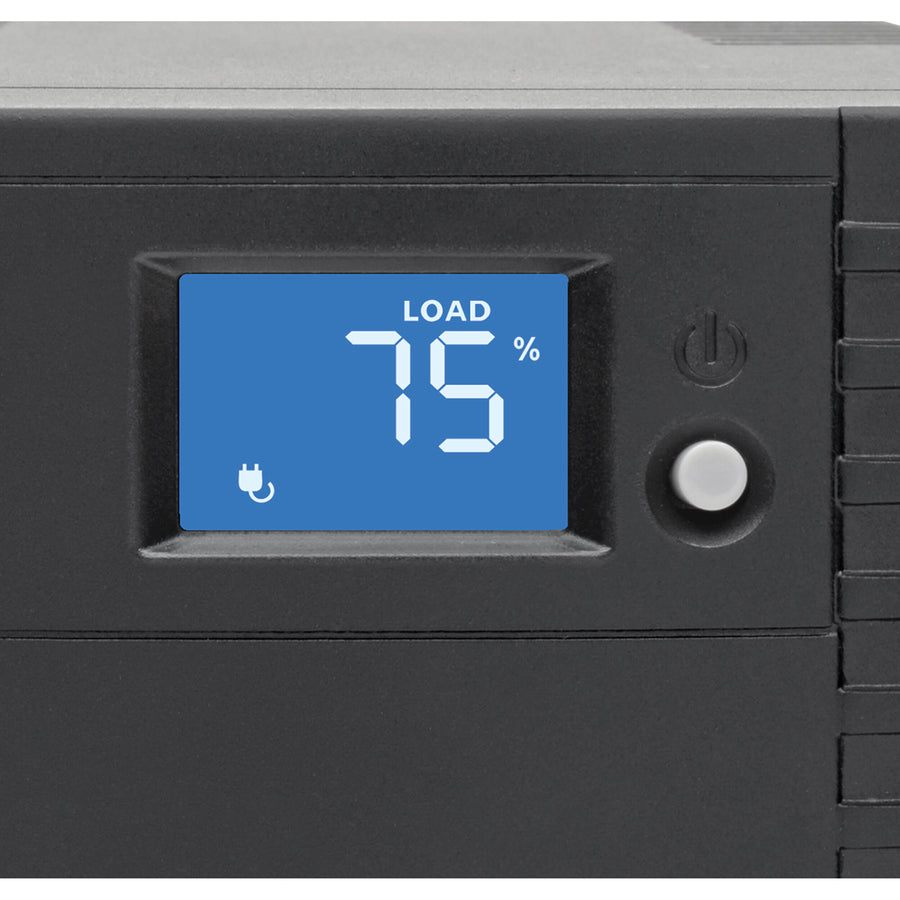

• Load percentage

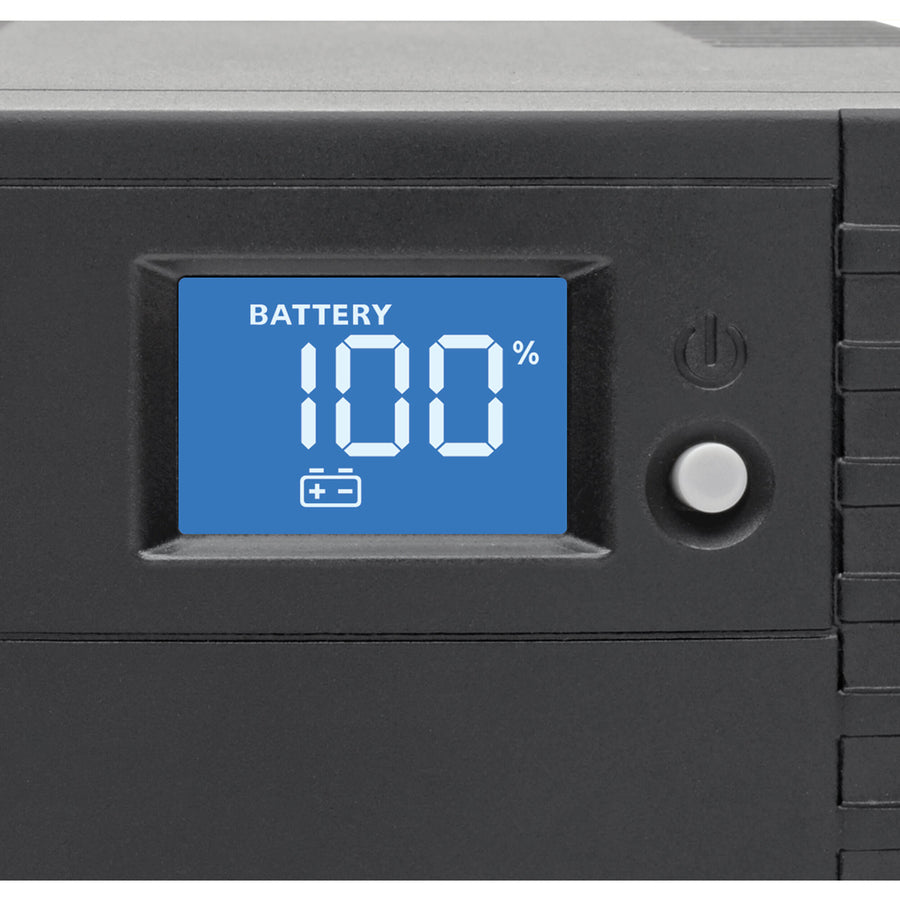

• Battery charge level
• Overload
• Critical fault code screens

Interfaces/Ports

USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 12 V DC
Battery Size: 12V
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 10 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Storage Relative Humidity: 90%
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 43 BTU/h

Physical Characteristics

Height: 6.30" (160.02 mm)
Width: 4.80" (121.92 mm)
Depth: 13.60" (345.44 mm)
Form Factor: Tower
Weight (Approximate): 14.30 lb (6486.37 g)

Miscellaneous

Package Contents:

• OMNI700LCDT 700VA Tower UPS
• USB Cable
• Owner's Manual

Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
