OMNI900LCD Tripp Lite OmniSmart OMNI900LCD 900 VA Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: OMNI900LCD
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: OmniSmart
Product Model: OMNI900LCD

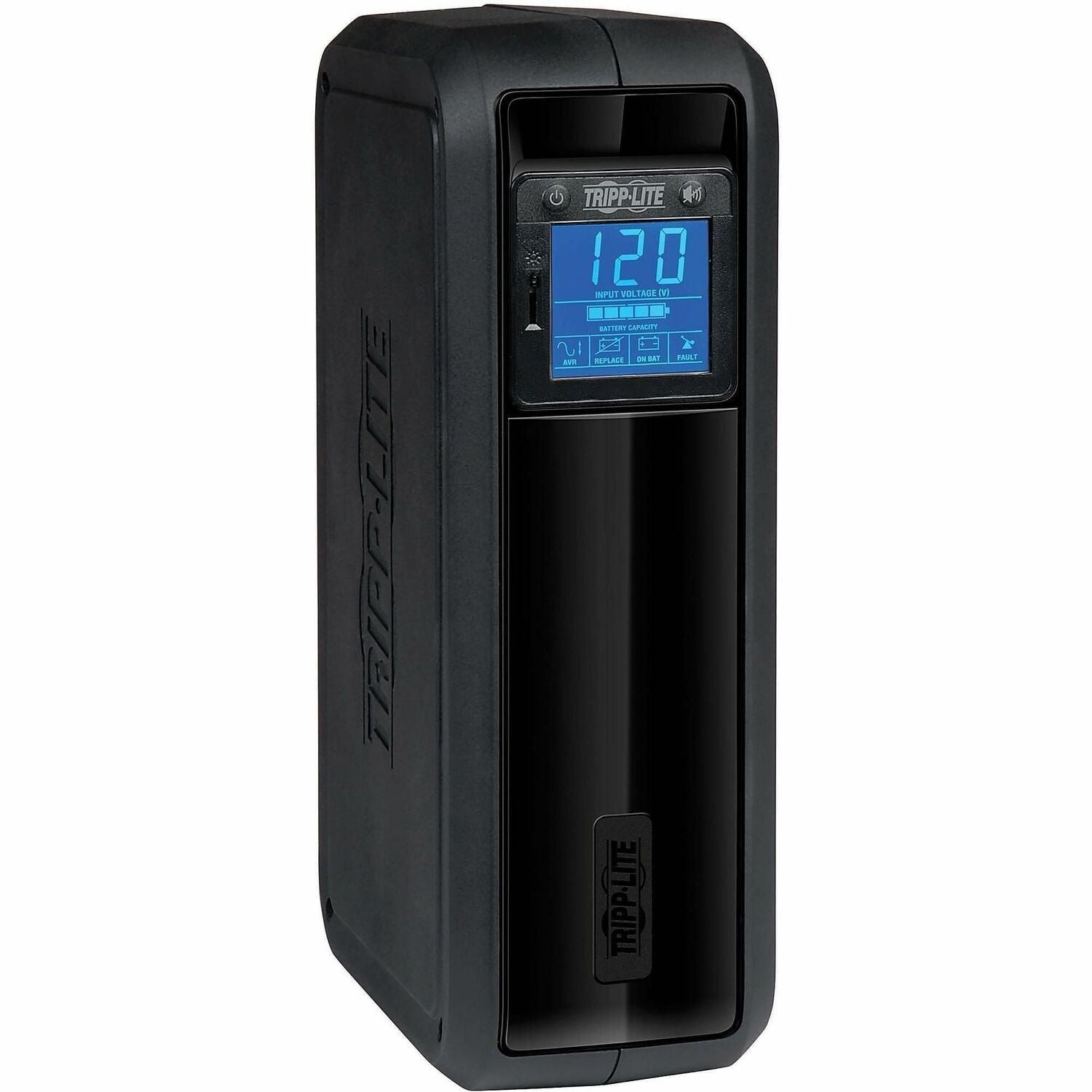

Product Name: OmniSmart OMNI900LCD 900 VA Tower UPS
Marketing Information:

Tripp Lite's OMNI900LCD Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long lasting battery support for personal computers, home entertainment systems and media centers. Internal UPS circuits support entry level PCs for up to 50 minutes or individual VCR/DVR components for as long as 2.5 hours during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. 97% line-mode efficiency saves energy and reduces BTU heat output. Offers complete power protection in an attractive black tower configuration. Includes 4 battery-supported and surge-protected outlets, plus 4 additional surge suppression-only outlets for items not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure. PowerAlert software available via fr
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R

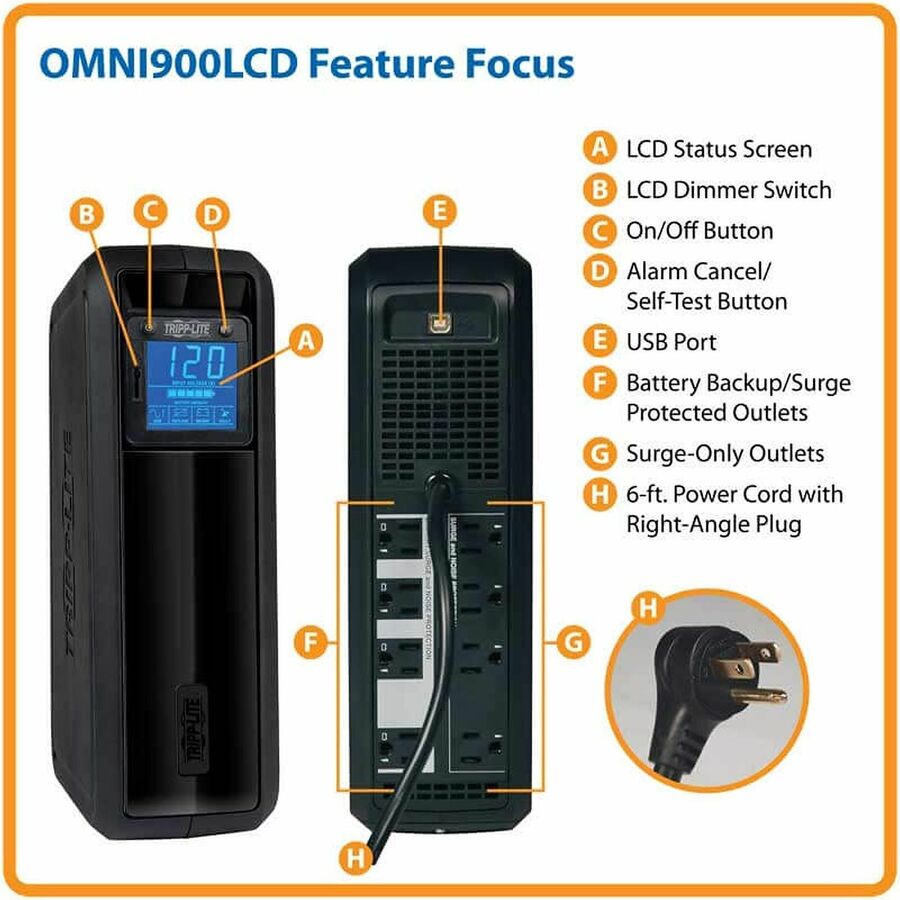

Receptacle Detail: 8 x NEMA 5-15R
Transfer Time: 3 ms

Power Description

Load Capacity (VA): 900 VA
Load Capacity (Watt): 475 W
Input Voltage: 110 V AC
Input Current: 12 A
Output Voltage: 120 V AC
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 870 J

Management

Alarm: AC Input Failure

Controls/Indicators

Status Indicators:

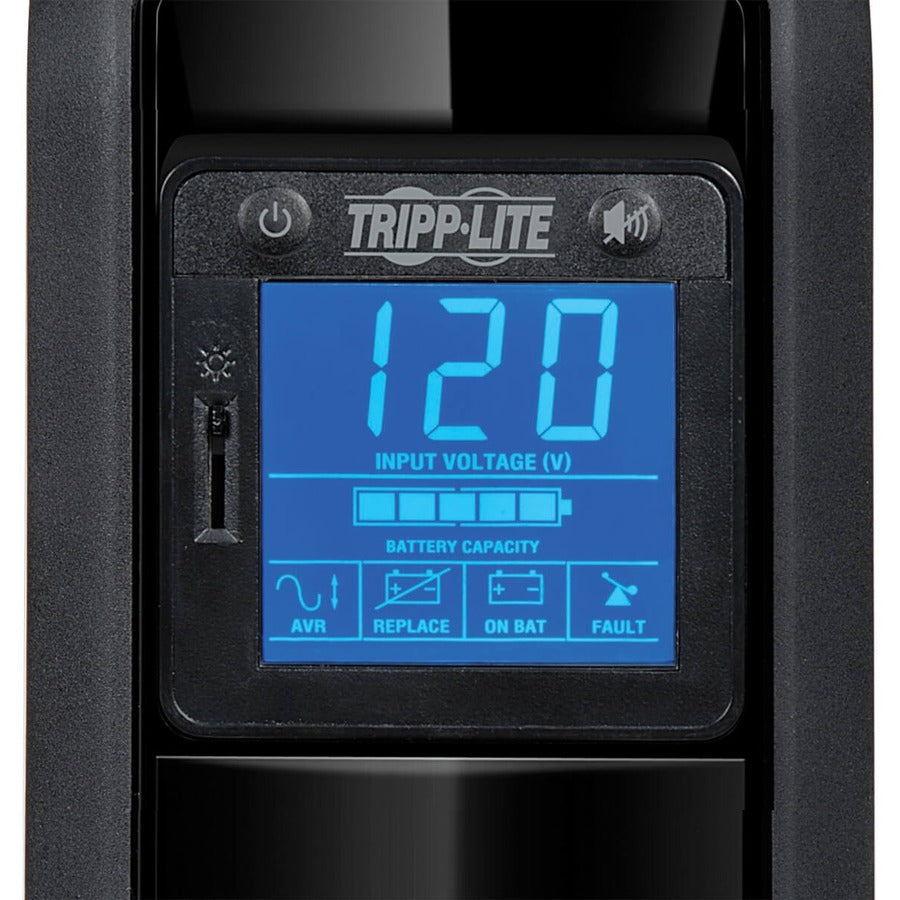

Front panel LCD screen with blue backlight offers:

• Continuous input line voltage data
• UPS status information on line power status
• Battery power status
• Battery charge level
• Voltage regulation operation

Interfaces/Ports

USB: Yes

Battery Information

Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 10 Minute
Battery Life: 6 Year
Hot Swappable: Yes
Typical Battery Recharge Time: 20 Hour

Environmental Conditions

Maximum Operating Temperature: 122°F (50°C)

Physical Characteristics

Product Color: Black
Height: 11.80" (299.72 mm)
Width: 3.70" (93.98 mm)
Depth: 7.20" (182.88 mm)
Form Factor: Tower
Weight (Approximate): 14.90 lb (6758.53 g)

Miscellaneous

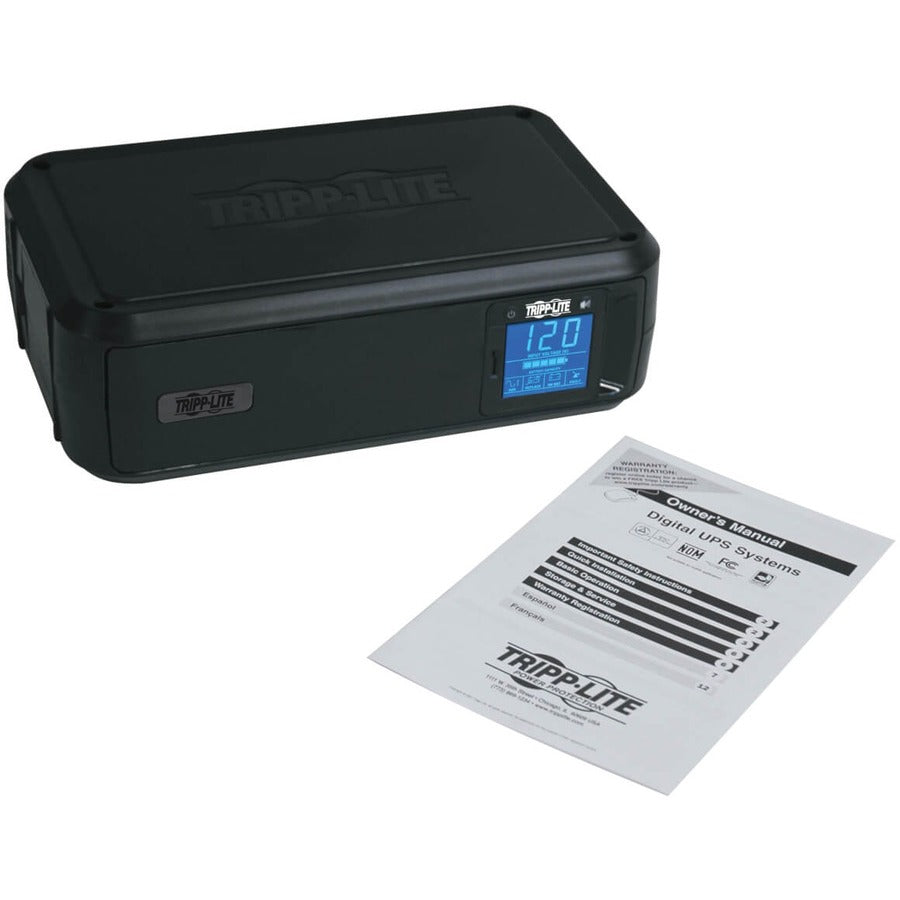

Package Contents:

• OmniSmart OMNI900LCD 900 VA Tower UPS
• Manual with Warranty Information

Software Included: PowerAlert software
Country of Origin: Taiwan
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
