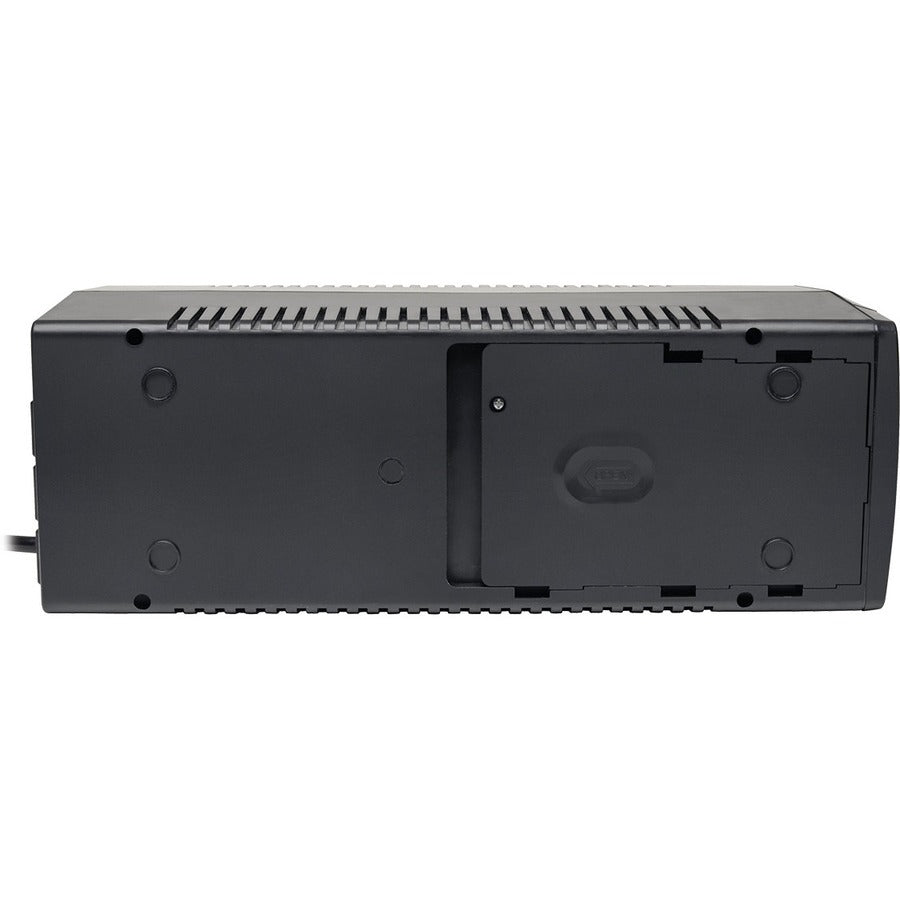

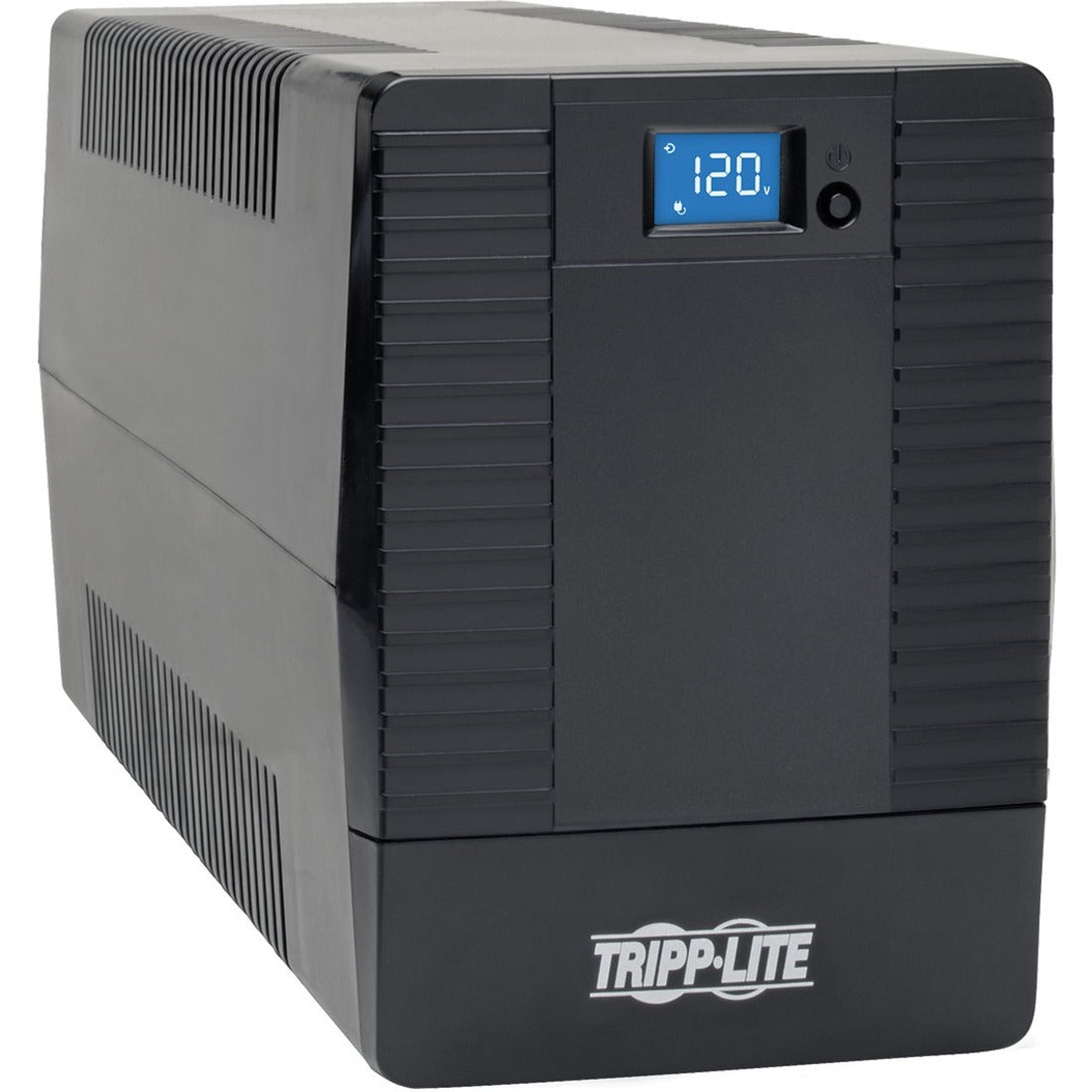

OMNIVS1200LCD Tripp Lite series OMNIVS1200LCD 1200VA Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: OMNIVS1200LCD
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: OmniVS
Product Model: OMNIVS1200LCD
Product Name: OMNIVS1200LCD 1200VA Tower UPS
Marketing Information:

1200VA/600W/120V Battery Backup for PCs, Home Theater or Digital Signage

This 120V UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can destroy data or damage valuable electronics. It is ideal for protecting home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.

Allows Time to Back Up Critical Files During a Blackout

Battery backup allows you to work through short power failures and gives you time to save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but this line-interactive UPS system can keep an energy-efficient desktop computer with small LCD monitor powered as long as 88 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backu
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Number of Surge-only Outlets: 2
Dataline Protection: RJ-11,RJ-45
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Greater than 95% efficiency - GREEN UPS
Application/Usage: Digital Signage,Security System,Home Theater,Home/Office,Media Center,Commercial,Computer,Router,Printer,TV,Blu-ray Player,Gaming Console,ATM,Speaker,Desktop Computer,Monitor

Power Description

Load Capacity (VA): 1.20 kVA
Load Capacity (Watt): 600 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC,110 V AC,115 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 316 J

Management

Alarm: Low Battery,Fault,Overload,Replace Battery

Controls/Indicators

Status Indicators:

Front Panel LCD Display:

• Input voltage
• Output voltage
• Load percentage
• Battery charge percentage
• Overload status

Interfaces/Ports

USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 12 V DC
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 12 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 32808.40 ft (10000000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 25.30 BTU/h

Physical Characteristics

Height: 7.52" (191 mm)
Width: 5.51" (140 mm)
Depth: 12.01" (305 mm)
Form Factor: Tower
Weight (Approximate): 19.20 lb (8710 g)

Miscellaneous

Package Contents:

• OMNIVS1200LCD 1200VA Tower UPS
• USB Cable
• Owner's Manual

Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
