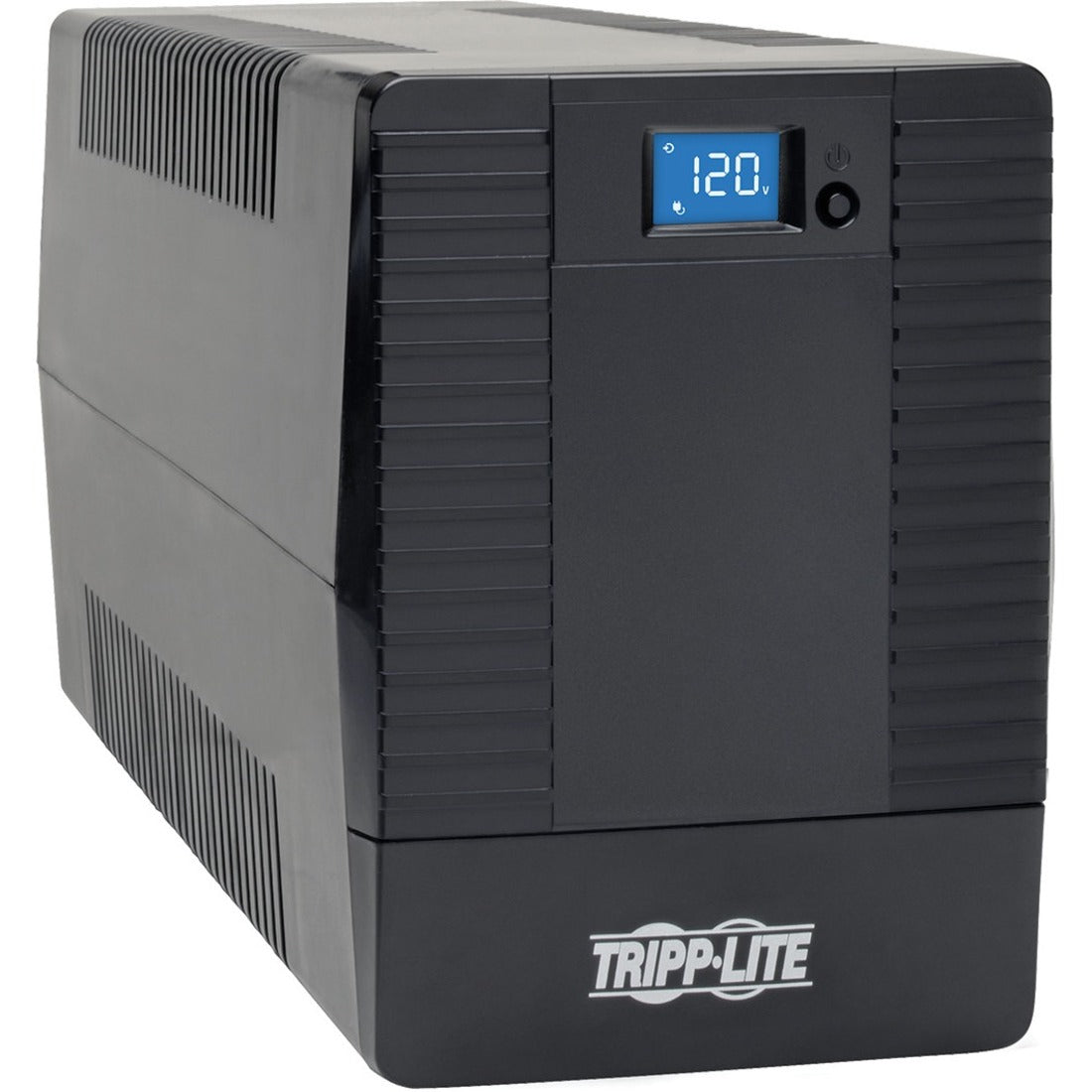

OMNIVS1500LCD Tripp Lite series OMNIVS1500LCD 1440VA Tower UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: OMNIVS1500LCD
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Line: OmniVS
Product Model: OMNIVS1500LCD
Product Name: OMNIVS1500LCD 1440VA Tower UPS
Marketing Information:

1440VA/900W/120V Battery Backup for PC Networks, Security Systems or Digital Signage

The OmniVS® line-interactive OMNIVS1500LCD UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.

Allows Time to Back Up Critical Files During a Blackout

Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as two ho
Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Number of Surge-only Outlets: 2
Transfer Time: 6 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Greater than 95% efficiency - GREEN UPS
Application/Usage: Network,Digital Signage,Security System,SOHO Networking Device,Home Theater,Home/Office,Media Center,Commercial,Computer,Router,Printer,TV,Blu-ray Player,Gaming Console,ATM,Speaker,Desktop,Monitor

Power Description

Load Capacity (VA): 1.44 kVA
Load Capacity (Watt): 900 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC,110 V AC,115 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 316 J

Management

Alarm: Low Battery,Fault,Overload,Replace Battery

Controls/Indicators

Status Indicators:

Front Panel LCD Display:

• Input voltage
• Output voltage
• Load percentage
• Battery charge percentage
• Overload status

Interfaces/Ports

Serial Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

DC System Voltage: 12 V DC
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 6 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Elevation: 9842.52 ft (3000000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Maximum Operating Temperature: 104°F (40°C)
Thermal Dissipation: 14 BTU/h

Physical Characteristics

Height: 7.52" (191 mm)
Width: 5.51" (140 mm)
Depth: 15" (381 mm)
Form Factor: Tower
Weight (Approximate): 24.29 lb (11020 g)

Miscellaneous

Package Contents:

• OMNIVS1500LCD 1440VA Tower UPS
• USB Cable
• DB9 Cable
• Owner's Manual

Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty: 3 Year
