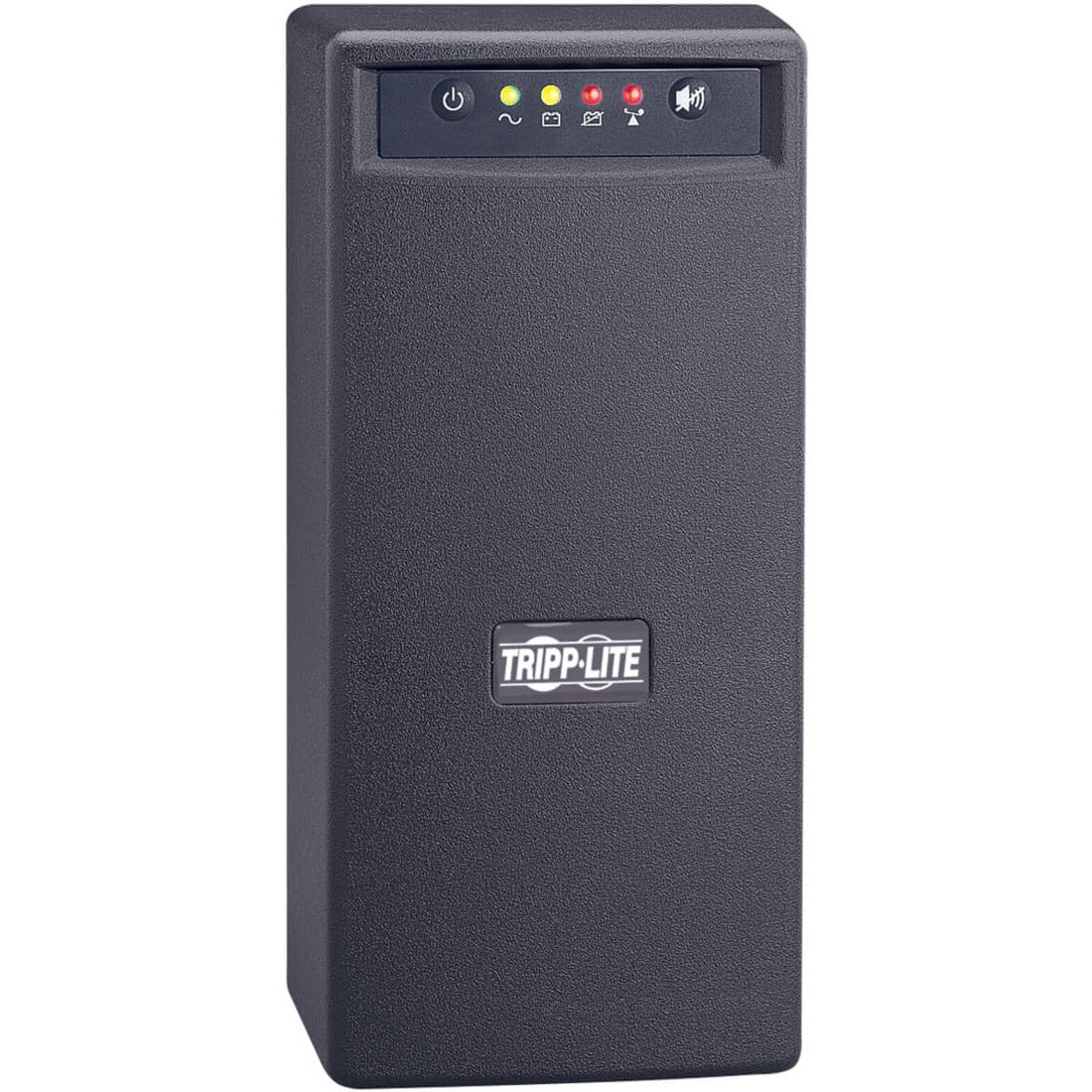

OMNIVS800 Tripp Lite series OMNIVS800 800VA UPS

General Information

Manufacturer: Eaton Corporation
Manufacturer Part Number: OMNIVS800
Manufacturer Website Address: http://www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name: Tripp Lite series
Product Series: VS
Product Name: OMNIVS800 800VA UPS
Marketing Information:

Tripp Lite's OMNIVS800 line interactive UPS system offers voltage regulation, surge suppression and long lasting battery support for personal computers, inter-networking equipment and other sensitive electronics. Internal UPS circuits support entry level PC systems for up to 60 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Offers complete desktop power protection in an attractive black tower configuration. Includes 6 battery supported outlets for computer, monitor and one vital system peripheral, plus 1 additional surge suppression-only outlet for printers and other system accessories not requiring battery support. HID-compliant USB port enables optional unattended system shutdown without data loss in case of extended power failure; USB cable included. HID-compliant USB port also enables direct integration with built-in power ma
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R

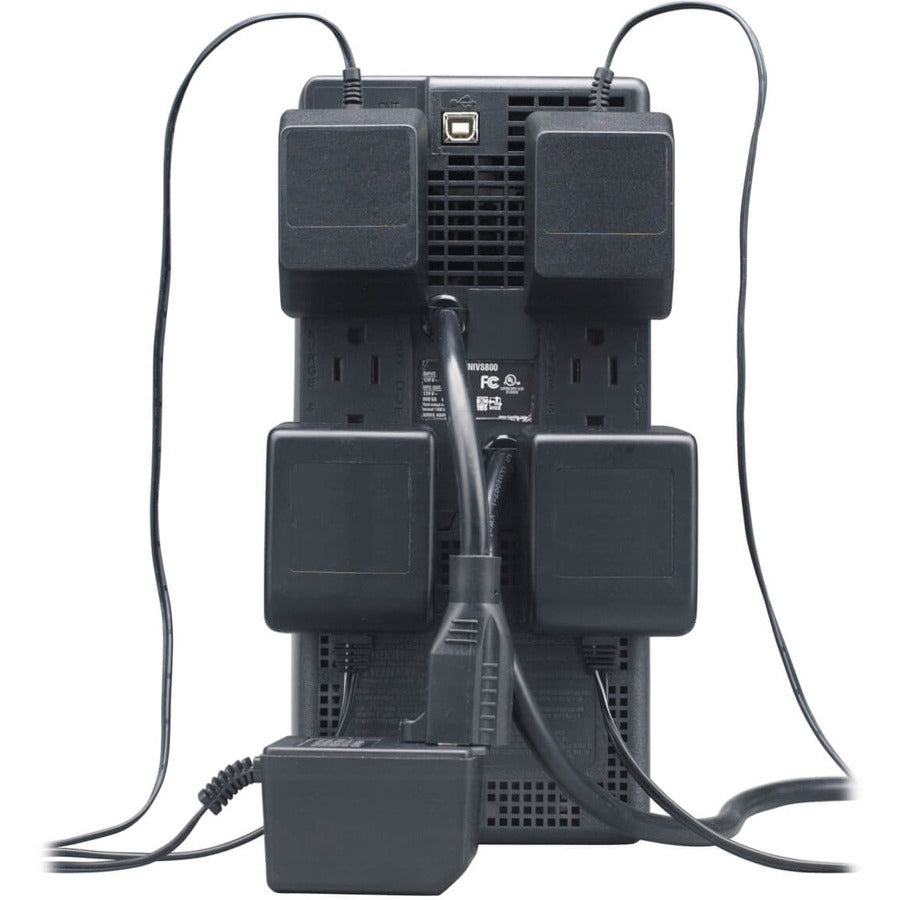

Receptacle Detail: 6 x NEMA 5-15R,1 x NEMA 5-15R
Dataline Protection: RJ-45
Cord Length: 6 ft (1.83 m)

Power Description

Load Capacity (VA): 800 VA
Load Capacity (Watt): 475 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Waveform Type: Pulse-width Modulated Sine Wave
Surge Energy Rating: 480 J

Management

Alarm: On Battery,Utility Power Failure

Controls/Indicators

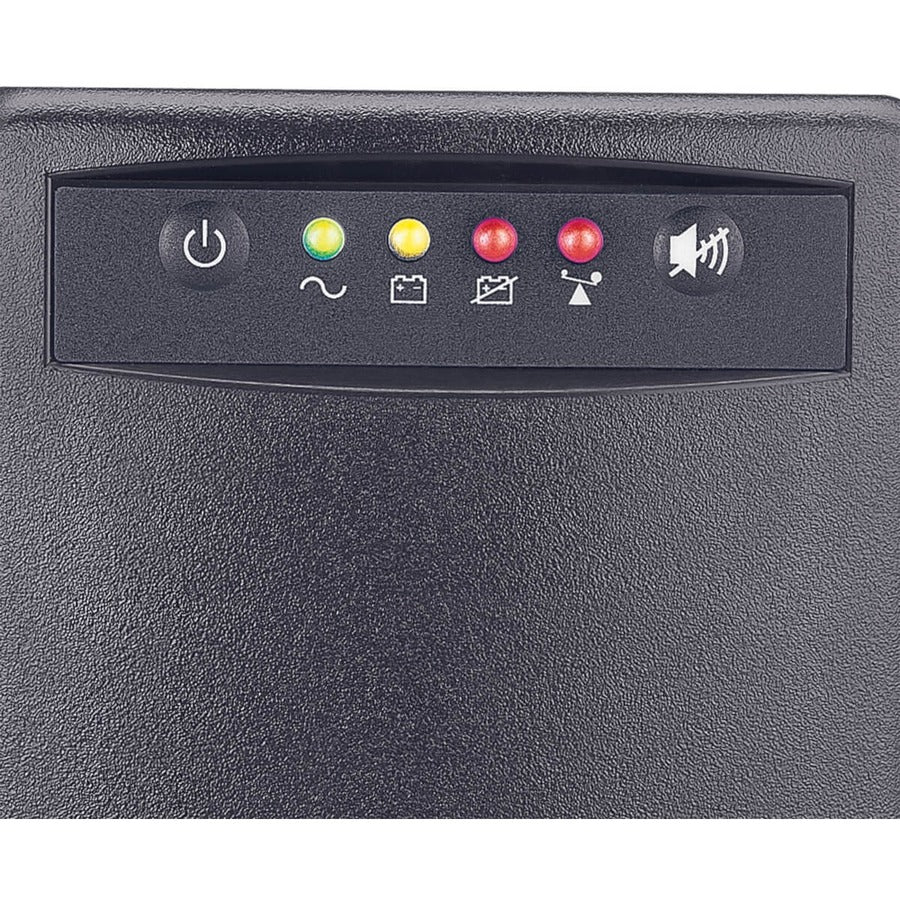

Status Indicators:

• Line Power
• Battery Power
• Battery Low/Replace
• Voltage Regulation operation

Interfaces/Ports

USB: Yes

Battery Information

Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 3.50 Minute
Backup/Run Time (Half Load): 11.50 Minute
Battery Life: 6 Year
Typical Battery Recharge Time: 4 Hour

Environmental Conditions

Maximum Operating Temperature: 122°F (50°C)

Physical Characteristics

Product Color: Black
Height: 10.75" (273.05 mm)
Width: 5.25" (133.35 mm)
Depth: 7.25" (184.15 mm)
Form Factor: Tower
Weight (Approximate): 21.20 lb (9616.16 g)

Miscellaneous

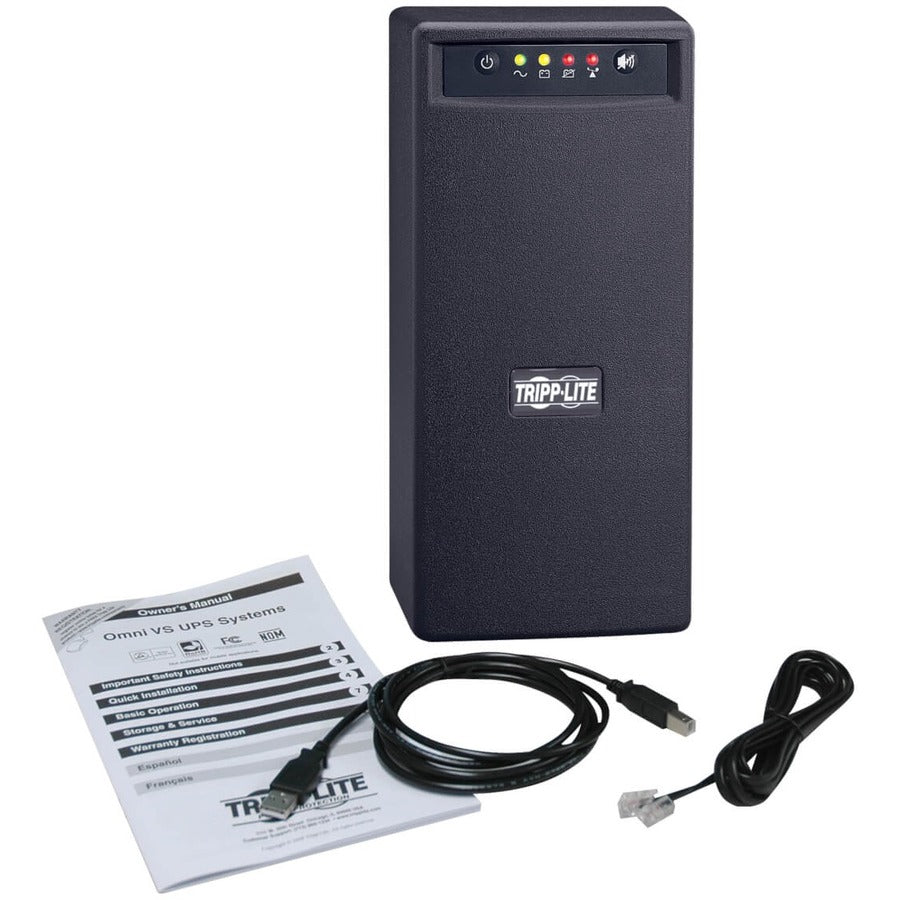

Package Contents:

• OMNIVS800 800VA UPS
• USB and telephone cable
• User manual with warranty information

Country of Origin: Taiwan

Warranty

Limited Warranty: 3 Year
