Description
Manufacturer-Brochure
General Information
Manufacturer: CyberPower Systems, IncManufacturer Part Number: OR1500LCDRT2U
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: Smart App LCD UPS
Product Model: OR1500LCDRT2U

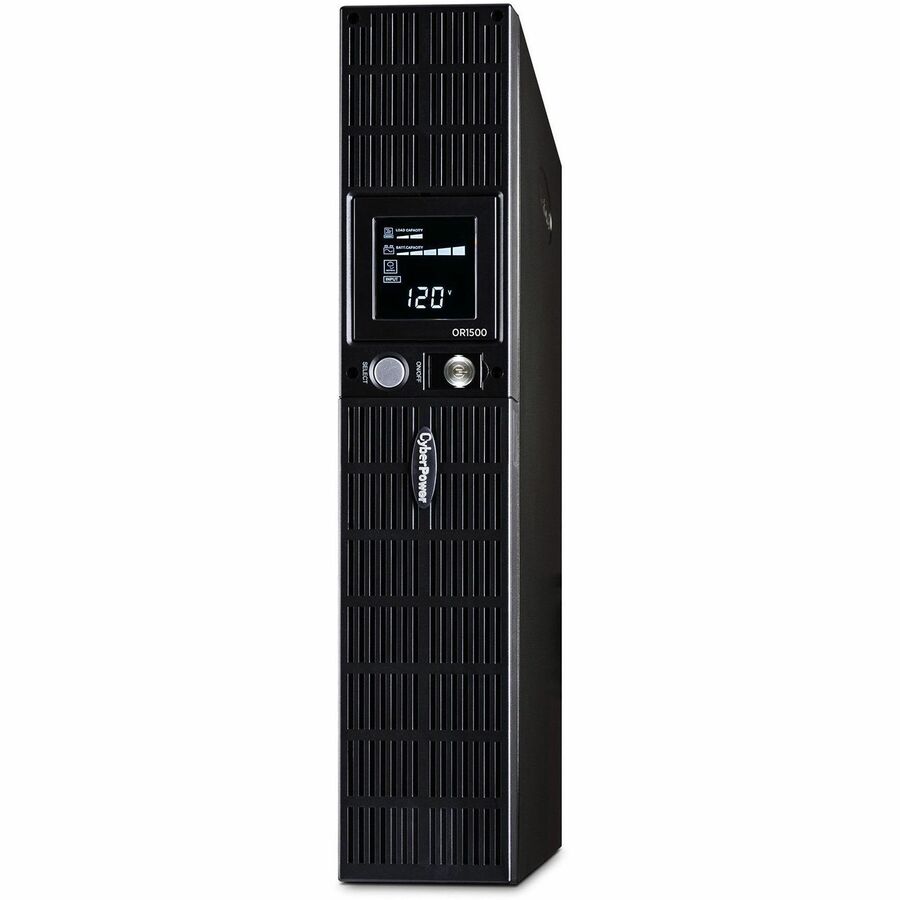

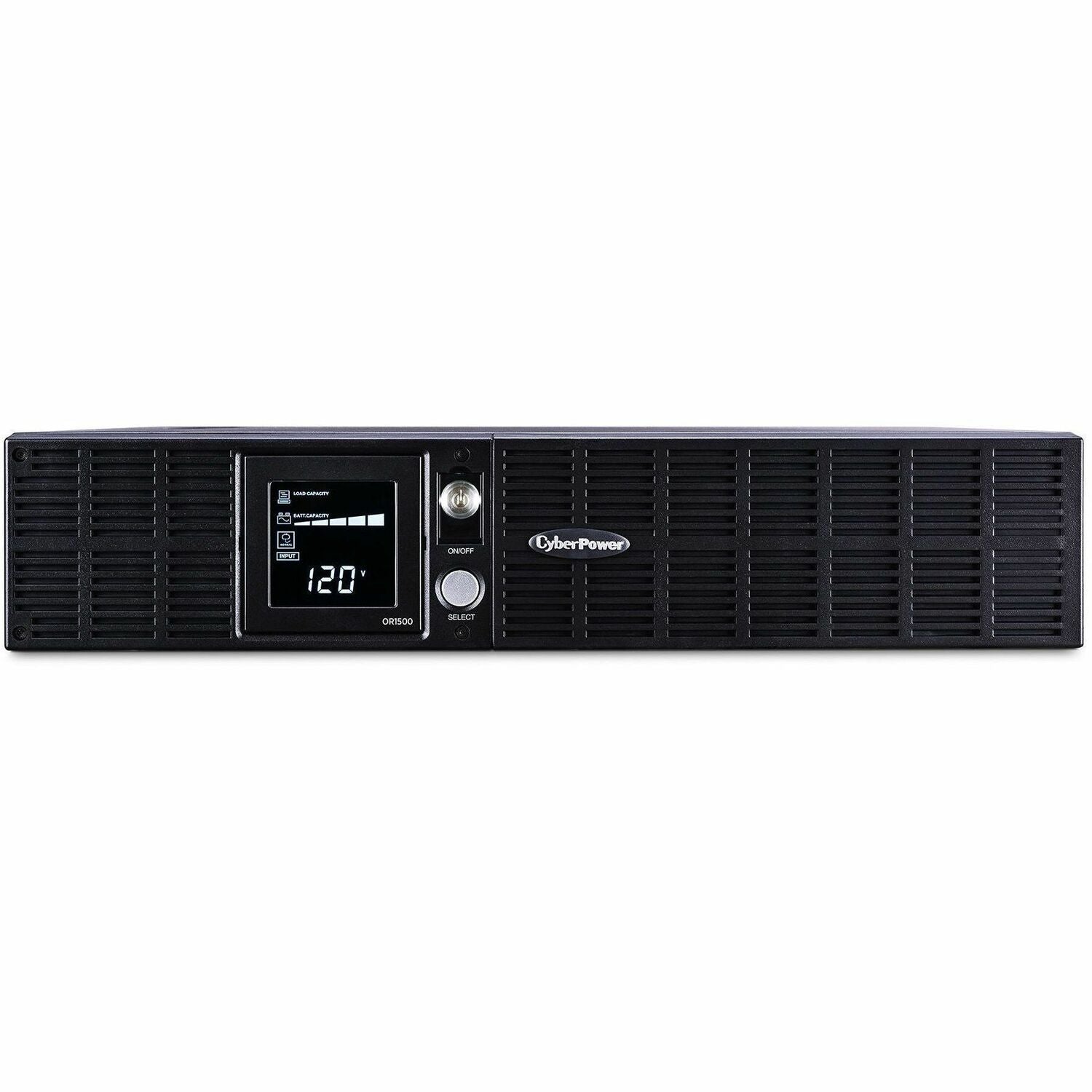

Product Name: OR1500LCDRT2U Smart App LCD UPS Systems
Marketing Information:
A rack/tower UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRT2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR1500LCDRT2U comes with a three-year warranty and a
- 300,000 Connected Equipment Guarantee.
Product Type: Line-interactive UPS
Technical Information
AVR: YesPlug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 8 x NEMA 5-15R
Number of Battery & Surge Outlets: 8
Transfer Time: 4 ms
Dataline Protection: RJ-11,RJ-45,RG-6
Overload Protection: Yes
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS™ Bypass Technology
Application/Usage: Server,Workstation,Network Device,Telecommunication
Cord Length: 10 ft (3048 mm)
Circuit Breaker Current Rating: 15 A
Power Description
Load Capacity (VA): 1.50 kVALoad Capacity (Watt): 900 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Input Frequency: 47 Hz,63 Hz
Output Frequency: 50 Hz,60 Hz
Waveform Type: Simulated Sine Wave
Surge Energy Rating: 1840 J
Output Power Factor: 0.6
Display & Graphics
Display: LCDManagement
Network Management: SNMP/HTTP Remote MonitoringAlarm: Battery Mode,Low Battery,On Battery,Overload,UPS Fault,Battery Missing
Controls/Indicators
Status Indicators:- Power On
- Wiring Fault
Interfaces/Ports
Serial Port: YesUSB: Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 4Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 7000 mAh
Backup/Run Time (Full Load): 6 Minute
Backup/Run Time (Half Load): 18 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 95°F (35°C)Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Physical Characteristics
Form Factor: Rack/TowerRack Height: 2U
Height: 3.50" (88.90 mm)
Width: 17.25" (438.15 mm)
Depth: 15.75" (400.05 mm)
Weight (Approximate): 48.40 lb (21953.87 g)
Miscellaneous
Package Contents:- Smart App Intelligent LCD OR1500LCDRT2U 1500VA UPS LCD RT
- PowerPanel Business Edition Software CD
- User Manual
- USB Cable
- Serial Cable
- Registration Card
Software Included: PowerPanel Business Edition Software
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
