Description
Manufacturer-Brochure
General Information
Manufacturer: CyberPower Systems, IncManufacturer Part Number: OR2200PFCRT2U
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: PFC Sinewave UPS
Product Model: OR2200PFCRT2U

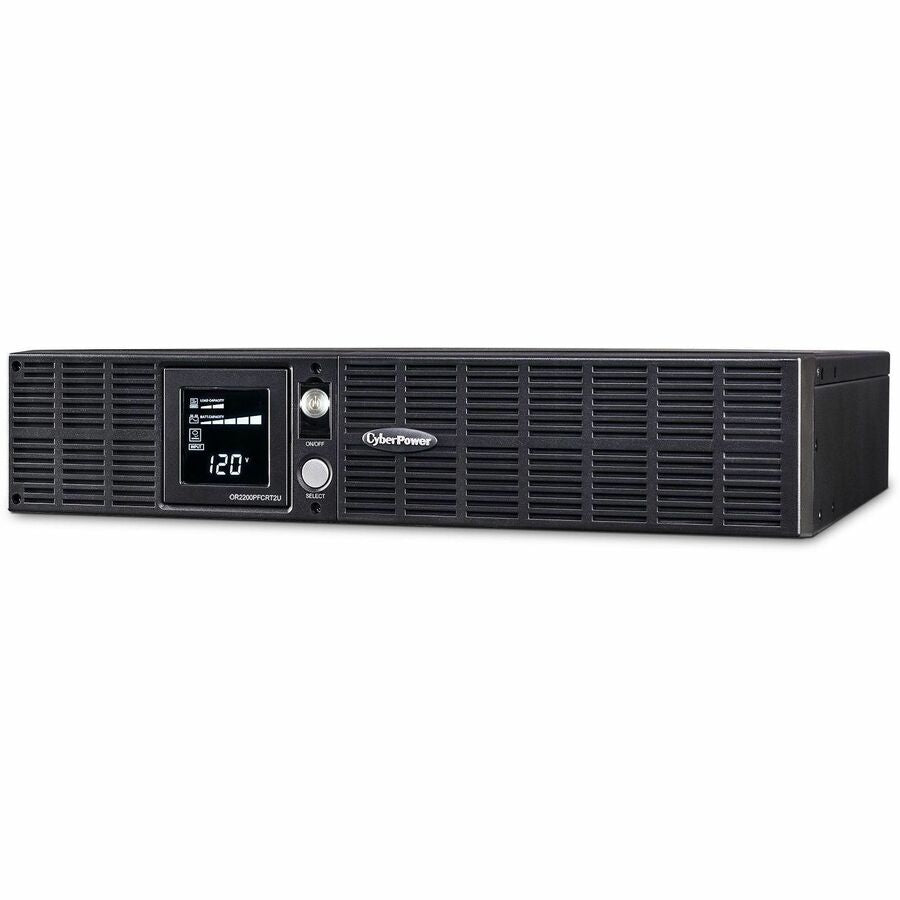

Product Name: OR2200PFCRT2U PFC Sinewave UPS Systems
Marketing Information:

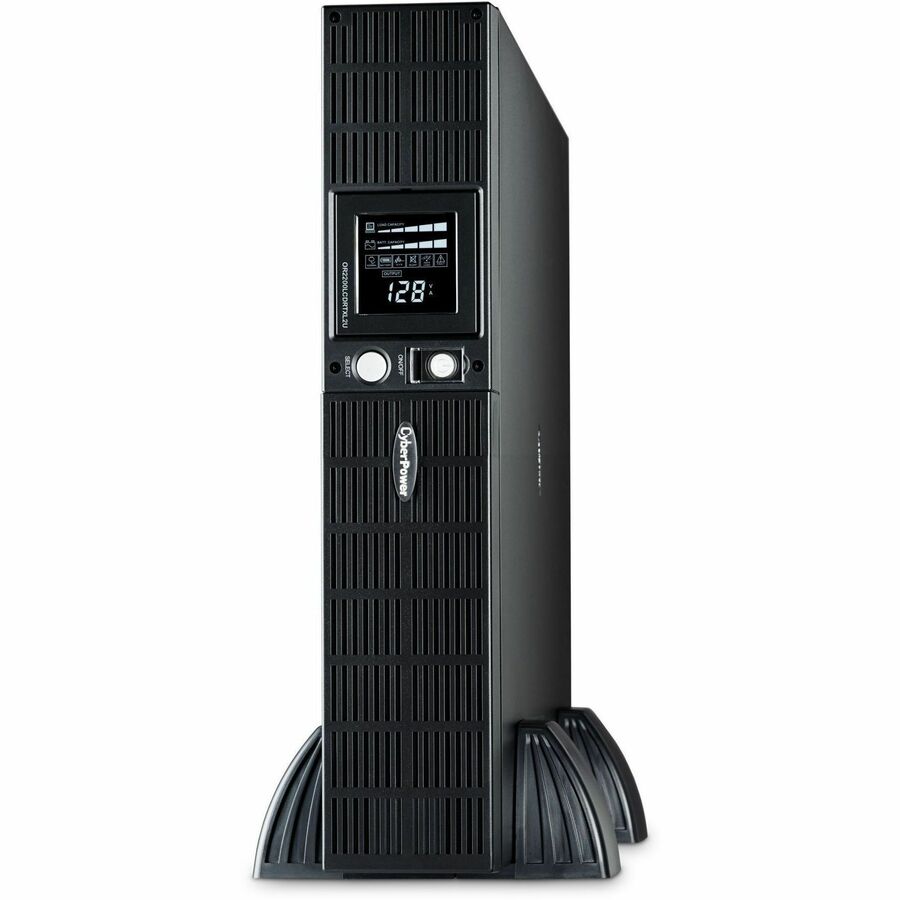

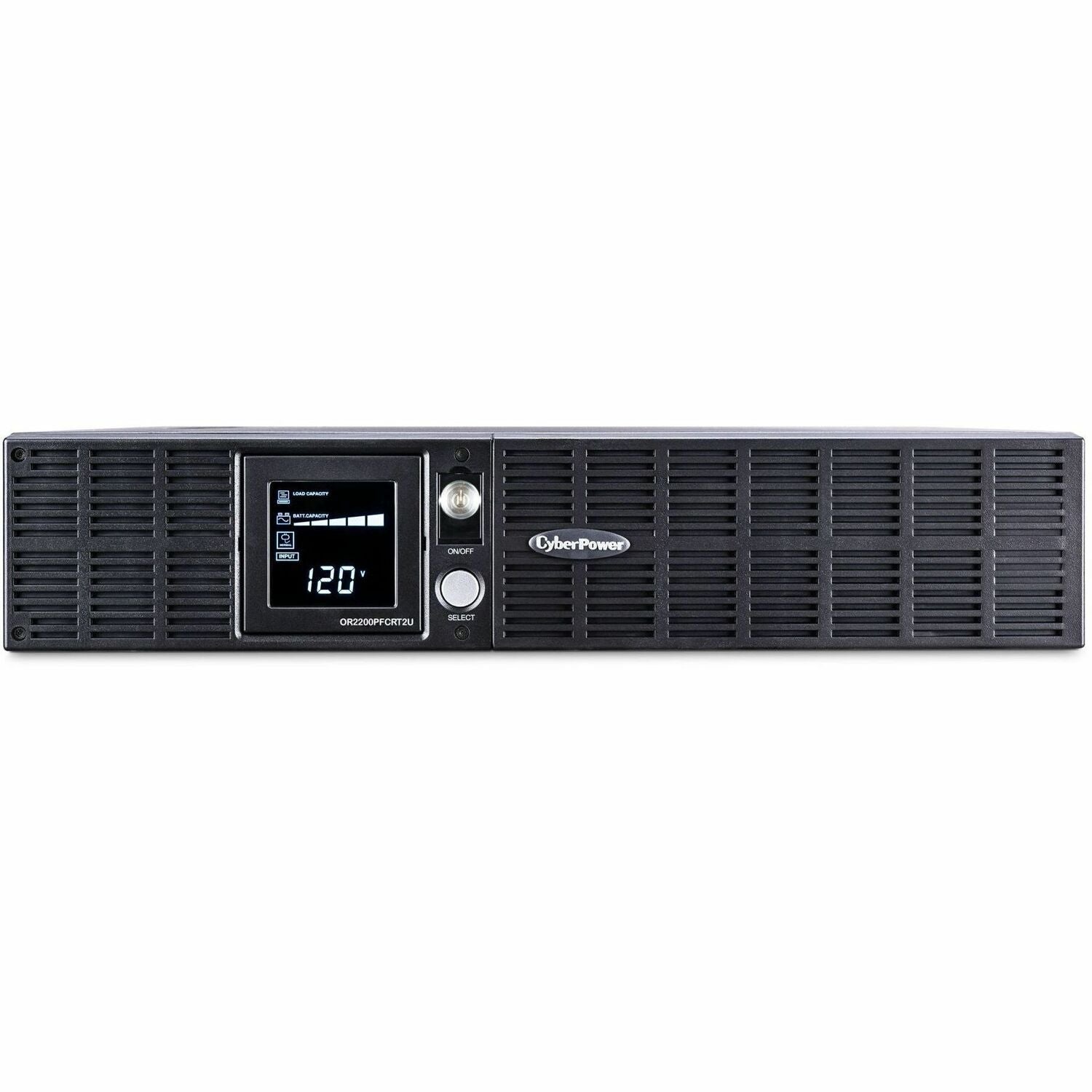

A rack/tower UPS with line interactive topology, the CyberPower PFC Sinewave OR2200PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring active PFC power source compatibility. The OR2200PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200PFCRT2U comes with a three-year warranty and a
- 300,000 Connected Equipment Guarantee.
Product Type: Line-interactive UPS
Technical Information

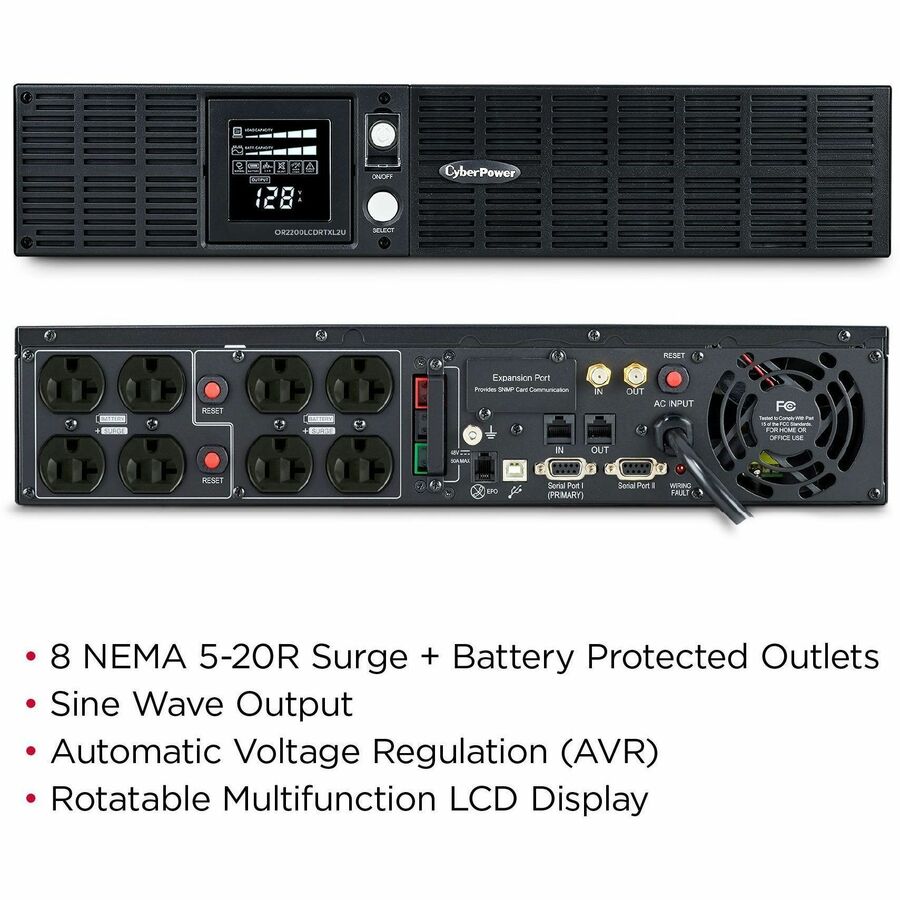

Plug/Connector Type: NEMA 5-20PReceptacle Type: NEMA 5-20R,NEMA 5-15R

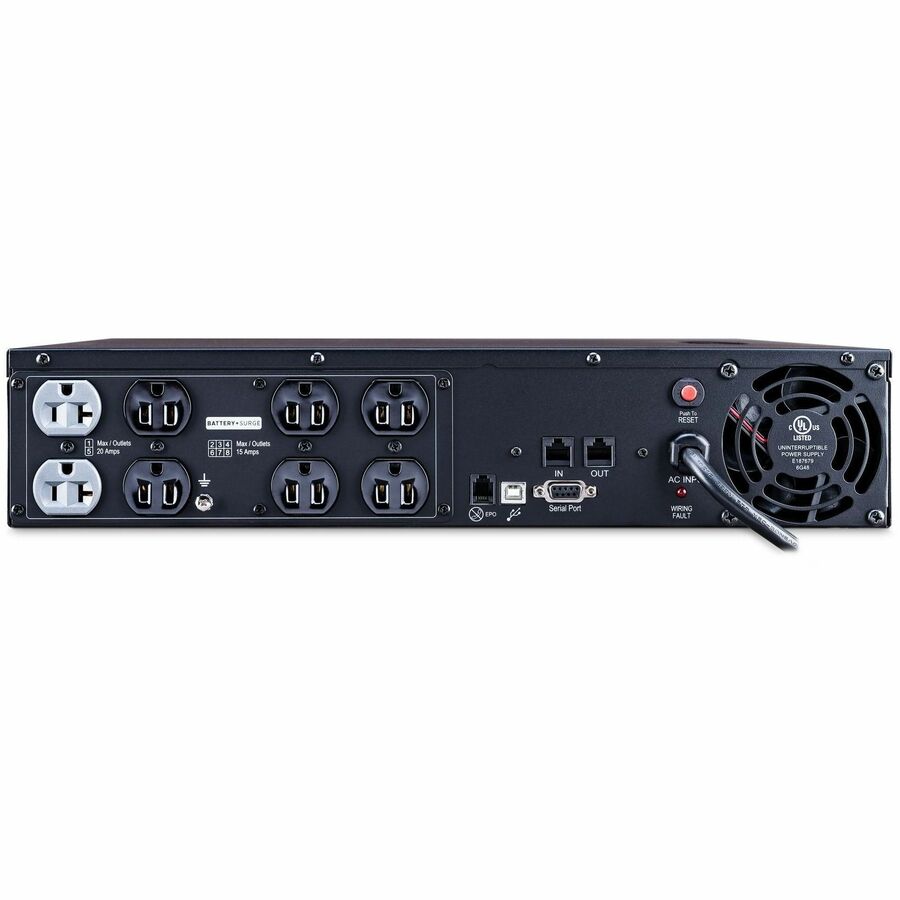

Receptacle Detail: 2 x NEMA 5-20R,6 x NEMA 5-15R
Dataline Protection: RJ-45,RJ-11
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Power Description
Load Capacity (VA): 2 kVALoad Capacity (Watt): 1.54 kW
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Waveform Type: Sine Wave
Controls/Indicators
Status Indicators:- Power On
- Wiring Fault
Interfaces/Ports
Serial Port: YesUSB: Yes
Battery Information
Number of Batteries: 4Battery Characteristics: Maintenance-free
Battery Chemistry: Lead Acid

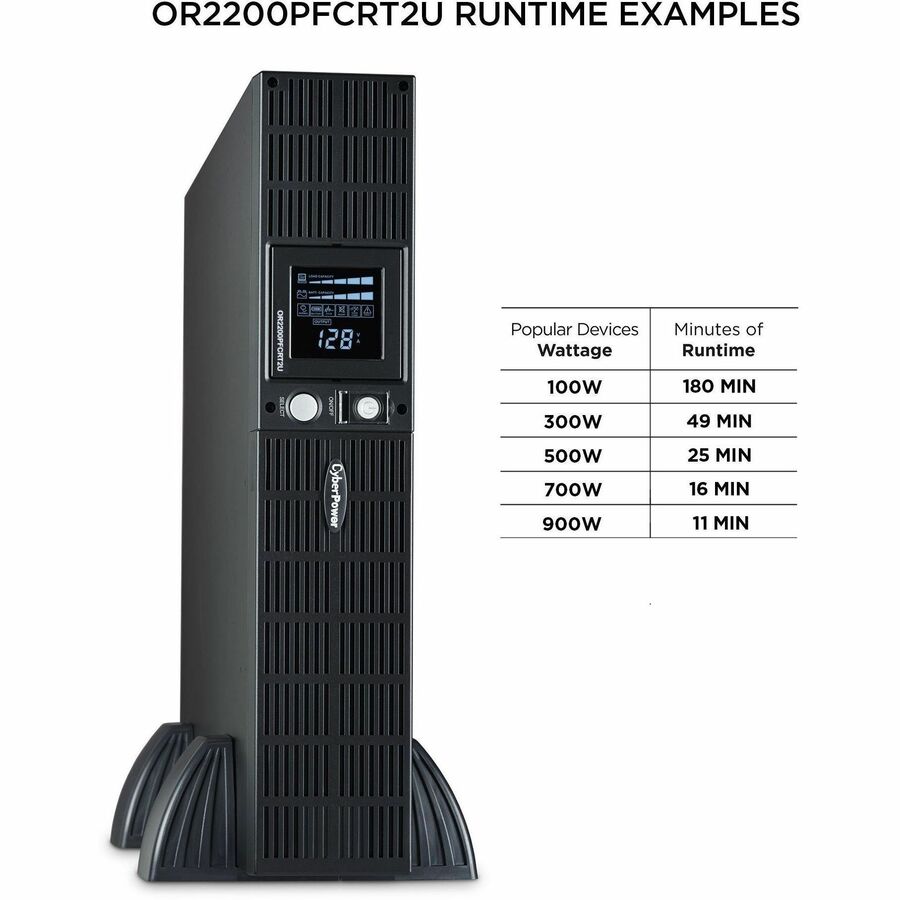

Backup/Run Time (Full Load): 4.50 Minute
Backup/Run Time (Half Load): 19.80 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 10 Hour
Physical Characteristics

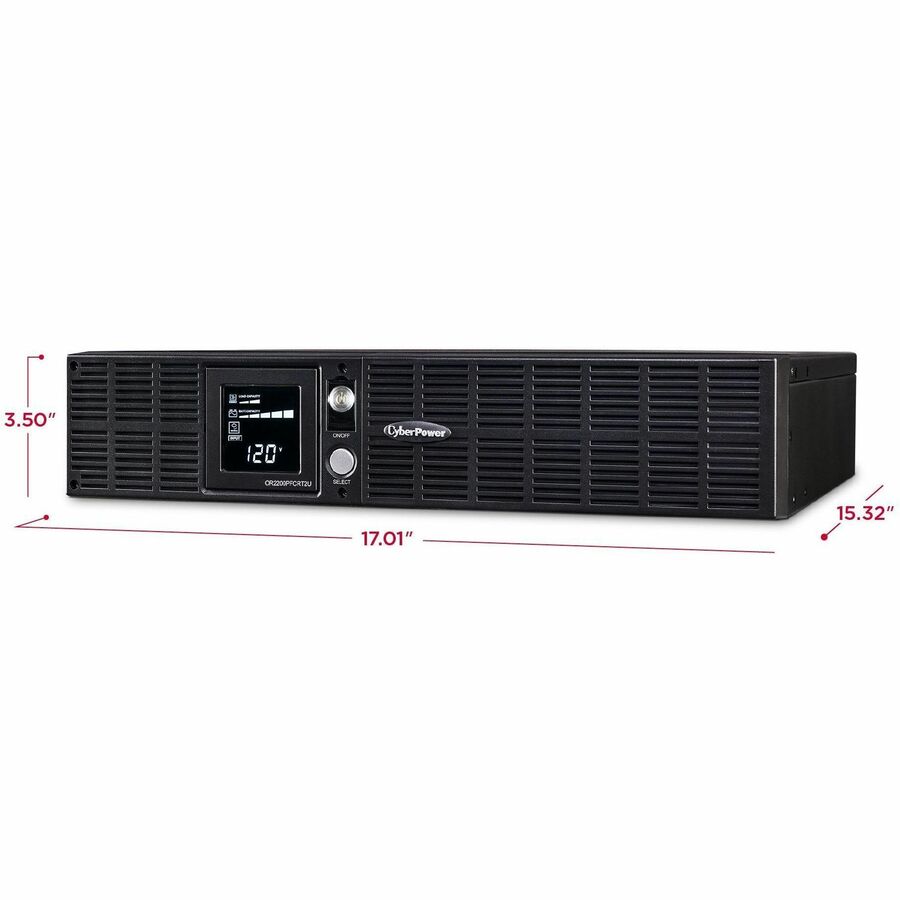

Height: 3.50" (88.90 mm)Width: 17.01" (432.05 mm)
Depth: 15.32" (389.13 mm)
Rack Height: 2U

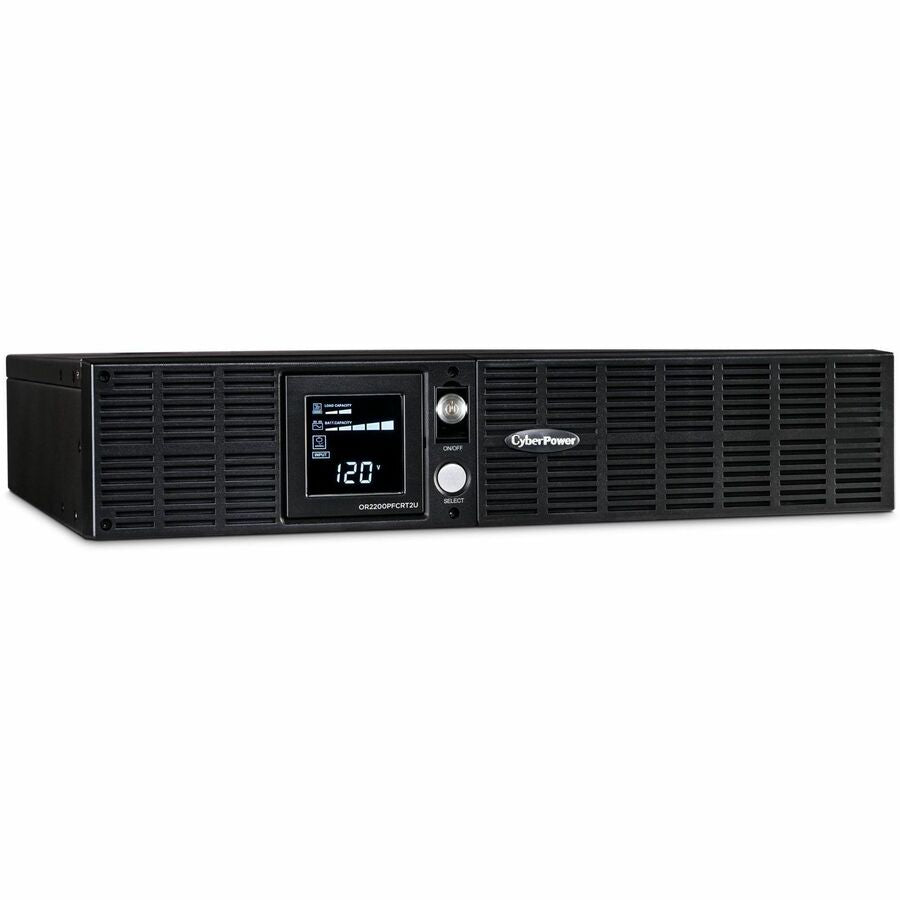

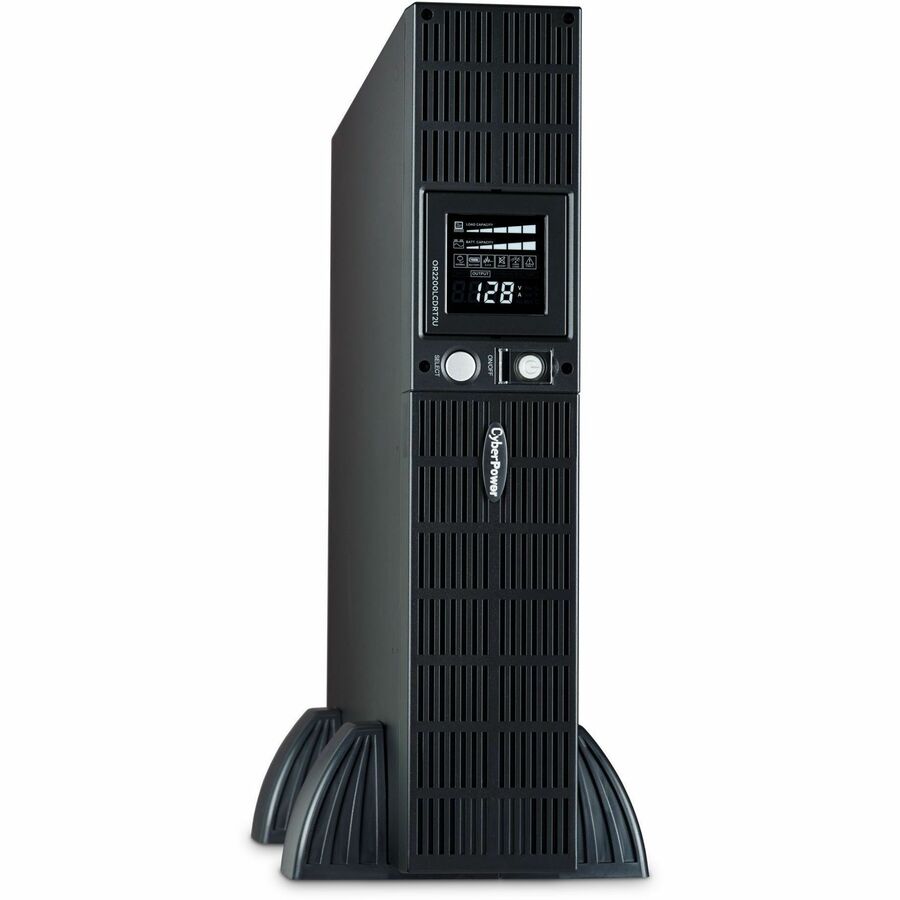

Form Factor: Rack/Tower
Weight (Approximate): 57.20 lb (25945.48 g)
Miscellaneous
Package Contents:- Intelligent LCD PFC Sinewave OR2200PFCRT2U Line-interactive UPS
- USB A-B Cable
- User's Manual
- Software Download Card
- Registration Info Card
Software Included: PowerPanel Business Edition Software
Energy Star: No
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
