Description
Manufacturer-Brochure
General Information
Manufacturer: CyberPower Systems, IncManufacturer Part Number: OR500LCDRM1U
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: Smart App LCD UPS
Product Model: OR500LCDRM1U

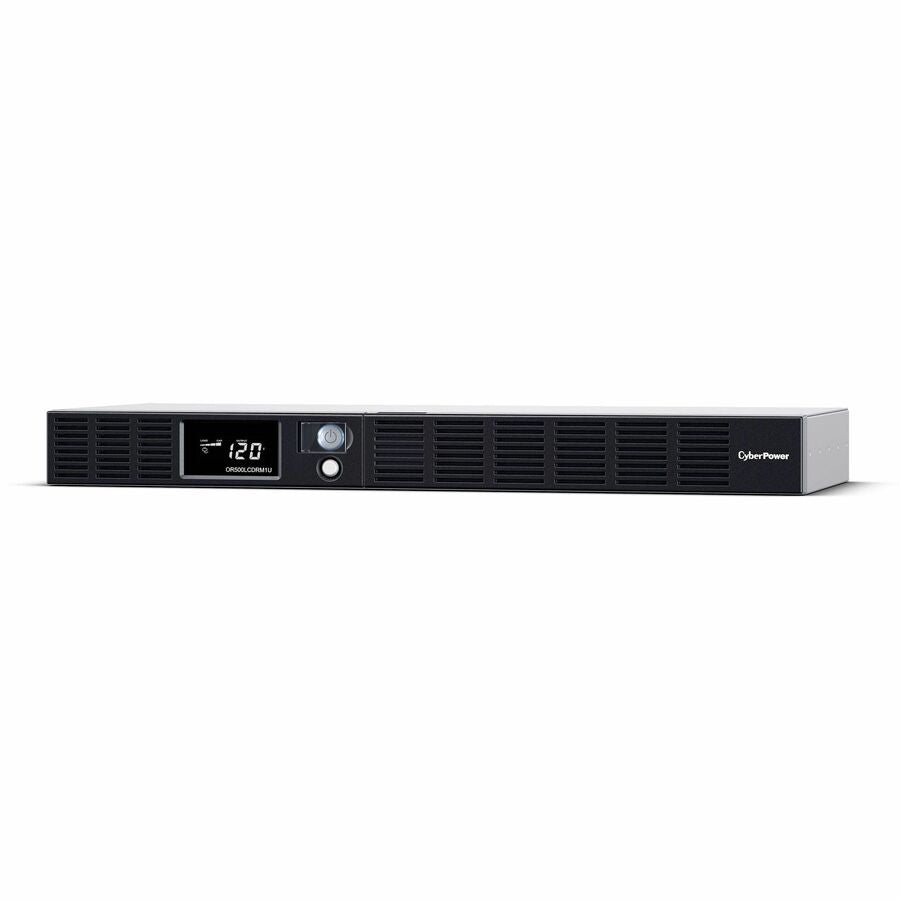

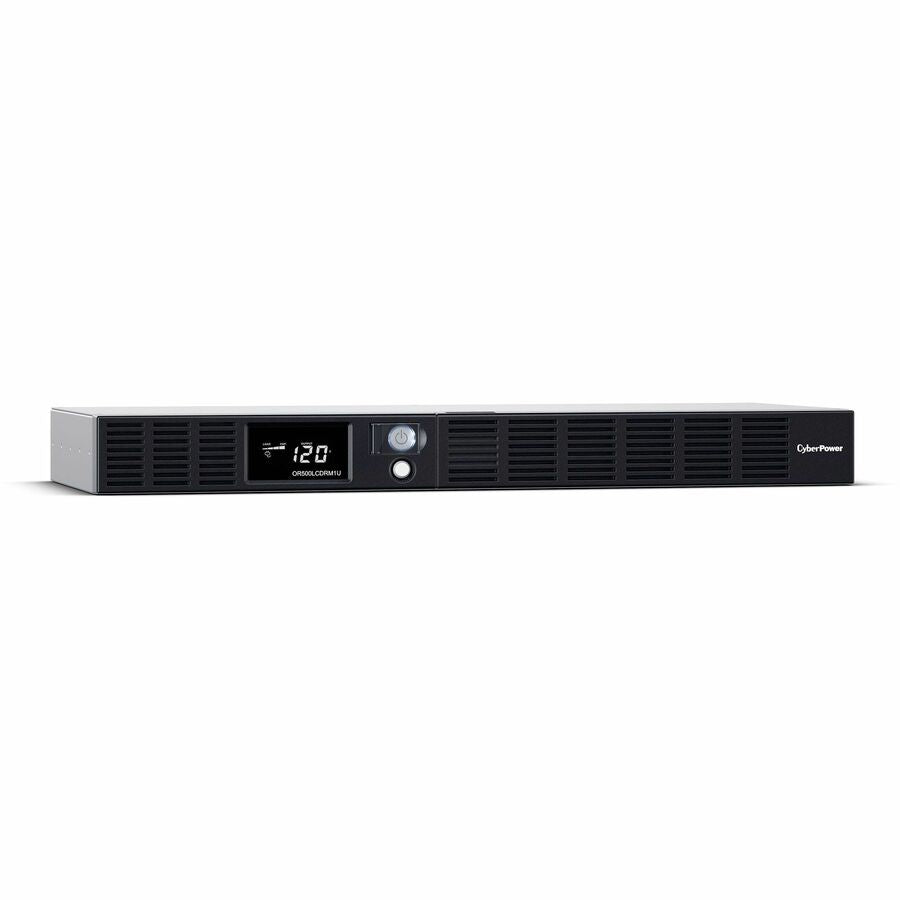

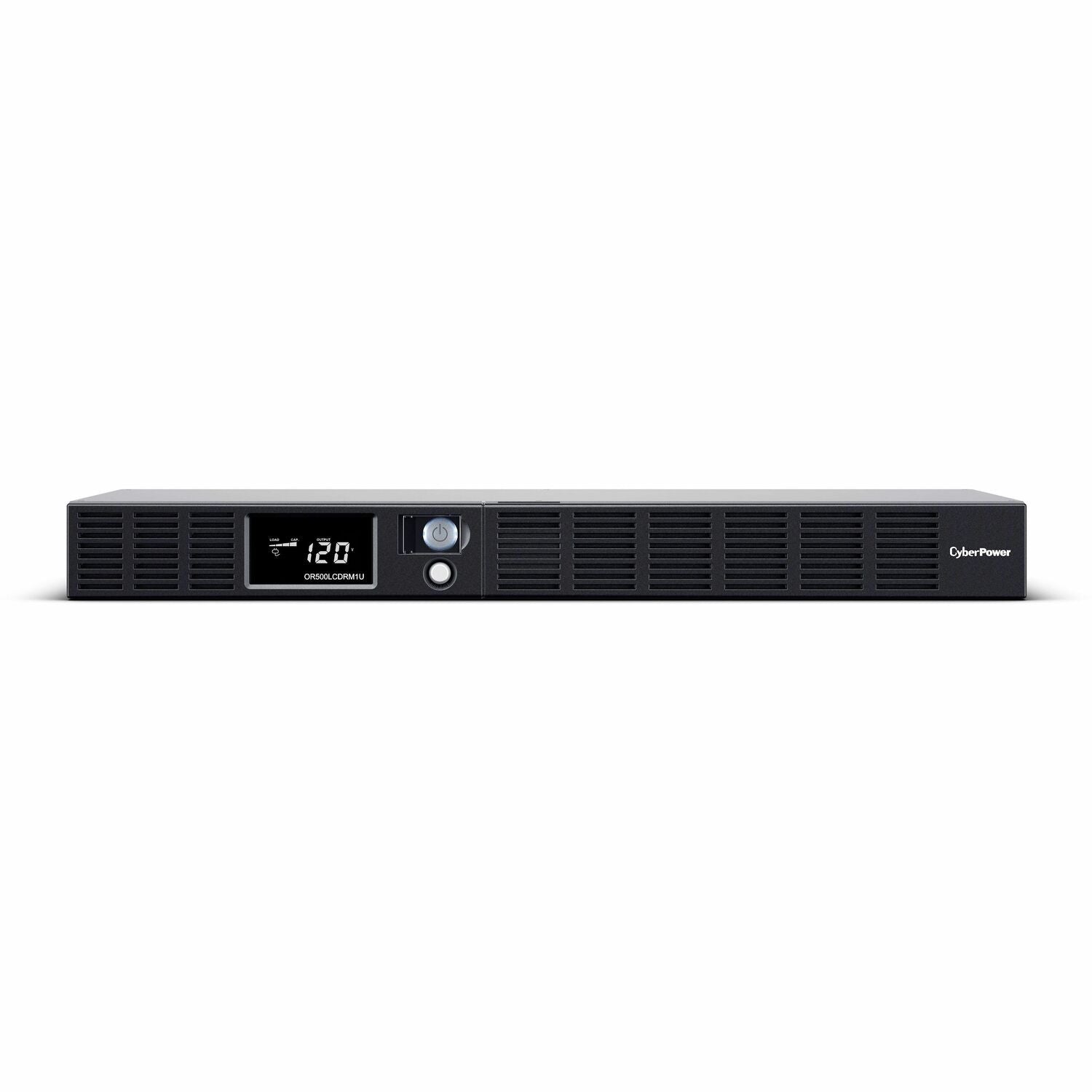

Product Name: OR500LCDRM1U Smart App LCD UPS Systems
Marketing Information:
A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR500LCDRM1U comes with a three-year warranty and a
- 300,000 Connected Equipment Guarantee.
Product Type: Line-interactive UPS
Technical Information
AVR: YesPlug/Connector Type: NEMA 5-15P
Receptacle Type: NEMA 5-15R

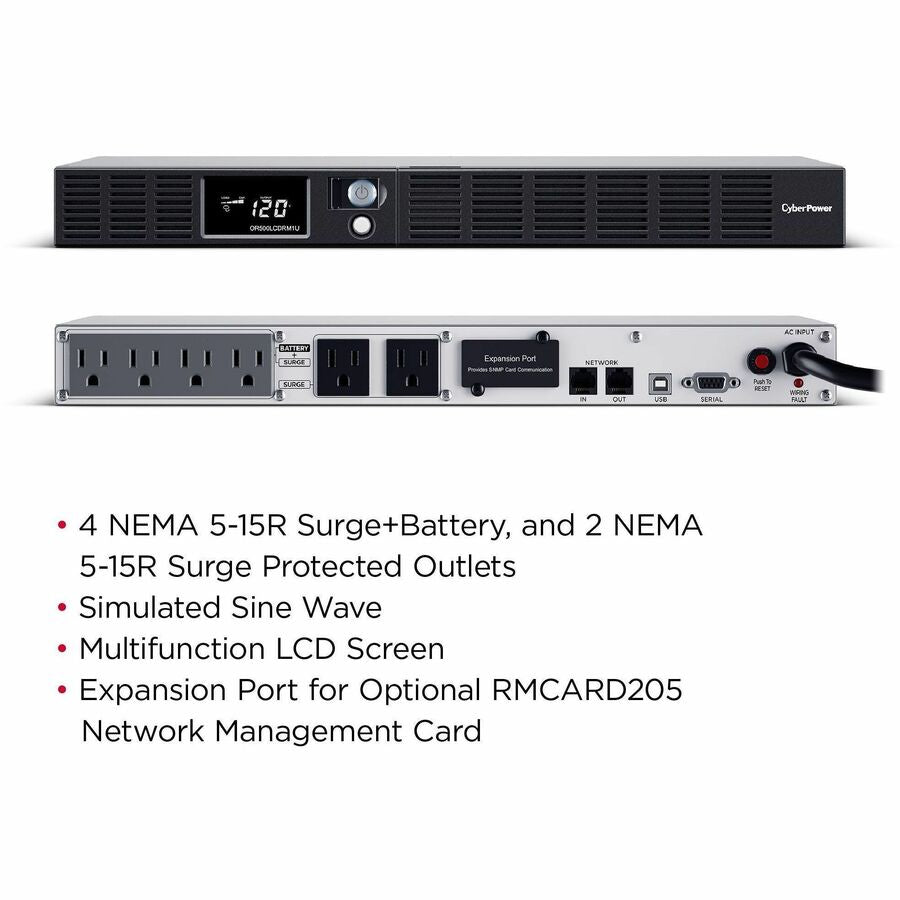

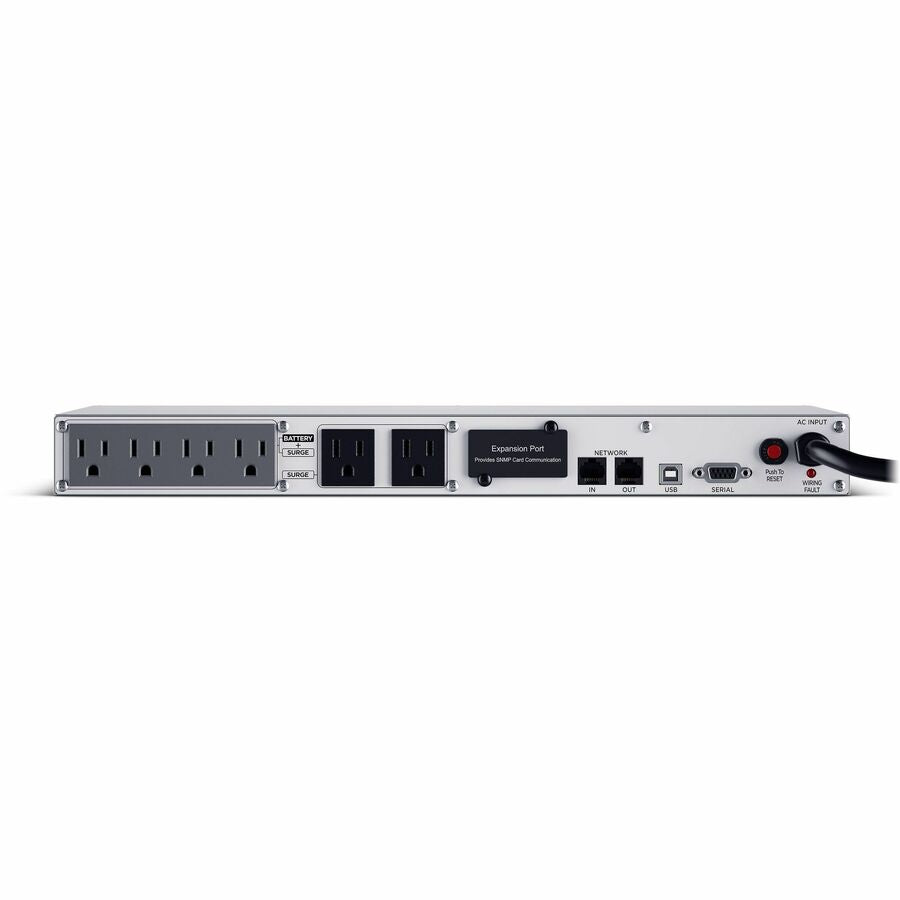

Receptacle Detail: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 2
Transfer Time: 8 ms
Dataline Protection: RJ-45,RJ-11
Protection Type: Dataline Surge,Black Out,AC Surge,Sag
Overload Protection: Yes
EMI/RFI Noise Filter: Yes
Energy Saving: GreenPower UPS™ Bypass Technology
Application/Usage: Server,Workstation,Network Device,Telecommunication
Power Description
Load Capacity (VA): 500 VAInput Voltage: 120 V AC
Input Voltage Range: 90 V AC - 140 V AC
Output Voltage: 120 V AC
Input Frequency: 63 Hz
Waveform Type: Simulated Sine Wave
Surge Energy Rating: 1150 J
Management
Alarm: On Battery,Battery Mode,OverloadControls/Indicators
Status Indicators:On Unit:
- Power On
- Wiring Fault
LCD Panel:
- Input Voltage
- Output Voltage
- Battery Capacity
- Load Level
- Runtime
- On Battery
- Overload
- Silent Mode
Interfaces/Ports
Serial Port: YesUSB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 2Battery Characteristics: Maintenance-free
Battery Chemistry: Lead Acid
Battery Size: 6V
Battery Capacity: 7000 mAh
Backup/Run Time (Full Load): 3 Minute
Backup/Run Time (Half Load): 12 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 104°F (40°C)Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 60" (1524 mm)
Storage Relative Humidity: 0% - 95%
Physical Characteristics
Product Color: BlackForm Factor: Rack-mountable

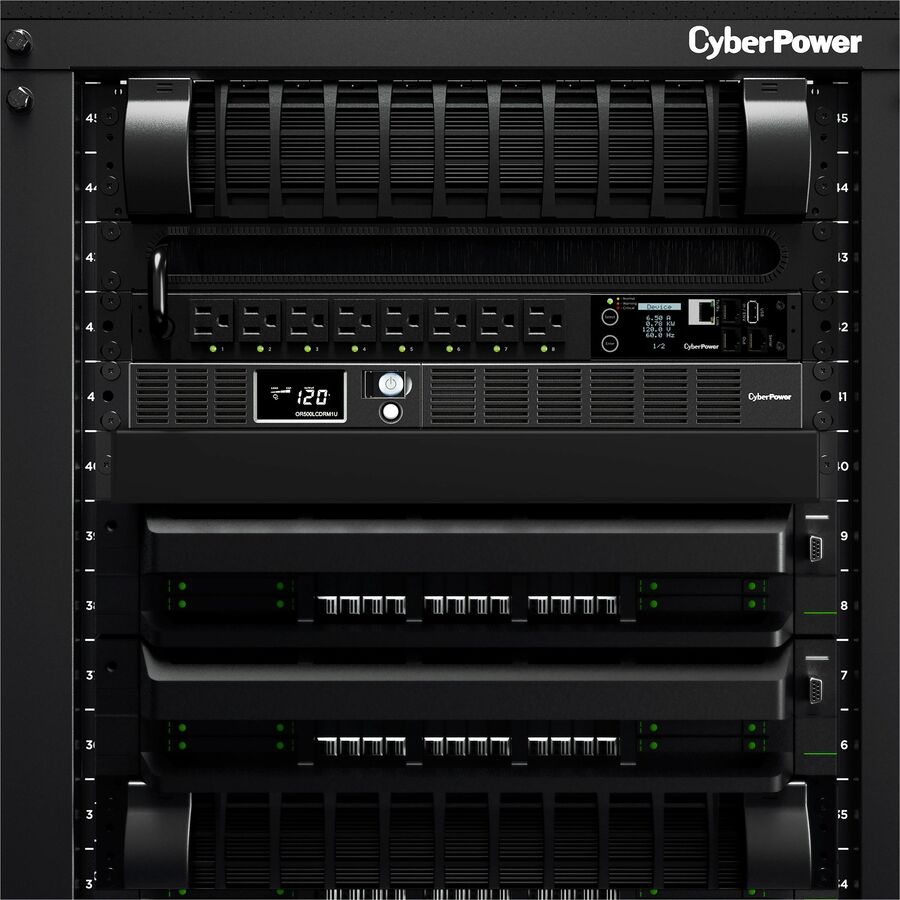

Rack Height: 1U

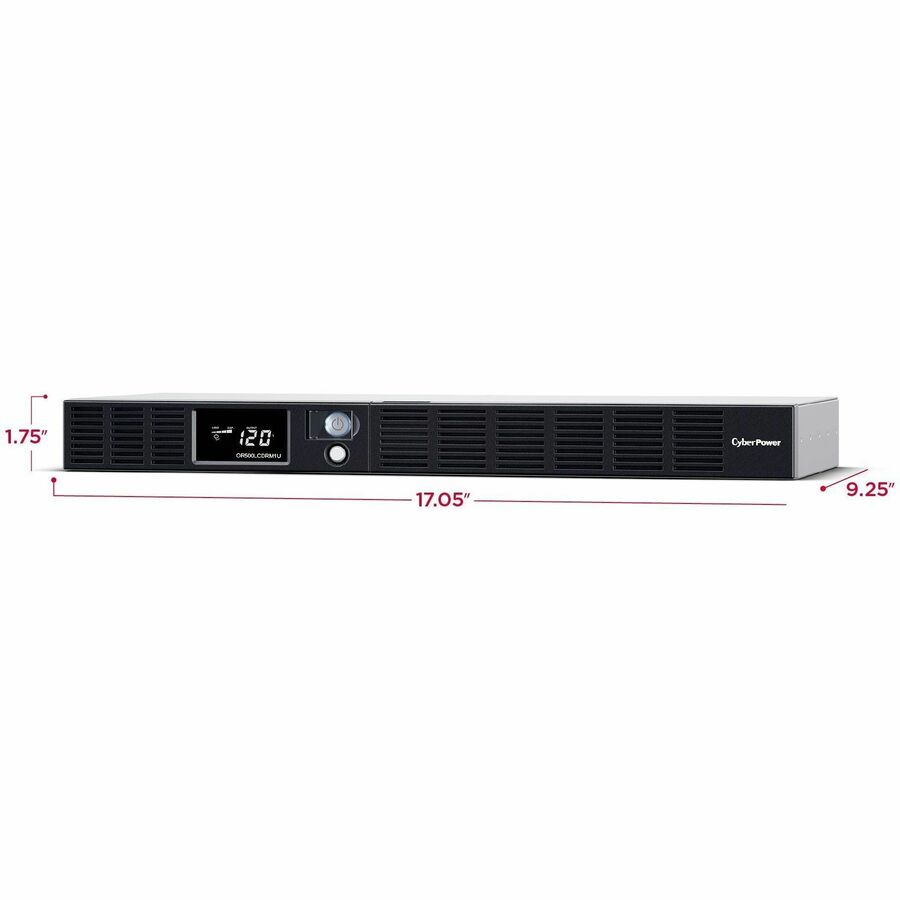

Height: 1.75" (44.45 mm)
Width: 17.05" (433.07 mm)
Depth: 9.25" (234.95 mm)
Weight (Approximate): 18 lb (8164.66 g)
Miscellaneous
Package Contents:- Smart App Intelligent LCD OR500LCDRM1U 500VA UPS
- Rack Ears (2)
- User Manual
- Power Management Software
- Warranty Card
- Serial Cable
- Phone Cable
- USB Cable
Software Included: PowerPanel® Business
Energy Star: Yes
Country of Origin: Philippines
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 YearAdditional Warranty Information:
CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.
